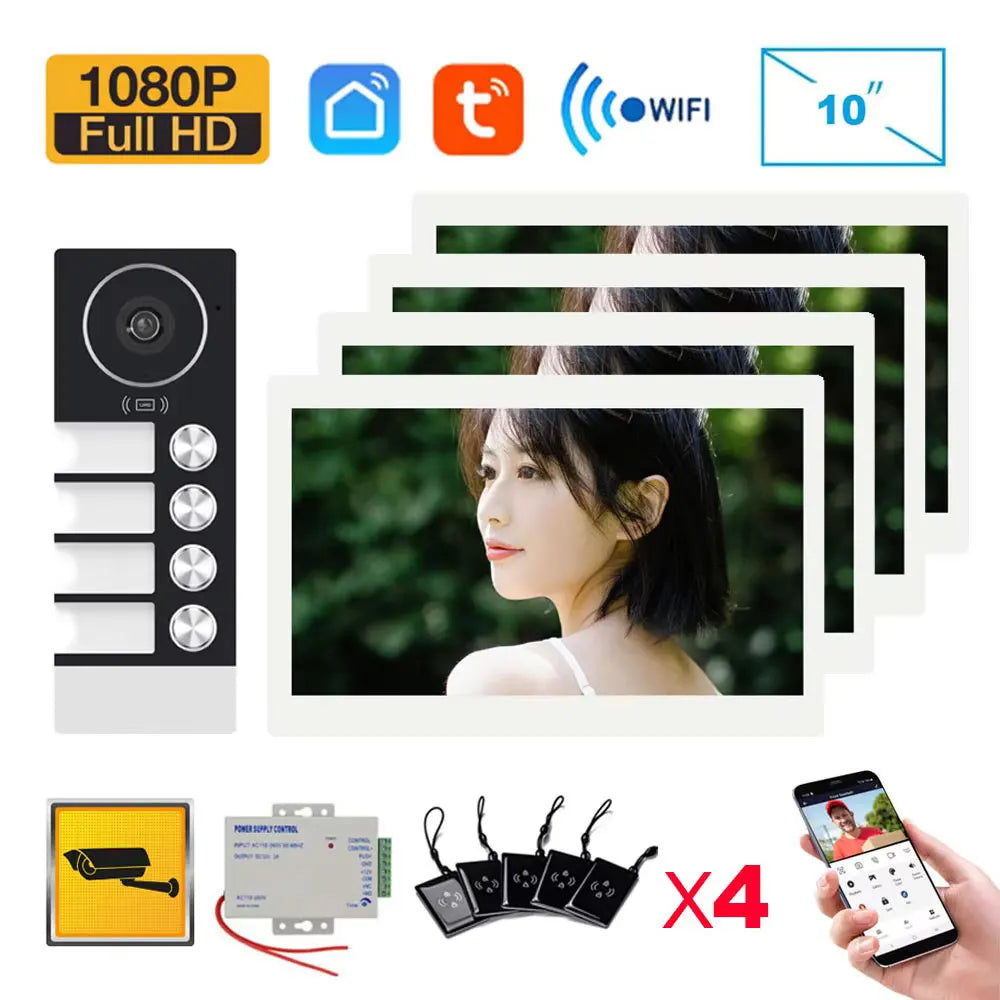

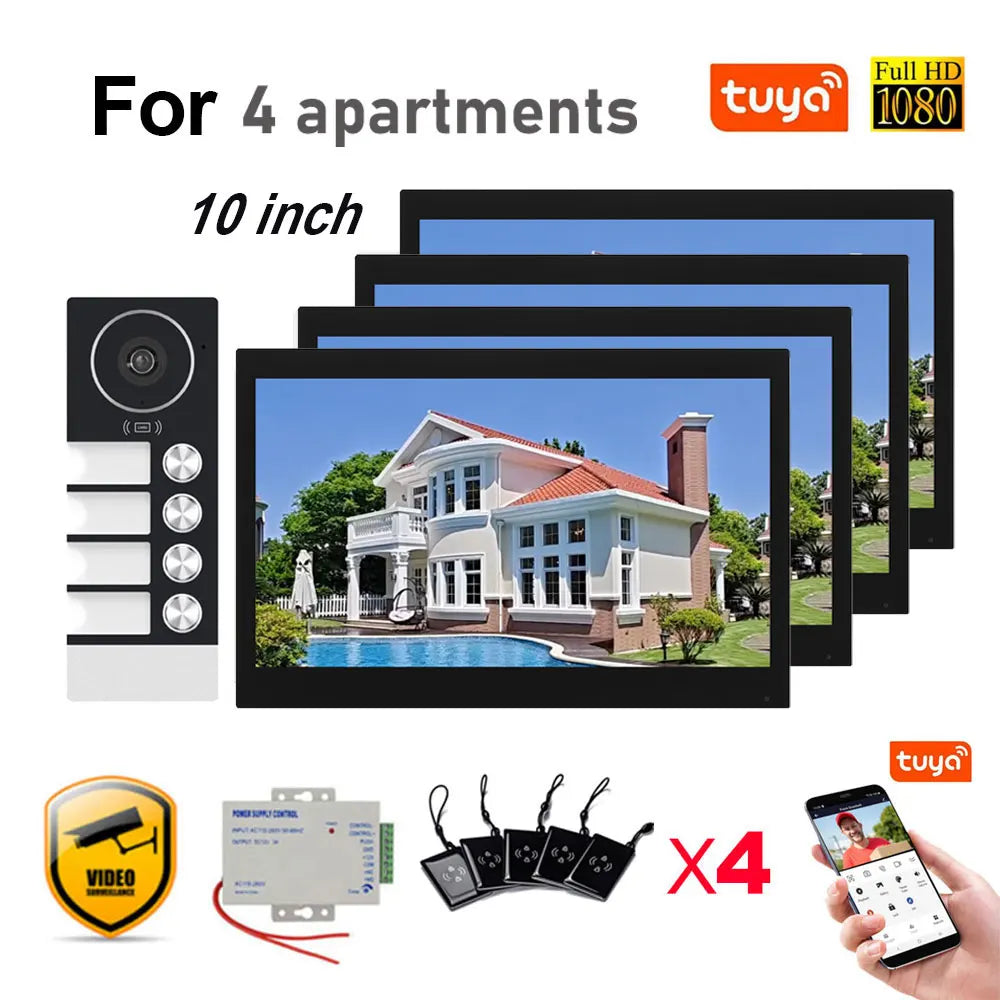

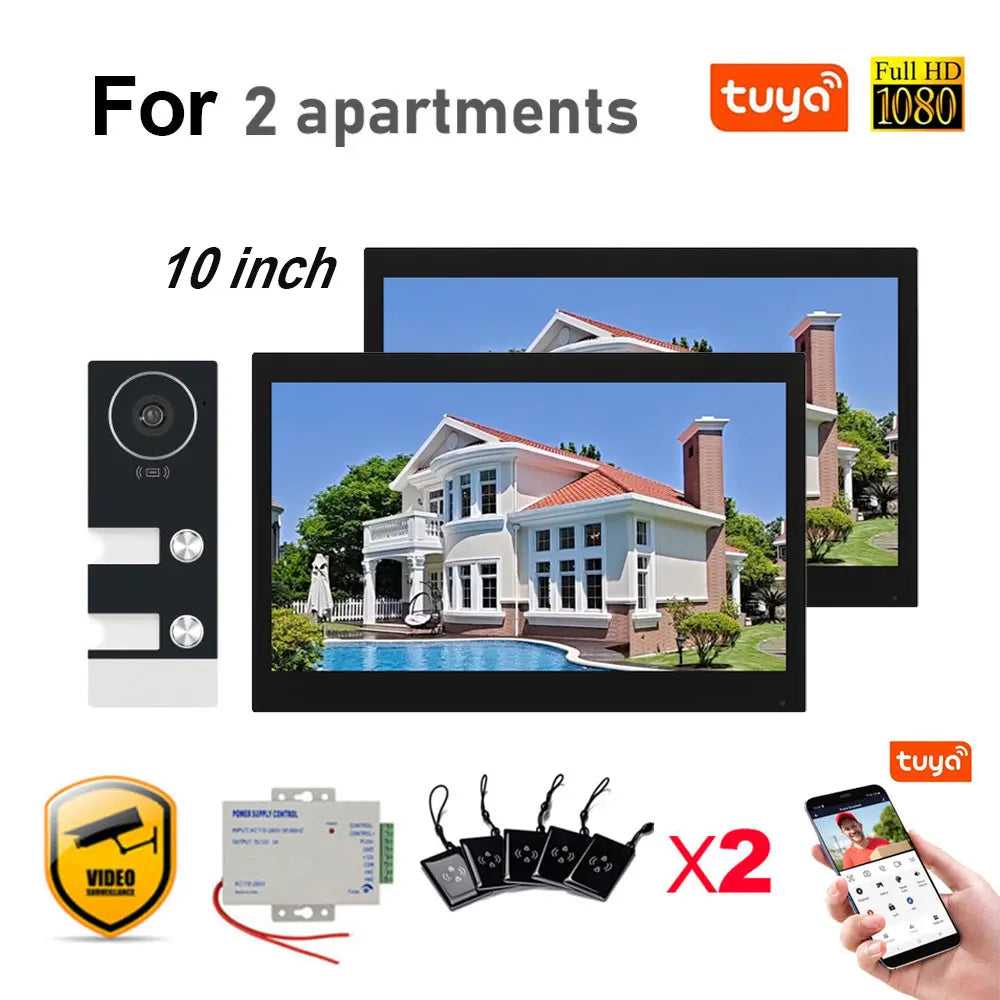

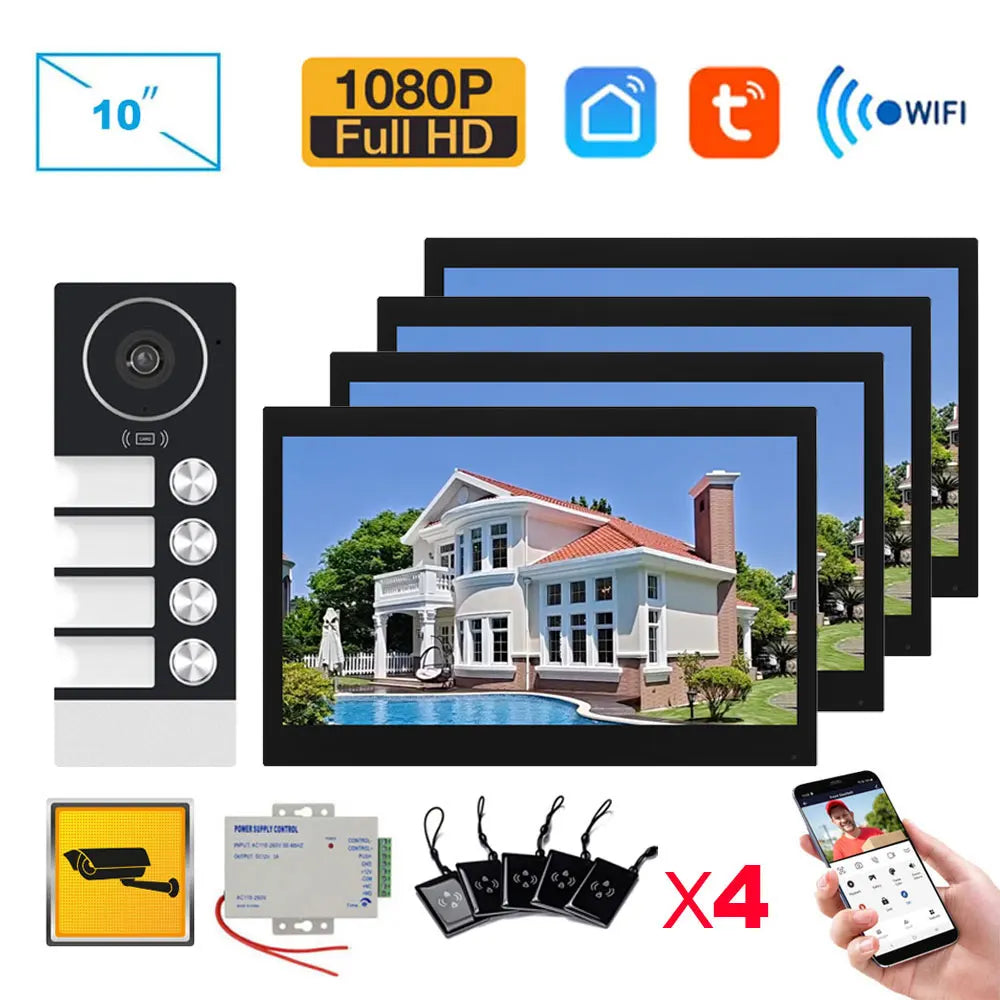

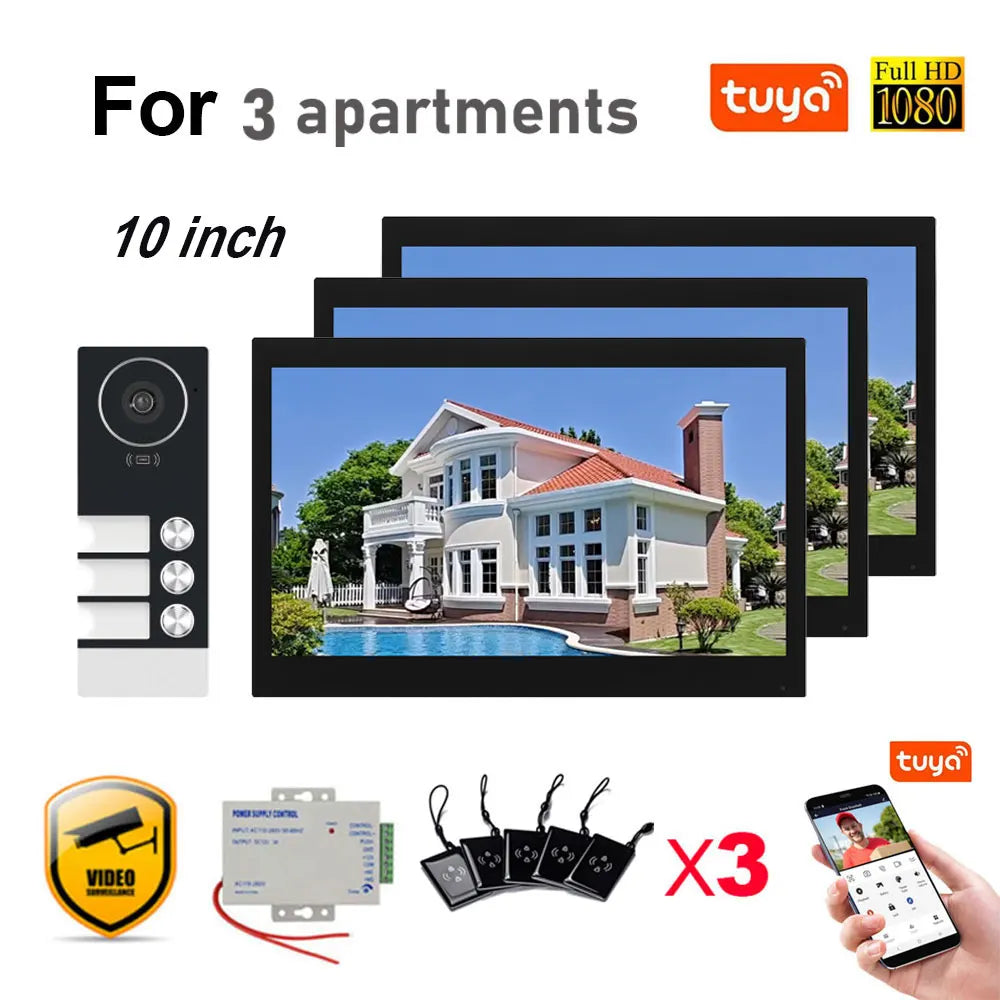

TUYA WiFi Video Doorphone Doorbell Intercom 10 Inch 1080P Touchscreen Monitor APP/Swipe Card Unlock For 2 /3/4 Family Apartmen

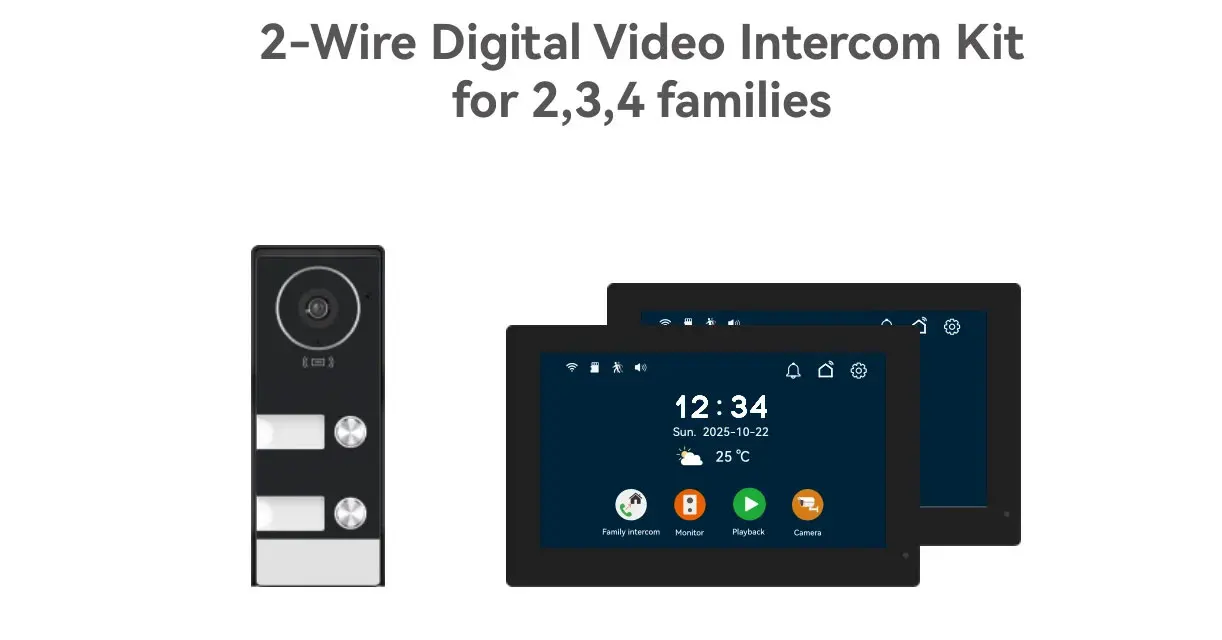

2-4 Unit Home 2 Wire 7inch Touch Video Intercom for Apartments Residential Video Door Phone System with RFID Card APP Unlock

NOTE: When testing the doorbell, avoid testing the indoor unit and outdoor unit in the same space. (The microphone and speaker will produce harsh noise or whistling sound).

Features

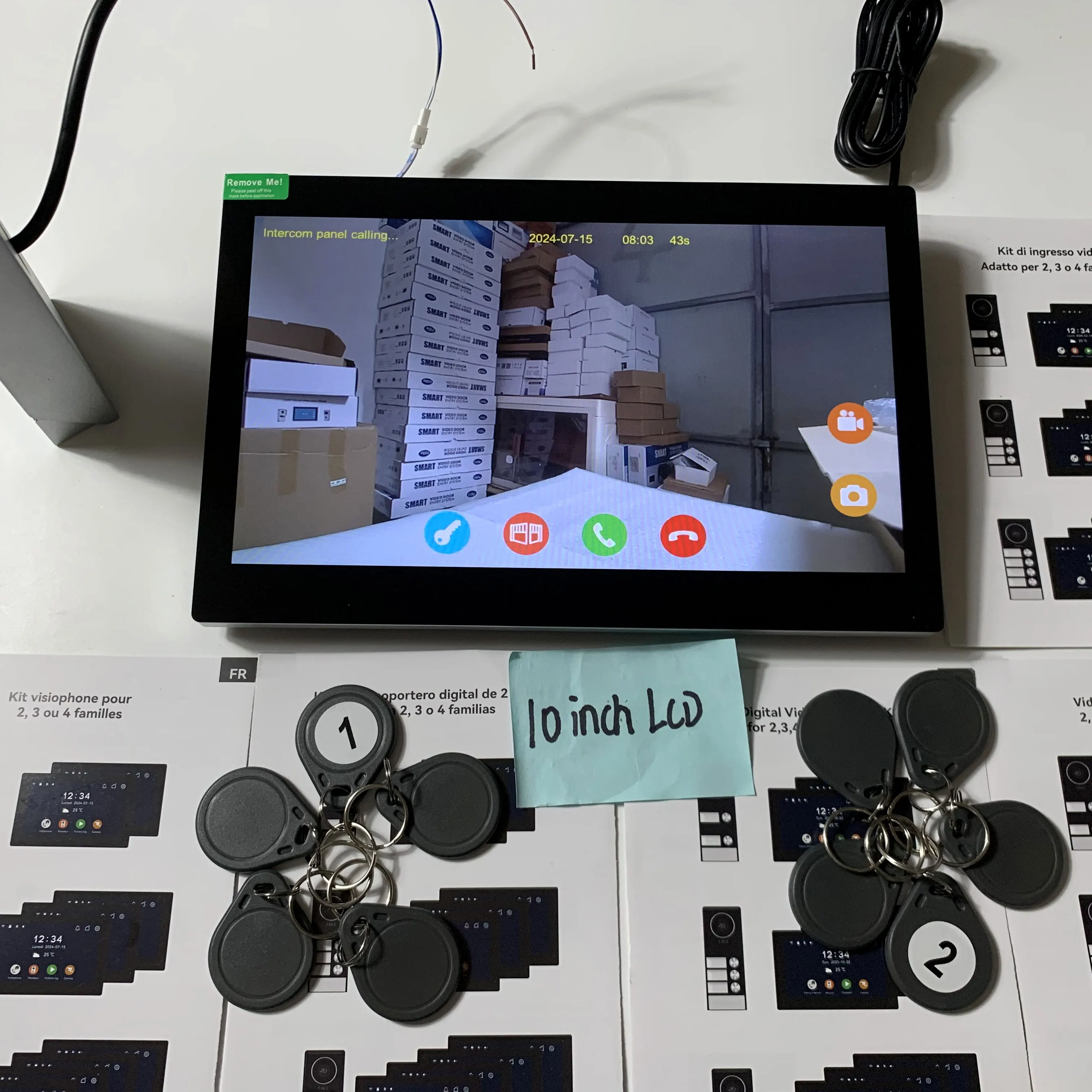

Monitor

• 10.1” 1024 x 600px IPS touch screen

• Micro SD card class 10 up to 512GB

• Wifi: 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac

• Current consumption: 150mA, Power consumption: 3.5W

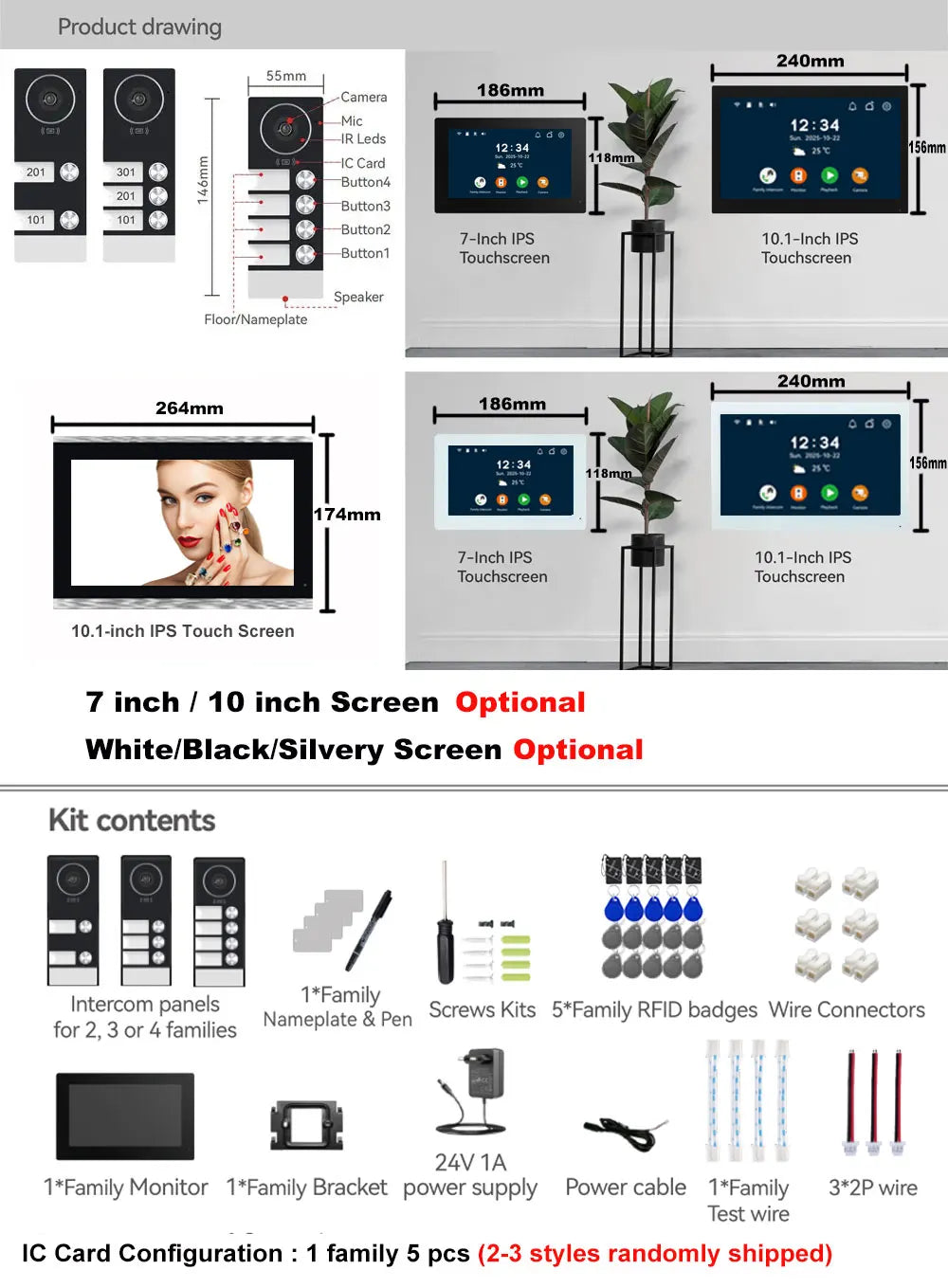

• 10.1inch monitor dimensions: 156 (h) x 240(w) x 18.5 (d) mm

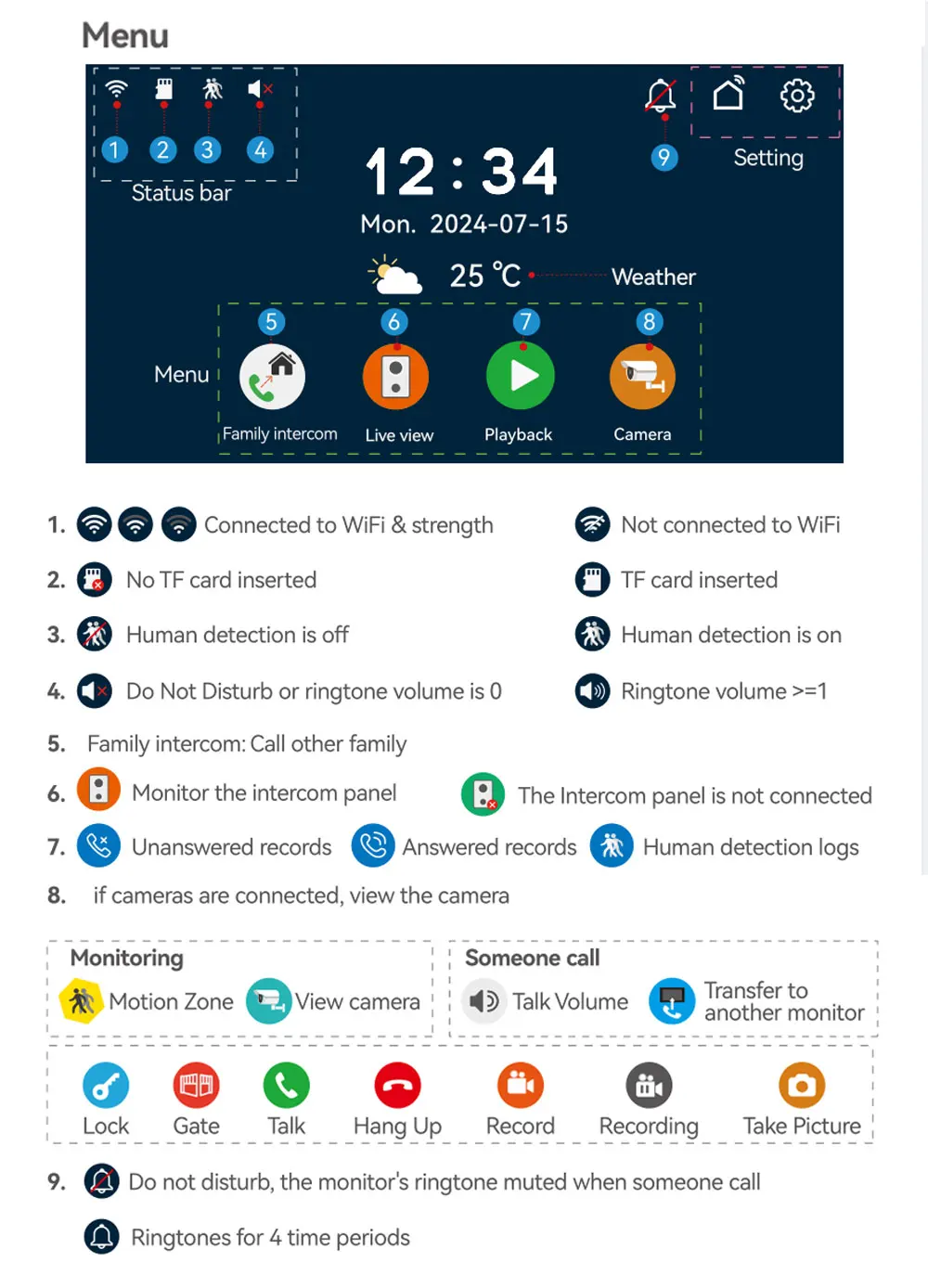

• The screen saver can always display the time and weather

• Take photo or video, twin controls for lock and gate, human detection

• Monitor can talk to another monitor

• Video recording or take photo when human detection or call

• Monitoring time lasts up to 30 minutes

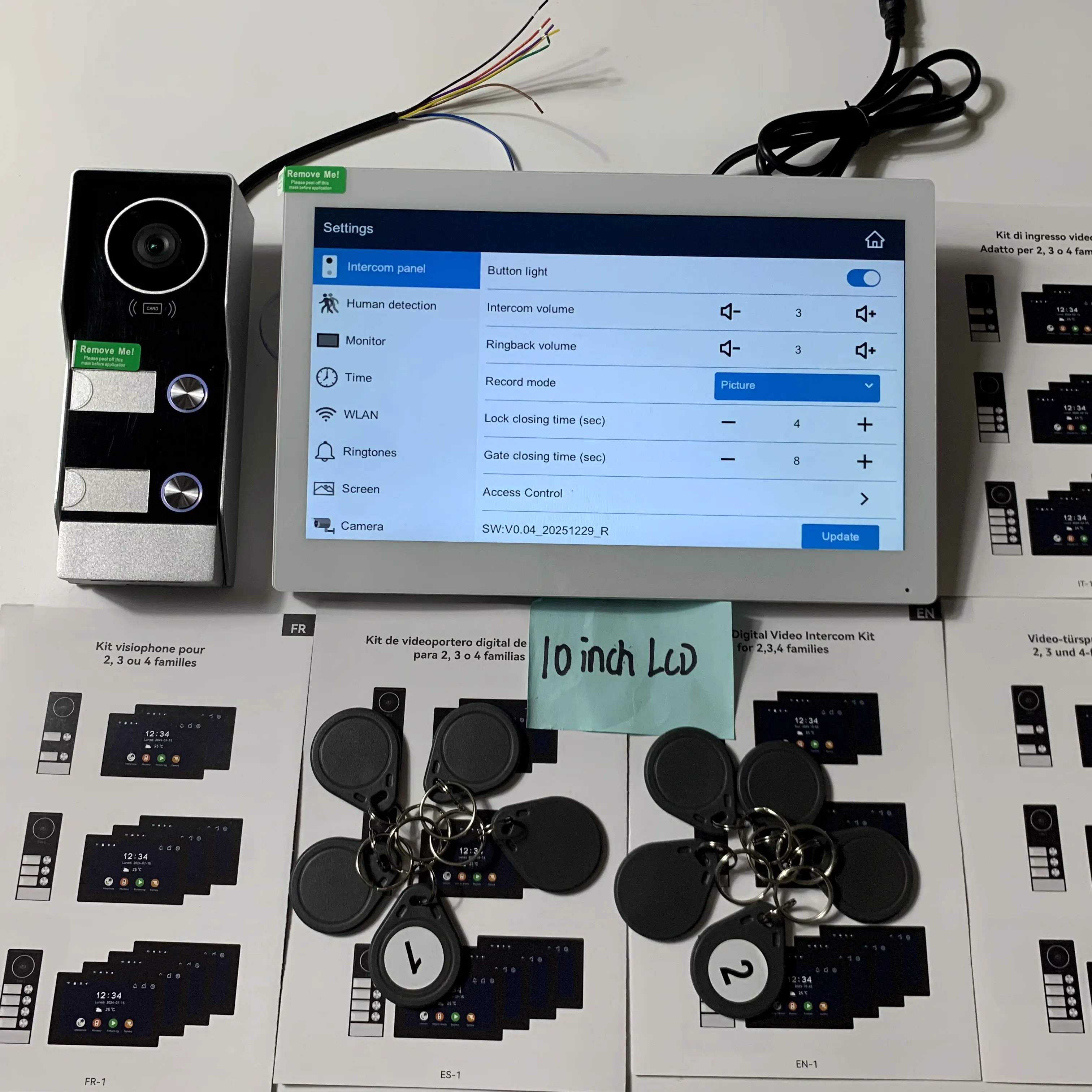

Intercom panel

• CMOS colour sensor 2Mega pixels

• Viewing angle: Horizontal ~130°/ Diagonal ~165°

• Current consumption: 220mA，Power consumption: 5.5W

• IR CUT no color deviation (4 IR LEDs)

• Camera with wide dynamic range

• Camera distortion correction to avoid video stretching and bending

• Human detection and setting Motion zone

•  RFID: 13.56MHz - 100 badges max.

• Operating temperature: -30°C / +70°C

• Dimensions: 149 (h) x 60 (w) x 36(d) mm

Connect

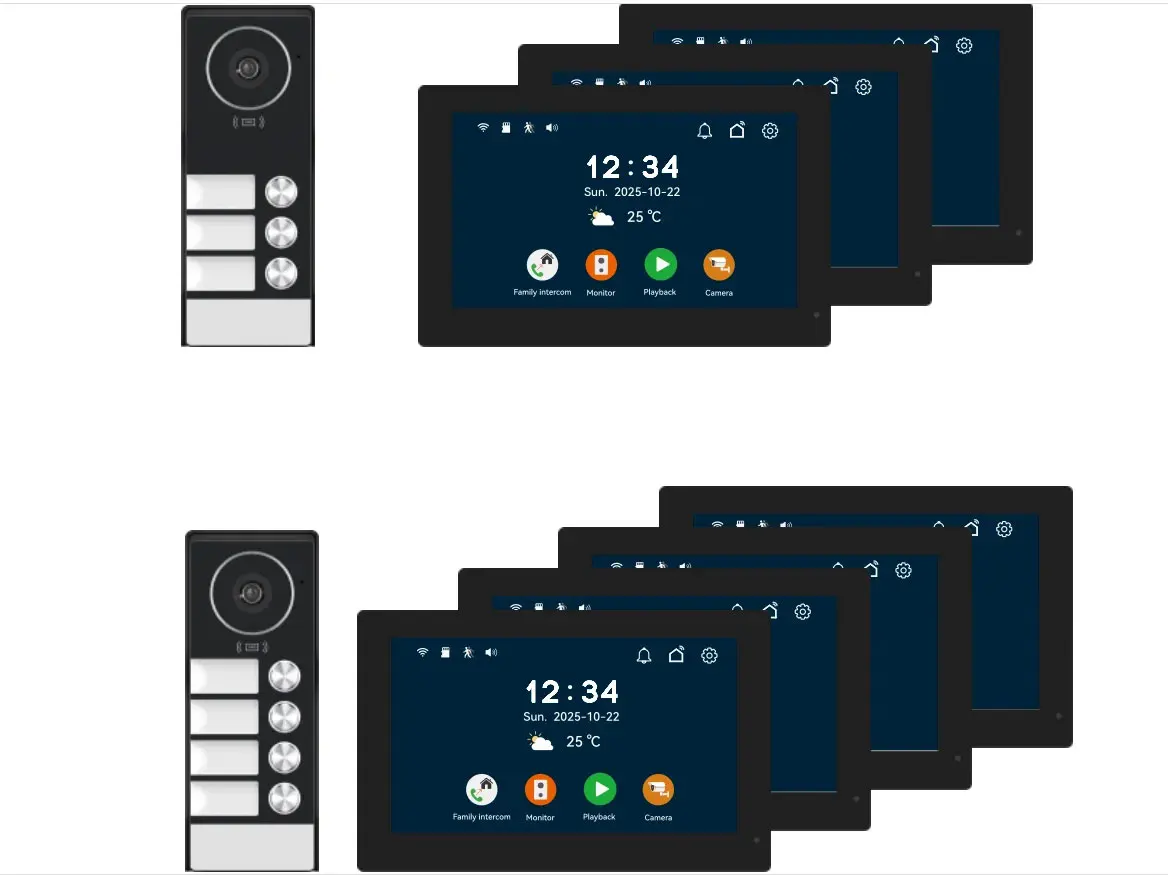

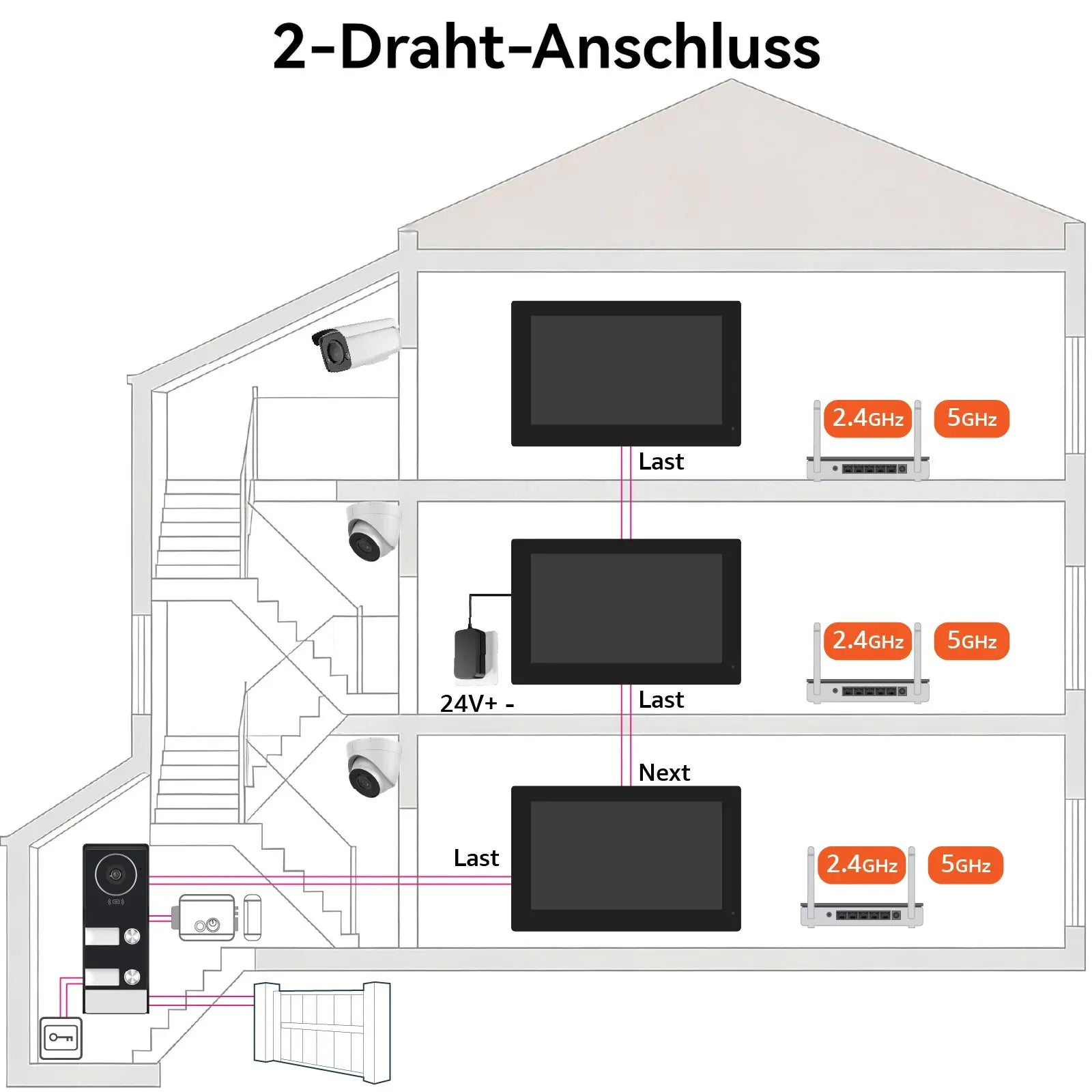

• 1 Intercom panel and 2, 3 or 4 monitors share one power supply

• 2 wires no polarity to conect intercom panel and monitors

• Connect up to 24 Onvif cameras in the same LAN for each monitor

APP

• Main monitor connects to "Tuya" or "SmartLife" App

• 20 App users connect to the APP, users can talk with visitors anytime and

anywhere, take photo or video, monitor, unlock lock and gate, cloud storage

• Video recording or take photo when human detection or call

• Search "Tuya" or "SmartLife" from APP store or Google Play

• Scan the QR code on the menu of monitor to download

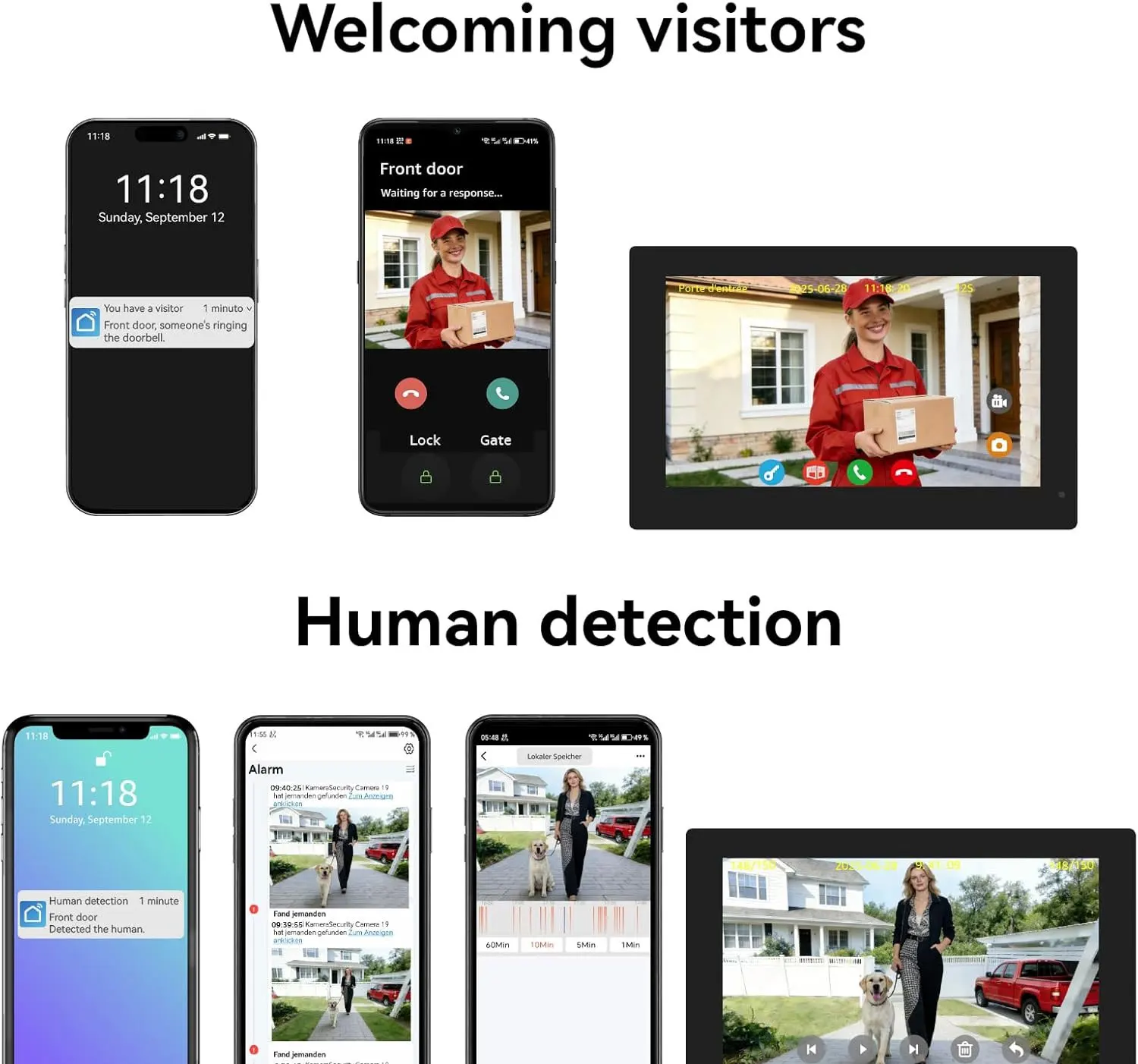

Never Miss Your Visitor

when visitors press the doorbell, your phone will receive the Tuya Smart APP notification which can be interconnected with a variety, you can see and hear and communicate with anyone who at indoor or outdoor, even remote unlock via your smart phone in everywhere.

2-Way Audio and One-click Monitoring

7
inch touch screen, you get a clearer view and change the settings
easily. Press the "Monitor" button to monitor the image of the outside
doorbell and monitor what is happening at the door anytime, anywhere.

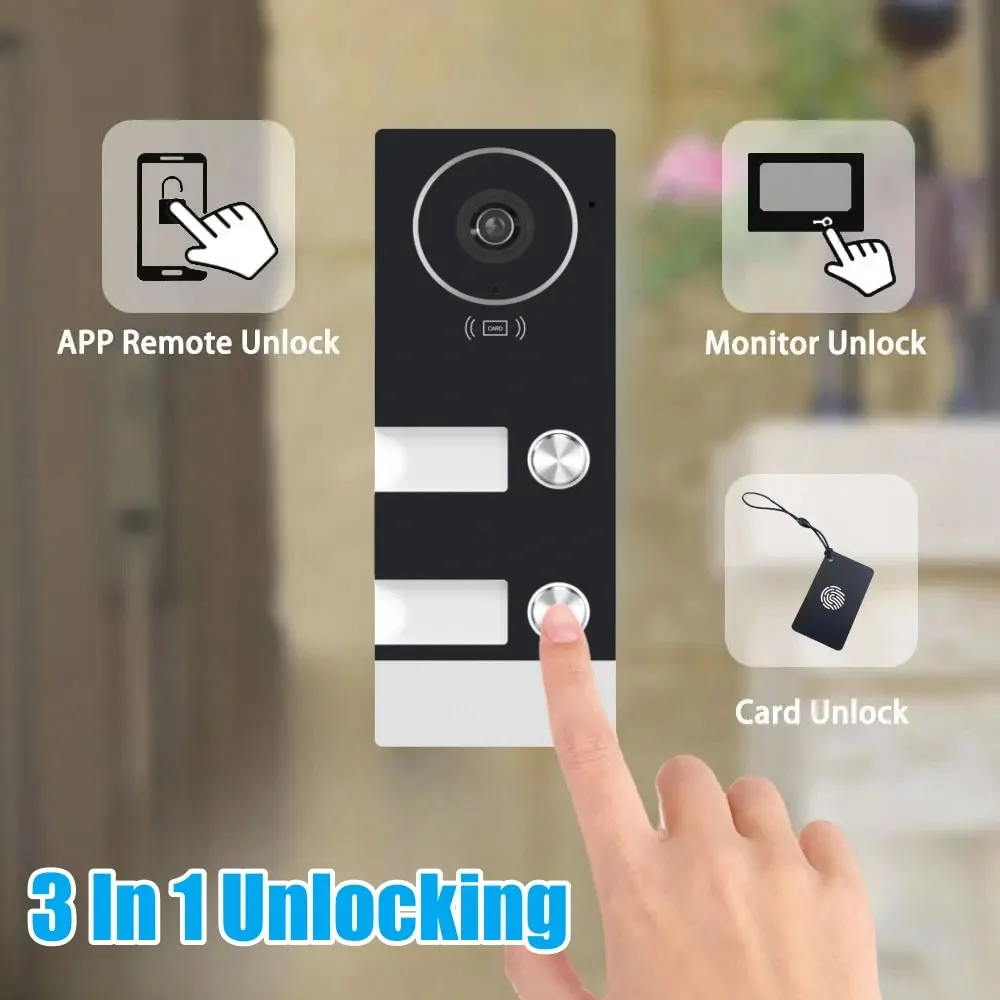

Family intercom: Call other family3 in 1 unlocking

This device has various unlocking methods. You can unlock by monitor, card, and APP . It is very convenient and flexible. Intercom Kit product details :Compatible with Various Electronic Locks

This
apartment video intercom can be connected to various electric locks
(electromagnetic locks, electric locks, electric bolt locks) to provide
convenience for your life.（Note:Locks and Lock's power need to be
purchased separately）

Keyfob and Phone APP Unlock

You
can use your cell phone to open the door remotely to your friends and
family. You can assign ID cards to children or elderly or other family
members who don't use cell phones and let them open the door with their
ID cards. Doorbell camera can be connected to either the front door,
downstairs or fence gate electric lock.

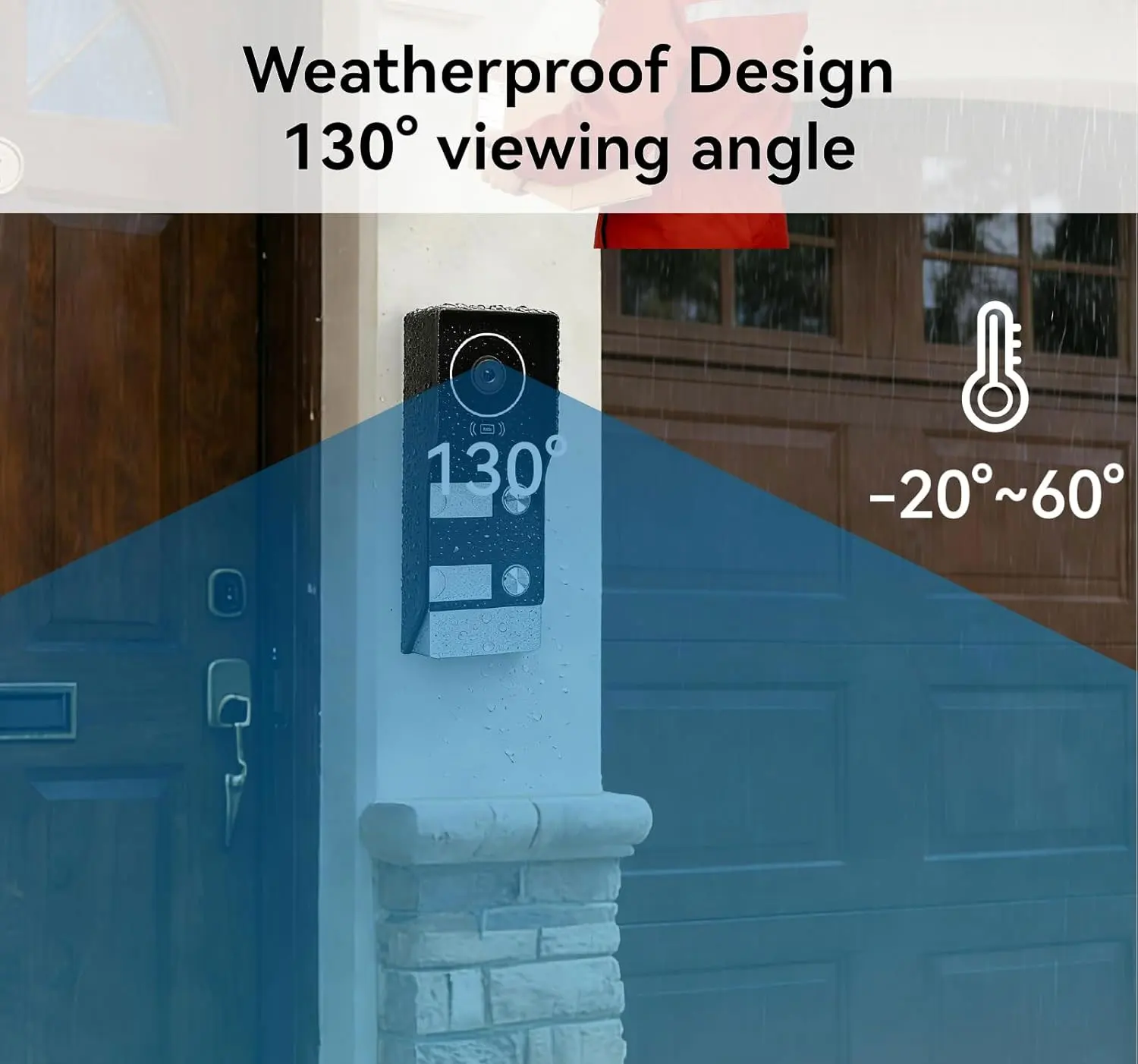

Rainproof and Night vision

Waterproof
design,work stable in rainy,cloudy,cold and snow day. Built with 1080p
HD camera, anti-oxidation aluminium alloy front panel, Rainproof,
Dustproof,and Anti-vandal. IR LED for better night vision.

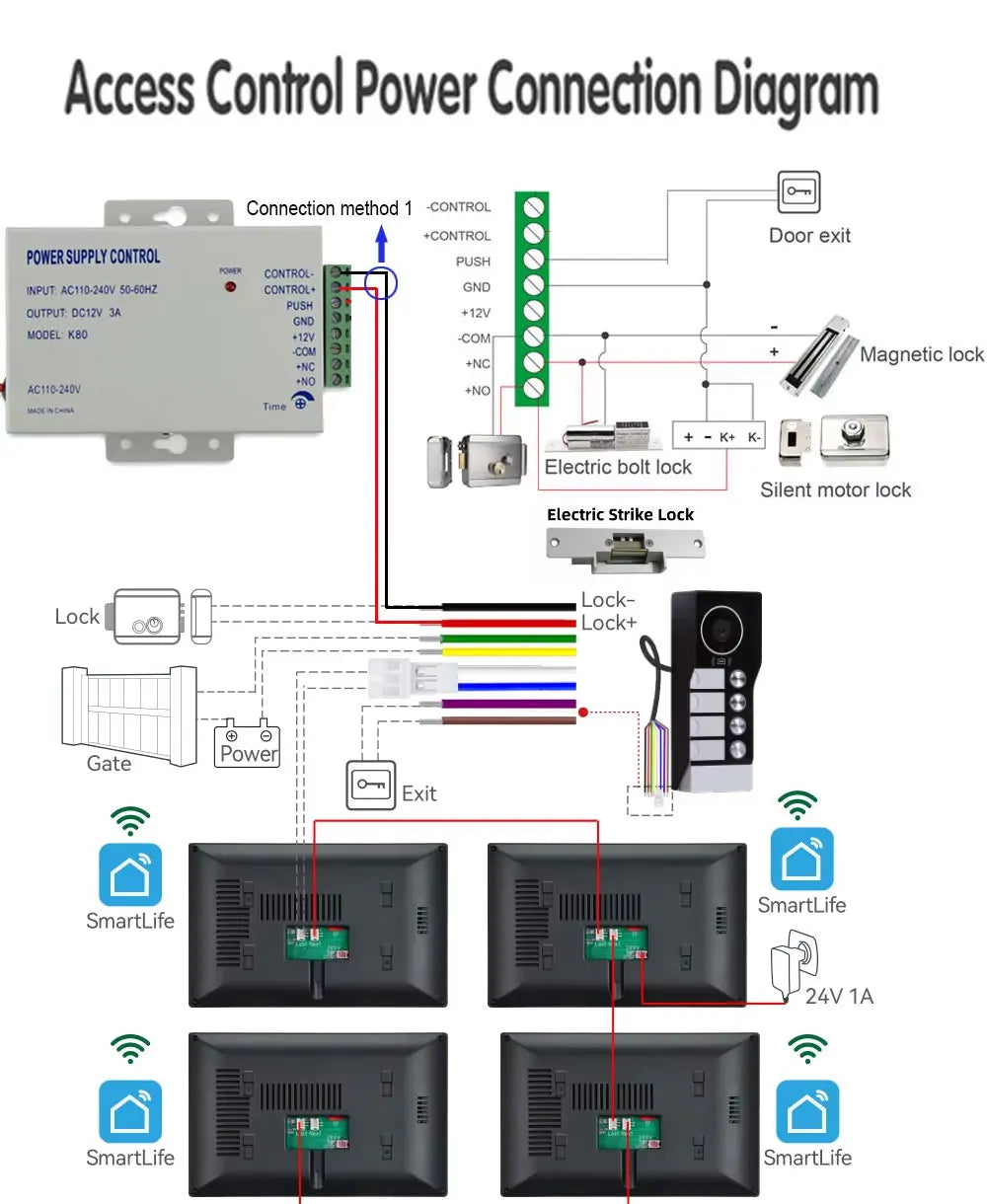

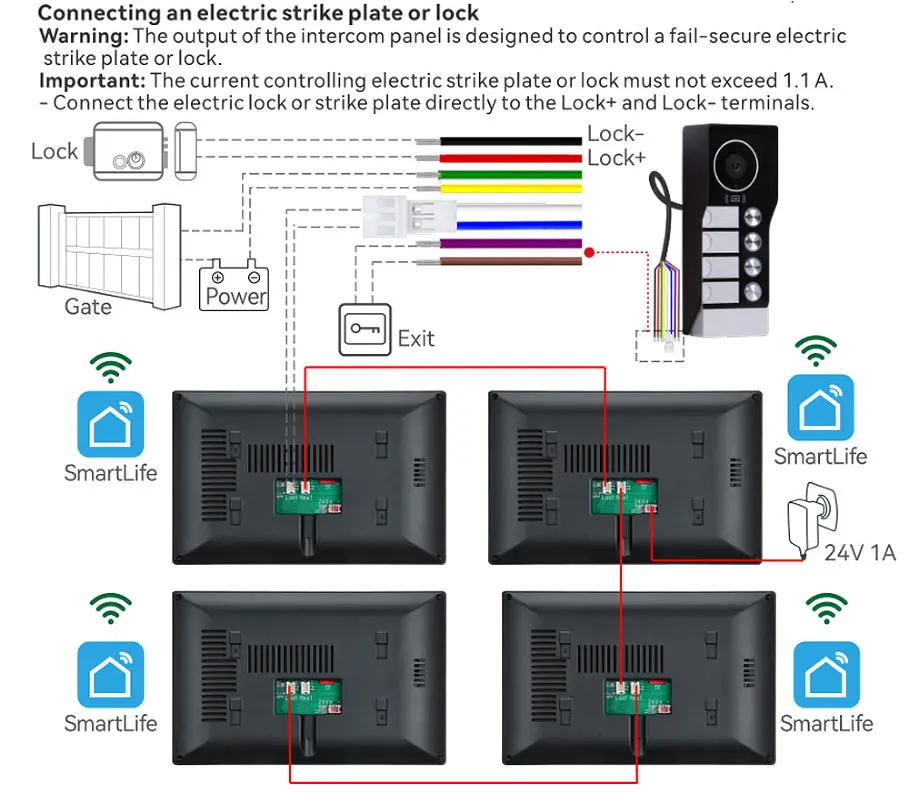

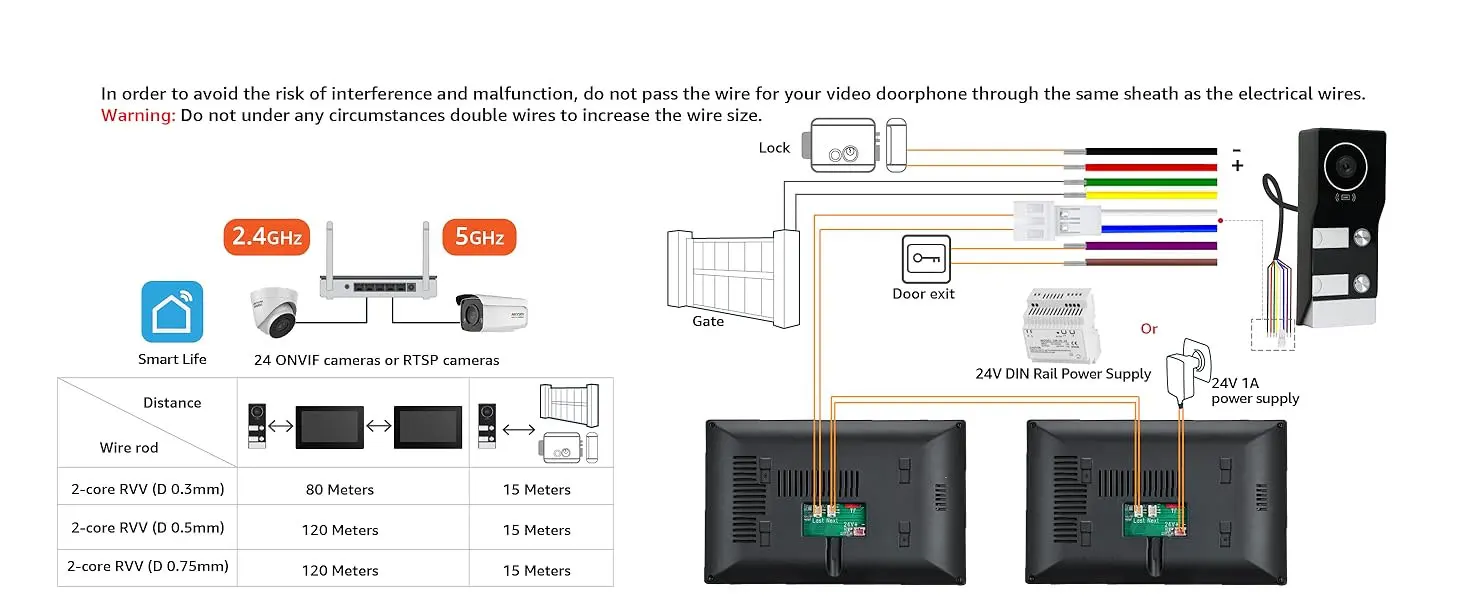

Wiring

In order to avoid the risk of interference and malfunction, do not pass the wire for your

video doorphone through the same sheath as the electrical wires.

Warning: Do not under any circumstances double wires to increase the wire size.

a. Connecting the videophone (monitor and intercom panel)

Wires to be used: 2 x 0.75 mm² wires up to 100 m long or 2 x 1.5 mm² wires up to 120 m

long. The wires must be in one piece. There must be no terminal strips or similar

connections to avoid altering the signal.

- Ensure that the wires are properly connected, following one of the wiring diagrams

depending on the desired configuration.

b. Connecting a gate motor drive

Please note: the type of command (complete opening, partial opening for a pedestrian)

that the motor drive will perform on request from the monitor cannot be selected from

the monitor. The function triggered by the motor drive depends on the input on the

motor drive electronic card to which the cables are routed.

- The gate output does not provide feedback as to whether the motor drive has taken the

command into account or whether it has executed the command correctly.

- The intercom provides a dry contact (without power) to be connected to the push button

control of the automatic opener.

About Wifi connection:

Please
note the wifi video intercom system not mean it's don't need any cable.
The monitor support WIFI network,but the indoor monitor and doorbell is
Wired connect.

The doorbell and camera can be extended with RVV2 wire or Network cables. The maximum distance can exceed 100ft.

The indoor monitor and doorbell wired connections, works stably. You don't need to worry about the network signal anymore.

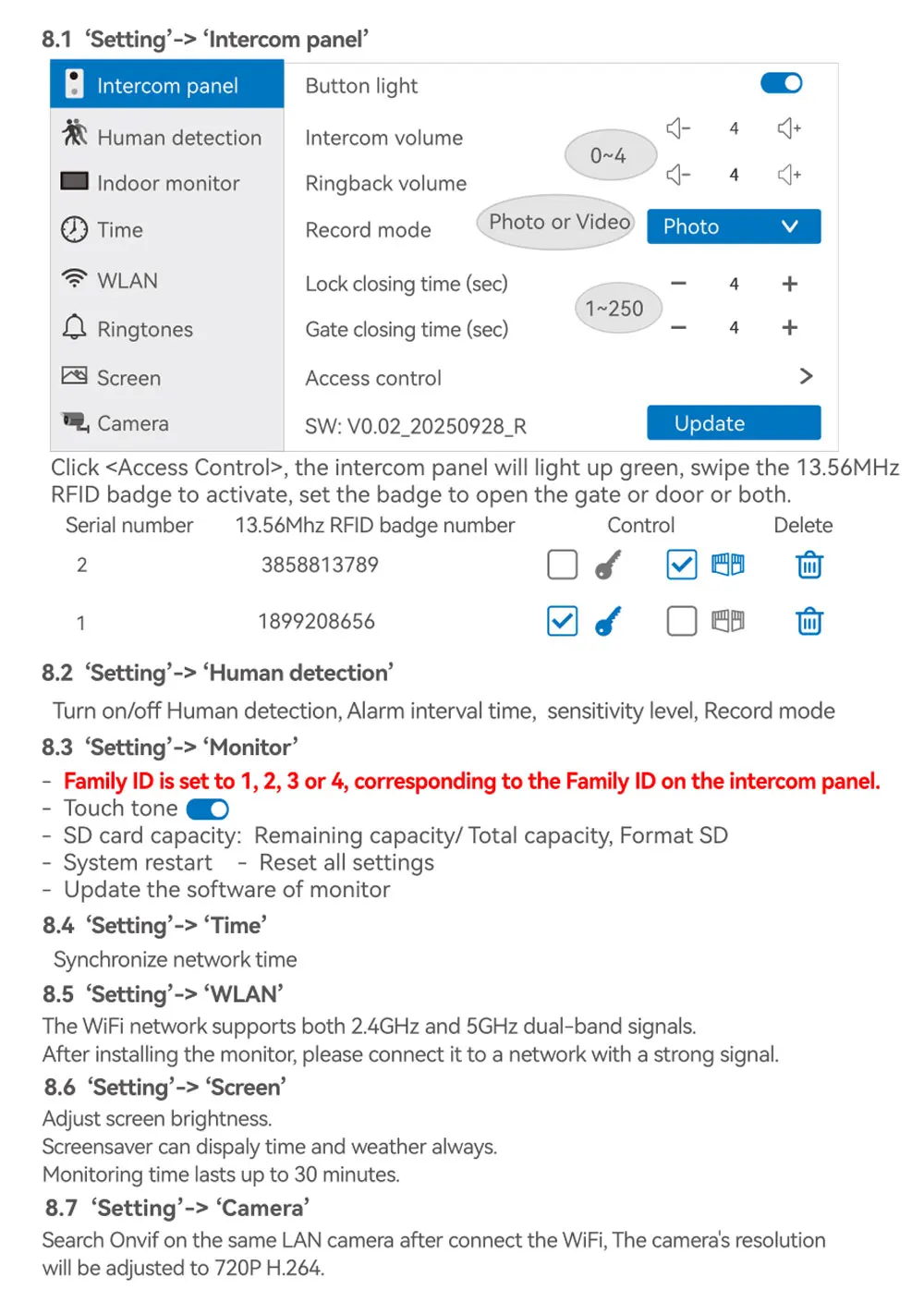

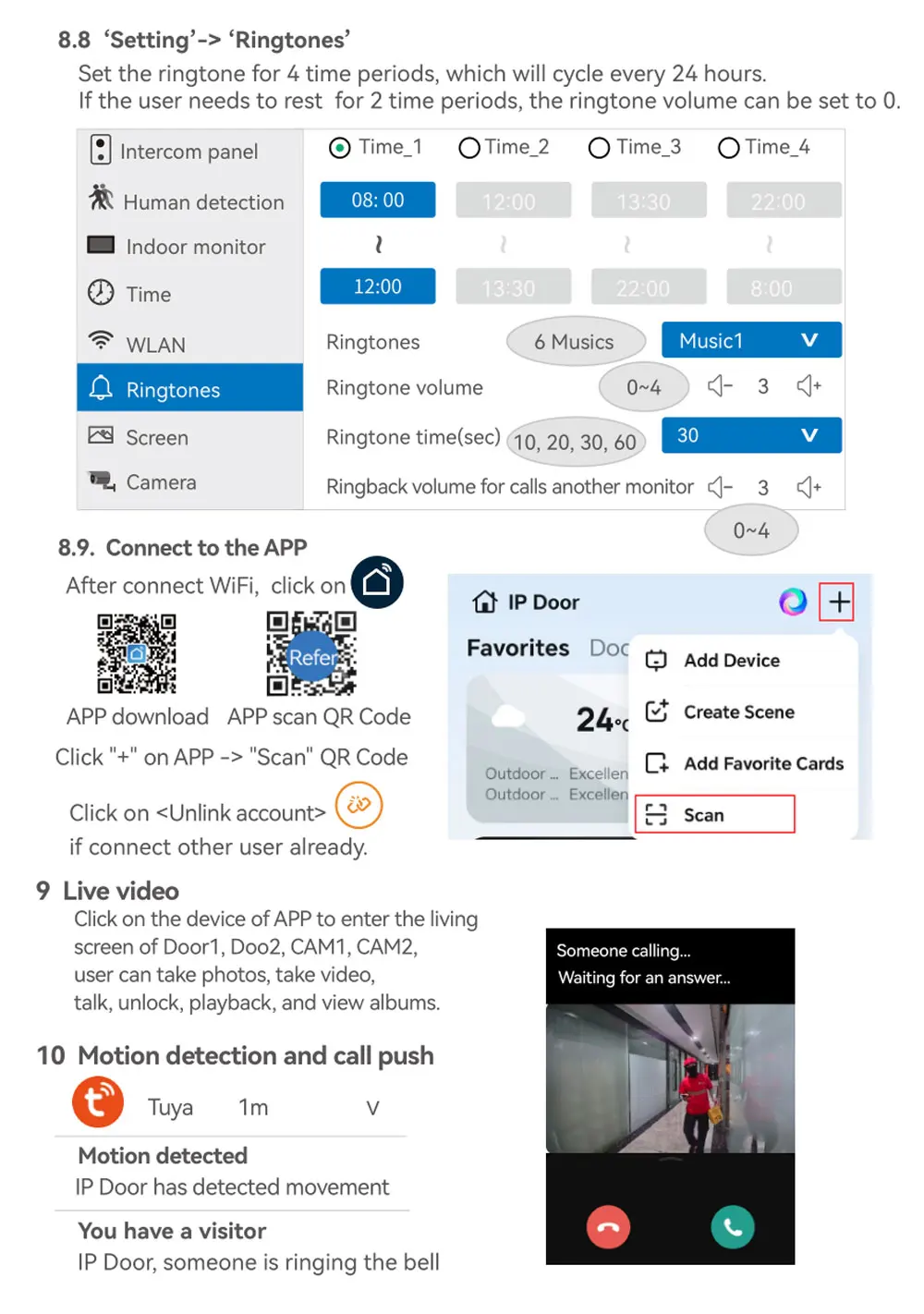

(Default EU plug power)‘Setting’-> ‘Camera’

Search CCTV Onvif on the same LAN camera after connect the WiFi, The camera's resolution

will be adjusted to 720P H.264.

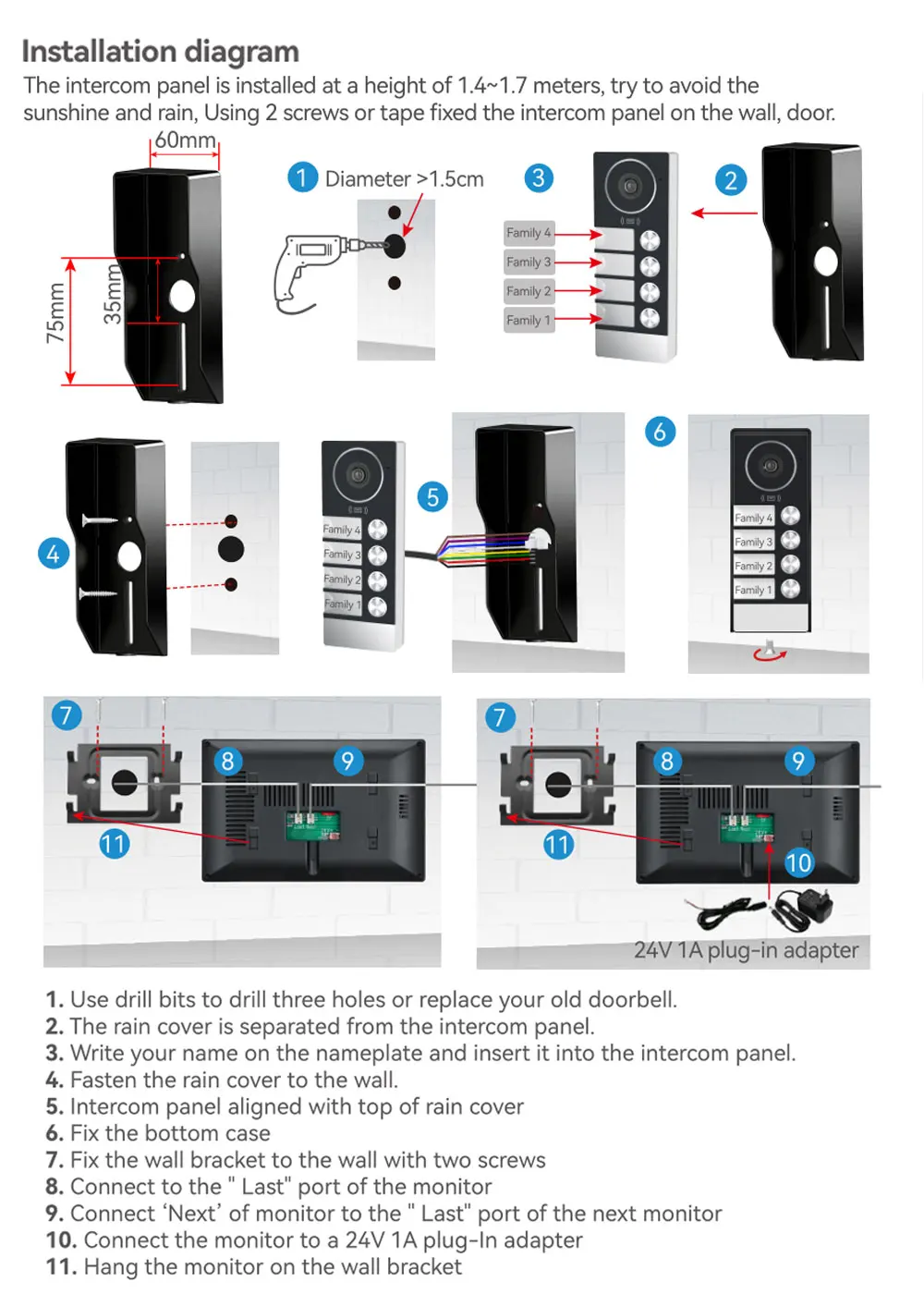

Installation diagram

The
intercom panel is installed at a height of 1.4~1.7 meters, try to avoid
the sunshine and rain, Using 2 screws or tape fixed the intercom panel
on the wall, door.
Smart Motion Detection:

Doorbell
camera has smart motion detection, receive real-time alerts when anyone
approaches so that you never miss a delivery or keep guests waiting.Automatic recording and playback

1080P
camera with 130º wide view angle, Visitors at the door can be seen
clearly.Camera built-in microphone and speaker, When visitors press the
doorbell or motion detect is triggered, doorbell camera will
Automatically record videos or snapshot pictures and save them in
monitor micro SD card (TF Card Not included).

Clock & Date Mode

Not
only can it protect your family, it is also a beautiful decoration.If
you not operated the monitor for 1 minute and the time will not
displayed at the monitor.This can better protect the screen life and
extend the use time.

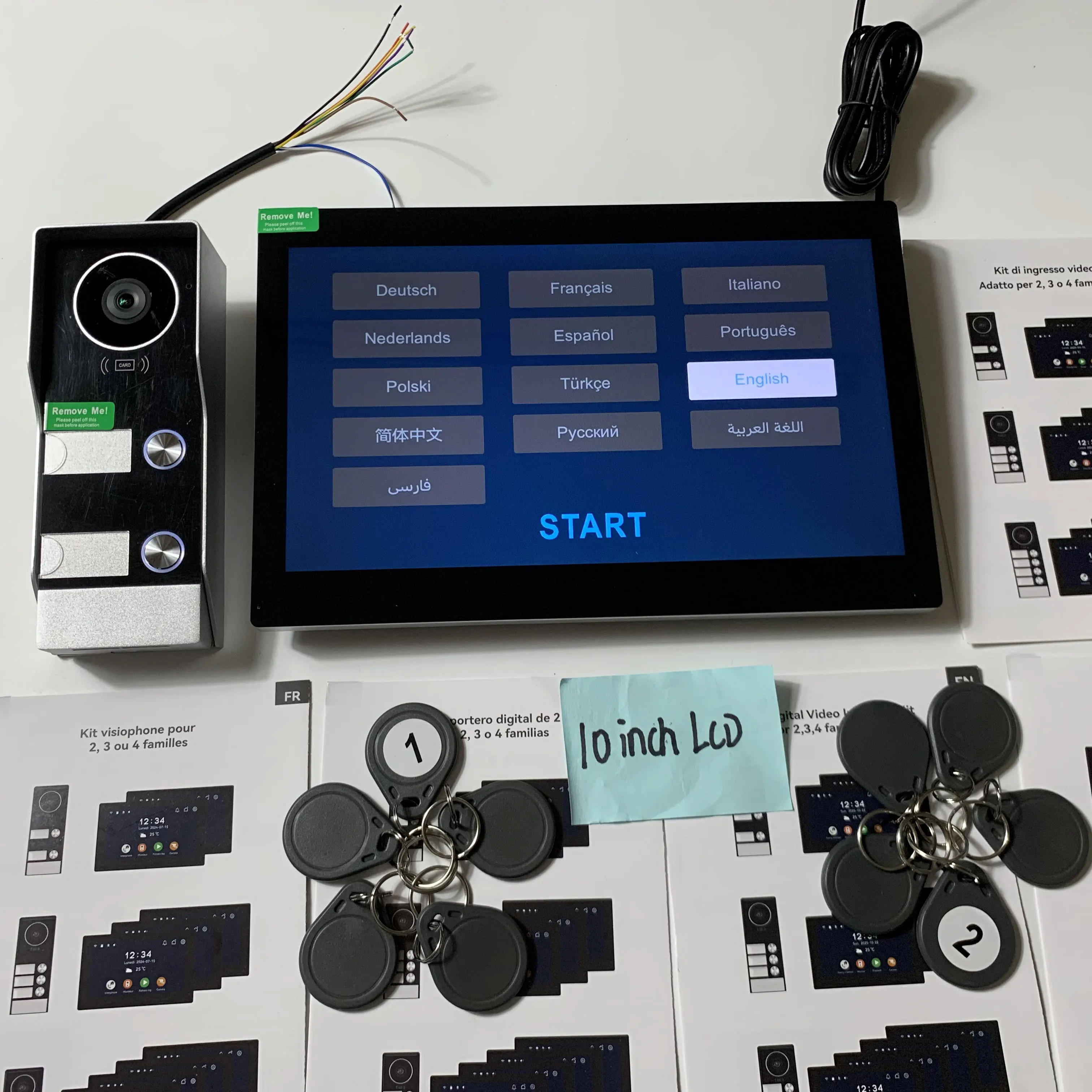

Language :

It supports English, Russian, French, Spanish, German,Arabic, and other languages.Power supply

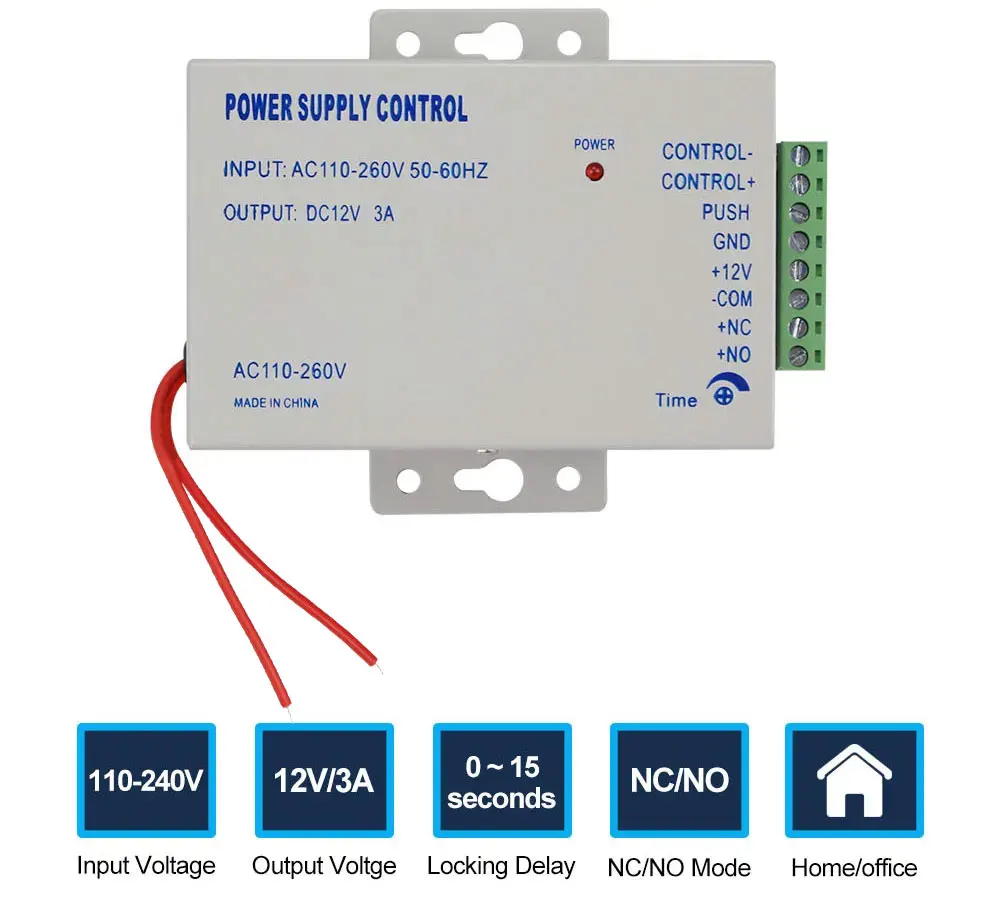

DC12V 3A Box (include)
