SPECIFICATIONS
Applicable Industries: Building Material Shops, Manufacturing Plant, Restaurant, Other
Application: material handling, security monitor
Battery: 48V 20Ah-48V60Ah
Brand Name: NONE
Chassis Weight: 43KG
Condition: New
Design Size (mm): 852*572*327mm
Drive mode: Ackerman four wheel steering four wheel drive
Features: four wheel four drive
Function: RTK navigation, light, touch and stop, emergency stop
Load capacity: 150kg
Marketing Type: Ordinary Product
Name: Robot Chassis Robot Navigation Chassis Wheeled Mobile Robot Chassis
Origin: Mainland China
Showroom Location: None
Speed: 5km/h
Steering accruracy: <1 degree
Warranty: 1
Warranty of core components: 1 Year
application: inspection, material handling, survey
core components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
dimension(l*w*h): 852*572*327mm
machinery test report: Provided
place of origin: Henan, China
power(w): 300W*4
production capacity: 80kg loading
video outgoing-inspection: Provided
voltage: 48V
weight (kg): 43
Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! For quick assistance, please contact me via WAP: +86 19118924805 or Email： maoyishunda@gmail.com

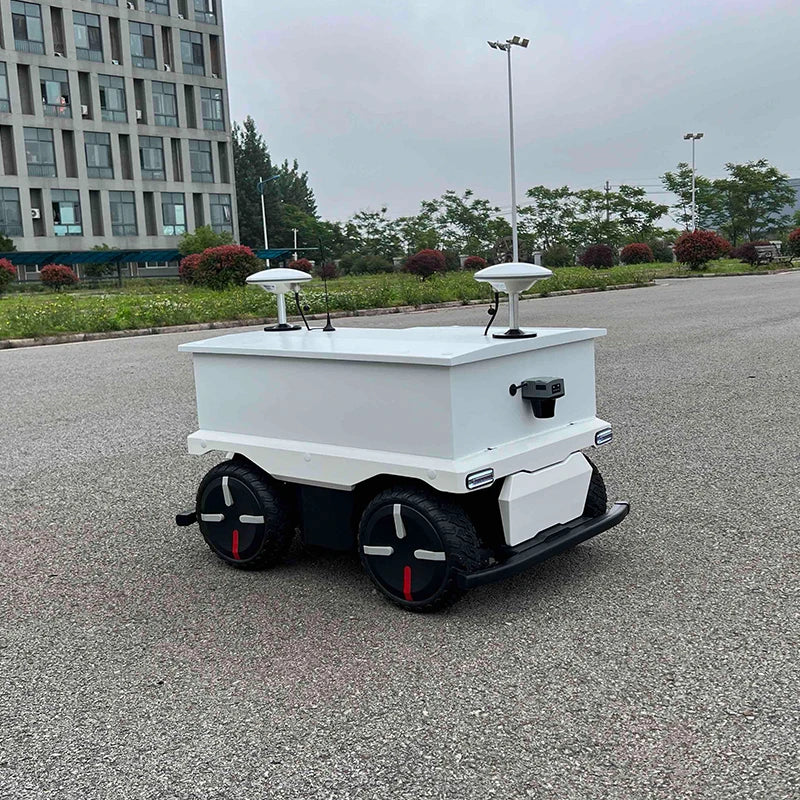

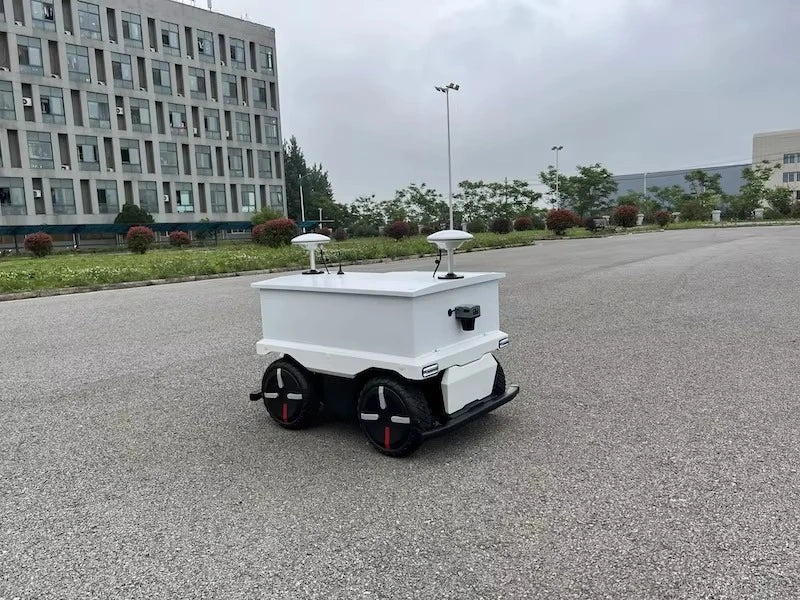

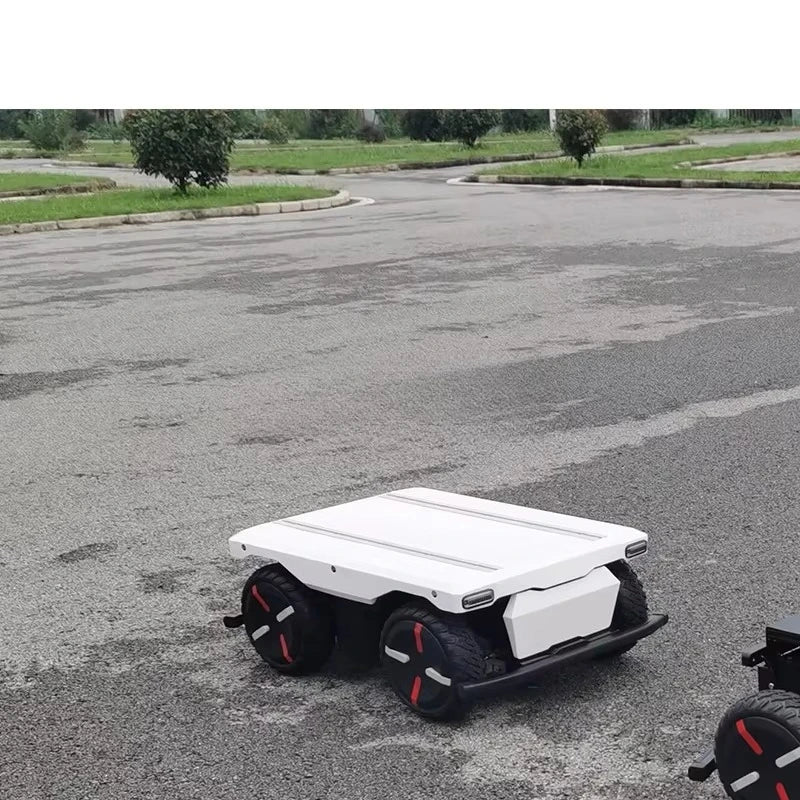

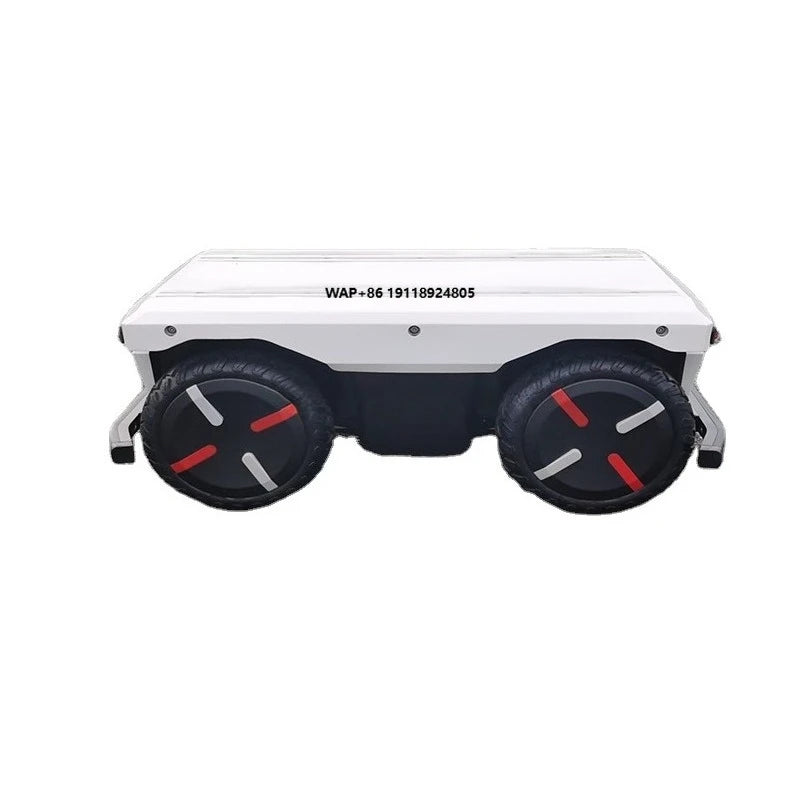

Universal Automatic Navigation Intelligent Chassis Robots Food Delivery Robot For Hospital UGV-8 is a small robot chassis, using lightweight, modular, intelligent design concept to create a mobile robot development platform. It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of

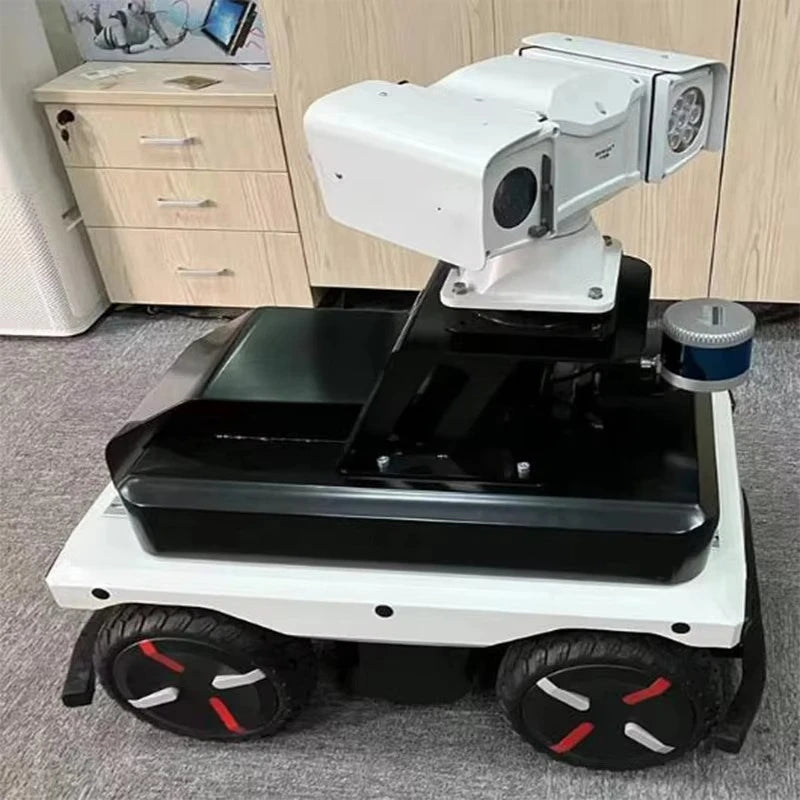

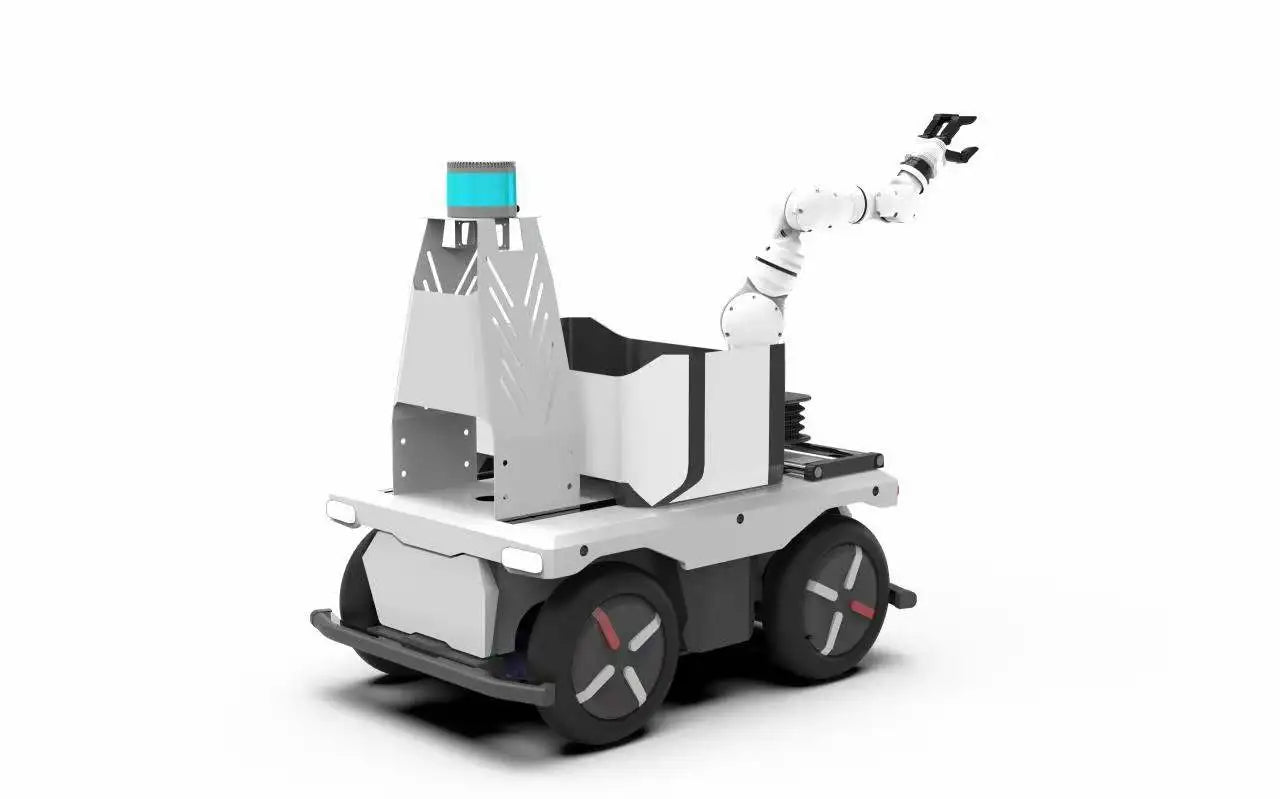

typical pavement. Stereo camera, laser radar, GPS, IMU, manipulator and other equipment can choose to be installed on the chassis as an extension application, can be applied to scientific research, distribution, logistics and other fields.
|
Specification of the Entire Vehicle
|
|
|
Item
|
Data
|
|
L*W*H
|
820*572*310mm
|
|
Min. Ground clearance
|
87mm
|
|
Overall weight
|
About 43kg
|
|
Rated load
|
80kg
|
|
Chassis and Performance
|
|
|
Item
|
Data
|
|
Steering
|
Front wheel Differential steering
|
|
Brake form
|
Anti-drag braking
|
|
Tire outer diameter
|
266mm
|
|
Running speed
|
≤5km/h
|
|
Driving range
|
5-10km
|
|
Braking distance
|
0.4m
|
|
Turning radius
|
0.5m
|
|
Climbing angle
|
≤15°
|
|
Obstacle passing
|
8cm
|
|
Safety protection
|
Touch stop bar;
Emergency brake button
|
|
Electric drive
|
|
|
Item
|
Data
|
|
Motor type
|
Wheel hub motor (Permanent Magnet Synchronous Motor with encoder)
|
|
Motor Power
|
300W*4
|
|
Battery parameters
|
48V/20Ah battery
|
|
Battery working temperature
|
-10~60℃
|
|
Charger
|
AC220V independent charger
|
|
Charging time
|
≤3h (Quick charging can be customized)
|
|
Protection class
|
IP35 (IP66 can be customized)
|
|
Other
|
|
|
Communication protocol
|
Open underlying CAN protocol
|
|
Motion control
|
VCU control
|
|
Sensor type
|
Steering feedback sensor
Walking wheel speed sensor
Front and rear brake feedback sensor
|
Advantage:
1. Simple and easy to operate.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel drive.
4. Vehicle-grade drive by wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.
|
|
|
|
1 year warranty for main parts
|
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
|
|
Spare Parts
|
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
|
|
Operation and Maintenance
|
we will offer you detailed operation manual, ensuring you can use it perfectly.
|
|
Online support
|
Video technical support
|
|
Online Service
|
your question will be answer within 24 hours during working days, 48 hours during holiday.
|
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
