SPECIFICATIONS

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Food & Beverage Shops

Brand Name: NONE,TZBOT

Condition: New

Fork Length: /

Fork Width: /

Lifting speed (laden): /

Lifting speed (unladen): /

Load capacity: 50kg

Model Number: TZAMR-SL50

Navigation method: SLAM navigation

Navigation position accuracy: ±10 mm

Navigation type: Laser Slam

Obstacle avoidance: Laser Obstacle Avoidance

Origin: Mainland China

Place of Origin: Zhejiang, China

Rated Speed: Max1.5m/s

Travel speed ( unladen): Max1.5m/s

Traveling Direction: Forward and reverseleft and right tur/rotate in place

Vehicle size: 729mm*514mm*330mm

Warranty of core components: 1 Year

Working time: 6-8H

is_customized: Yes

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 15073875169 or maoyishunda@gmail.com

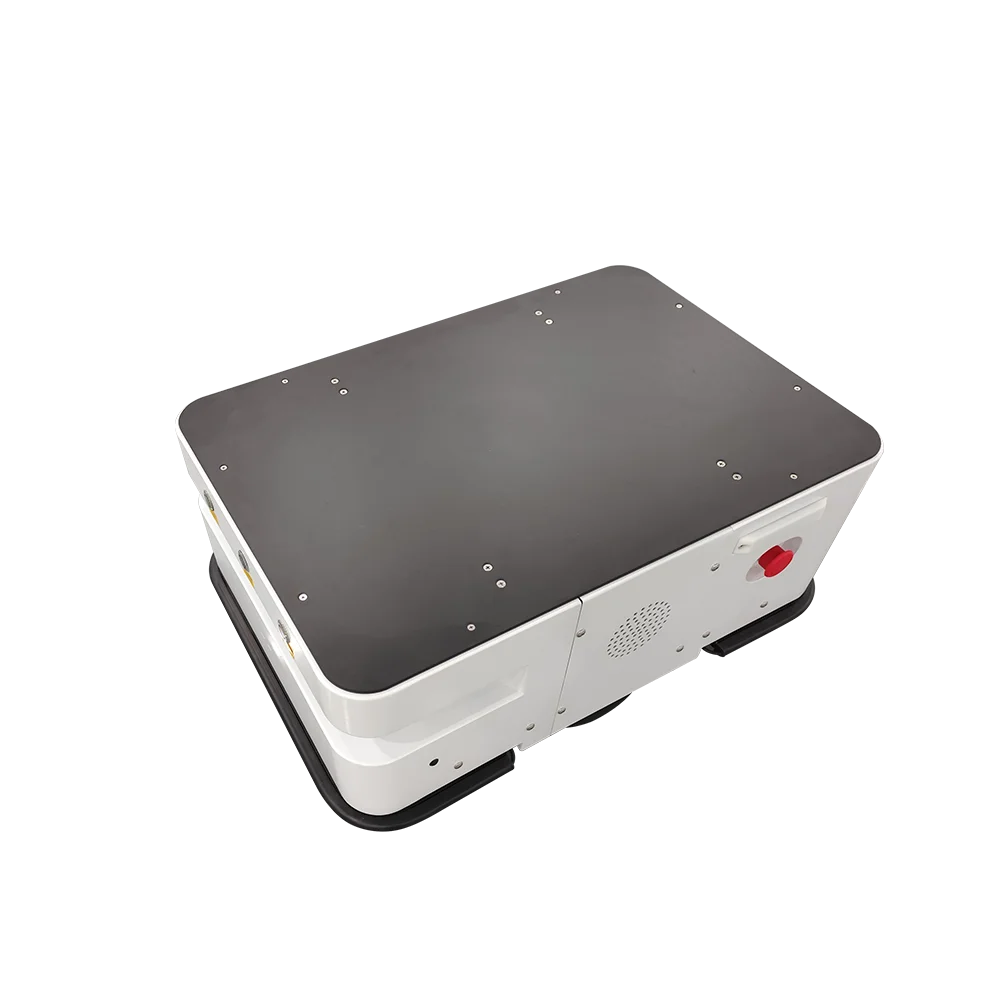

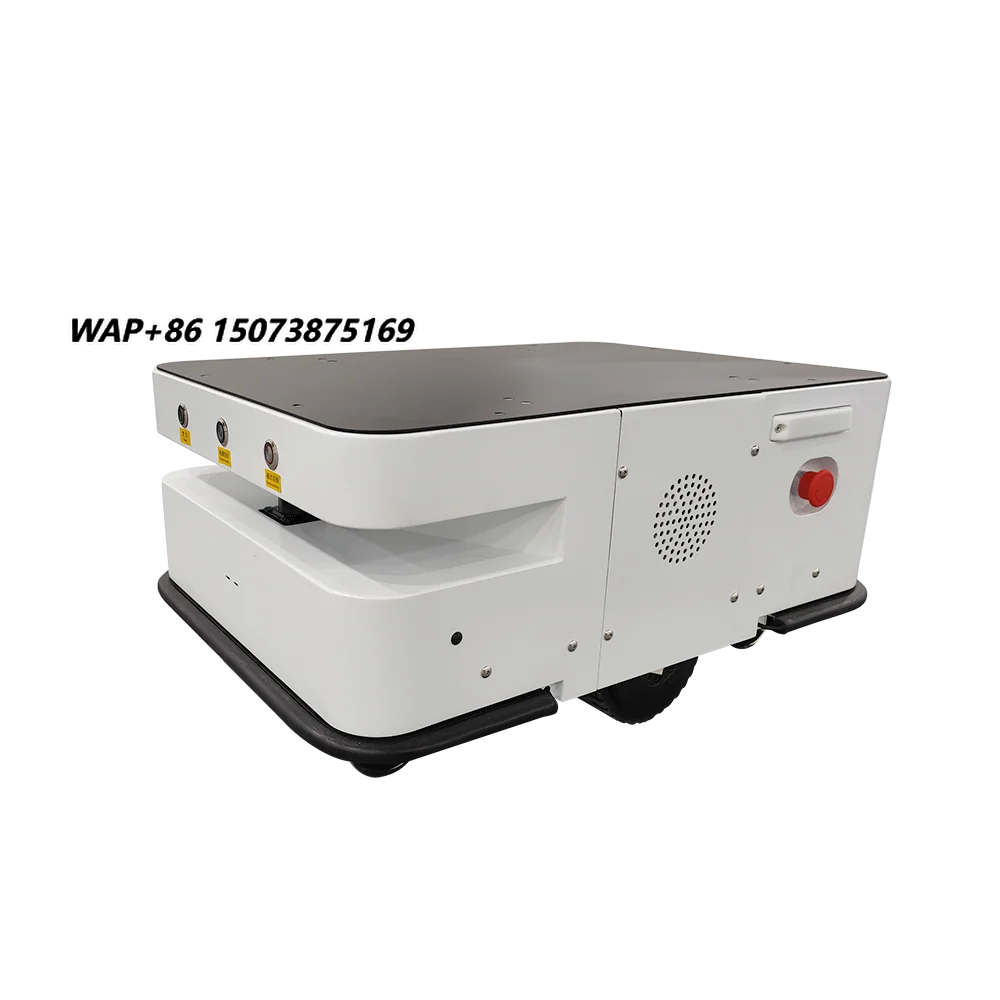

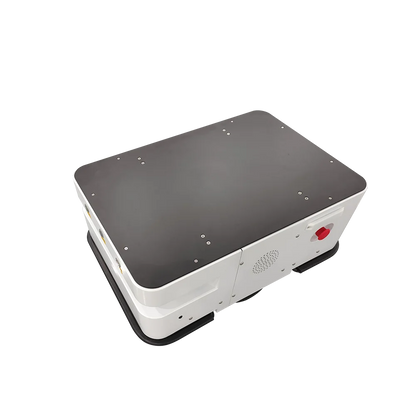

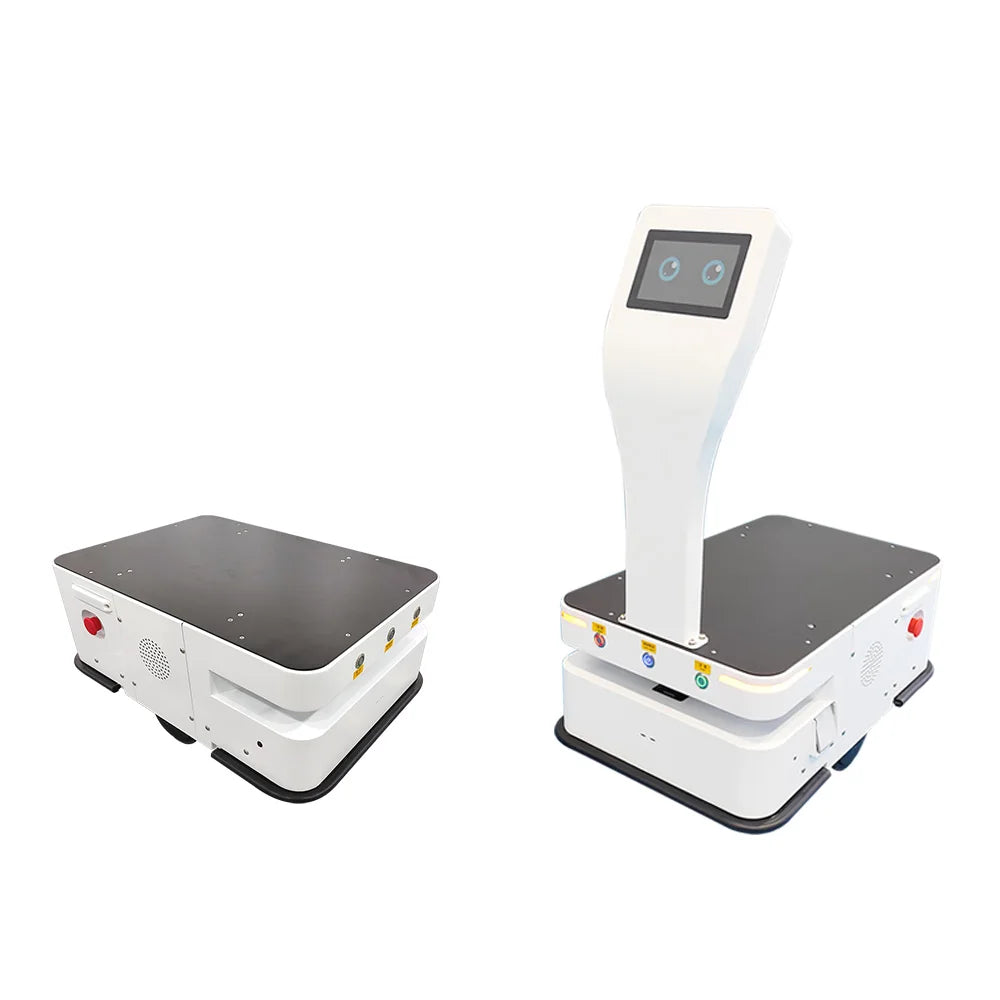

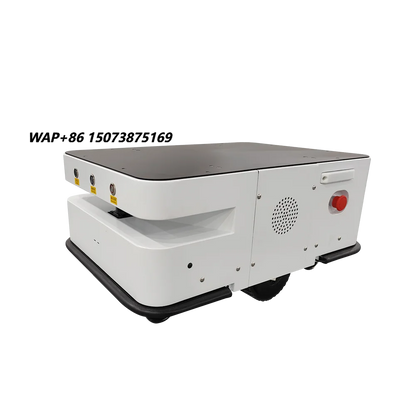

TZAMR-SL50 SLAM AMR

The AMR uses SLAM navigation to move forward, backward, and rotate in place. It can go to the bottom of trolly to lift and move the trolly. The AMR has compact structure, which can work in limited spaces. The product has a high degree of flexibility and scalability, and can be customized to the user's needs for customized configuration and function customization, which is suitable for applications in different scenarios, such as industrial automation, logistics and warehousing, hospital pick-up and drop-off, and so on.





Product Information

Item	Parameters
Dimensions	729mm*514mm*330mm
Navigation	SLAM
Drive Type	Differential drive
Walking Direction	Forward and reverse/left and right tur/ rotate in place
Maximum Speed	1.5m/s
Rated Load	50kg
Battery	Lithium iron phosphate battery
Charging Method	Manual/automatic charging
Safety Protection	LIDAR+Collision  Bumper +Emergency Stop Button
Communication	Wireless

Dimensions

Advantages







Safety Protection

Laser anti-collision (360 degrees)

+ mechanical anti-collision

+ emergency stop button

50KG Load Capactiy

Load capacity of 50 kg for carrying loads in variety of scenarios， including material transfer， call delivery, and other productions .









Laser navigation

The agv uses autonomous mobile laser navigation sensors, eliminating the need to lay routes, making deployment simple and operation easy.



No.	Function Item	Function description	No.	Function Item	Function Item
1	Two modes of operation	Auto/manual mode	10	Emergency stop	Emergency stop button
2	Linear deceleration stop	Slow down at stops or when obstacles are encountered	11	Laser Collision Avoidance	First protection
3	Start linear acceleration	Start from slow to fast	12	Mechanical collision avoidance	Second protection
4	Select station stop	Automatic stop at destination	13	Emergency braking	Third protection
5	Off-track alarm	Audible and visual alarms	14	Photoelectric collision avoidance	Fork anti-collision
6	Anti-collision alarm	Audible and visual alarms	15	One-touch start	Easy and quick start
7	Low voltage alarm	Audible and visual alarms	16	Woving music	Alerts pedestrians
8	Low voltage alarm	Audible sound, indicator light	17	Charging method	Auto/manual charging
9	Traffic control	Crossroads traffic control	18	Software tool	Complete with extensive software tools
