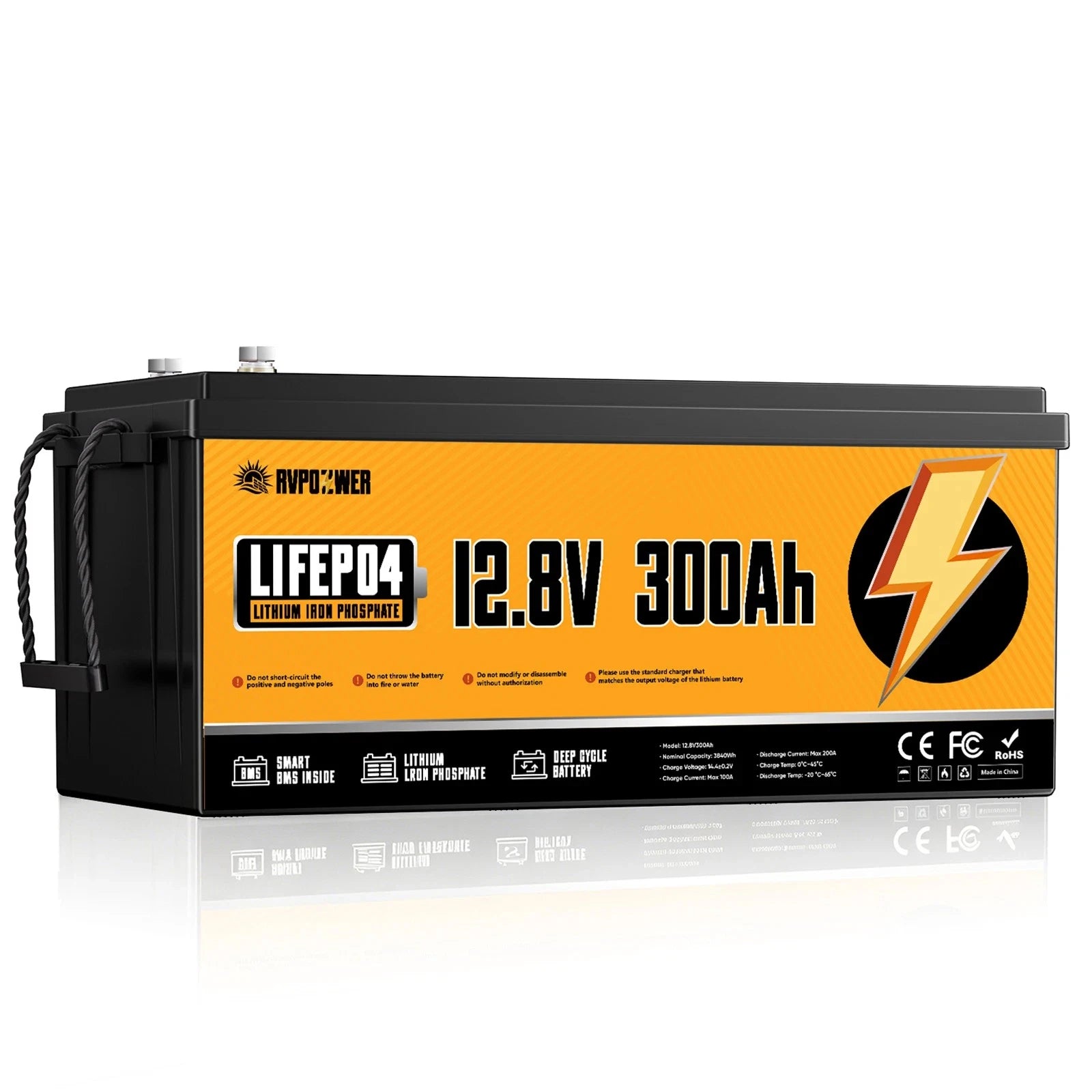

SPECIFICATIONS

Battery Included: Yes

Battery/Cell Classification: Lithium Iron Phosphate, LiFePO4

Brand Name: Rvpozwer

Capacity（Ah）: 300Ah

Certification: CE,FCC,RoHS,UL,weee

High-concerned chemical: none

Model Number: 1963

Origin: Mainland China

Voltage: 12V

Specifications:

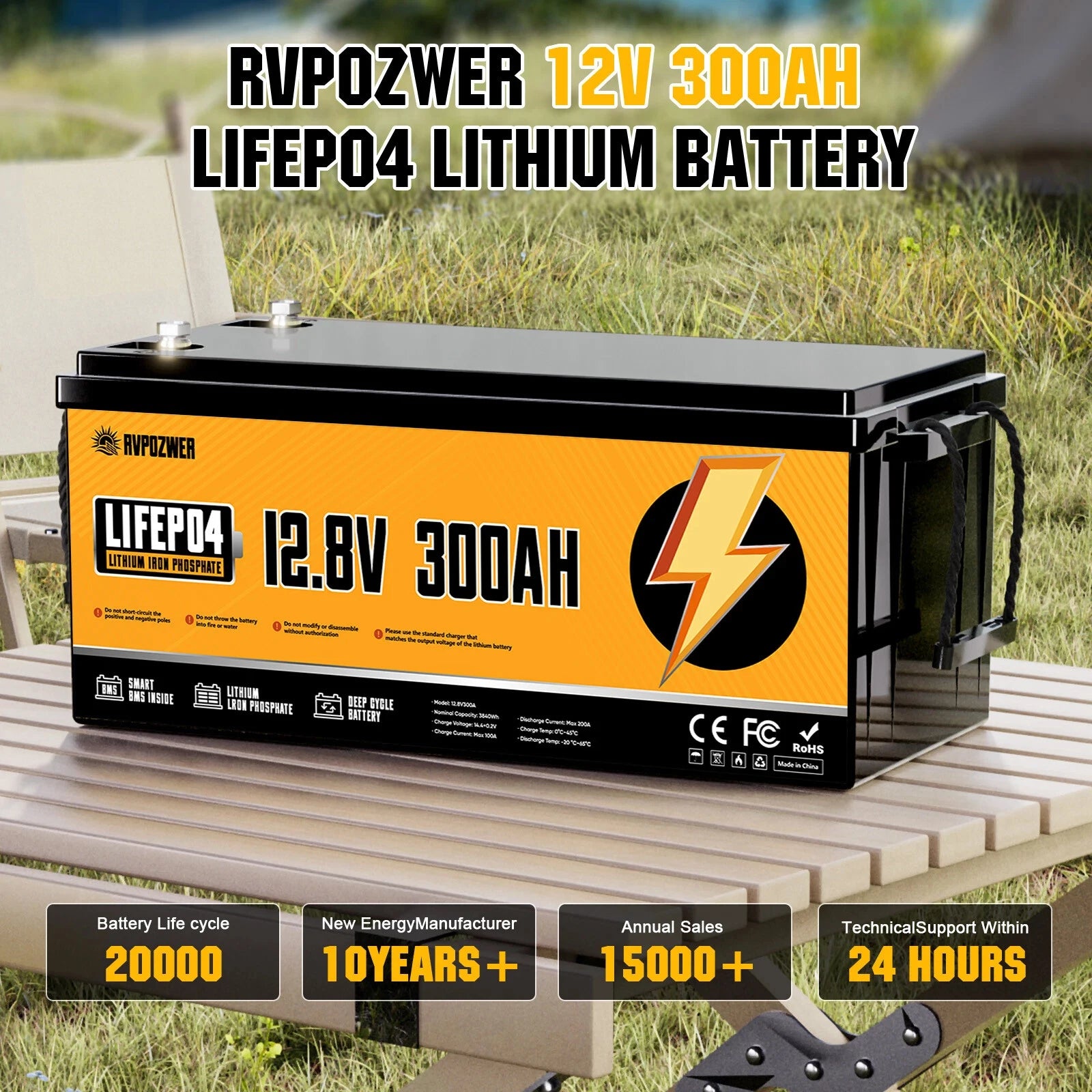

Brand: RVPOZWER

Battery Material: Lithium Iron Phosphate (LiFePO4)

Casing Material: ABS engineering plastic, durable and with excellent protective performance

Nominal Voltage: 12.8V

Rated Capacity: 300Ah

Total Energy: 3840Wh

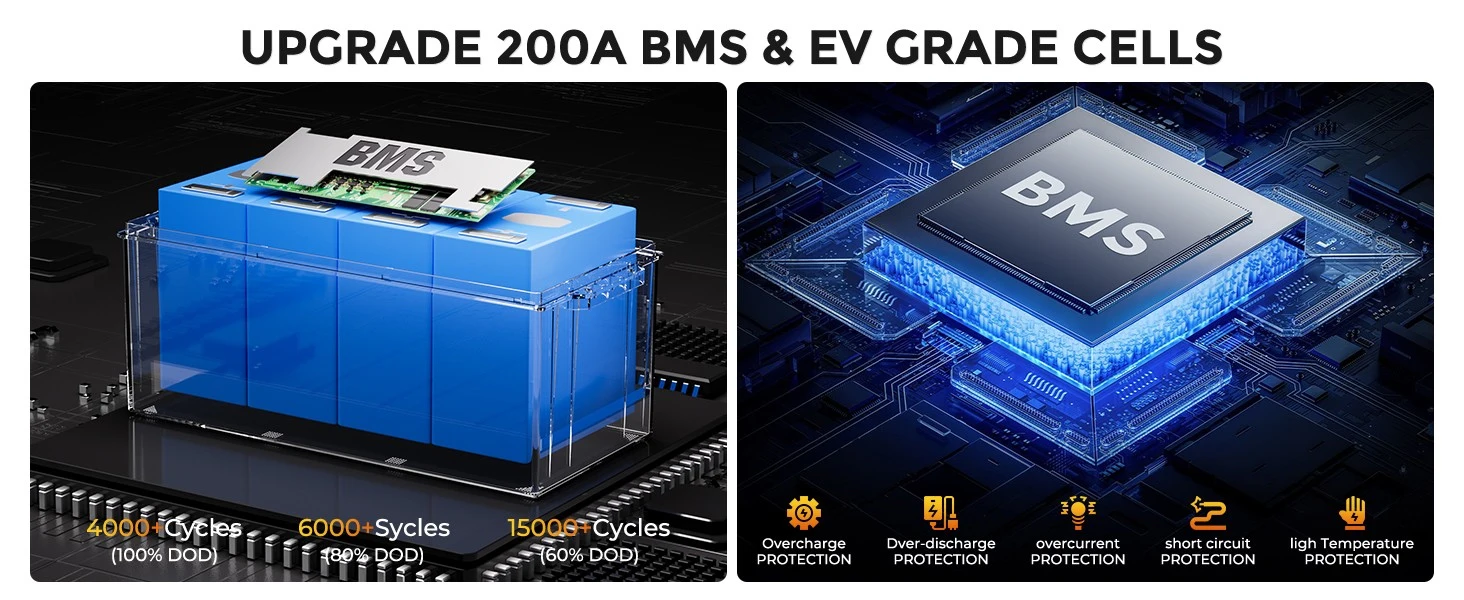

Cycle Life: Over 6000 deep charge-discharge cycles (excellent capacity retention)

Battery Internal Resistance: ≤20mΩ, higher discharge efficiency

Maximum Charging Voltage: 14.6V (Compatible with LiFePO4 dedicated charger)

Maximum Charging Current: 100A

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 200A

Discharge Cut-off Voltage: 10.0V

Operating Temperature Range: -5°C to 45°C (-32°F to 113°F)

Discharge Temperature Range: -20°C to 60°C (-4°F to 140°F

Storage Temperature Range: -10°C to 50°C (14°F to 122°F)

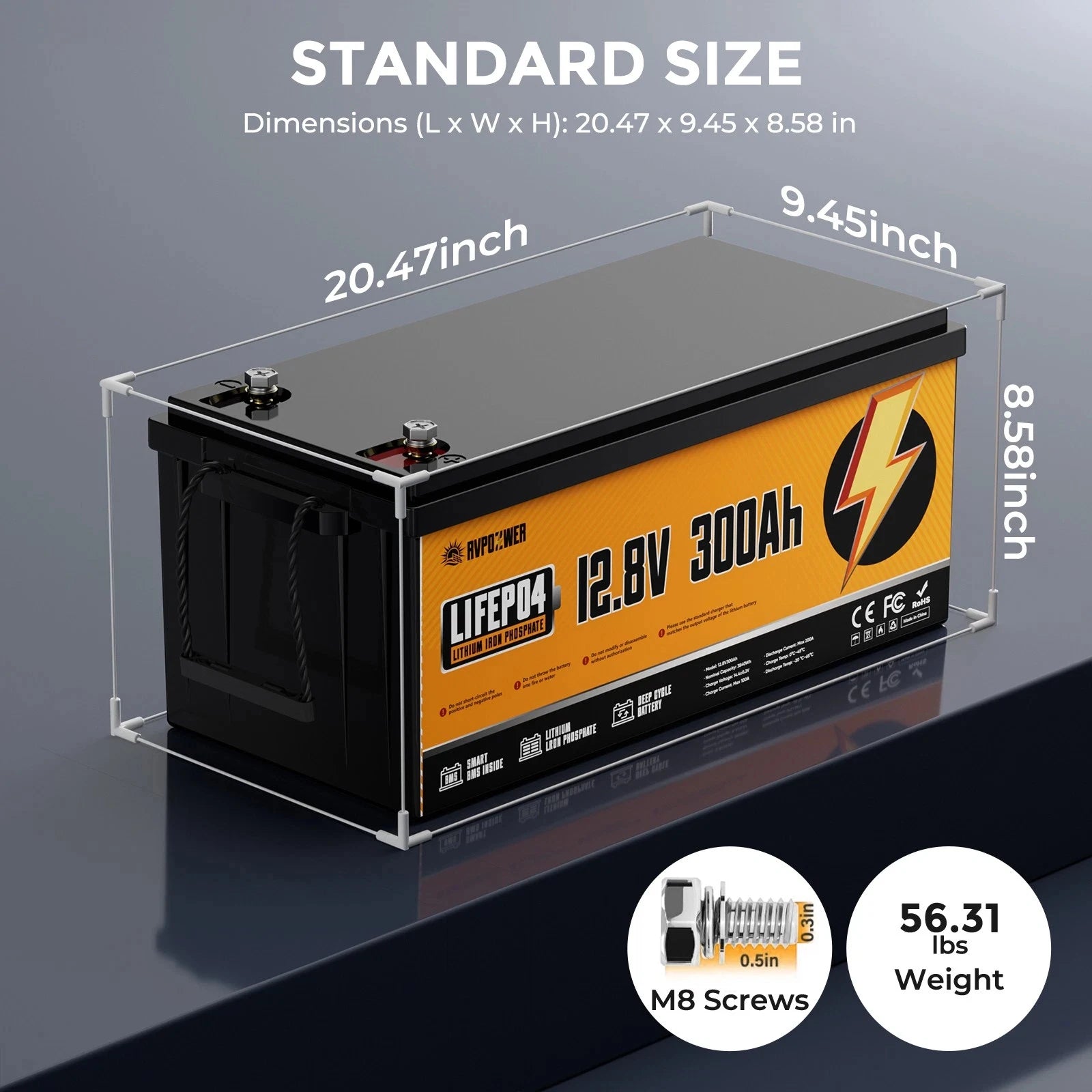

Dimensions (L × W × H): 522 × 240 × 218 mm

Product Weight: 25.54 kg

Terminal Specification: M8 standard terminals, ensuring secure wiring

Protection Rating: IP55, effectively dust and splash resistant, suitable for various environments

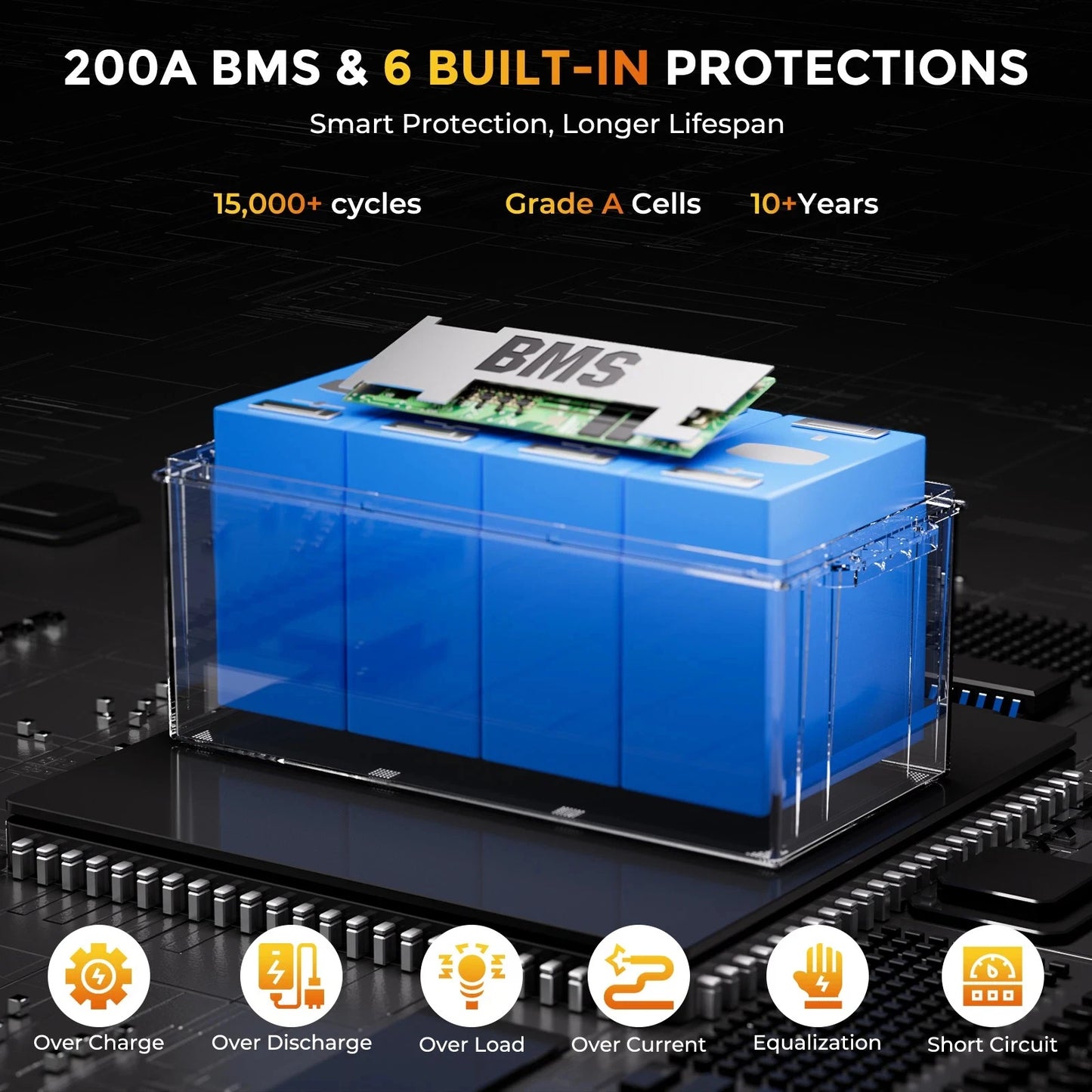

Built-in Battery Management System (BMS): Real-time battery monitoring with multiple safety protections including overcharge, over-discharge, overcurrent, and short circuit protection

Core Component/Accessory Grade: Grade A quality, stable and reliable performance

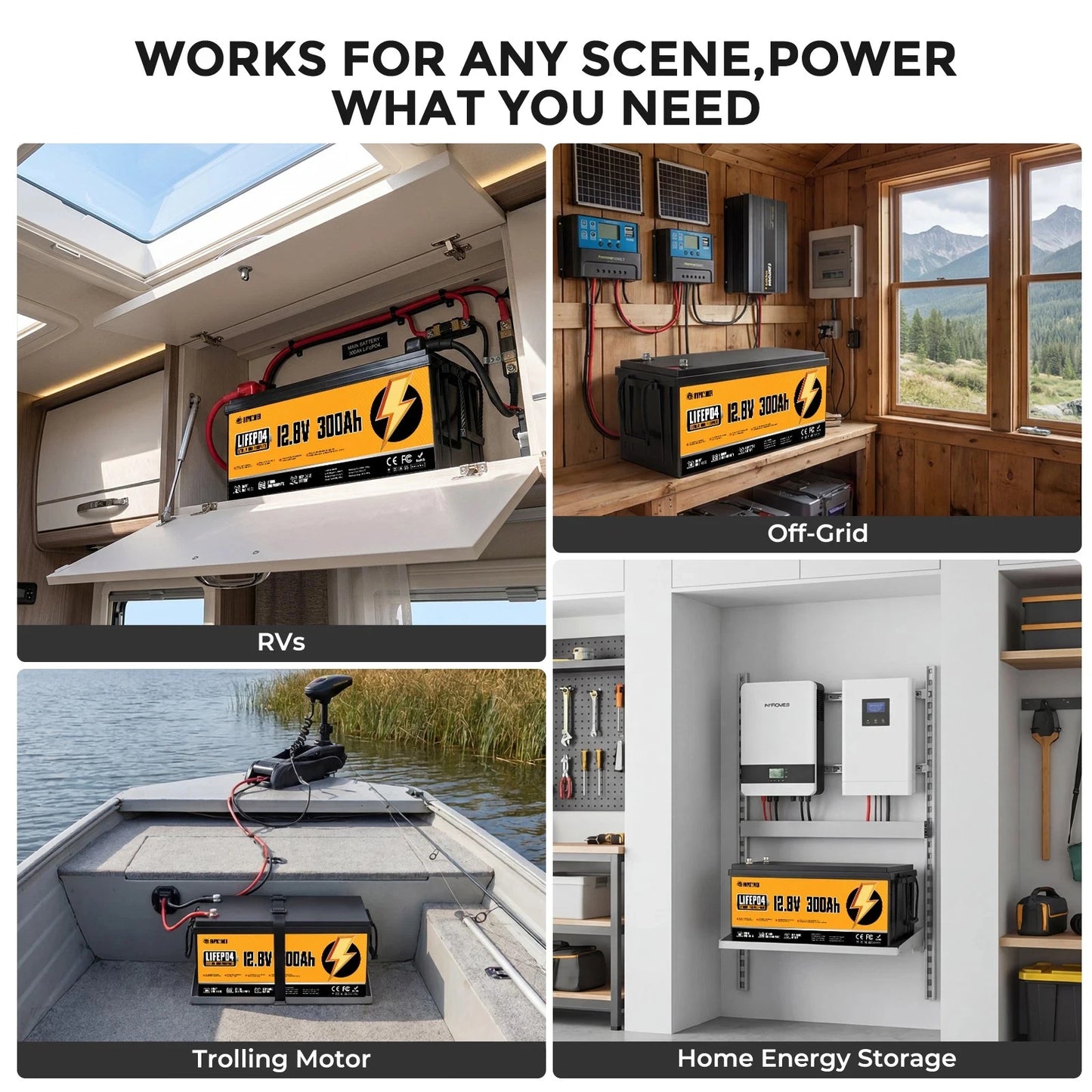

Applicable Scenarios:

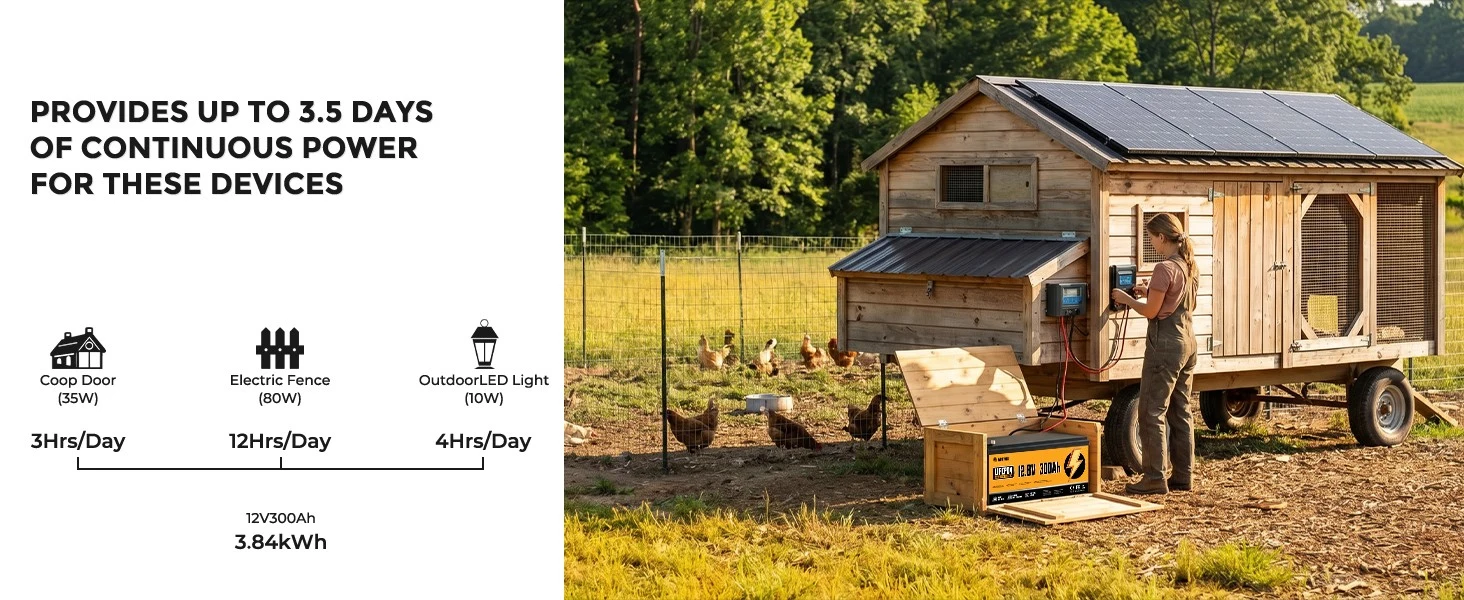

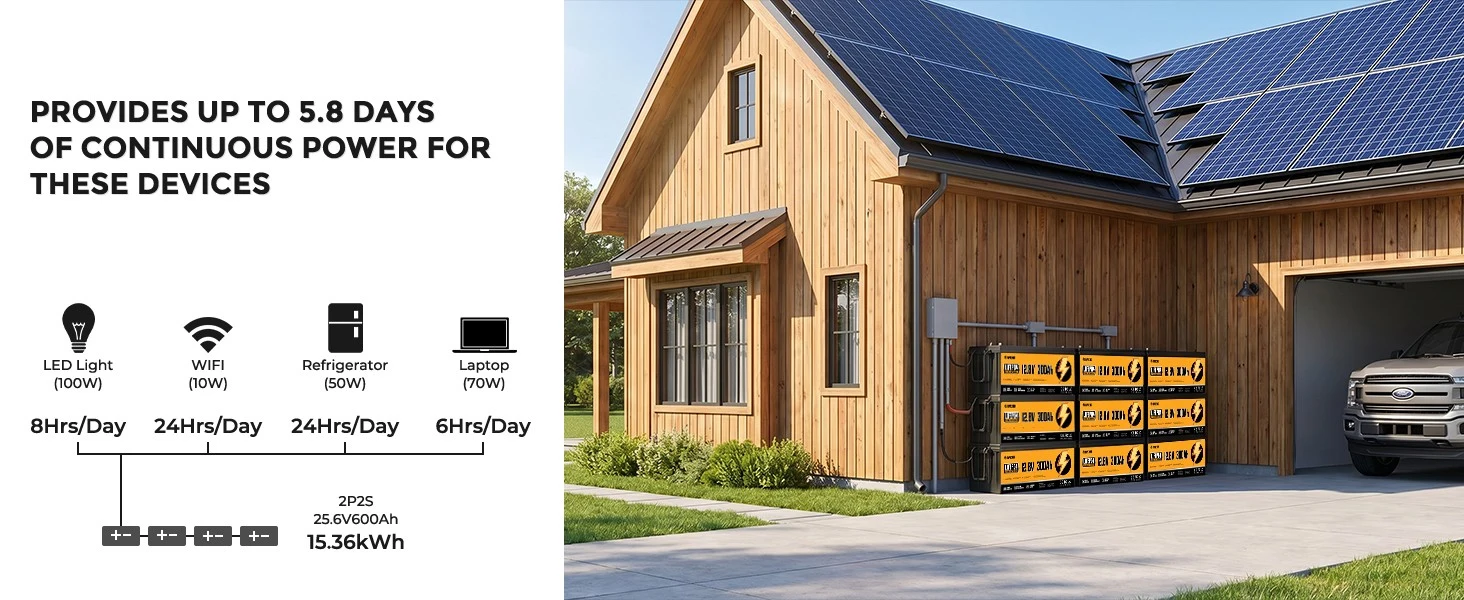

This product is suitable for all scenarios of energy storage power supply needs, covering home energy storage, photovoltaic/wind off-grid power generation and storage systems; it can be used as a dedicated power supply for RVs, campervans, travel trailers, marine equipment, propulsion motors, fish finders, electric robots, portable TVs, lighting fixtures, and UPS emergency backup power supplies.

Core Product Advantages:

Lightweight and portable design for easy and convenient transport, installation, and deployment; Large-capacity, high-power energy storage to support stable operation of various high-power devices; Highly stable discharge voltage platform for consistent voltage output throughout the entire process; Ultra-long cycle life for continuous, uninterrupted operation; Built-in multiple safety protection circuits, coupled with environmentally friendly lithium iron phosphate battery cells, ensuring both safety and environmental friendliness.

Packaging List:

1 × 12V 300Ah Lithium Iron Phosphate Battery Pack

1 × Detailed User Manual
