RS25-6A Hot Water Circulation Pump AC220V Energy Saving Low Noise Boiler Heating Pump 3/4" 1" HVAC Floor Heating Booster Pump

$243.00 USD

~~$0.00 USD~~ $243.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 165W 100W 280W 228W 325W

Size G1 G3-4

Quantity

SPECIFICATIONS

Brand Name: NONE

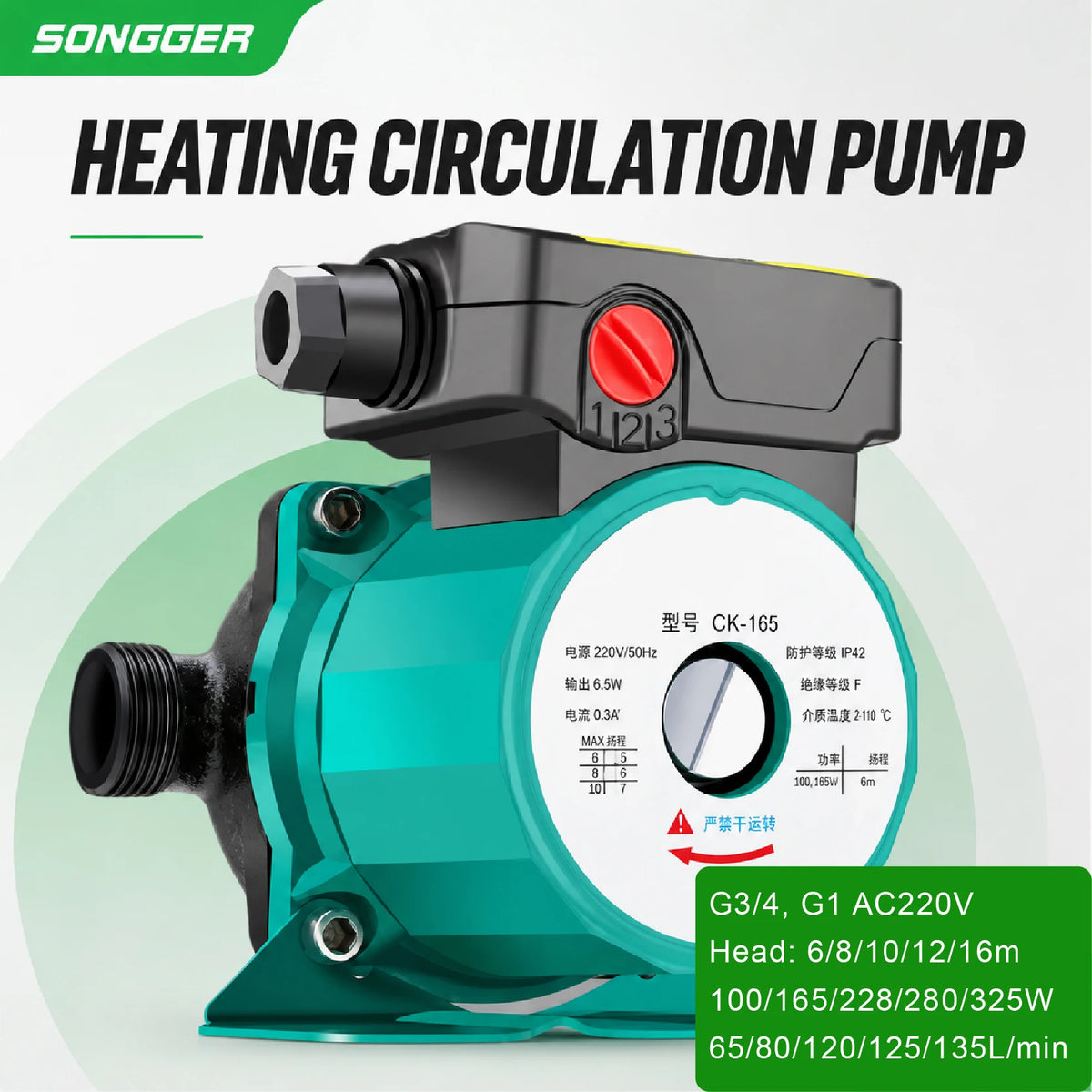

Flow Rate: 65L/min,80L/min,120L/min,125L/min,135L/min

Head: 6m,8m,10m,12m,16m

High-concerned chemical: none

Origin: Mainland China

Power Choices: 100W,165W,228W,280W,325W

Power Supply: AC220V

Size Options: 3/4 inch,1 inch

1. Note

Power Supply: AC 220V

Size Options: 3/4 inch and 1 inch

Power Options: 100W, 165W, 228W, 280W, and 325W

Impeller Material:
100W to 280W models are equipped with a stainless steel impeller.
The 320W model uses a nano carbon impeller.

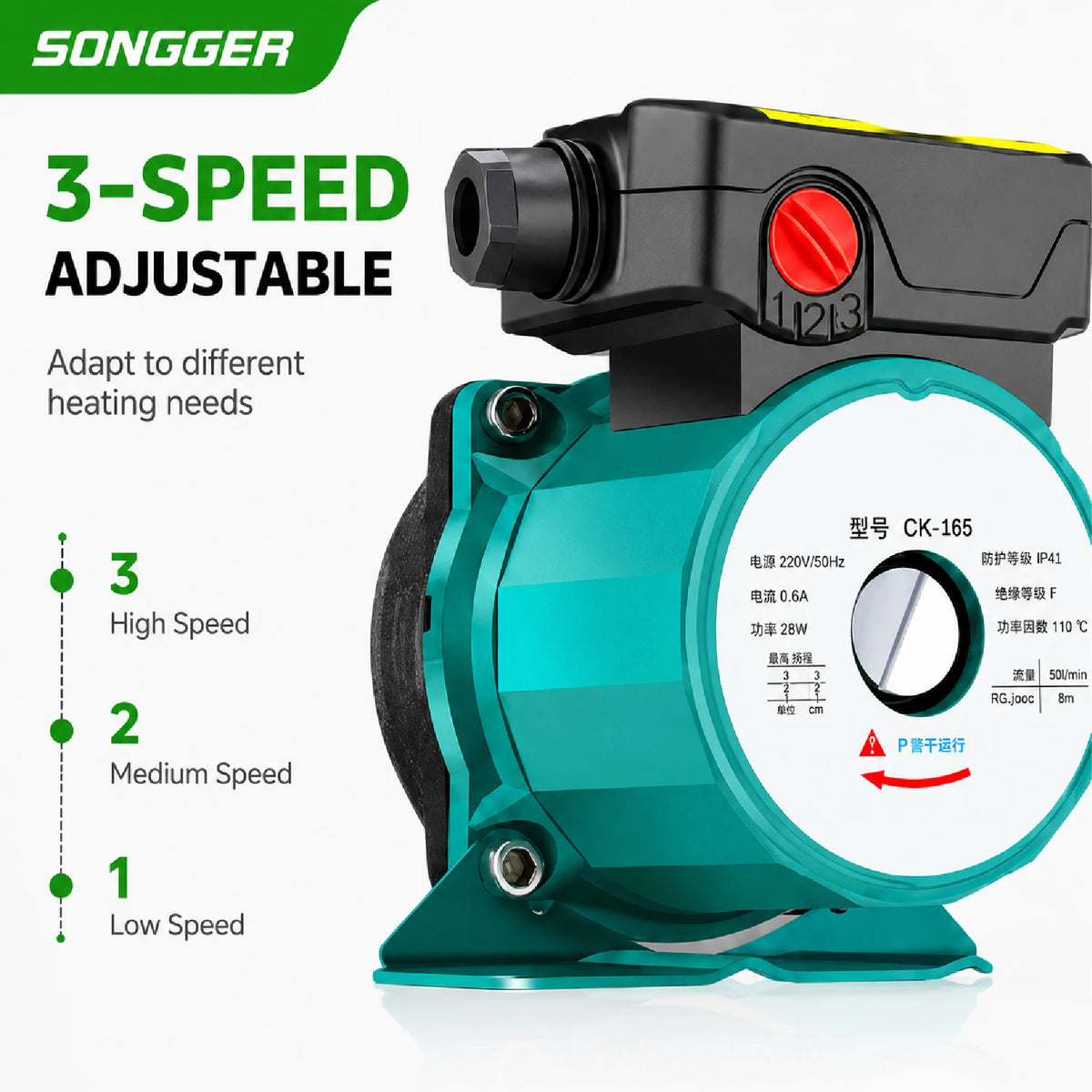

3 Speed Modes:
Low Speed: Energy-saving operation with stable temperature control.
Medium Speed: Quiet water circulation, suitable for night use.
High Speed: Fast heating circulation for higher working efficiency.

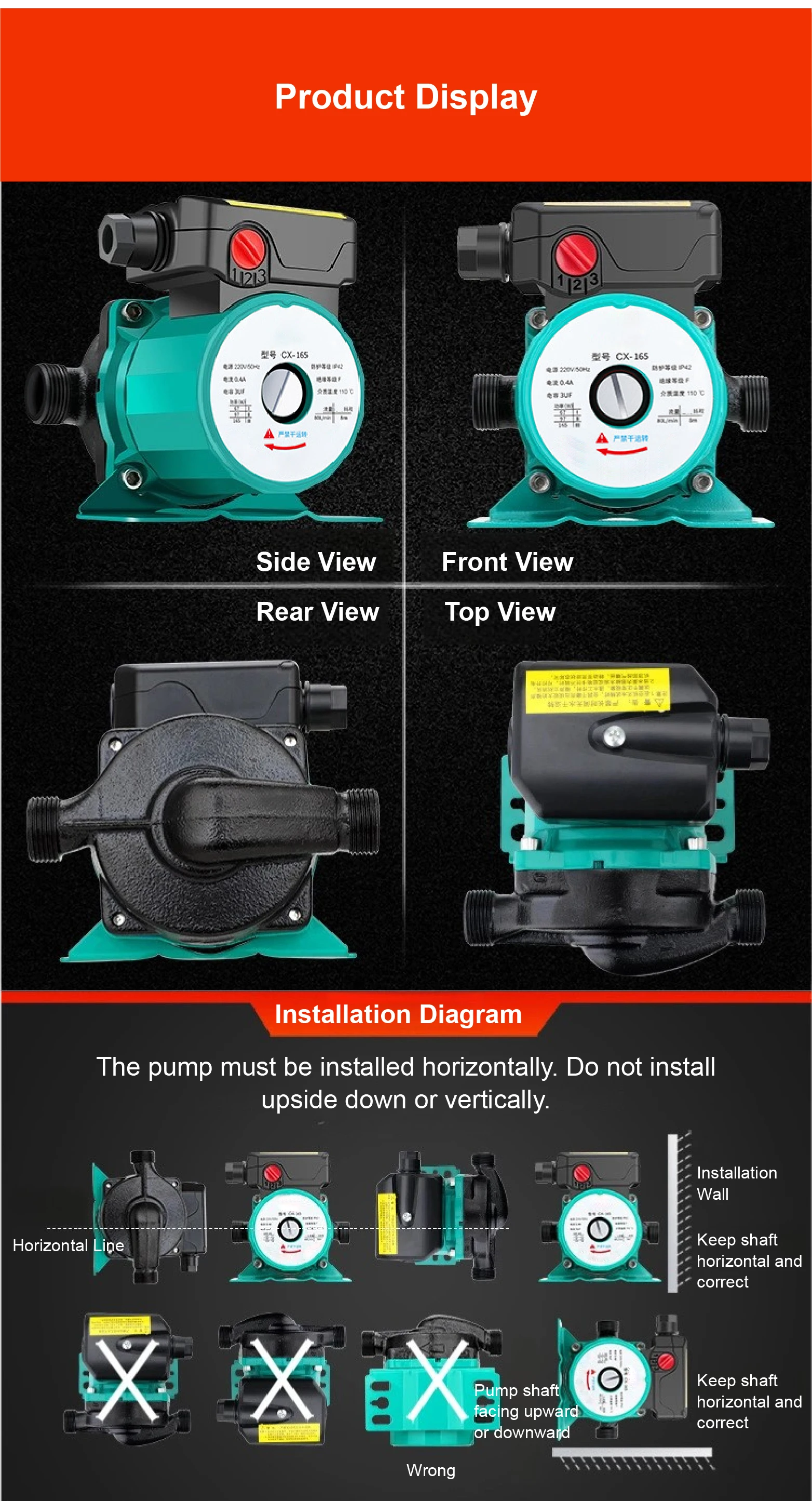

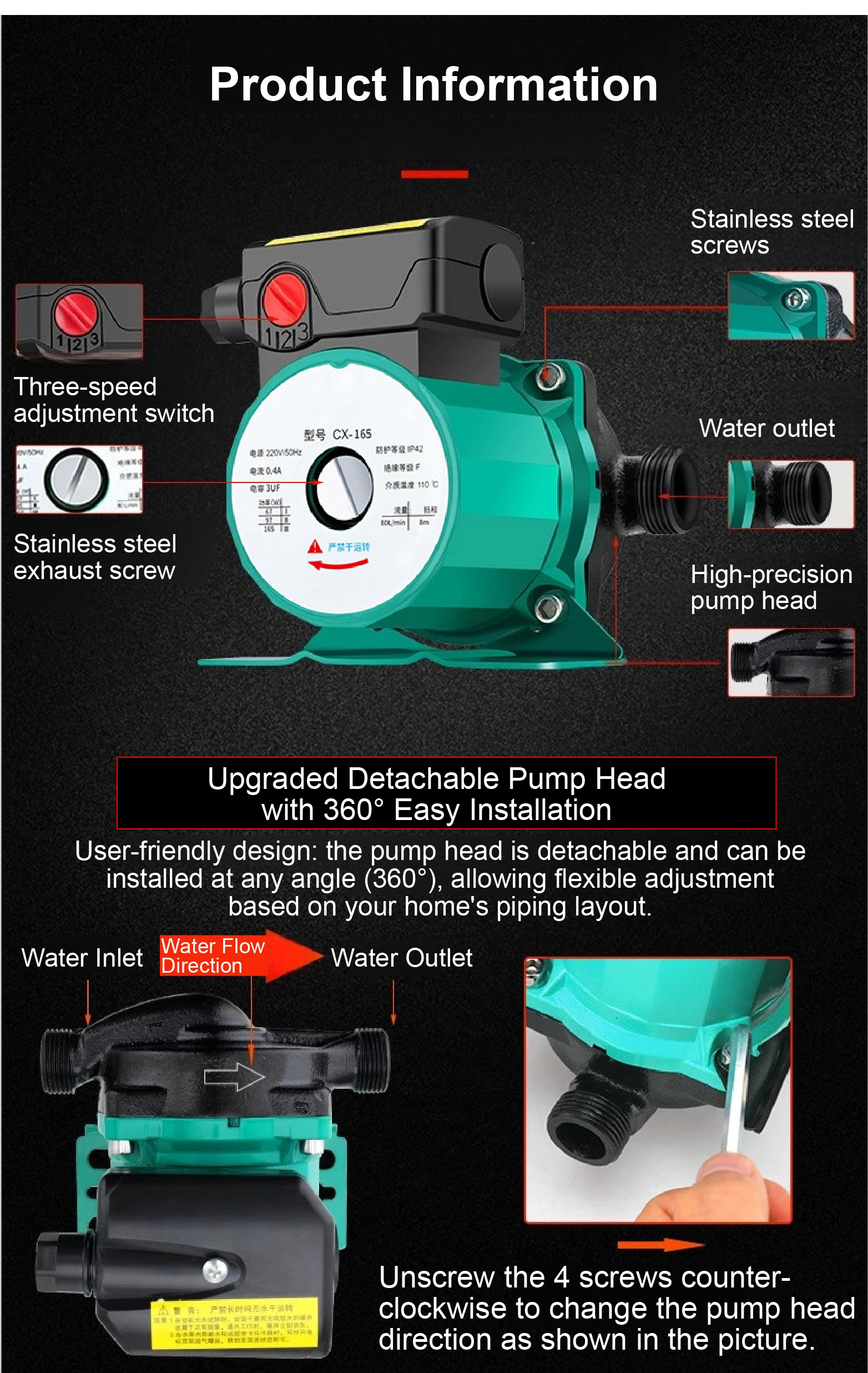

Pump Head:
The detachable pump head supports 360° rotation, making installation more flexible and convenient.

Accessories:

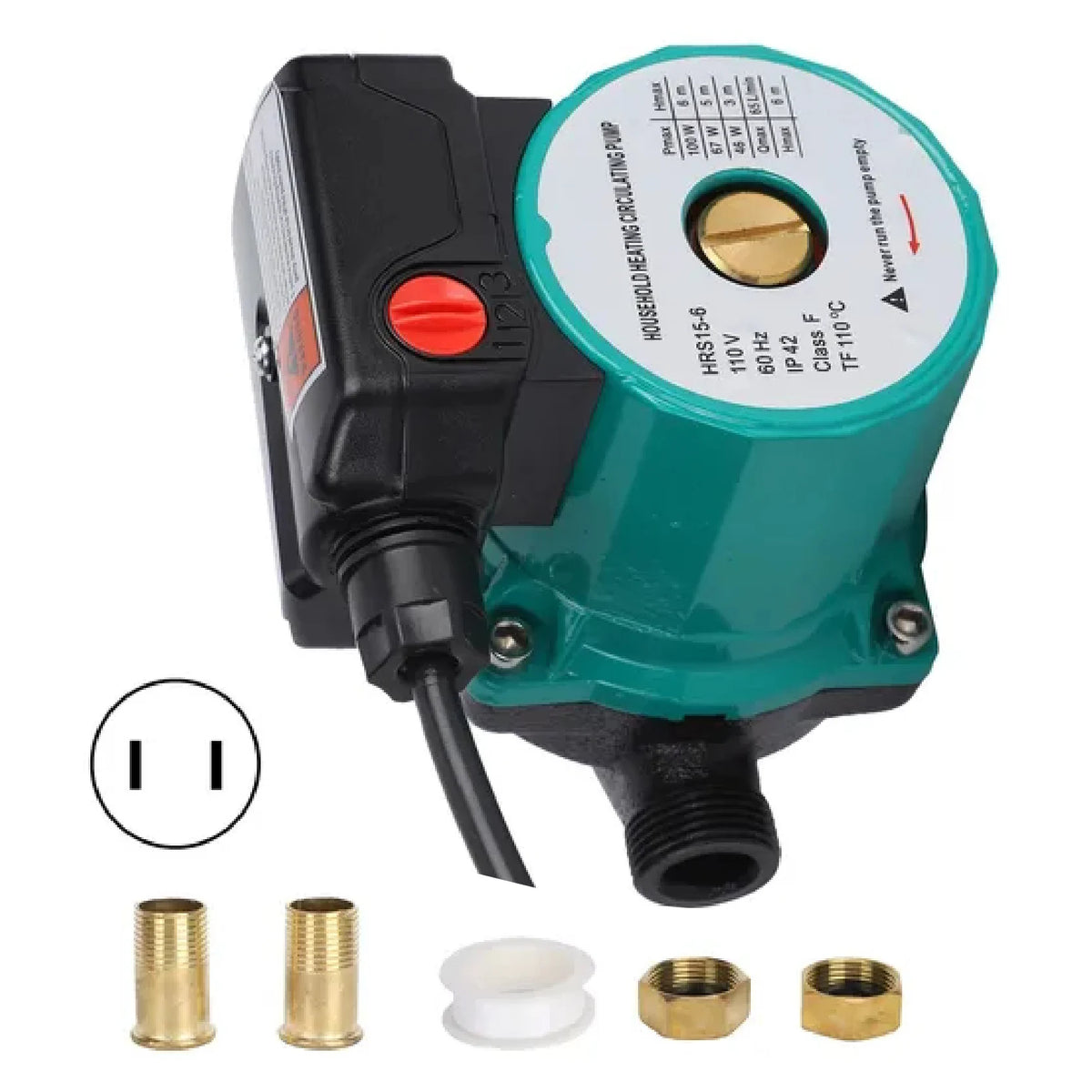

The 3/4 inch model comes with 2 adapters.
Models of 1 inch and above do not require adapters.

Customization:
Larger sizes such as 1.2 inch, 1.5 inch, and 2 inch can be customized. Please contact us for more details.

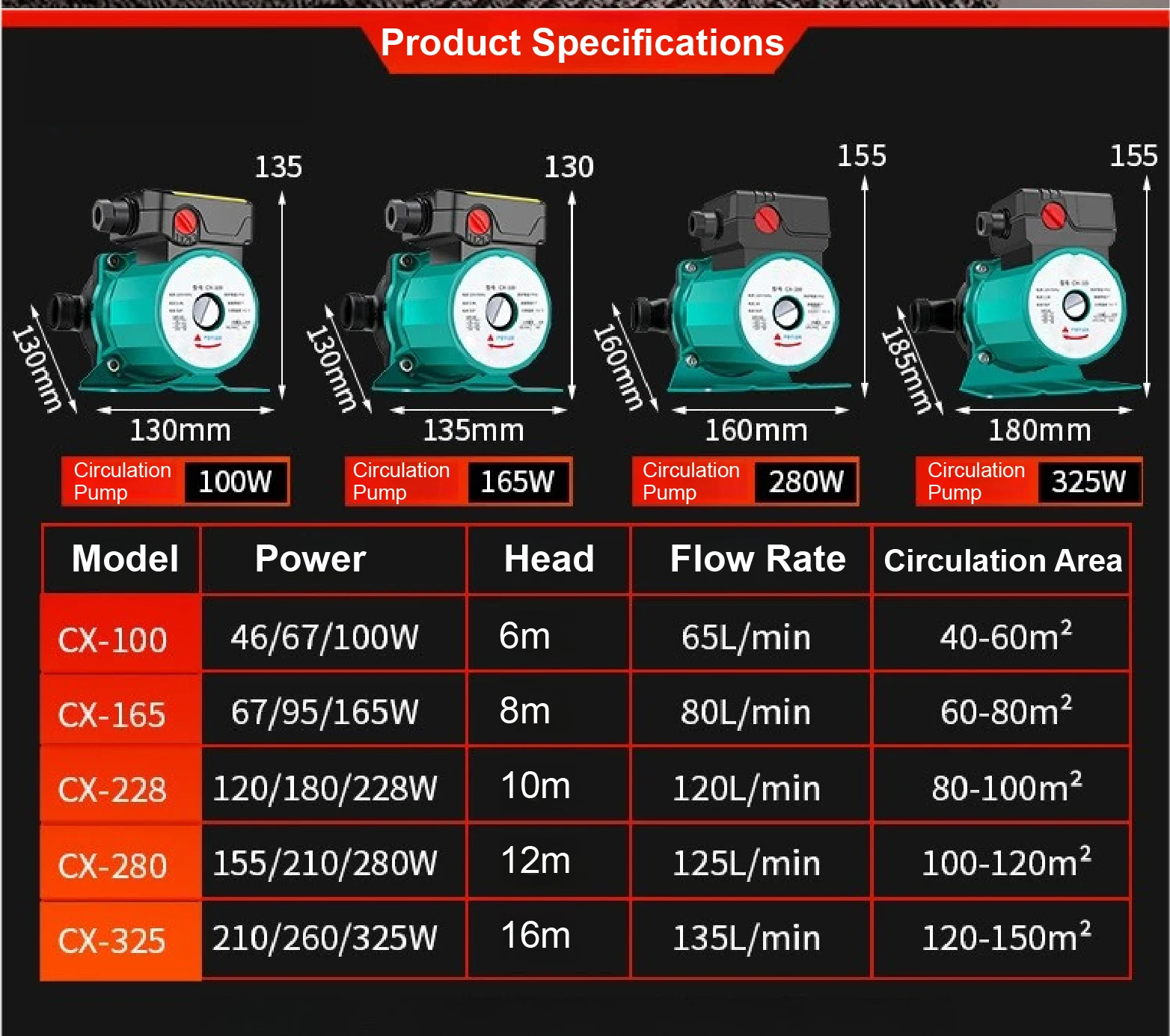

2. Parameters

Model	Power	Head	Flow Rate	Circulation Area

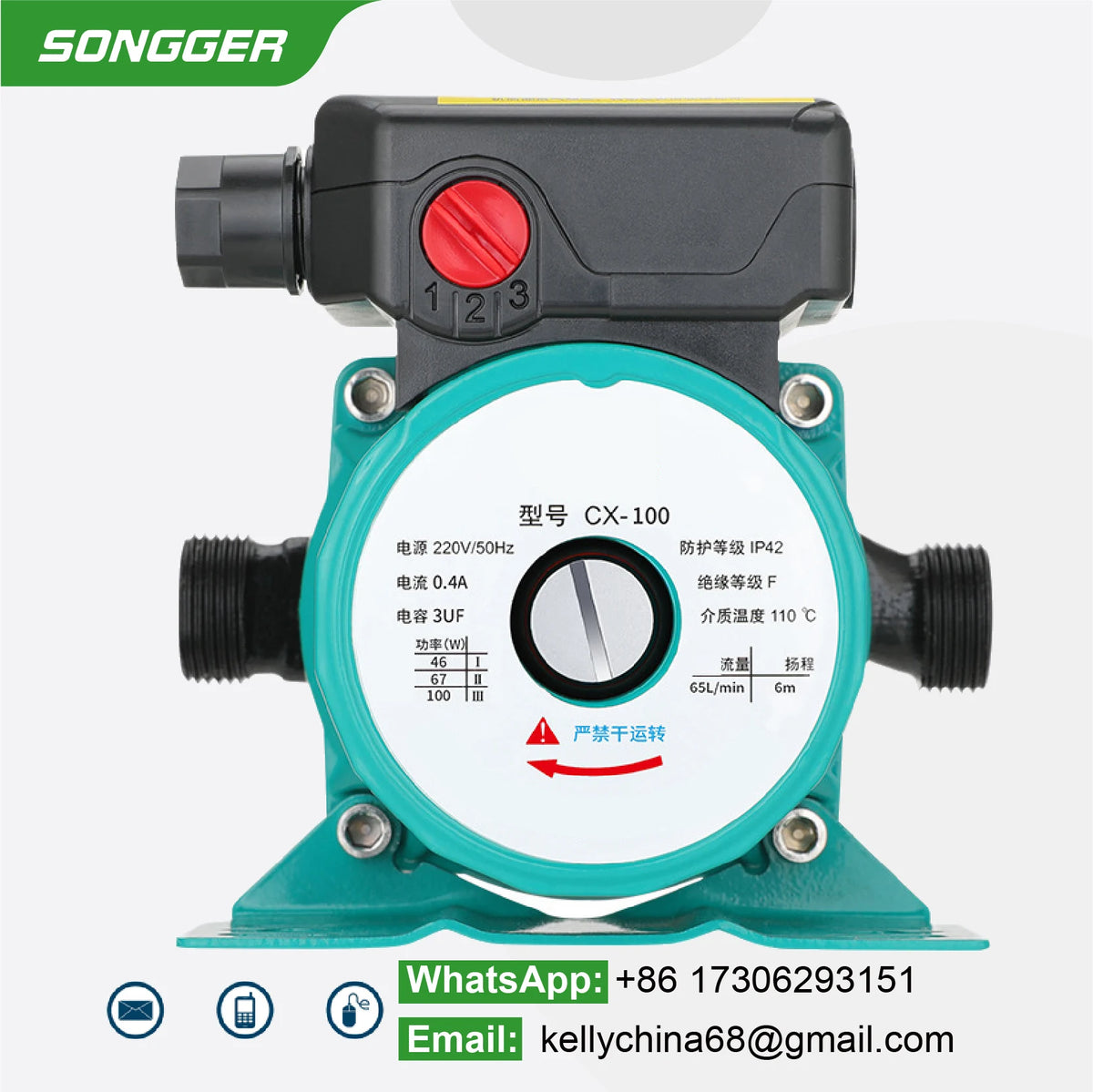

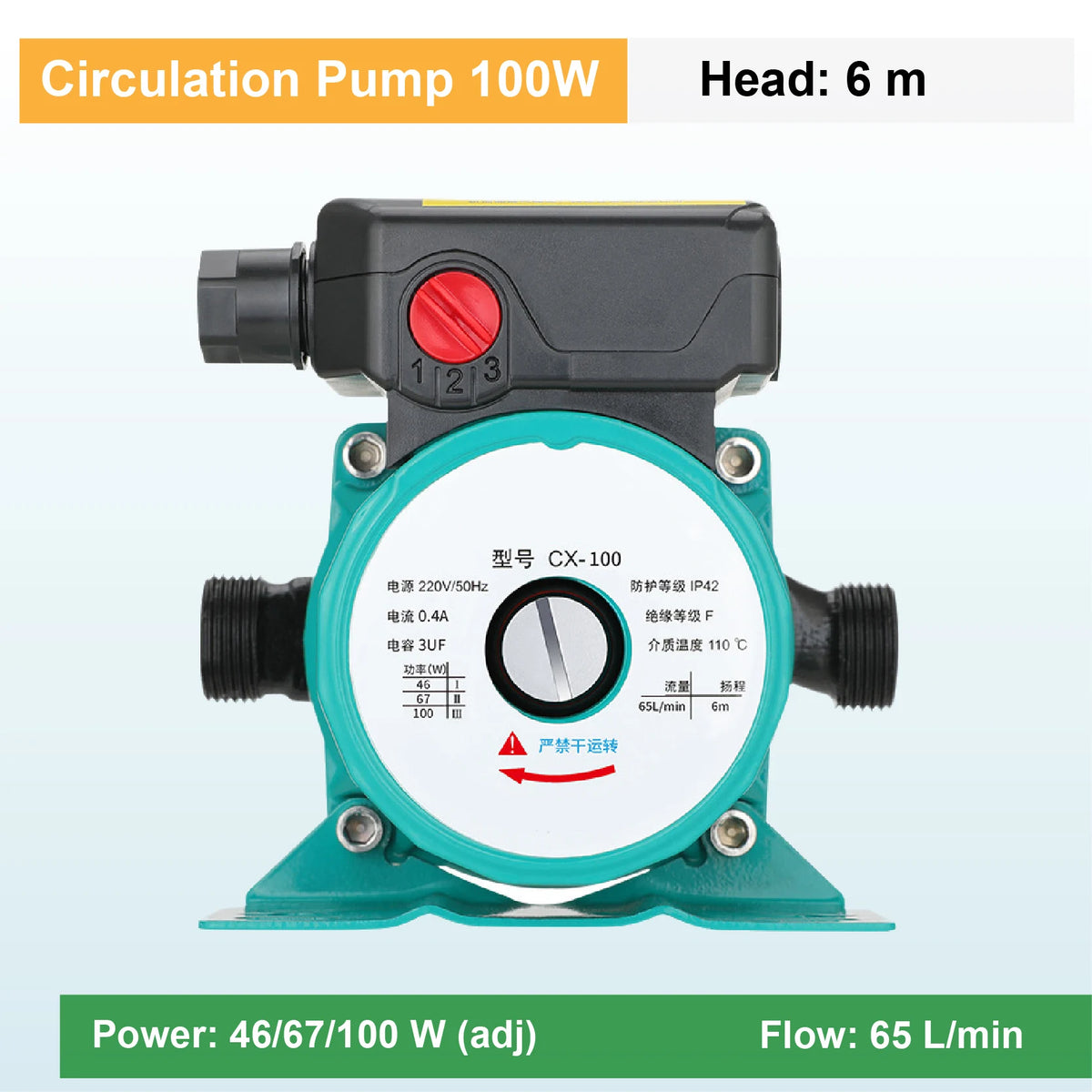

CX-100	46/67/100W	6m	65L/min	40–60㎡

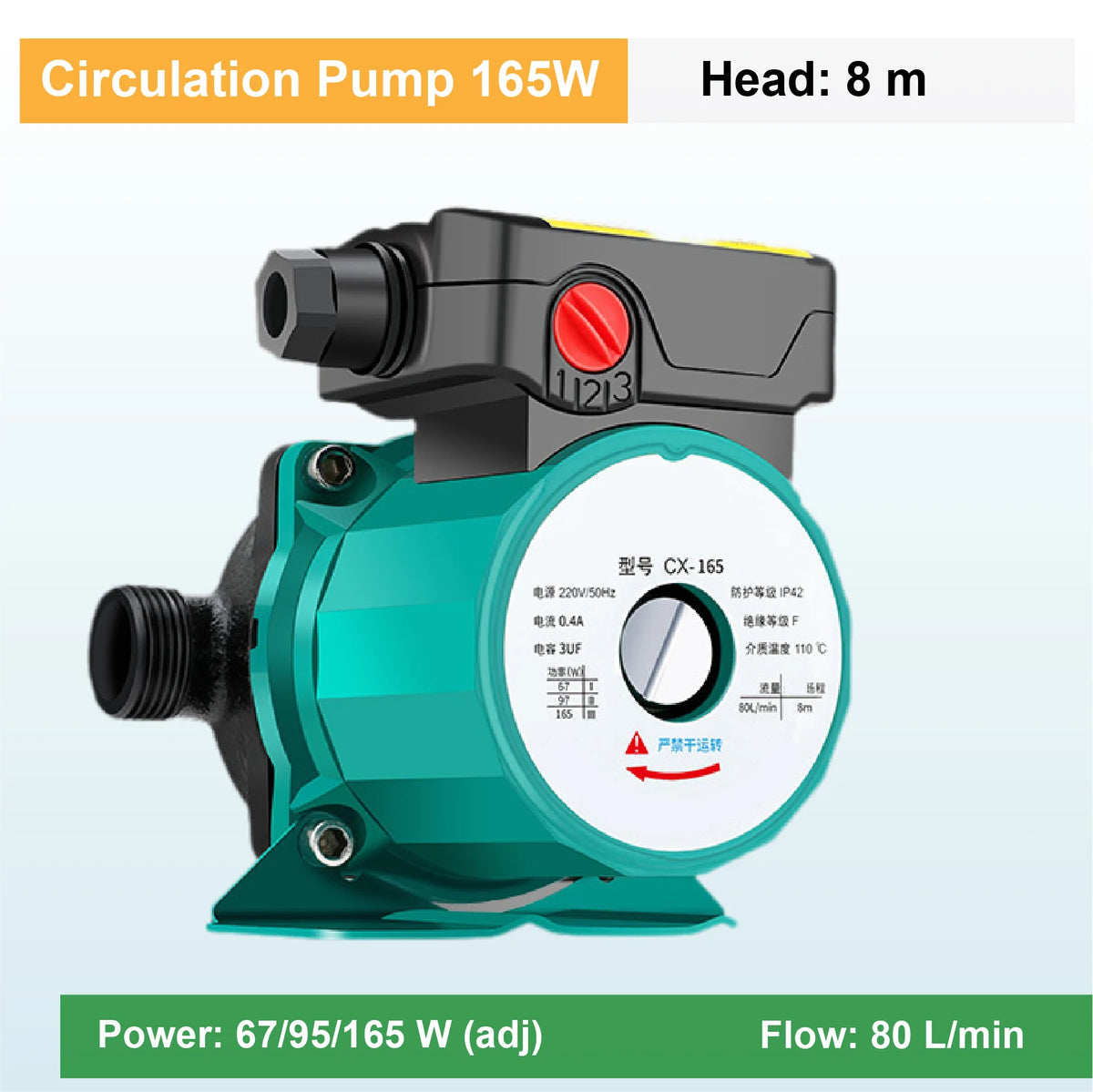

CX-165	67/95/165W	8m	80L/min	60–80㎡

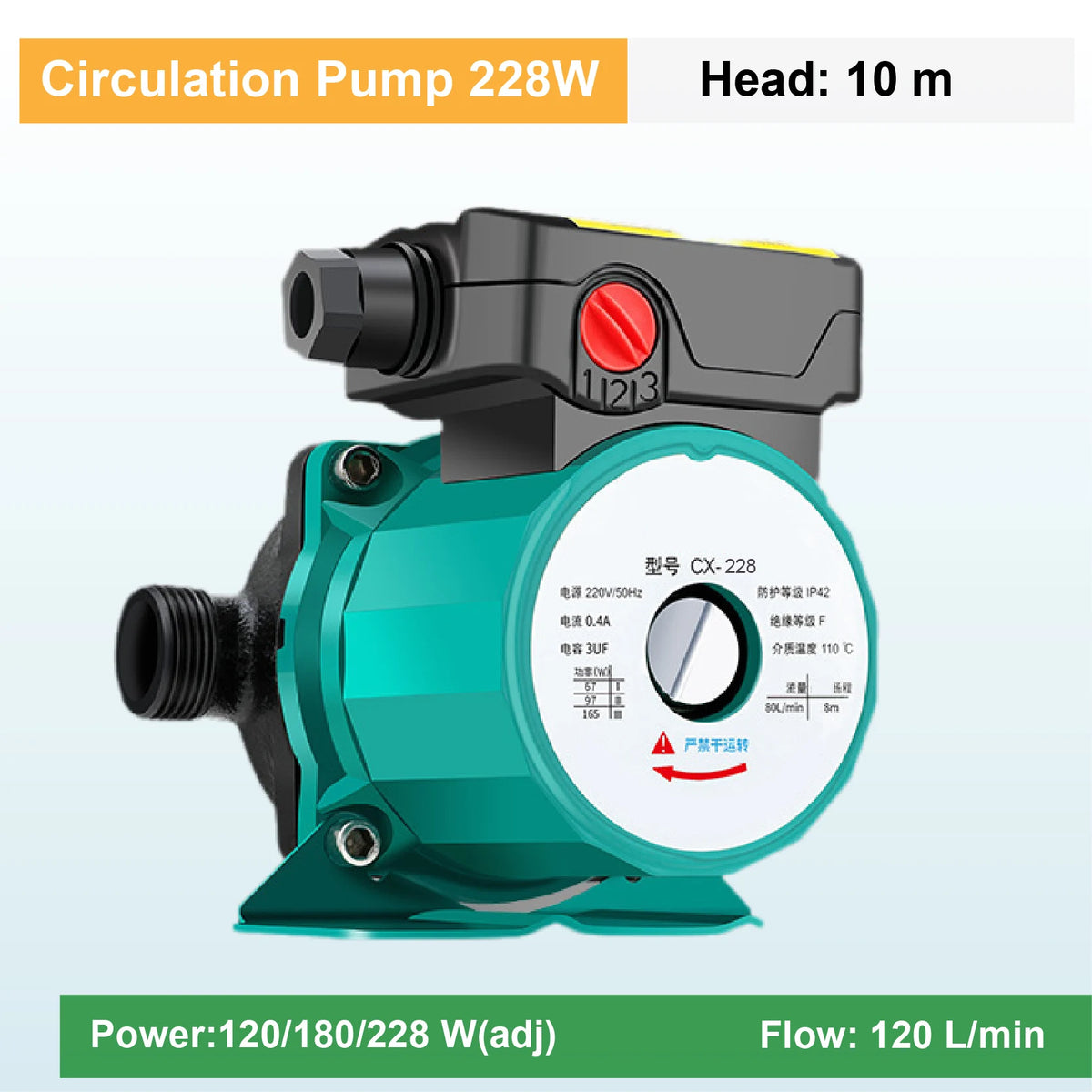

CX-228	120/180/228W	10m	120L/min	80–100㎡

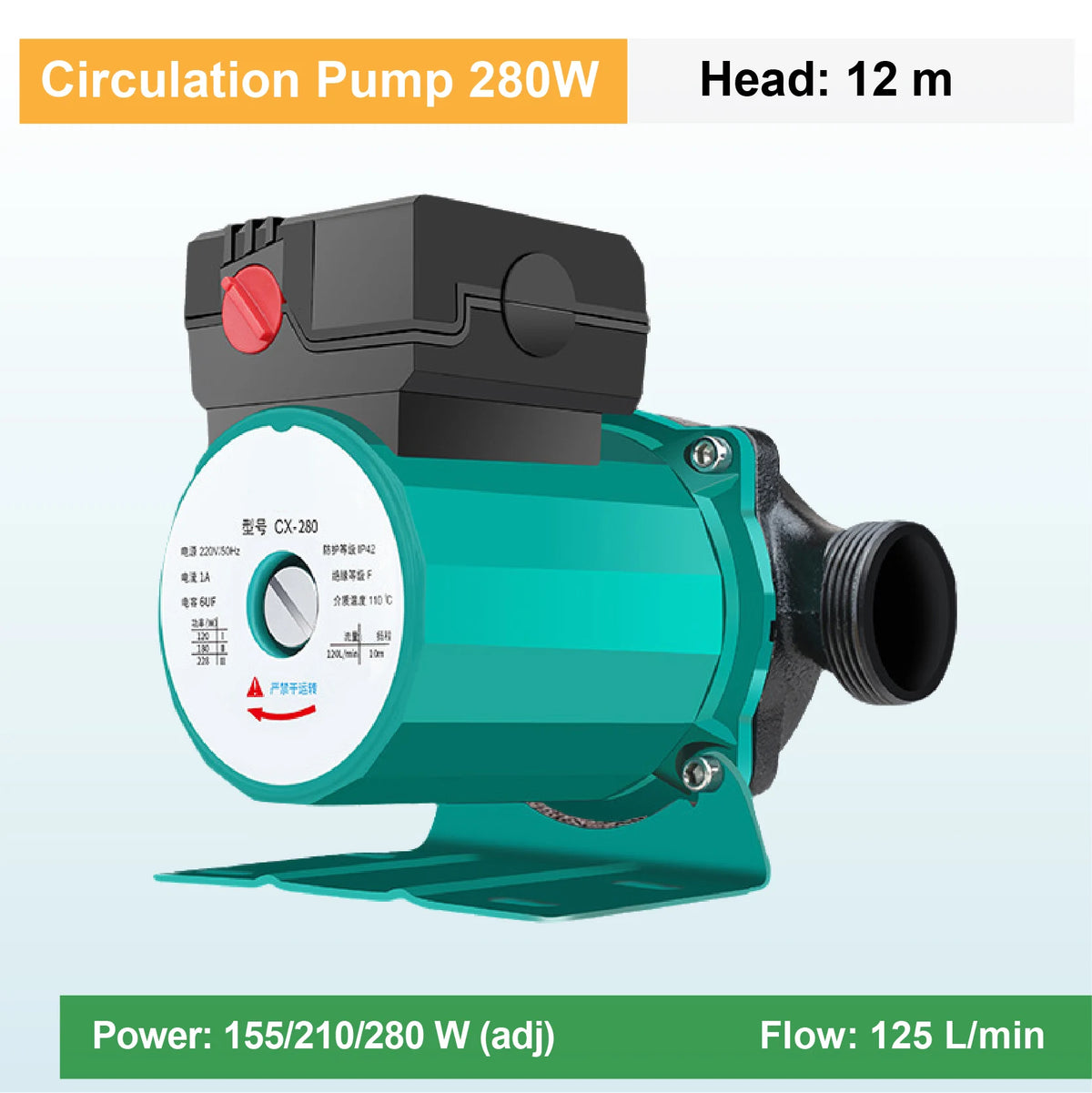

CX-280	155/210/280W	12m	125L/min	100–120㎡

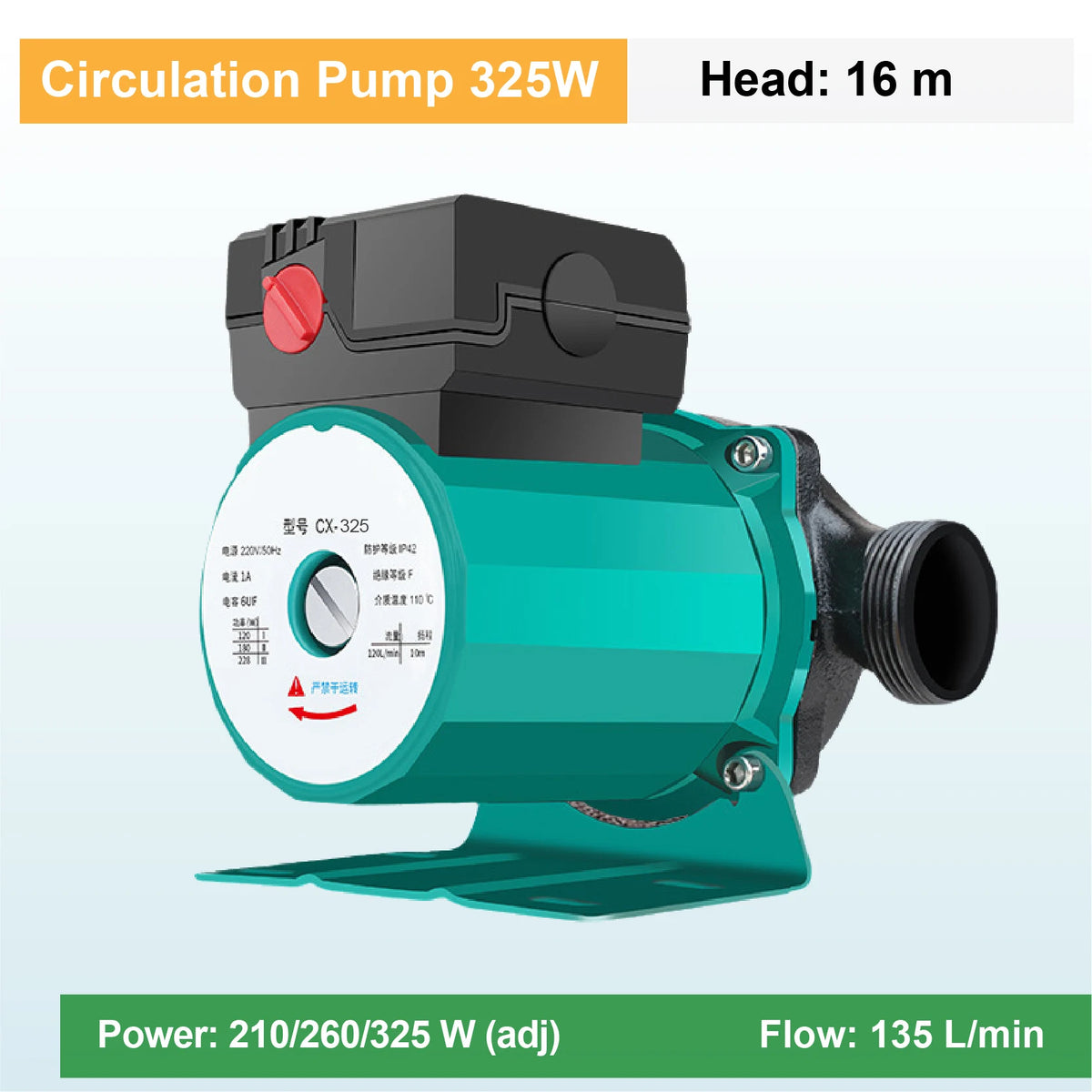

CX-325	210/260/325W	16m	135L/min	120–150㎡

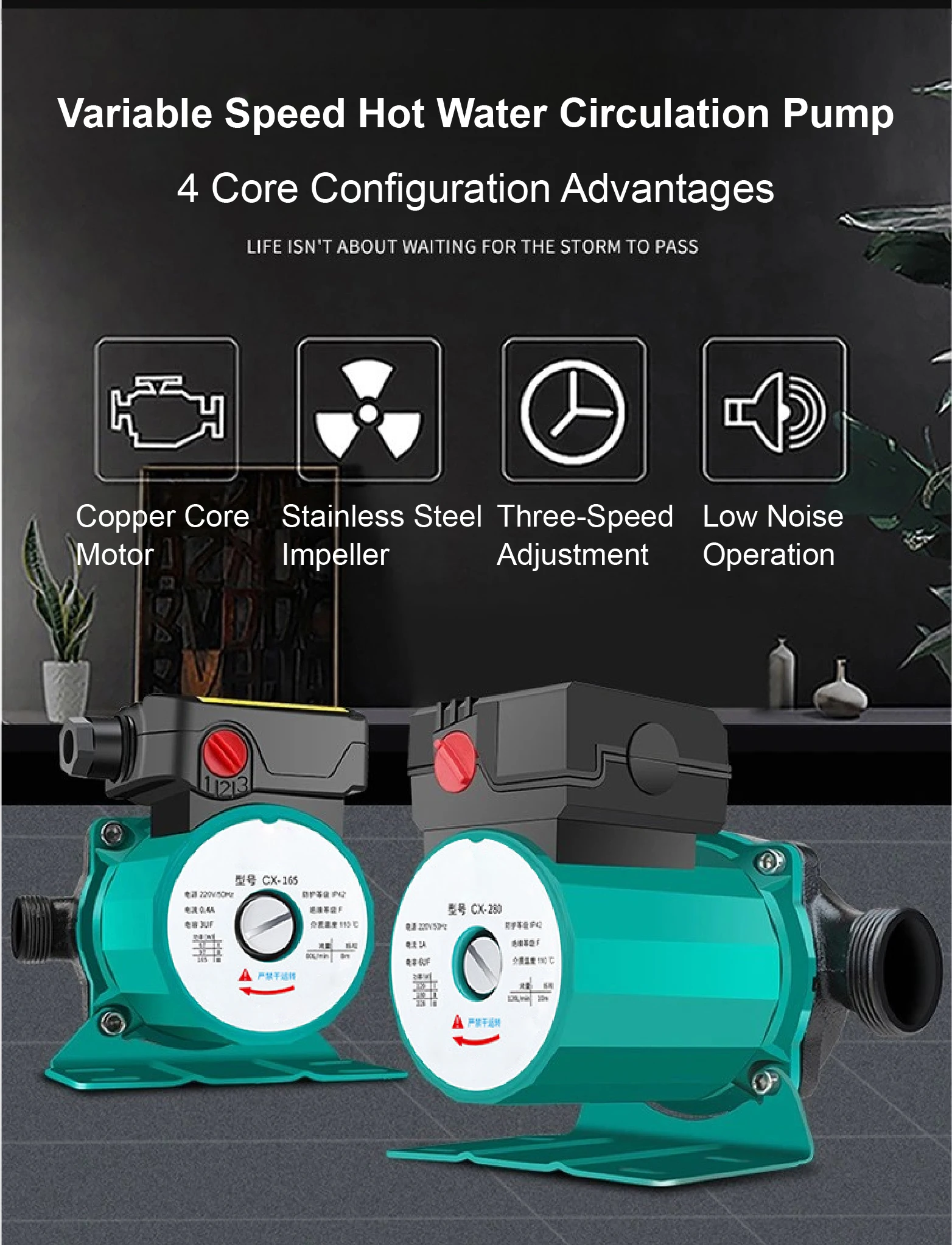

3. Features

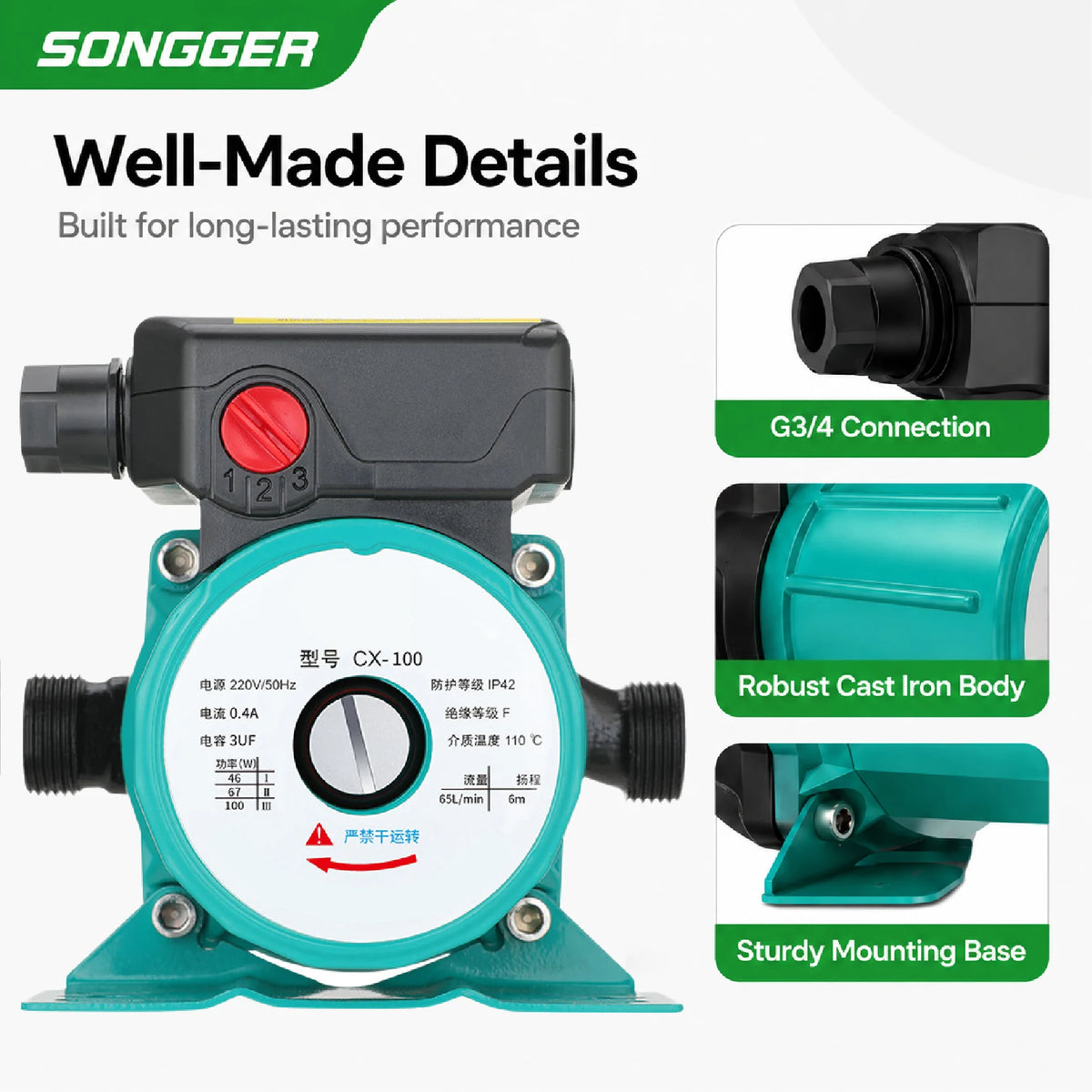

Thickened Brass Connector
Made from high-quality solid brass for excellent durability, secure sealing, and long-lasting performance.

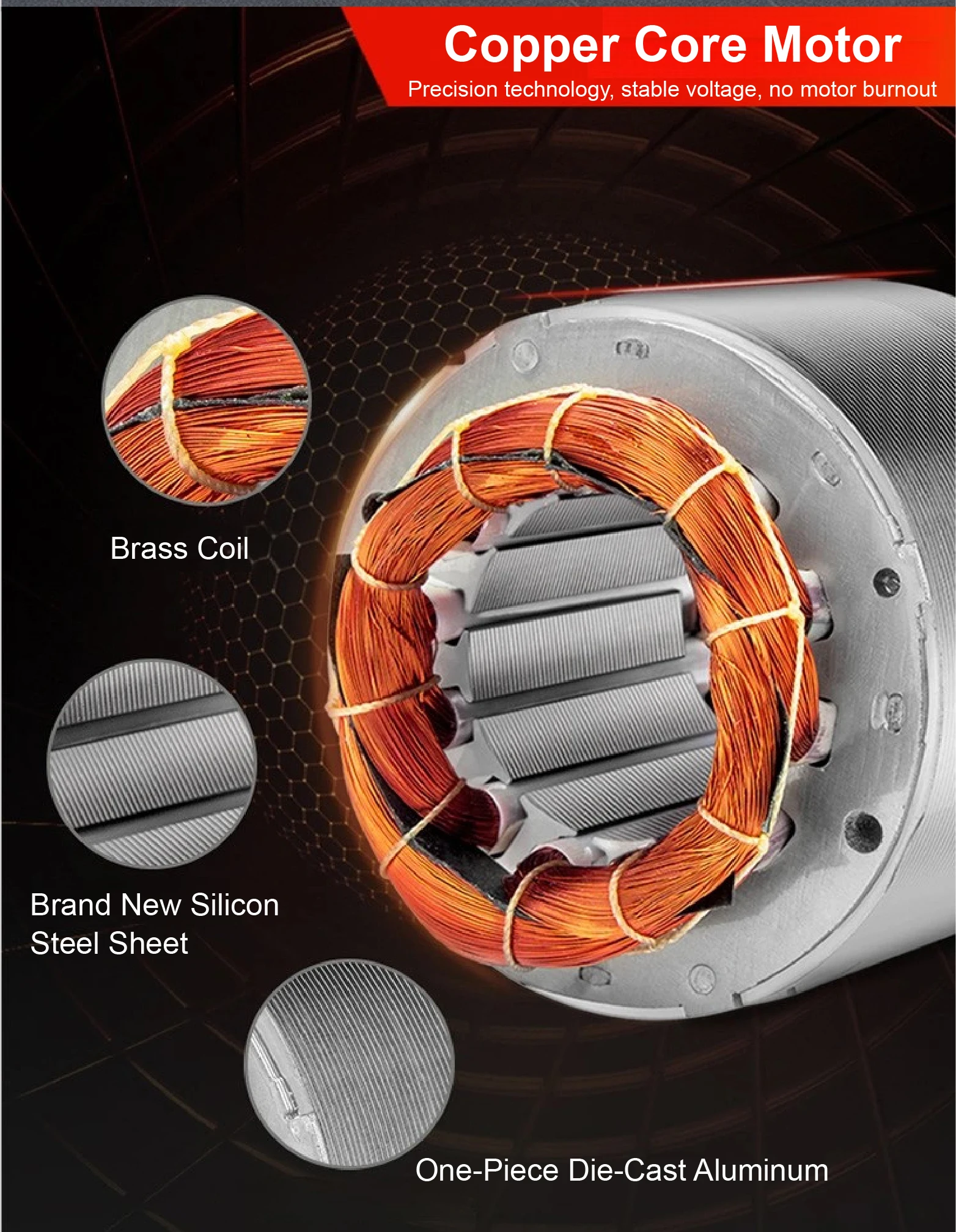

All-Copper Motor
Equipped with a premium copper motor that delivers strong power, stable operation, and extended service life.

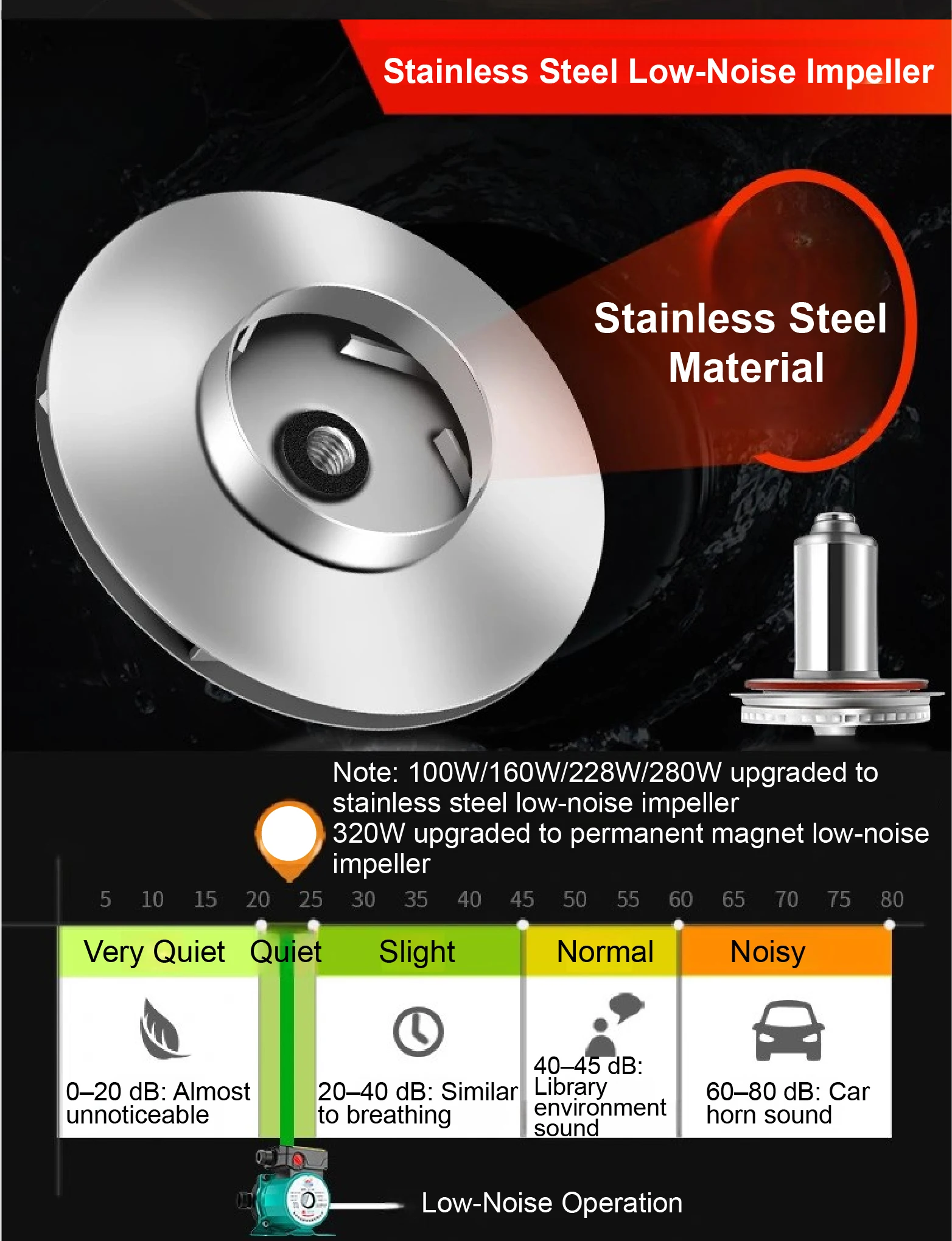

Low-Noise Impeller
The upgraded impeller design helps reduce operating noise for a quieter user experience.
100W to 280W models are equipped with stainless steel impellers.
The 320W model uses a nano carbon impeller.

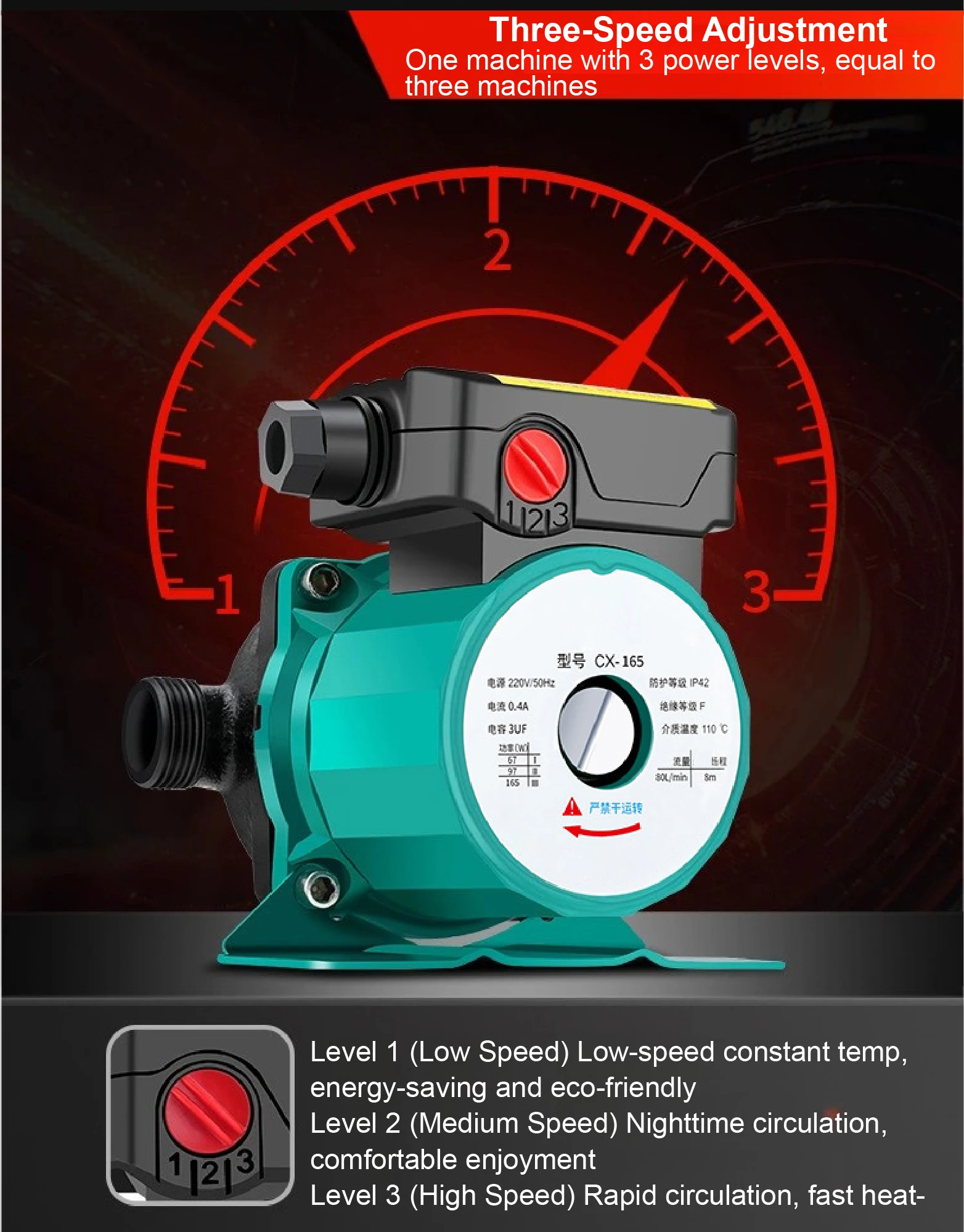

Three-Speed Adjustment
Speed 1 (Low): Energy-saving mode with constant temperature circulation.
Speed 2 (Medium): Quiet and comfortable circulation, ideal for night use.
Speed 3 (High): Fast heating and rapid water circulation for improved efficiency.

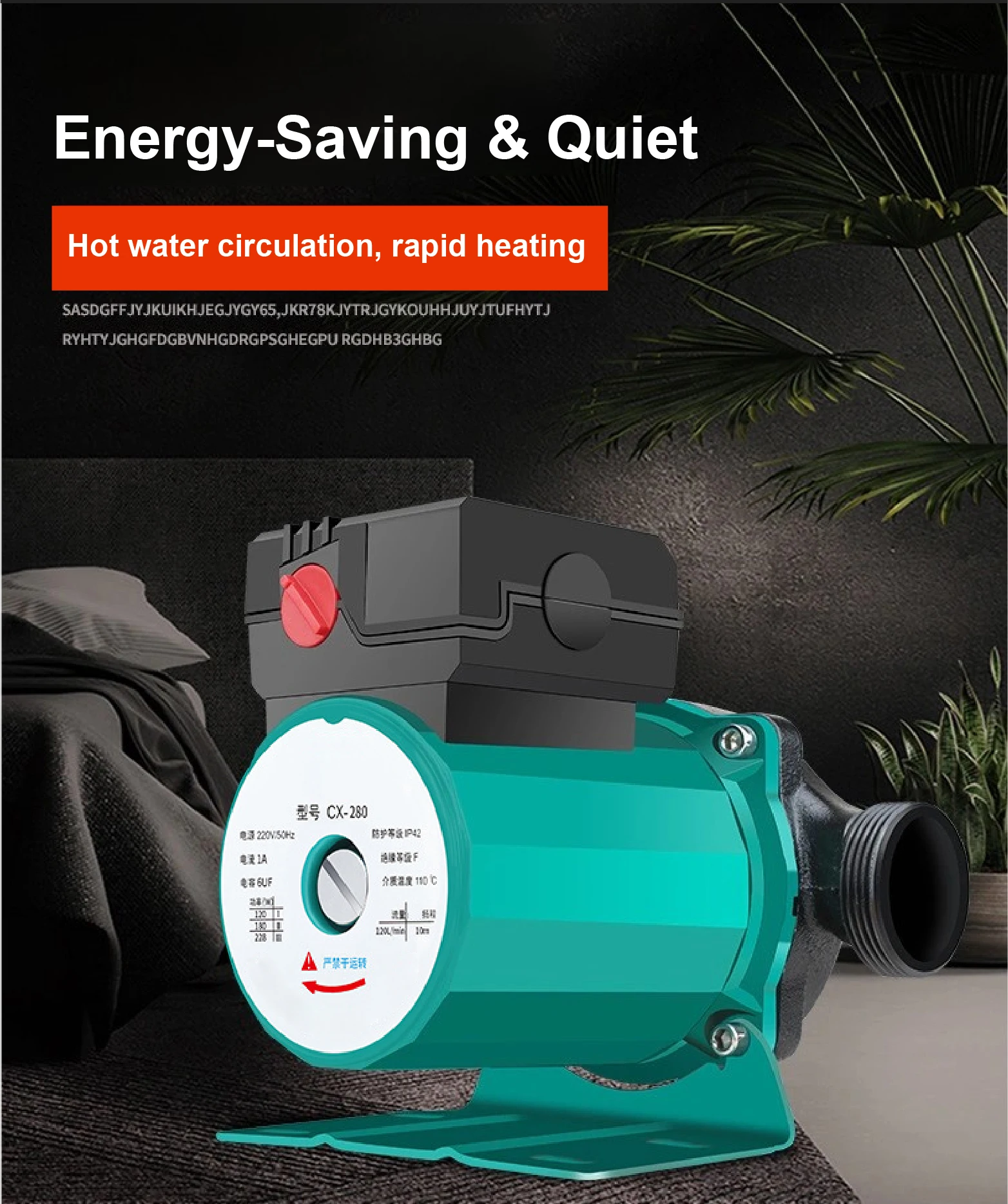

Quiet and Energy Efficient
Designed for low-noise operation while helping reduce daily energy consumption.

Wide Compatibility
Compatible with various pipe sizes. Selected models include adapters for easier and more convenient installation.

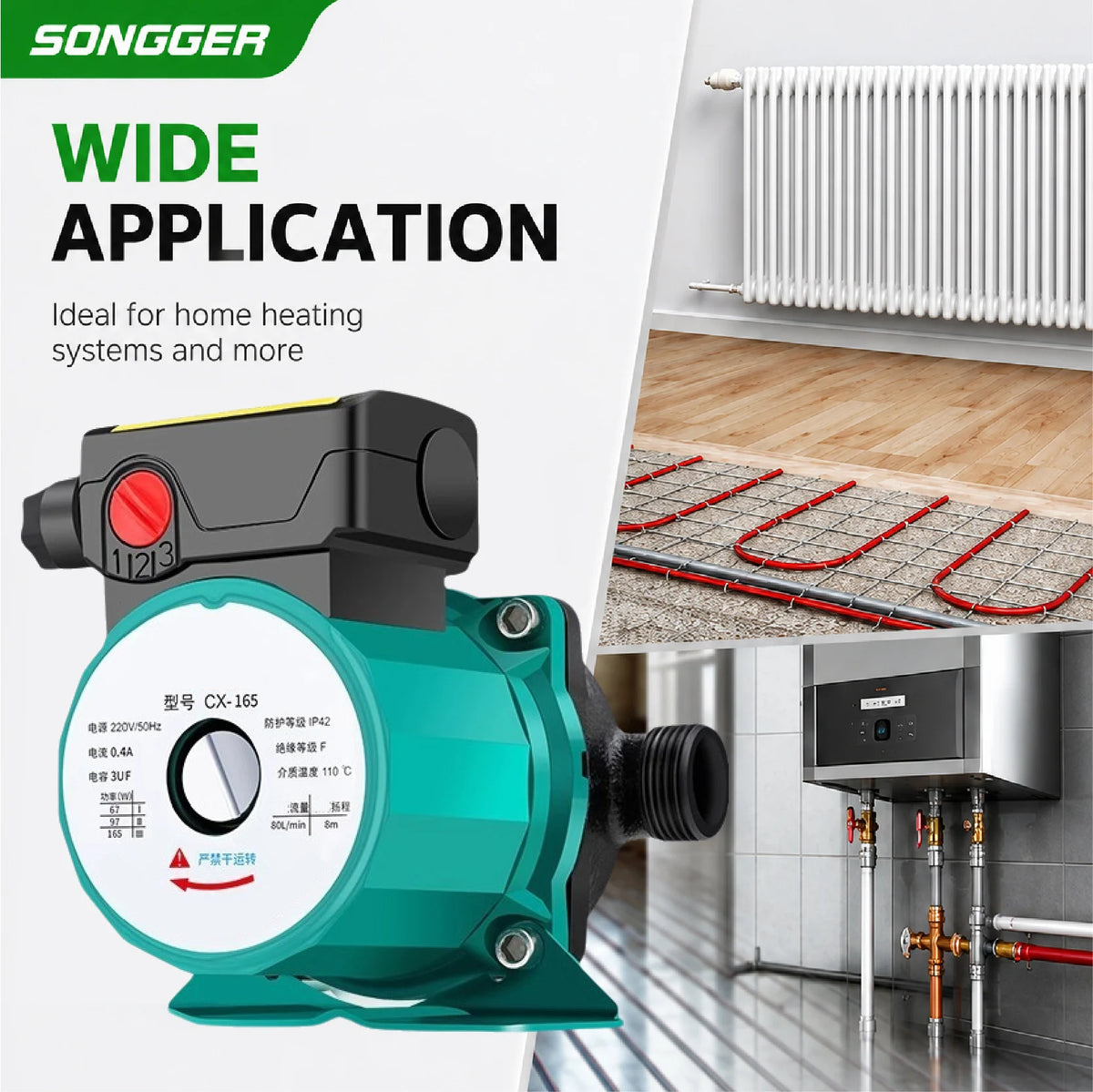

4. Applications

Perfect for both residential and commercial applications, including:

Floor heating systems
Radiator circulation systems
Water heaters and boilers
Industrial hot water circulation systems

5. FAQs

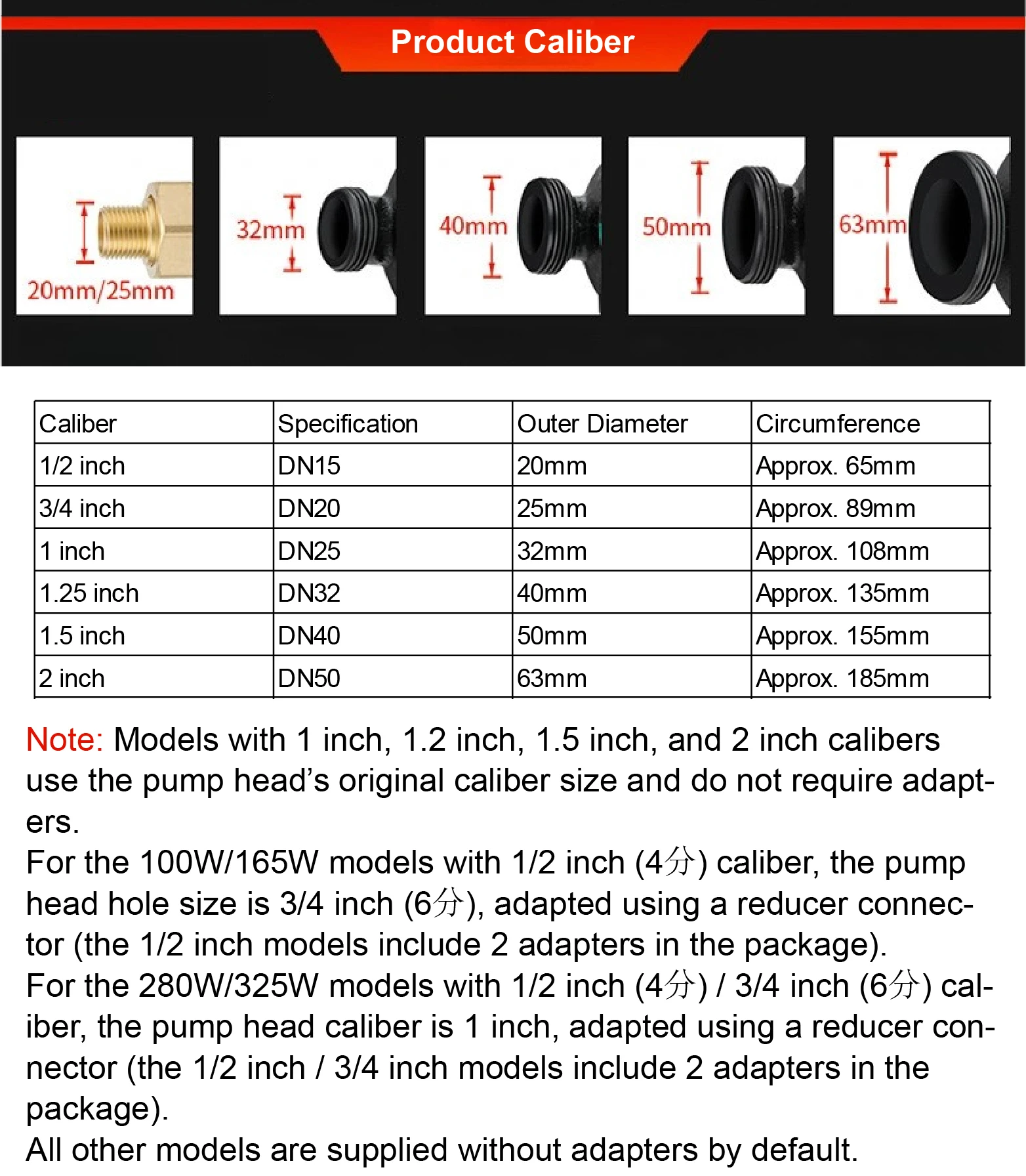

Q1: Do I need an adapter for installation?

A1: Some models, such as the 100W and 165W versions with 4-point outlets, include adapters for easy installation. Larger models like 280W and 325W use 1-inch inlets and may also include adapters for 4-point or 6-point connections depending on the version.

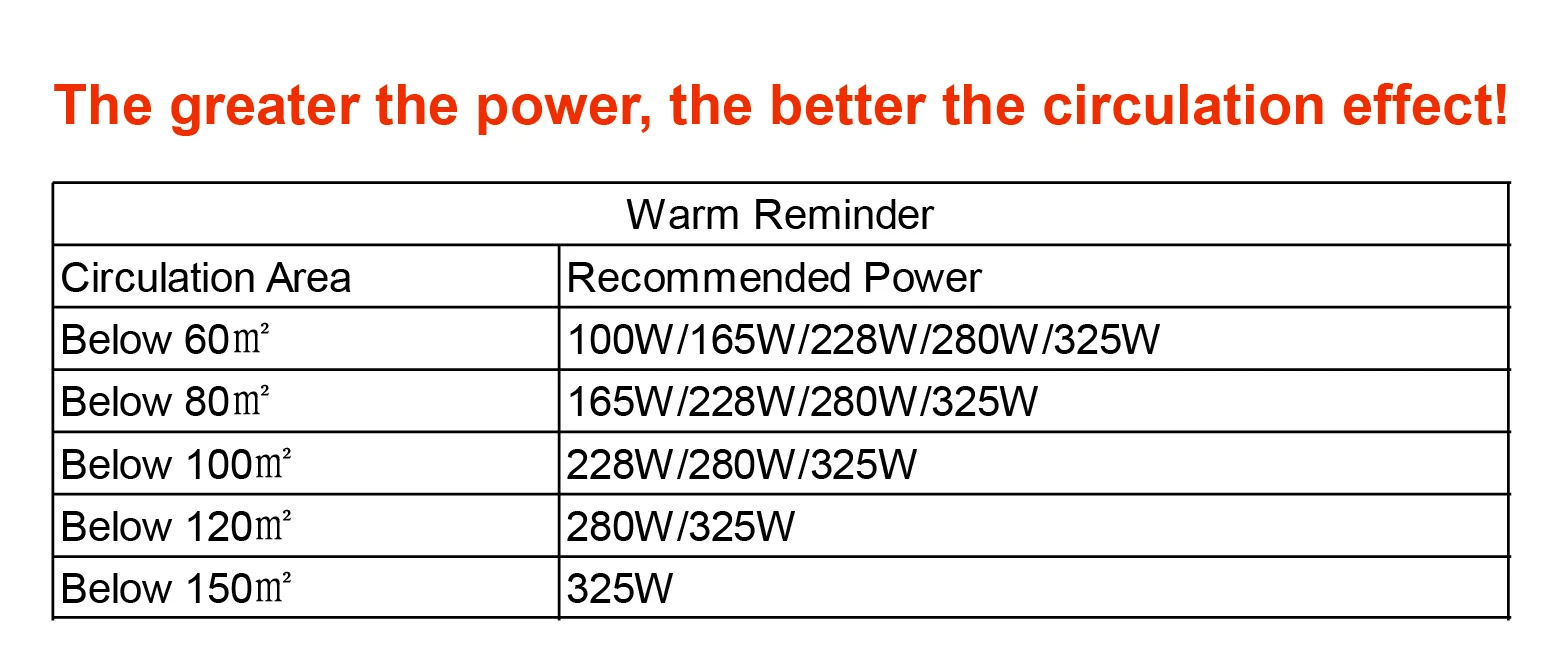

Q2: How do I choose the right model?

A2: Please choose the model based on your heating area requirements:

Up to 60㎡: 100W–165W
Up to 80㎡: 165W–228W
Up to 100㎡: 228W–280W
Up to 150㎡: 280W–325W

Higher power models provide stronger water circulation and improved heating performance.

Q3: What type of impeller does the pump use?

A3:
100W–280W models: Stainless steel low-noise impeller
320W model: Nano carbon low-noise impeller
