SPECIFICATIONS

Battery working time: >3H

Brand Name: NONE

Condition: New

Dimension: 1096*800*346mm

Dimensions: Sludge Cleaning Robot

Features: Hub motor

Marketing Type: Ordinary Product

Max playload: 120kg

Maximum Climbing: >25°

Maximum Obstacle: >80mm

Model Number: Dredging Robot

Motor Type: brushless servo motor

Origin: Mainland China

Rated Power: 200W*4

Running Speed: >60m/min

Self Weight: 80kg

Showroom Location: None

Warranty: 1 Year

Warranty of core components: 1 Year

Weight: Underwater Dredging Robot

Wheel Diameter: 320mm

application: Patrol Robot

core components: Motor, Gear

dimension(l*w*h): 1096*800*346mm

is_customized: Yes

machinery test report: Provided

place of origin: Henan, China

power(w): 200W*4

production capacity: 100set/month

video outgoing-inspection: Provided

voltage: 24V, 30AH battery

weight (kg): 80

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com

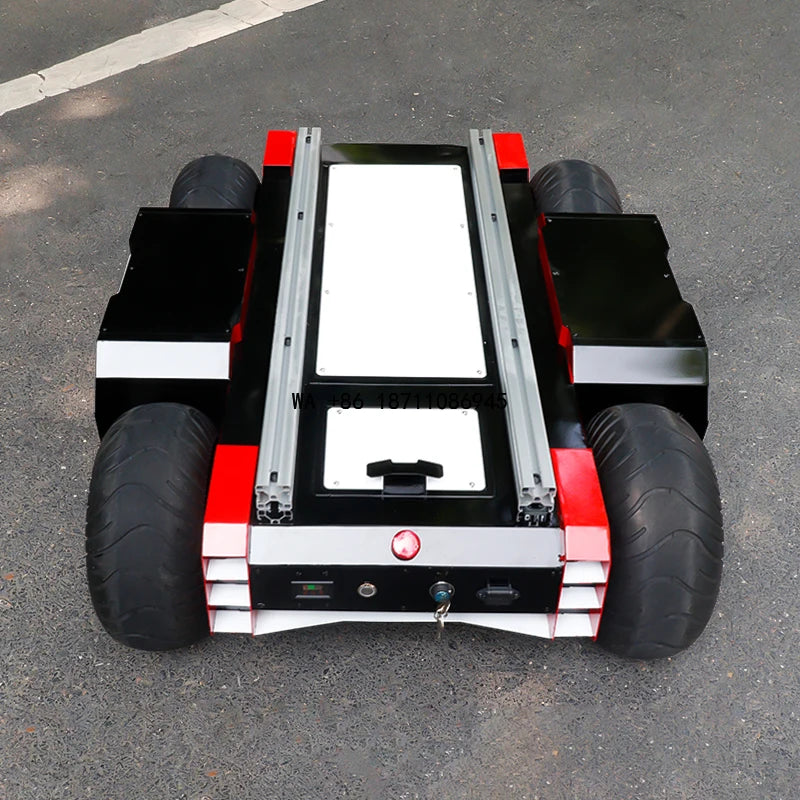

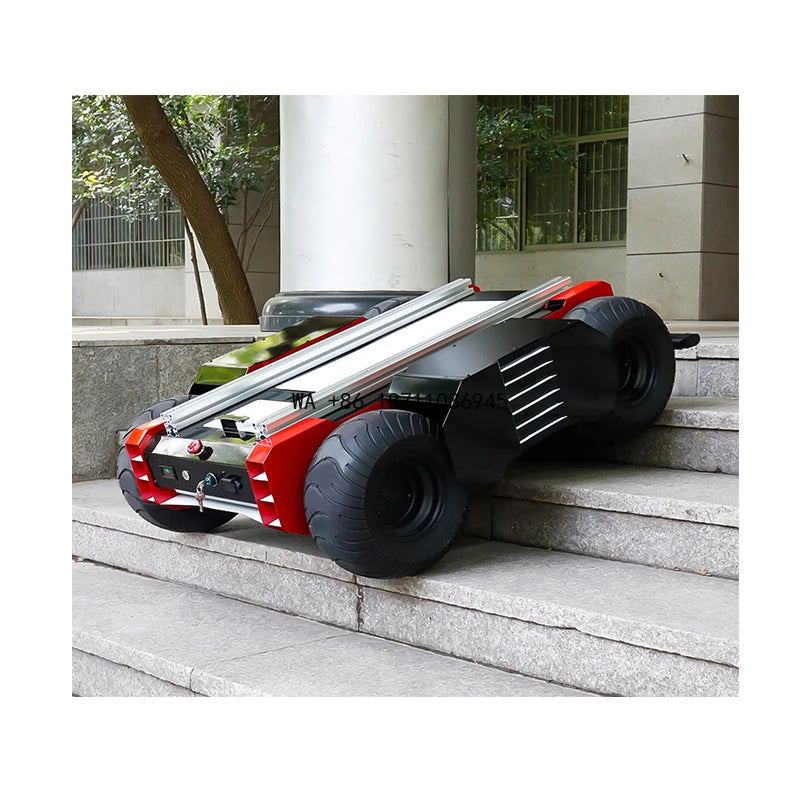

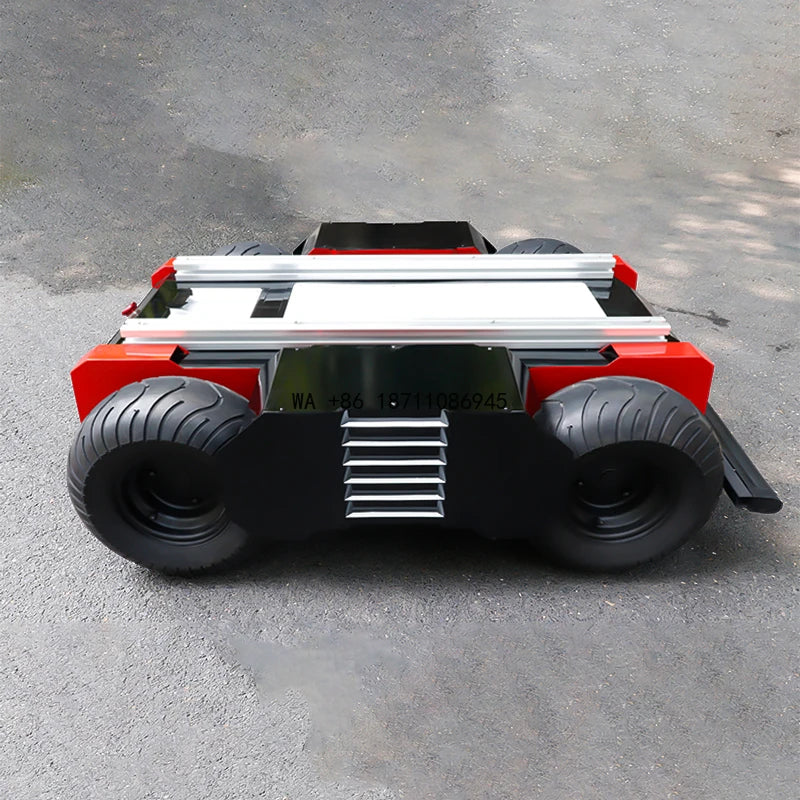

A VT-ZW10

200W*4 four wheel independent drive chassis, strong power, up to 120kg of large load, support in-situ rotation, high precision encoder, servo control.



Introduction:

AVT-ZW10 is widely for secondary development of robotic products. You can build on your own robot kit with it. It is auniversal unmanned chassis designed for indoor and outdoor scenes. It is a heavy-duty chassis with a load of more than 120kg.

Four wheel independent drive, four motors are installed with high-precision photoelectric encoders, vehicle control module based on ARM core plate, not only can accurately control the chassis motor rotation, but also real-time feedback chassis ing information. The structure adopts differential steering, CAN rotate in place, but also integrated CAN/ serial port standard communication protocol, convenient for users to quickly docking secondary development.

Parameters
Dimension:	1096*799*346mm	Endurance distance (with load):	10KM
Self Weight:	80kg	Battery working time:	3H
Max playload:	100kg	Working temperature:	-20°C-60°C
Wheel Diameter:	330mm	Maximum Climbing:	30°
Motor Type:	brushless servo motor	Ground ClearanceL:	120mm
Rated Power:	200W*4	Waterproof:	IP54
Running Speed:	3.6km/h	Battery:	24V 30Ah

Packing and Shipping

Within 3-5 working days

Services
1 year warranty for main parts	During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts	most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance	we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support	Video technical support
Online Service	your question will be answer within 24 hours during working days, 48 hours during holiday.

Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.

20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.

FAQ：

1.Does your machine have great quality and favorable price?

Sure,we offer good quality and cheap price products.

2.How is your service?

We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.

3.How about the MOQ?

1 set.

4.What's the warranty of machine?

One year warranty for main machine.

5.When the machine can be shipped?

Within 3-5 working days after receiving full payment.
