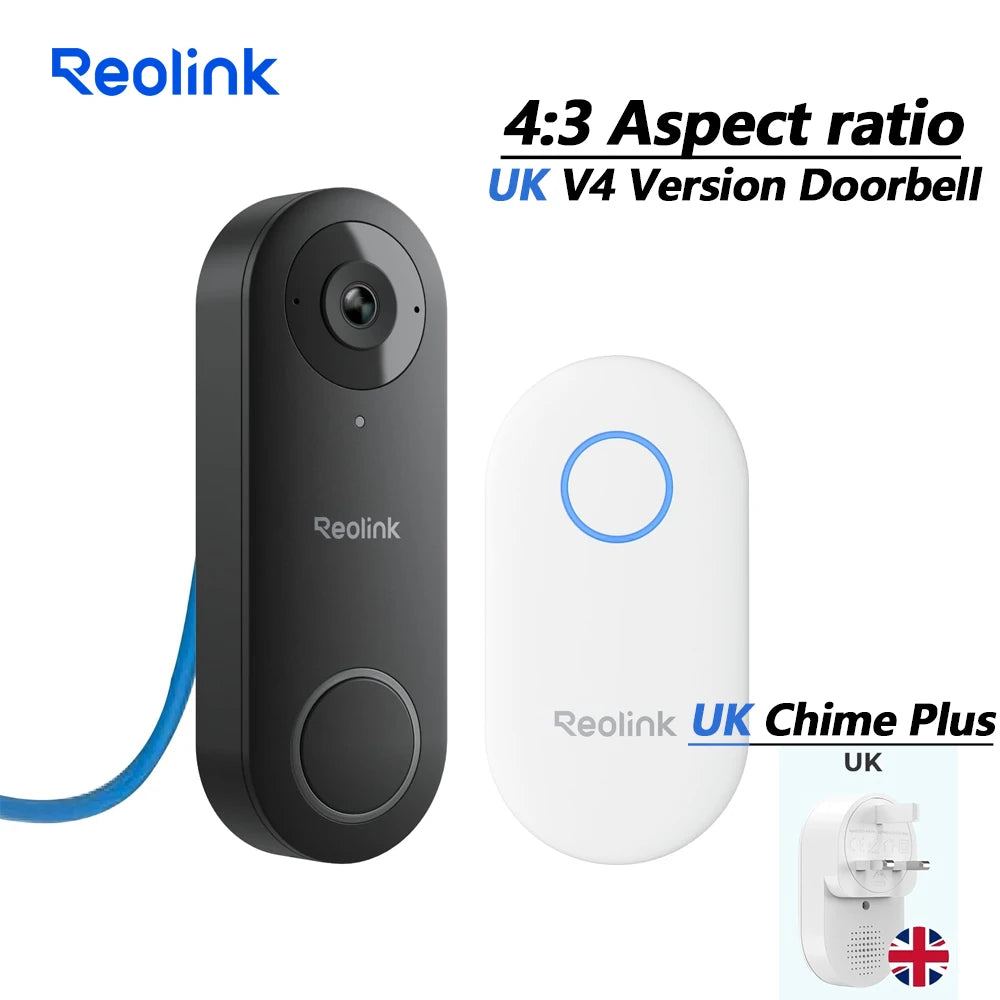

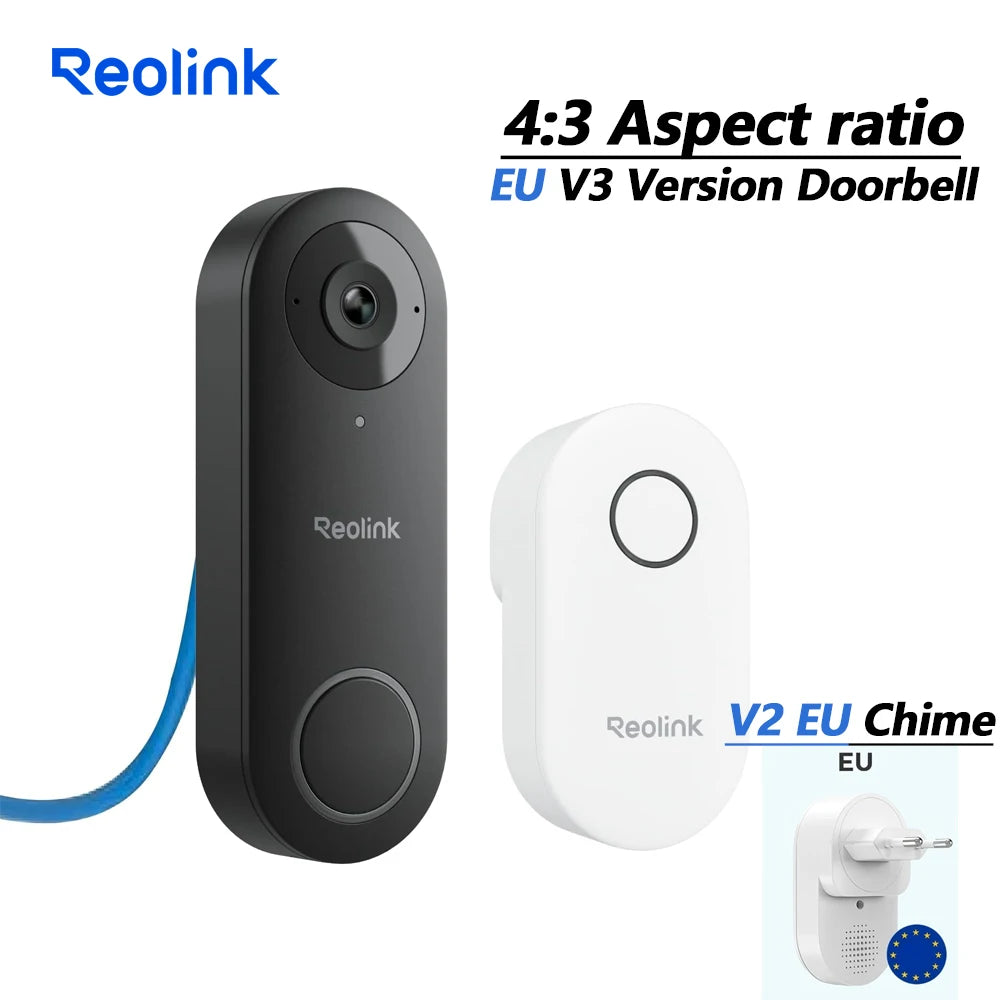

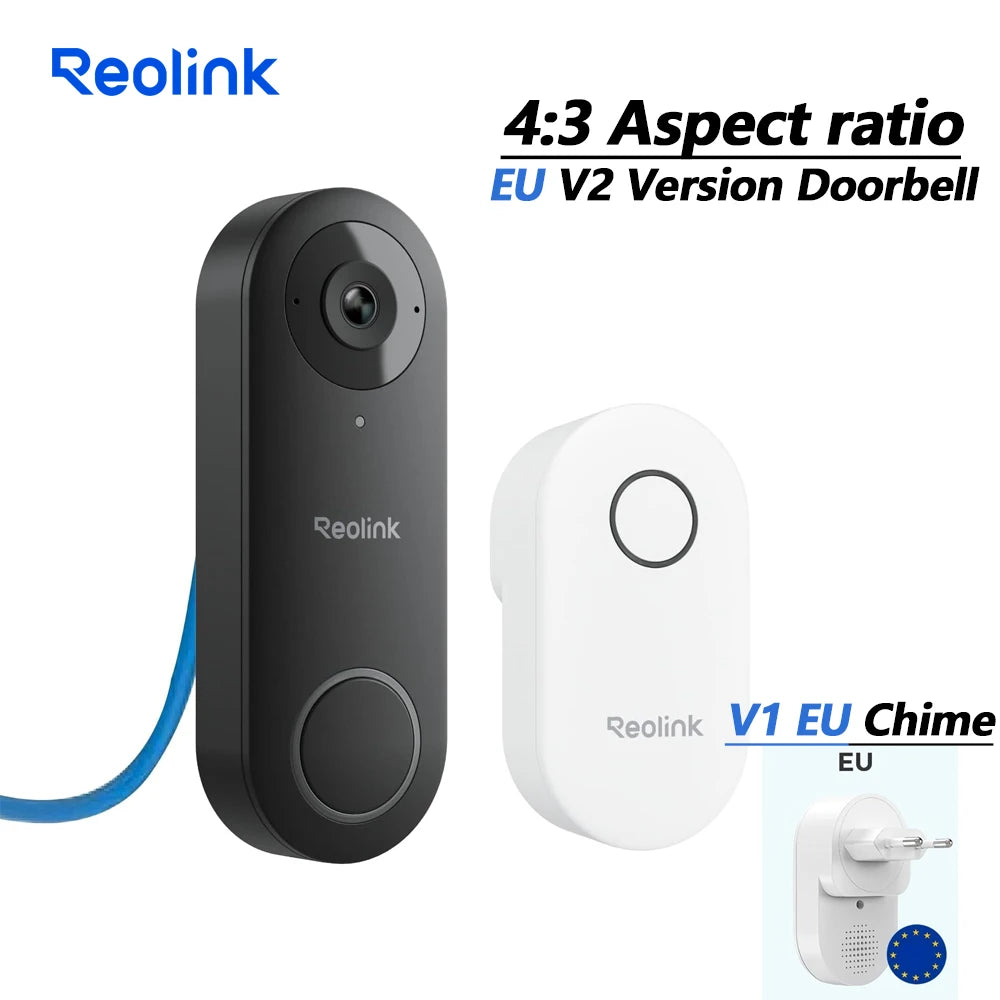

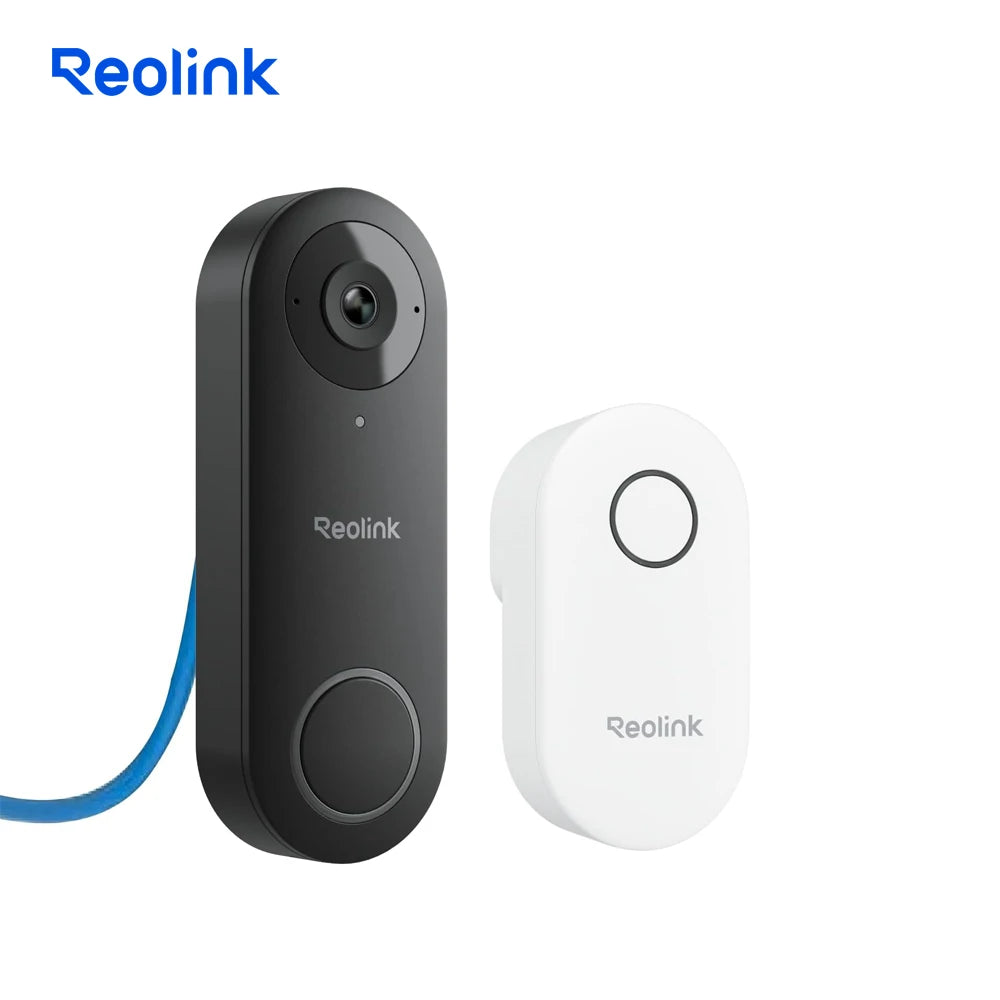

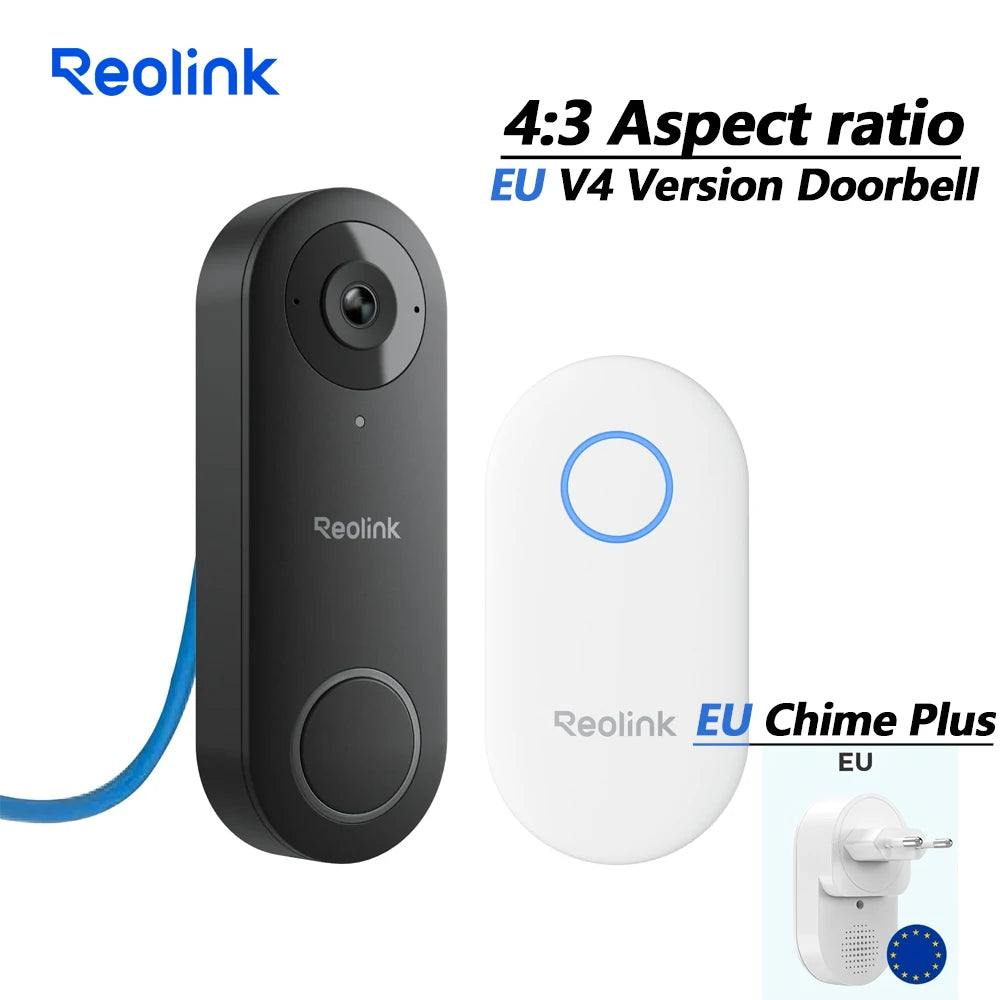

REOLINK 2K+ PoE Video Doorbell 2-Way Talk 4:3 Aspect Ratio Smart Home Video Intercom Wired Door Bell with Chime(EU&UK Optional)
REOLINK 2K+ PoE Video Doorbell 2-Way Talk 4:3 Aspect Ratio Smart Home Video Intercom Wired Door Bell with Chime(EU&UK Optional)
Couldn't load pickup availability
SPECIFICATIONS
Access Control: None
Answering Mode: TELEPHONE
Audio: Two-way audio, noise reduction, echo suppression,Built-in 2 microphones & a speaker
Brand Name: Reolink
Browsers Supported: Edge, Chrome, Firefox, Safari
Camera: COLOR
Camera Sensor type: CMOS
Certification: CE,FCC,RoHS,weee
Code Rate: Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps);Substream: 64Kbps - 512Kbps (default: 256Kbps)
Communication Interface: Wired
Connection Method: Wired
Dimensions: 133mm(H) x 48mm(W) x 23mm(T)
Display Screen Size(inch): 0
Doorbell: Yes
Ethernet: One 10M/100Mbps RJ45

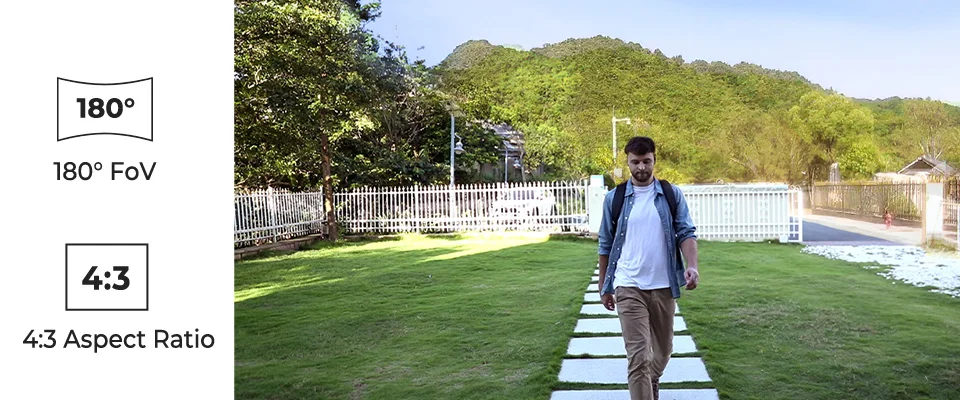

Field of View: Horizontal: 135°;Vertical: 100°;Diagonal: 180°
Frame Rate: Mainstream: 2fps - 20fps (default: 20fps);Substream: 4fps - 15fps (default: 10fps)
Hardwired: 12-24VAC 50/60Hz, 24VDC
High-concerned chemical: none
Humidity: Operating humidity: 10% ~ 90%
Image Sensor: 1/2.7" CMOS Sensor
Installation: Wall Mounting
Lens: f=2.26mm F=2.0, with IR cut
Material: ABS
Model Number: PoE Video Doorbell
OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Origin: Mainland China
Plug Type: EU Plug
PoE: IEEE 802.3af, 48V Active
Pre-Motion Recording: Support
Protocols & Standards 1: HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF
Protocols & Standards 2: SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Quick Replies: Support
Recording Modes: Motion recording (default); 24/7 recording; scheduled recording
Samrt Home Interface: Yes
Size: 133(H)x48(W)x23(T)mm
Smart Alarm: Motion detection/person detection; visit notification
Smart home platform: alexa,Google Assistant
Storage: microSD card slot (Max. 256GB), works with Reolink NVR
Technology: DIGITAL
Temperature: Operating temperature: -10°C~+50°C (14°F~122°F)
Type: intercom system
Video Resolution: Default: 2560X1920 (5 megapixels) @20FPS
Videoformat: H.264
Viewing Angle (°): 100
Waterproof: No
Weatherproof: IP65
Weight: 96g
Work with: Google Assistant
Reolink-Chime-Specifications | |||||
Picture |
|
|
|
|
|
Model |
Reolink Chime |
US Version |
EU Version |
UK Version |
AU Version |
Physical |
Material |
ABS+PC |
|||
Dimensions |
86.5 x 29 x 45.2 mm |
86.5 x 29 x 66 mm |
86.5 x 29 x 52 mm |
86.5 x 30.6 x 47.6 mm |
|
General |
Input |
AC 100-240 V; 50-60 Hz |
|||
Button |
For setting up/selecting ringtones/adjusting volumeTransmission Mode |
||||
Modulation Mode |
FSK |
||||
Frenquency |
915MHz |
868MHz |
868MHz |
915MHz |
|
Volume |
5 levels |
||||
Number of Selectable Ringtones |
10 ringtones |
||||
Working Environment |
Temperature: -20℃~50℃; Humidity: <85% |
||||
Notice |
If you require other specifications, please contact customer service and we will provide you with the corresponding plug adapter. |
||||
Comparison of Video Doorbell | |||
Picture |
|
|
|
Model |
WiFi Video Doorbell |
PoE Video Doorbell |
|
Video & Audio |
Image Sensor |
1/2.7; CMOSSensor |
|
Video Resolution |
Default: 2560X1920 (5 megapixels) @20FPS |
||
Lens |
f=2.26mm F=2.0, with IR cut |
||
Video Format |
H.264 |
||
Field of View |
Horizontal: 134° |
||
Vertical: 97° | |||
Diagnal: 180° | |||
Pre-Motion Recording |
Support |
||
Audio |
Two-way audio, Noise reduction, Echo Suppression |
||
Quick Replies |
Support |
||
Power |
Hardwired |
12-24VAC 50/60Hz, DC 24V |
|
PoE |
x |
IEEE 802.3af, 48V Active; |
|
Interfaces |
Power |
Power port |
|
System |
Reset button |
||
Ethernet |
One 10M/100MbpsRJ45 |
||
Storage |
Micro SD card slot (Max. 256GB), Reolink NVR |
||
Audio |
Built-in 2 Microphones & Speaker |
||
WiFi |
Wireless Standard |
IEEE 802.11a/b/g/n |
x |
Operating Frequency |
2.4GHz/5GHz |
x |
|
Wireless Security |
WPA-PSK/WPA2-PSK |
x |
|
Software |
Frame Rate |
Mainstream: 2fps - 20fps (default: 20fps) |
|
Substream: 4fps - 15fps (default: 10fps) | |||
Code Rate |
Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps) |
||
Substream: 64Kbps - 512Kbps (default: 256Kbps) | |||
Browsers Supported |
Edge, Chrome, Firefox, Safari |
||
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
Smart Alarm |
Motion detection/Person detection/Visitor detection |
||
Recording Modes |
Motion recording (default)/scheduled recording |
||
Protocols & Standards |
HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
||
Work with |
Google Assistant |
||
Rich Notification |
Support |
No |
|
Working Environment |
Temperature |
Operating temperature: -10°C~+55°C(14°F~131°F) |
|
Humidity |
Operating humidity: 10% ~ 90% |
||
Waterproof |
Support |
||
Size & Weight |
Dimension |
133mm(H)x48mm(W)x23mm(T) |
|
Weight |
96g |
||
Warranty |
Limited Warranty |
15-month Limited warranty |
|
Notice |

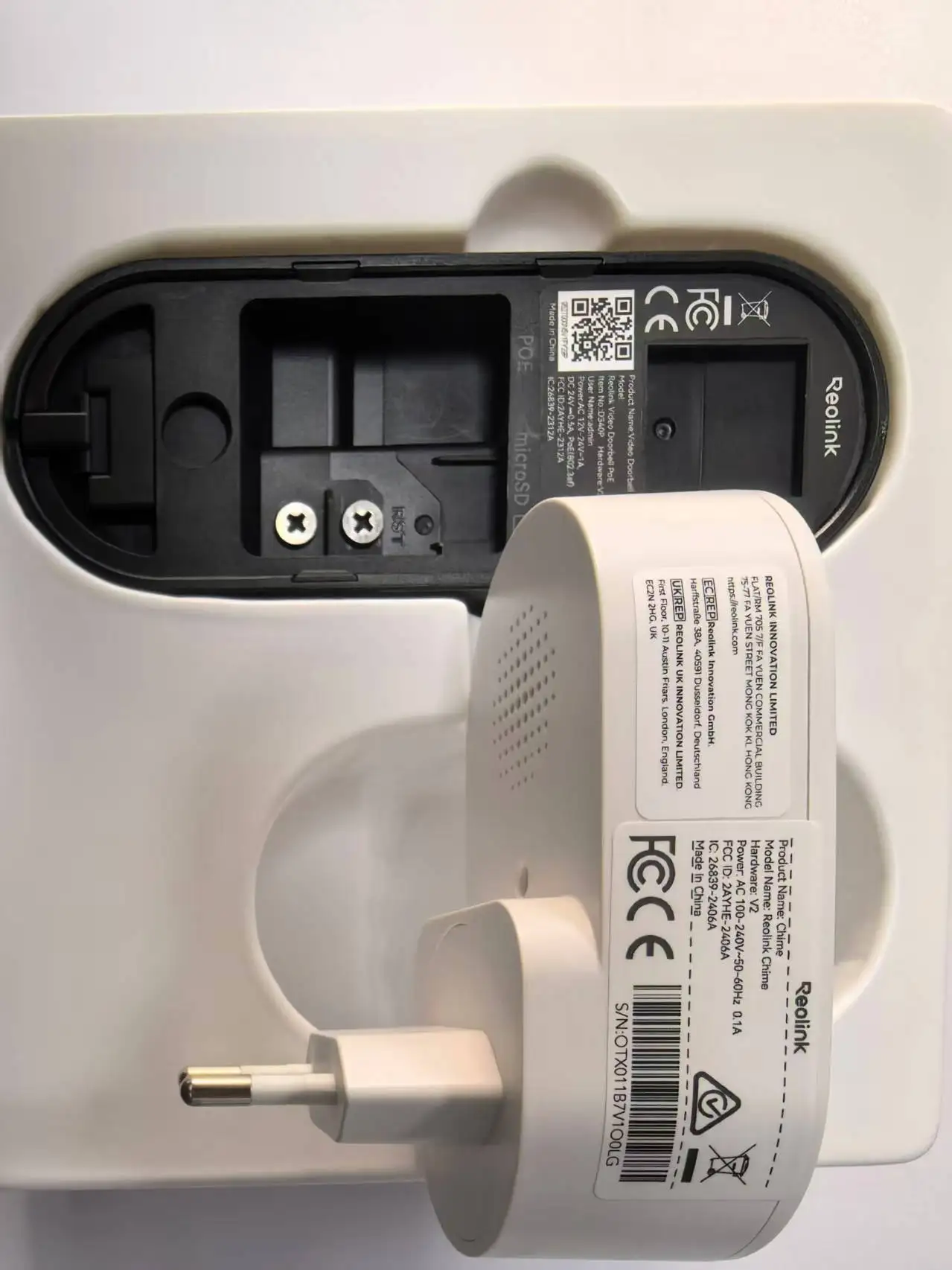

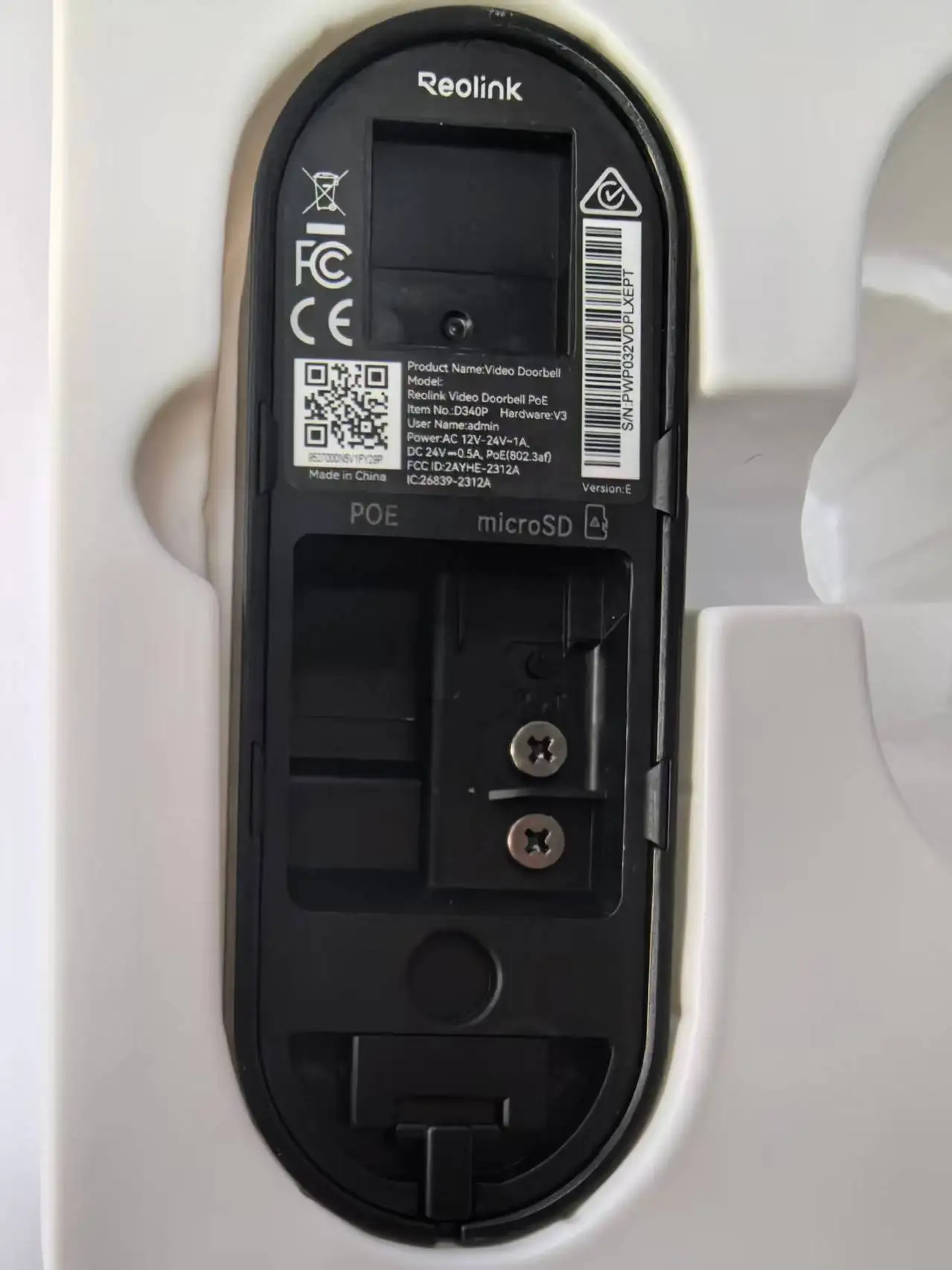

Version Differences |
Important Notice about Reolink Doorbell and Chime, please scroll down to the bottom of the details page to learn more. |
|
Reolink 2K+ Video Doorbell Smart Outdoor Home Video Intercom with Chime

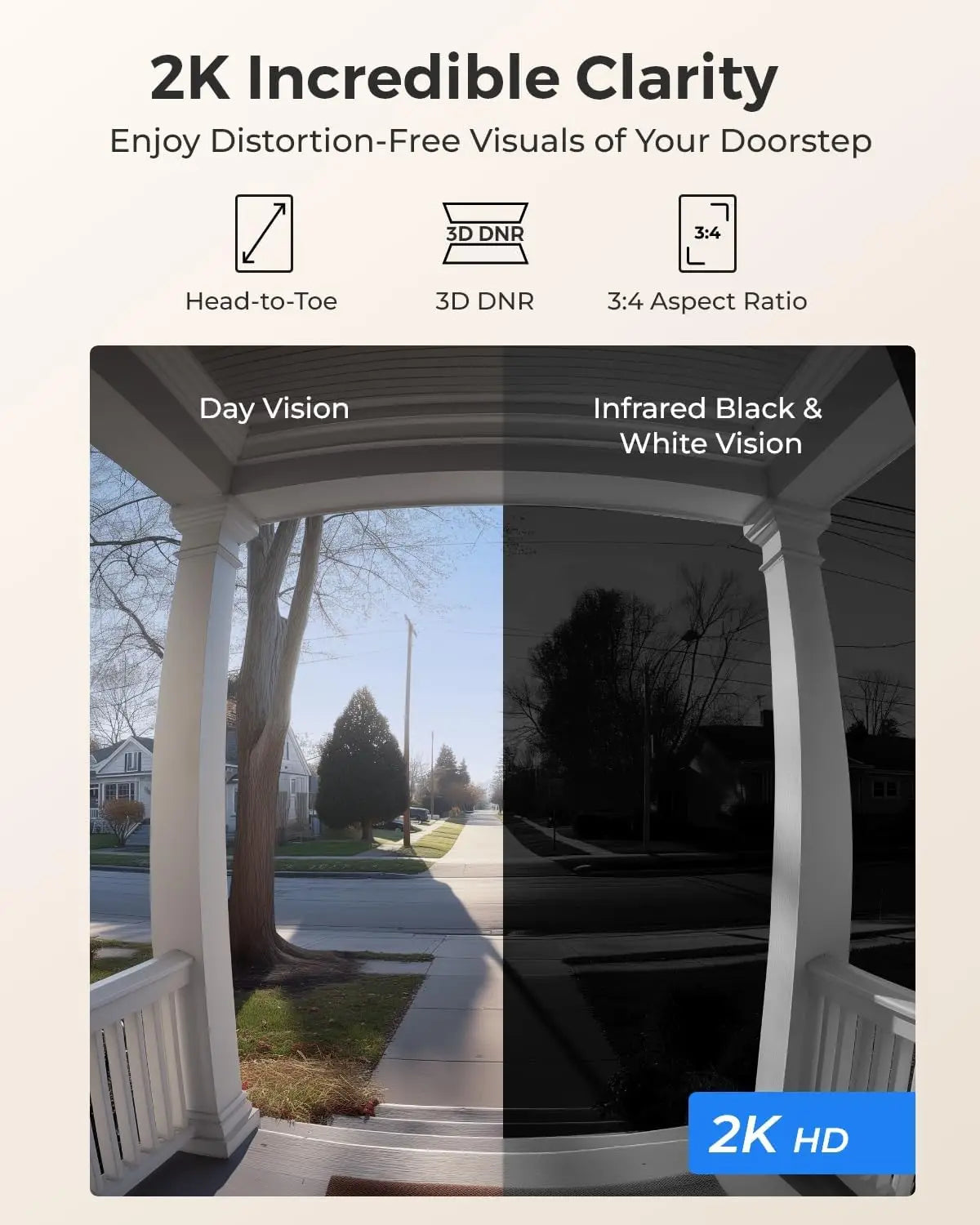

Videos in 2K+ Rich in Detail and Expansive in View
Experience enhanced security with the Reolink Video Doorbell PoE. Enjoy 2K+ clarity for detailed views, both day and night. The white version, with a 3:4 aspect ratio, offers head-to-toe visibility, making it easier to check package status and prevent porch piracy. Alternatively, the black version, with a 4:3 aspect ratio, provides wide horizontal coverage, perfect for open landscapes.

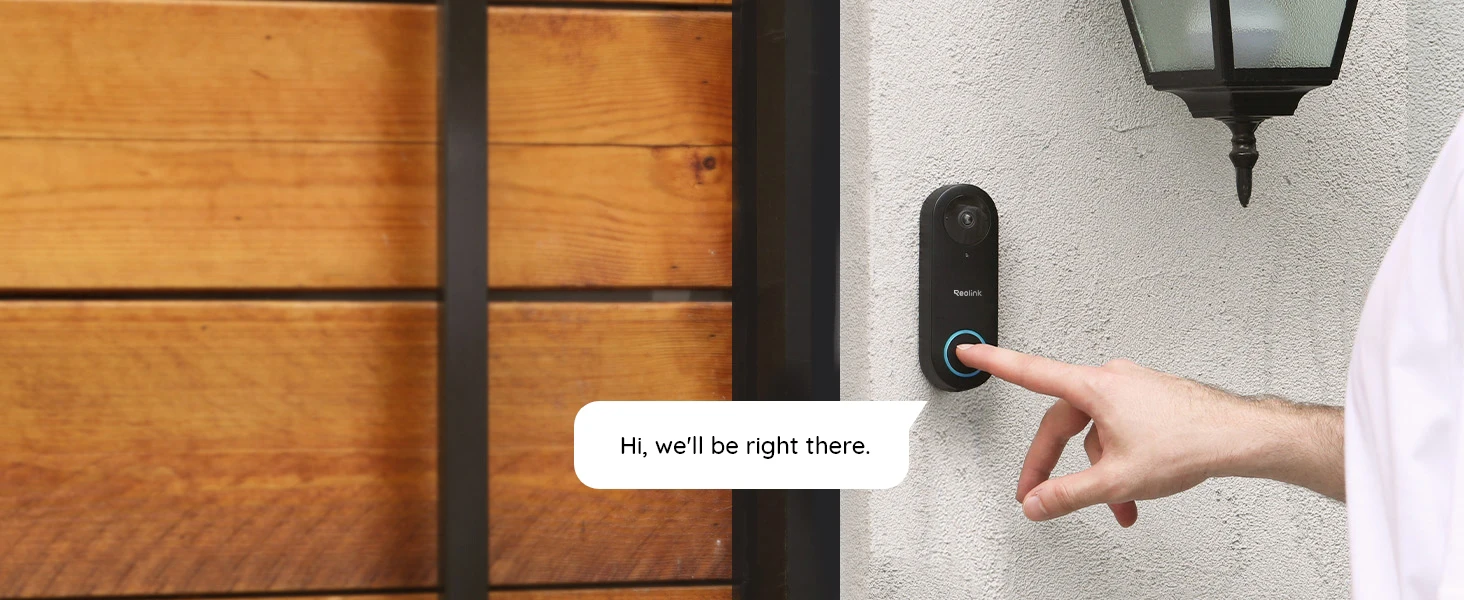

Answer the Door for You with Your Voice
Send instructions to your mailman or greetings to visited friends with your preset voices.
Hear and Talk Back to Visitors
Have real-time communication with your visitors wherever you are.

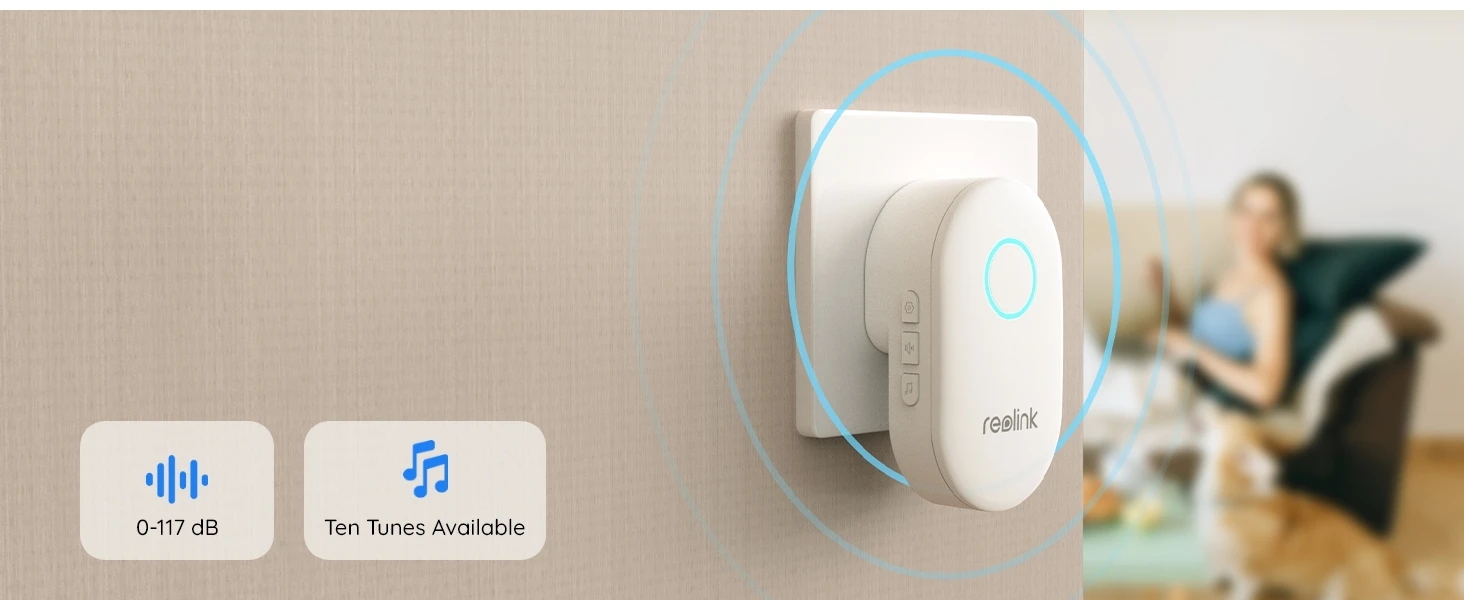

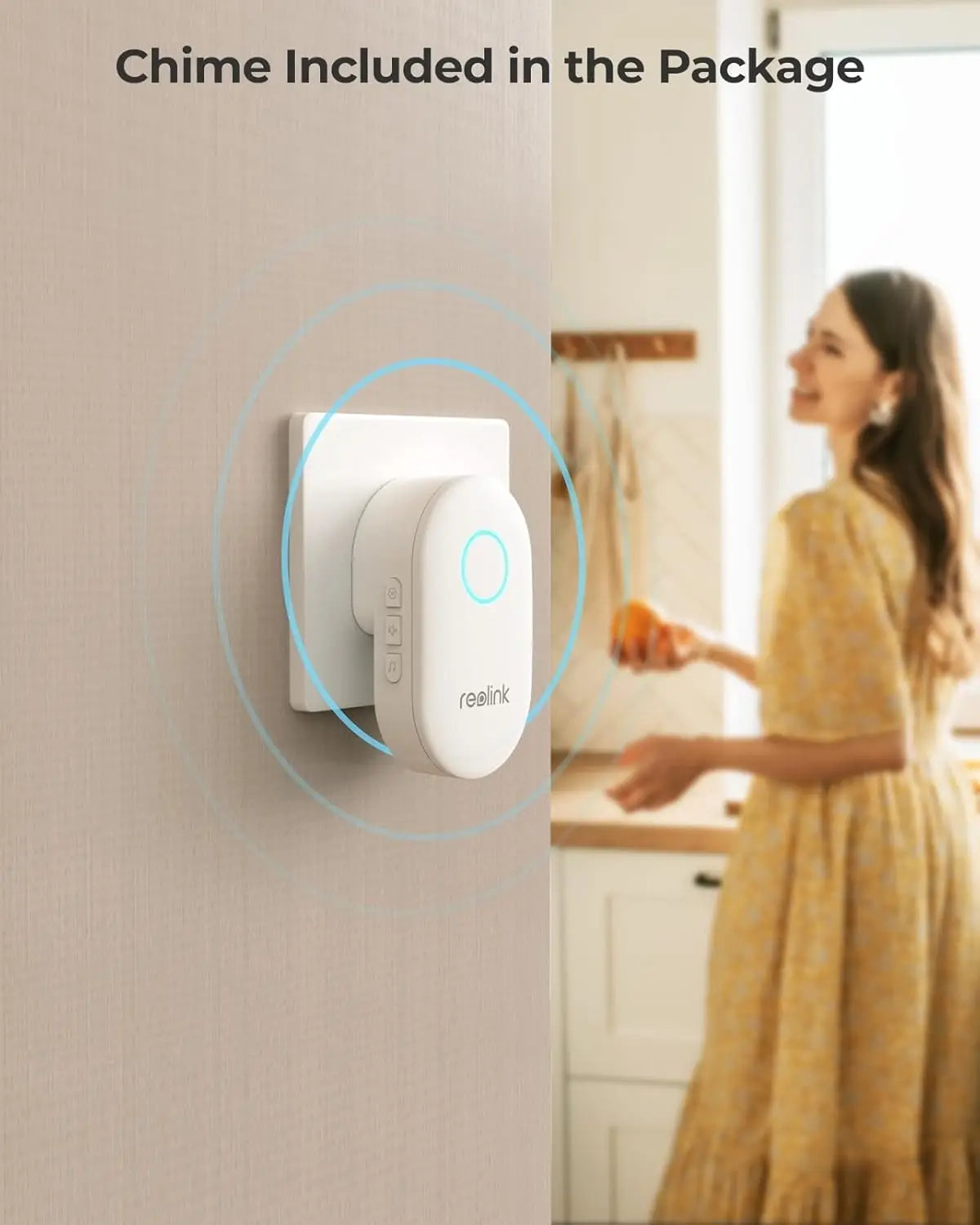

Hear "Knocking" from Any Room
The chime has adjustable volume and 10 tunes for choice. You can plug it in in any room.

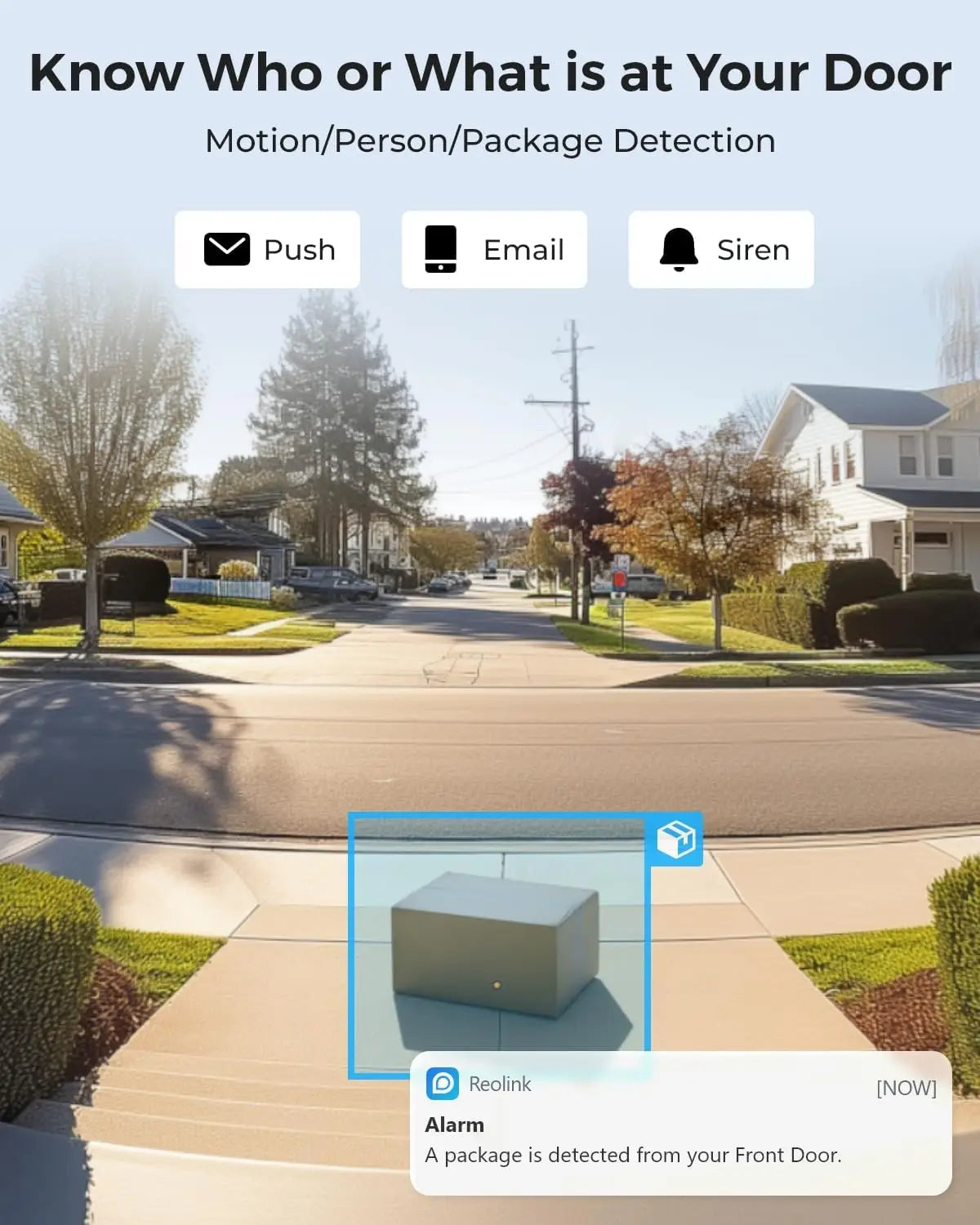

Receive Humanoid Detection
You won't miss the moment when someone visits or lingering.

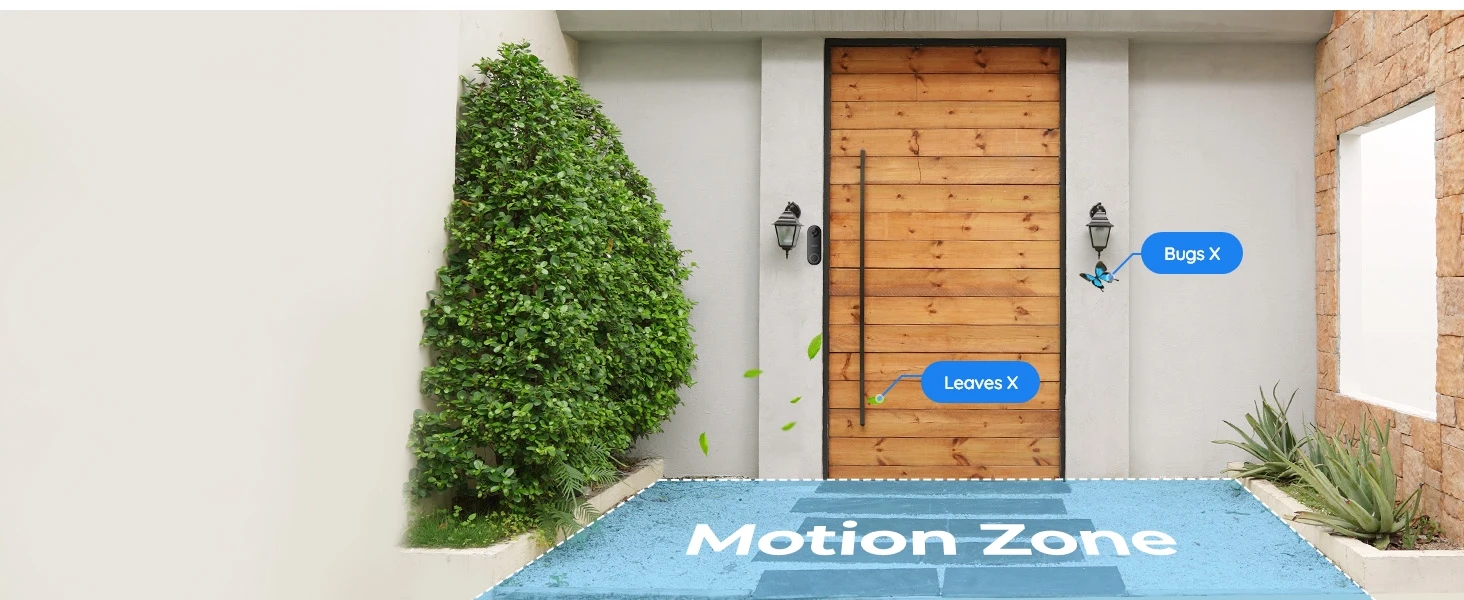

Say Goodbye to False Alerts
Distractions caused by irrelevant events will be reduced greatly.
6s Before a Motion Is Triggered
Valuable 6s footage before the detection increases the likelihood of criminal identification.

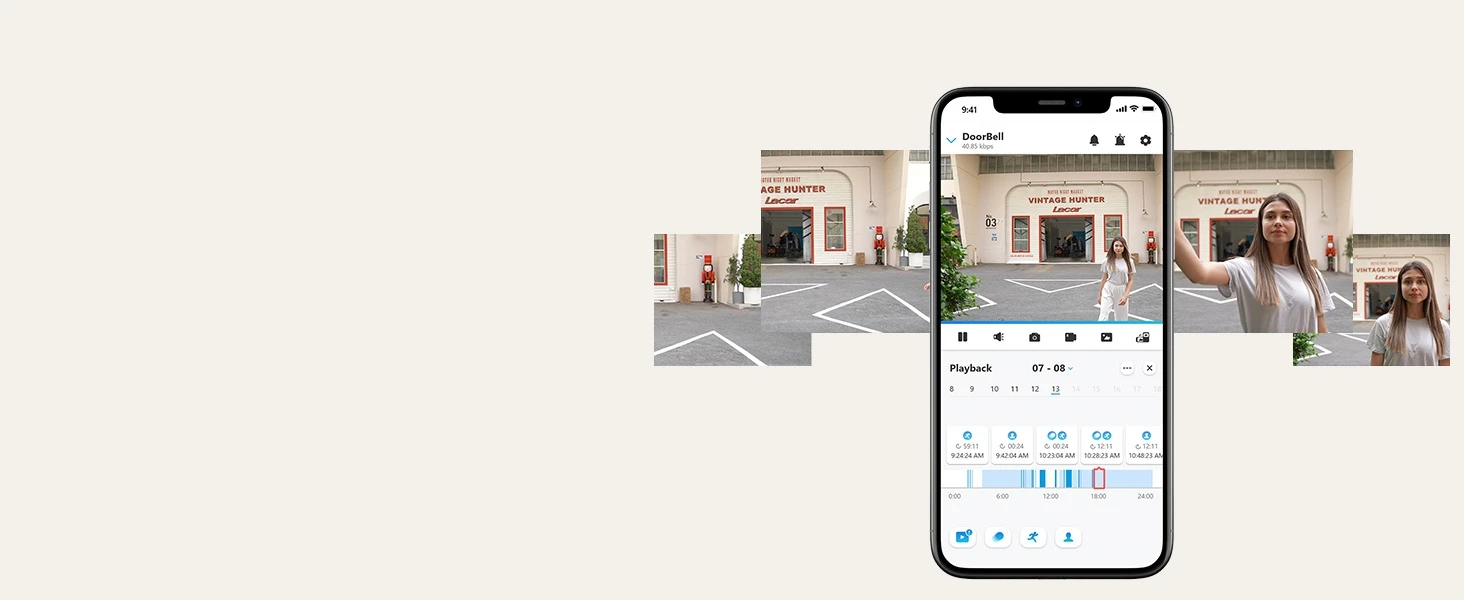

Lifetime Reolink App/Client
Access, playback, and talk via Reolink App/Client anywhere, with no monthly subscription.

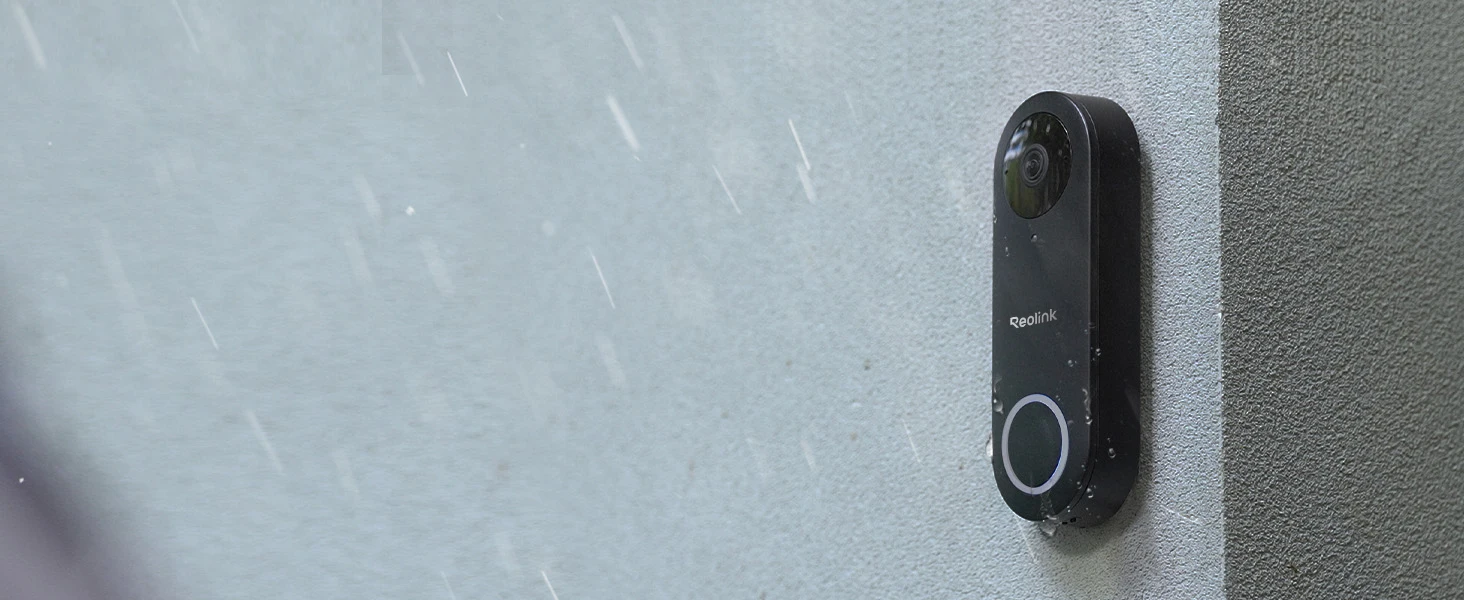

For Outdoor Use
Guard your front door no matter rain or shine, all year round.
Your Privacy, Our Priority
Your data are encrypted by advanced algorithms such as AES, RSA, ECDHA with passwords.

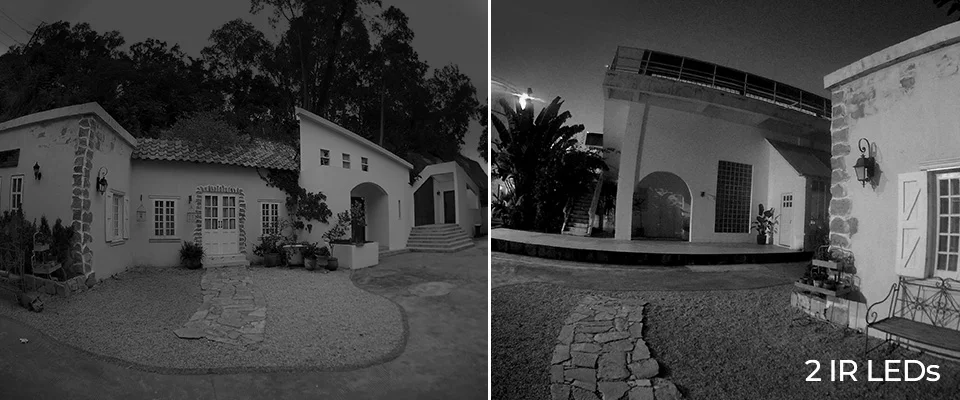

Keep Watch Through Nights
Its infrared LED enables high-quality night recording videos. Knowing who's there even in the dark.

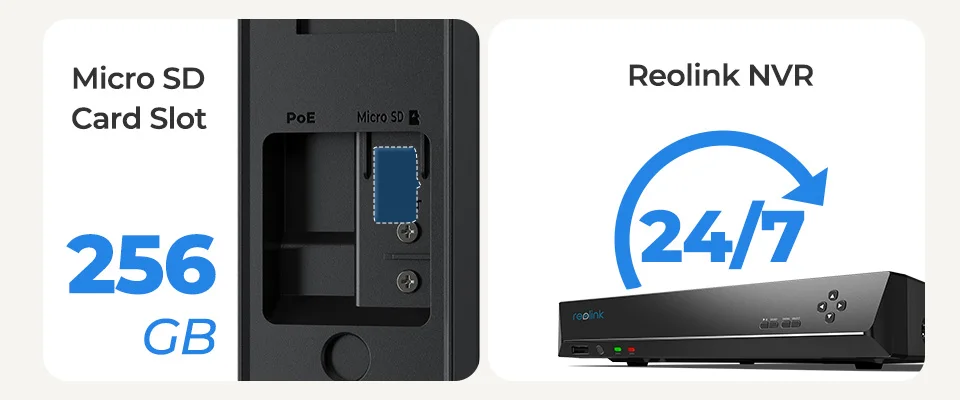

Flexible Storage Options
You can save your recordings locally to a Micro SD card (up to 256GB) or to a Reolink NVR.
*The regular packaging list does not include SD card. If necessary, please choose the option with SD card to purchase
Voice Control, Free your hands
Compatible with Google Assistant, Alexa Show for voice control and real-time monitoring.

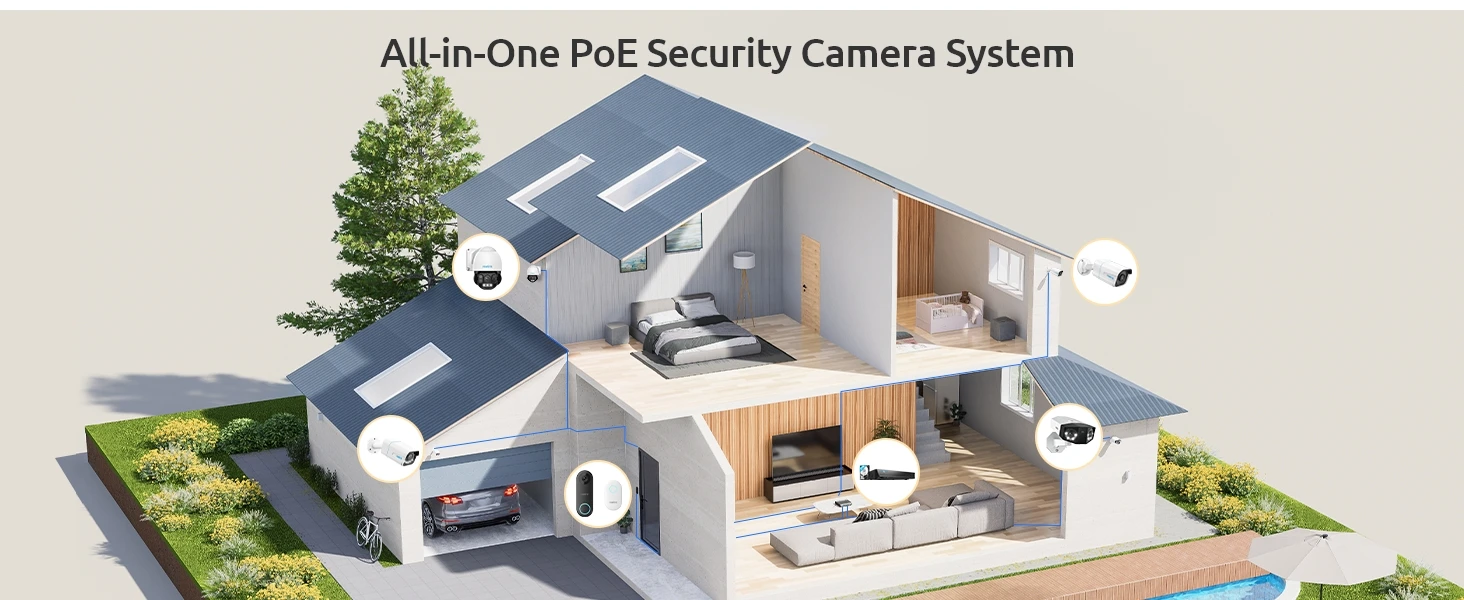

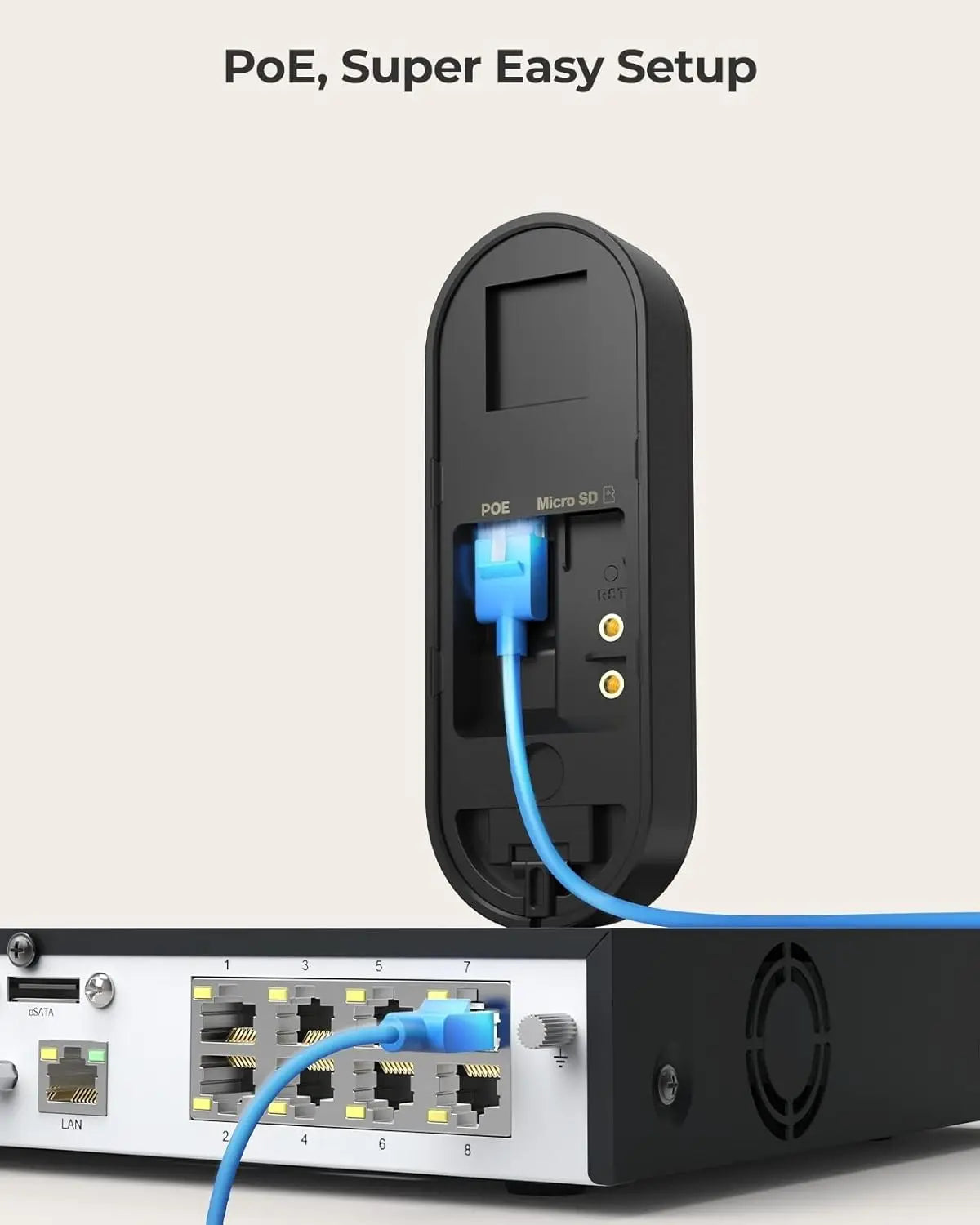

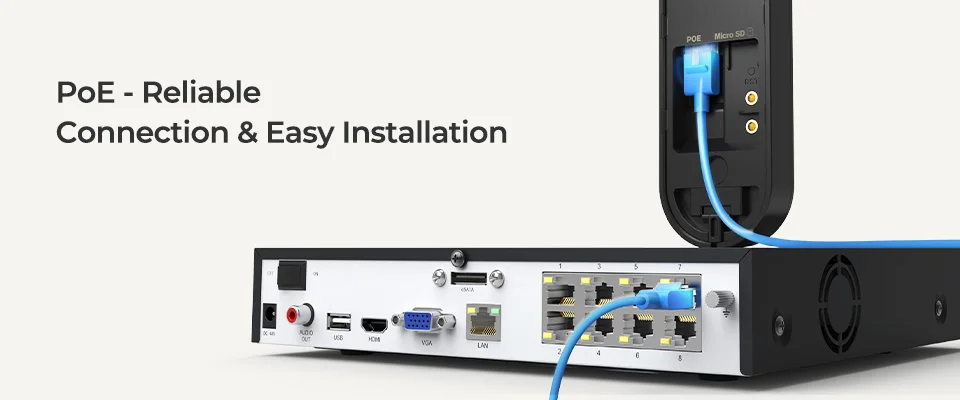

PoE - Reliable Connection & Easy Installation

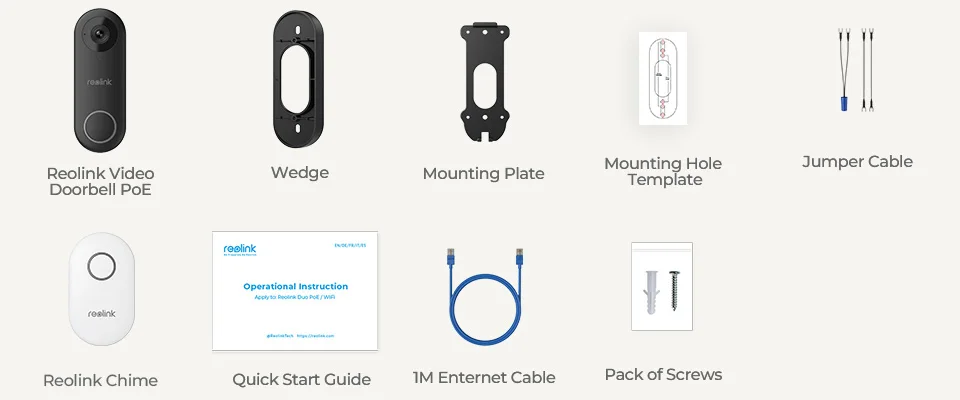

What's in the box

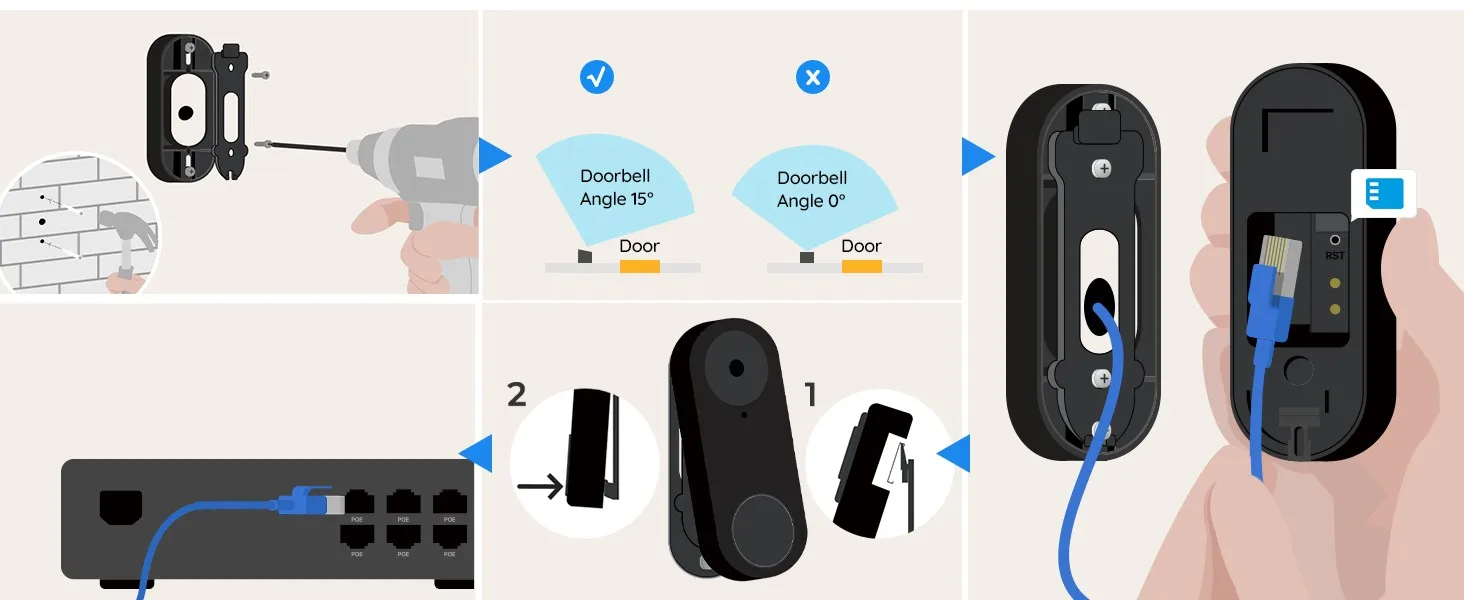

A Quick Installation Guide for Reolink Doorbell PoE
FAQs
Q: Does the Reolink Home Hub Mini support continuous recording?
A: To view continuous recordings, including both alarm events and non-alarm events, please select the "Fluent Mode" in the playback interface. If you select "Clear Mode", you can only view playback of alarm events.
Q: Which Reolink cameras are compatible with the Reolink Home Hub Mini?
A: Currently, Reolink Home Hub series products are compatible with all Reolink Wi-Fi cameras, including wired Wi-Fi and battery-powered Wi-Fi cameras.
Q: Can a Reolink IP camera be added to multiple Home Hubs or NVRs?
A: No, one Reolink IP camera can only be added to one home hub or NVR.
Q: Can all the IP cameras in the same router network connect to the Reolink Home Hub Mini?
A: Yes. All Reolink battery-powered Wi-Fi and plug-in Wi-Fi cameras connected to the same router can connect to the Reolink Home Hub Mini.
Q: What are Event History and Weekly Summary?
A: The Event History collects all 24/7 footage from connected cameras, enabling smart playback across multiple cameras and video filtering by date, device, and event type.
The Weekly Summary provides statistics on detection events, including daily alarms, alarm types, and involved devices, helping you know when and where break-ins are most likely to occur.
