SPECIFICATIONS

Brand Name: NONE

Condition: New

Designed Load: 100-300kg

Dimension: 1300*850*540mm

Dimensions: Crawler Dredging Robot

Features: Rubber Track vehicle

Gear Ratio110-1: 40

Marketing Type: Ordinary Product

Model Number: Pipeline Dredging Robot

Motor Power: (0.75-3)KW*2

Origin: Mainland China

Rated torque: 150-740Nm

Reducer efficiency: 65%-85%

Self Weight: 240kg

Showroom Location: None

Speed: 1500r/min

Track Width: 150mm

Warranty: 1 Year

Warranty of core components: 1 Year

Waterproof: IP65

Weight: Sewer Dredging Robot

application: Robotic security

core components: Motor, Gear

dimension(l*w*h): 1300*850*540mm

is_customized: Yes

machinery test report: Provided

place of origin: Henan, China

power(w): (0.75-3)KW*2

production capacity: 100set/month

video outgoing-inspection: Provided

voltage: 48V

weight (kg): 200

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com



TinS-13

can be equipped with a variety of equipment, such as , water , etc., which is widely in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries. We also produce customized product applications: Fully automatic lawn mower, intelligent agricultural machinery, Fruit Picking Transport Robot ect.

Parameters:
Dimension:	1300*850*540mm	Speed:	2.5-12km/h (<60km/h high speed can be customized)

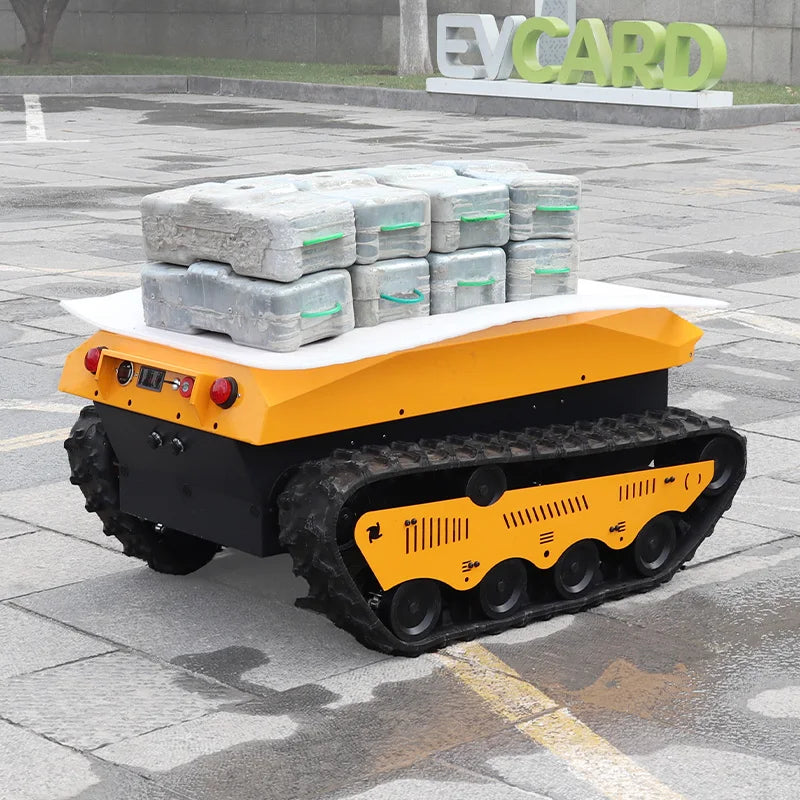

Self Weight:	200kg	Designed Load:	100-300kg
Waterproof:	IP65	Rated Torque:	150-740NM
Track Width:	150mm	Reducer Efficiency:	65-85%
Gear Ratio:	1:10-1:40	Suspension System:	Matilda

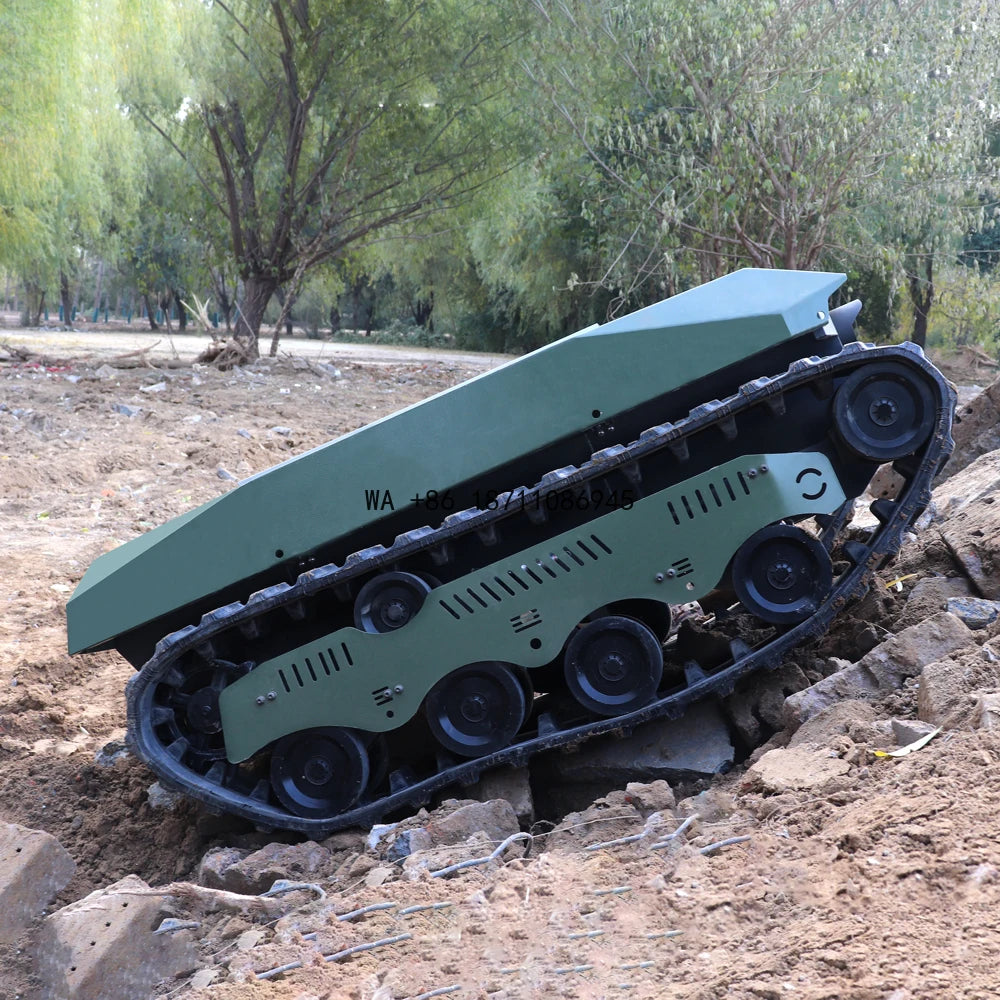

Motor:	(0.75-3KW)*2	Climbing Ability:	≤30°(can climb stairs)
Motor Rated Speed:	1500r/min	Maximum Span:	570mm
Ground clearance:	140mm	Over-Obstacle Capacity :	180mm

Features:
1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.
3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be as a mobile power station.
5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Optional generator and lithium battery power source.
8. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
9. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.
10. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).

Characteristics
Control characteristics	Way to control	Speed control (PV), position control (PP), IP, CSP, CSV, CST
		Support motor	Brushless DC motor, AC torque motor
		Vehicle control accuracy	±0.1m
		Speed control accuracy	±0.05m/s
Control input and output signals	Digital input	2 analog left and right wheel speed inputs (standard +5V PWM)
		Digital input	2 channels analog light control (standard +5V PWM)
		Digital input	1 emergency stop anti-collision input (active low)
Communication Interface	RS-485	Standard ModBus protocol
		CanOpen	Standard CanOpen protocol, CiA301/402
		EtherCAT	no
Encoder type	Encoder port	2500P/R
Working environment	Ambient temperature	-20℃—50℃, use derating when it is higher than 40℃
		Altitude	The altitude of the use place is lower than 1000m, and it is for derating if higher than 1000m.
		Humidity	Less than 95%RH, no condensation
		Vibration	Less than 0.5G (4.9m/s2), less than 10Hz
		Storage temperature	-40℃—70℃
Structure	Cooling method	Intelligent air cooling of power components

Packing and Shipping

Within 3-5 working days

Services
1 year warranty for main parts	During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts	most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance	we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support	Video technical support
Online Service	your question will be answer within 24 hours during working days, 48 hours during holiday.

Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.

20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.

FAQ：

1.Does your machine have great quality and favorable price?

Sure,we offer good quality and cheap price products.

2.How is your service?

We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.

3.How about the MOQ?

1 set.

4.What's the warranty of machine?

One year warranty for main machine.

5.When the machine can be shipped?

Within 3-5 working days after receiving full payment.
