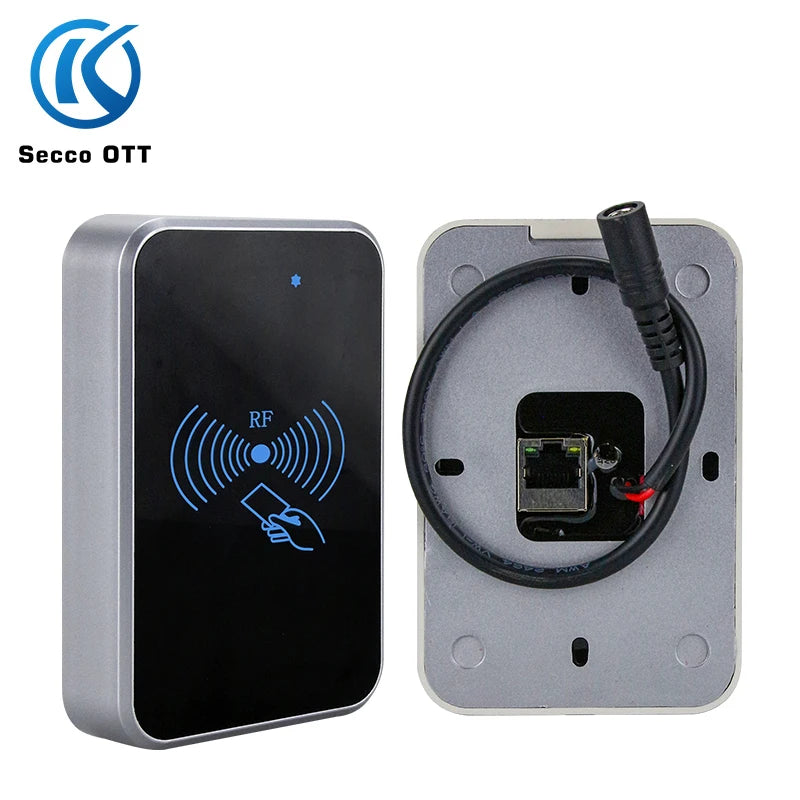

NEW Products TCP IP Network Card Reader 13.56Mhz Ethernet LAN MF1 Port RFID RJ45 Device Support HTTP NFC Internet Reading Head
NEW Products TCP IP Network Card Reader 13.56Mhz Ethernet LAN MF1 Port RFID RJ45 Device Support HTTP NFC Internet Reading Head
Couldn't load pickup availability

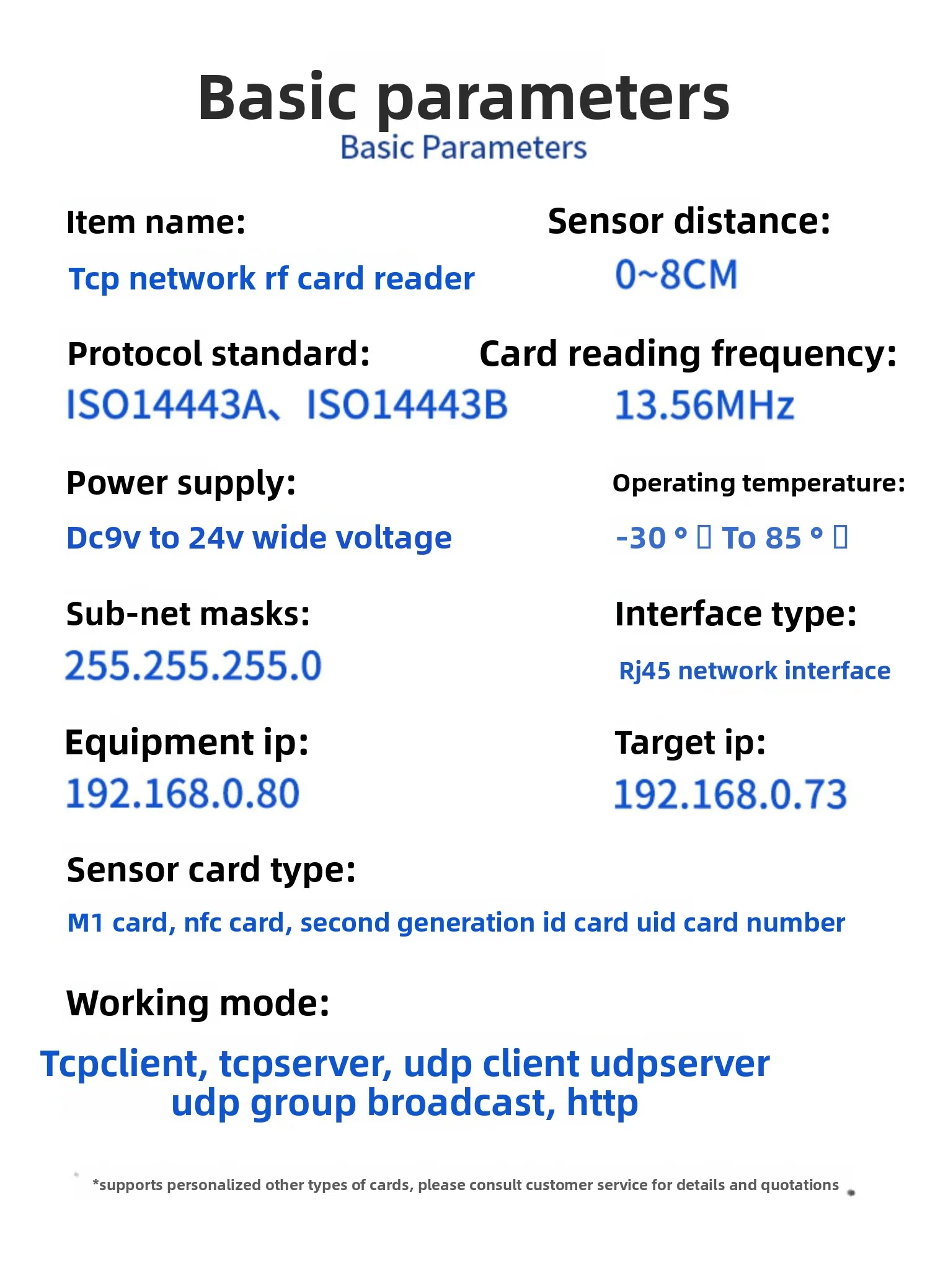

SPECIFICATIONS
Brand: Secco ott
Brand Name: NONE
Card Type: 13.56 MHZ ,IC Card, nfc
Certification: NONE
Frequency: 13.56mhz
Function: PC-linked Contactless Smart Card Reader
High-concerned chemical: none
Interface: TCP/IP RJ45
Material: ABS+PC
Model: KA118-TCP
Model Number: KA118-LAN754
Origin: Mainland China,Guangdong China
Power Supply: DC9-24V wide voltage
Product Name: TCP IP Network rfid reader
Reading Distance: 3-6cm
Type: ic

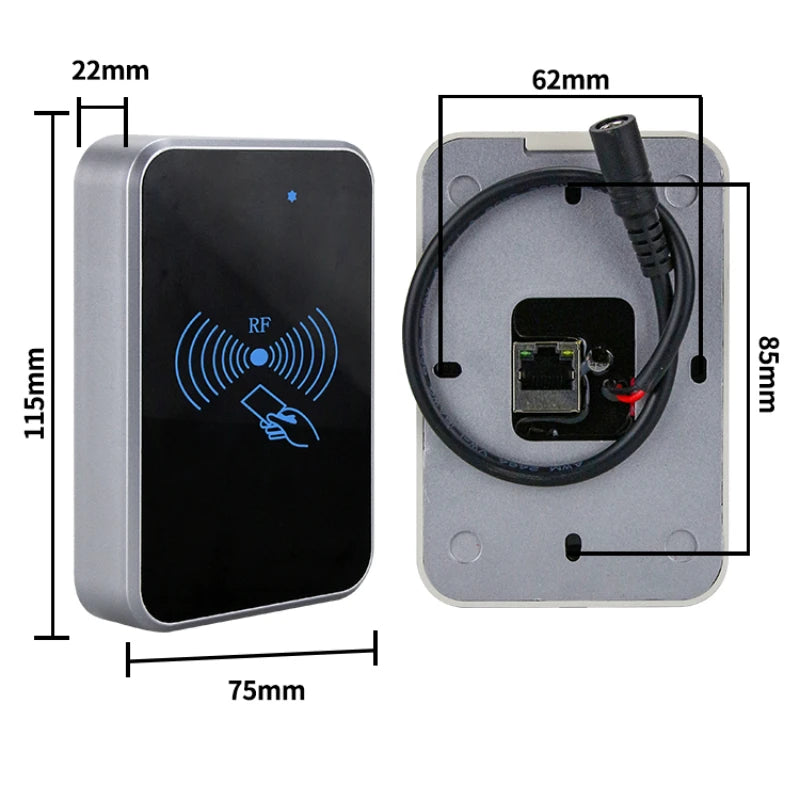

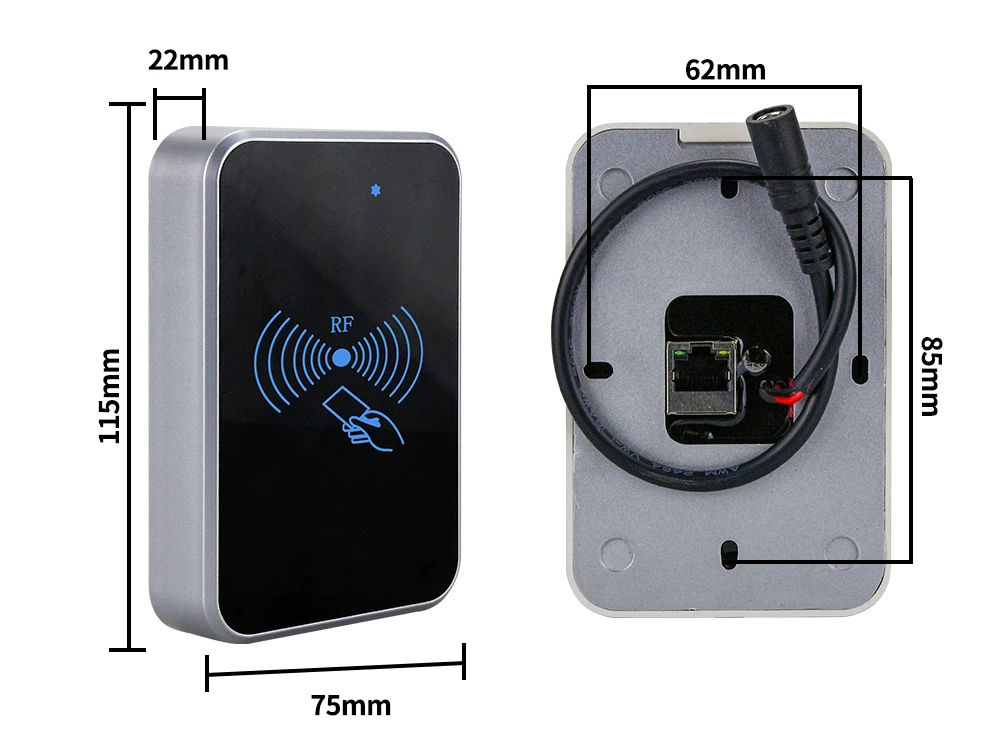

size: 115*75*22MM
Equipped with 13.56Mhz RFID technology, this network card reader ensures fast and accurate data transmission.
Versatile Networking
Supports Ethernet LAN MF1 port, RJ45 device, and HTTP protocol, making it compatible with various networking environments.
Easy Integration
With its support for NFC and HTTP, this reader easily integrates with existing systems for streamlined access control.

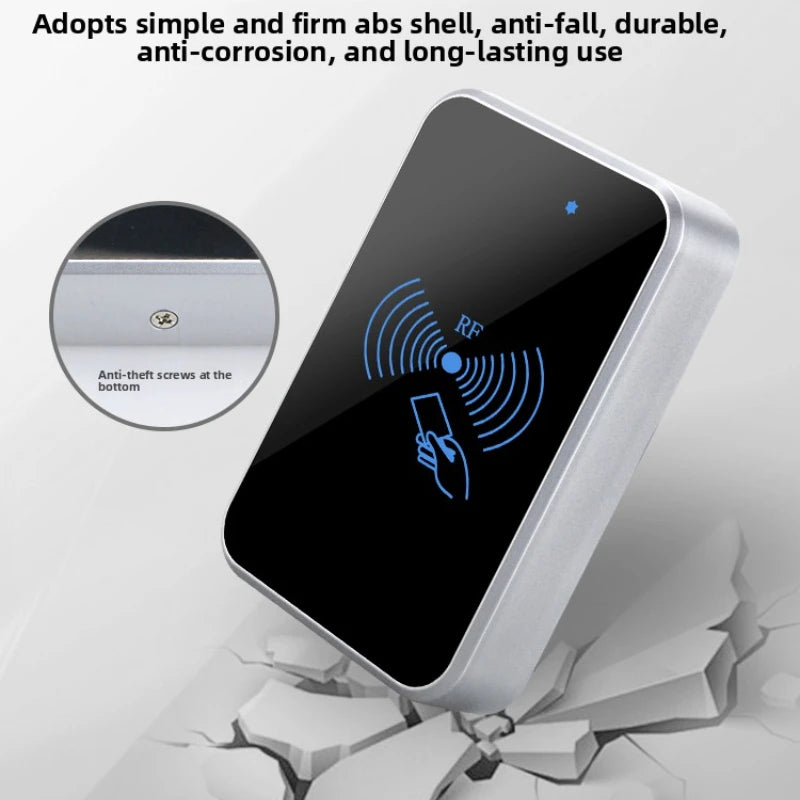

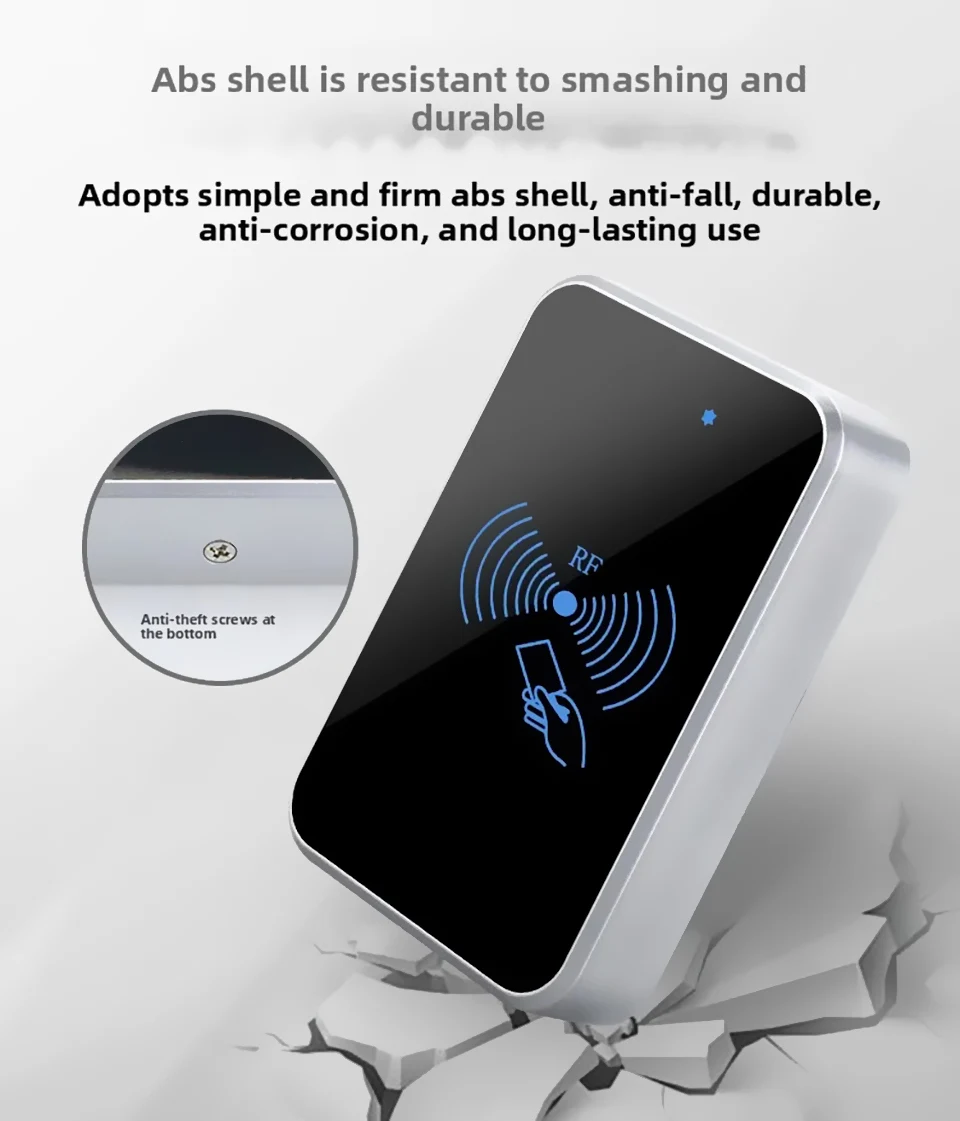

Compact and Durable Design
Designed for longevity, this compact RFID reader withstands frequent use without compromising performance.
Internet Reading Capability
The device's internet reading head allows for seamless integration with online systems for efficient data management.

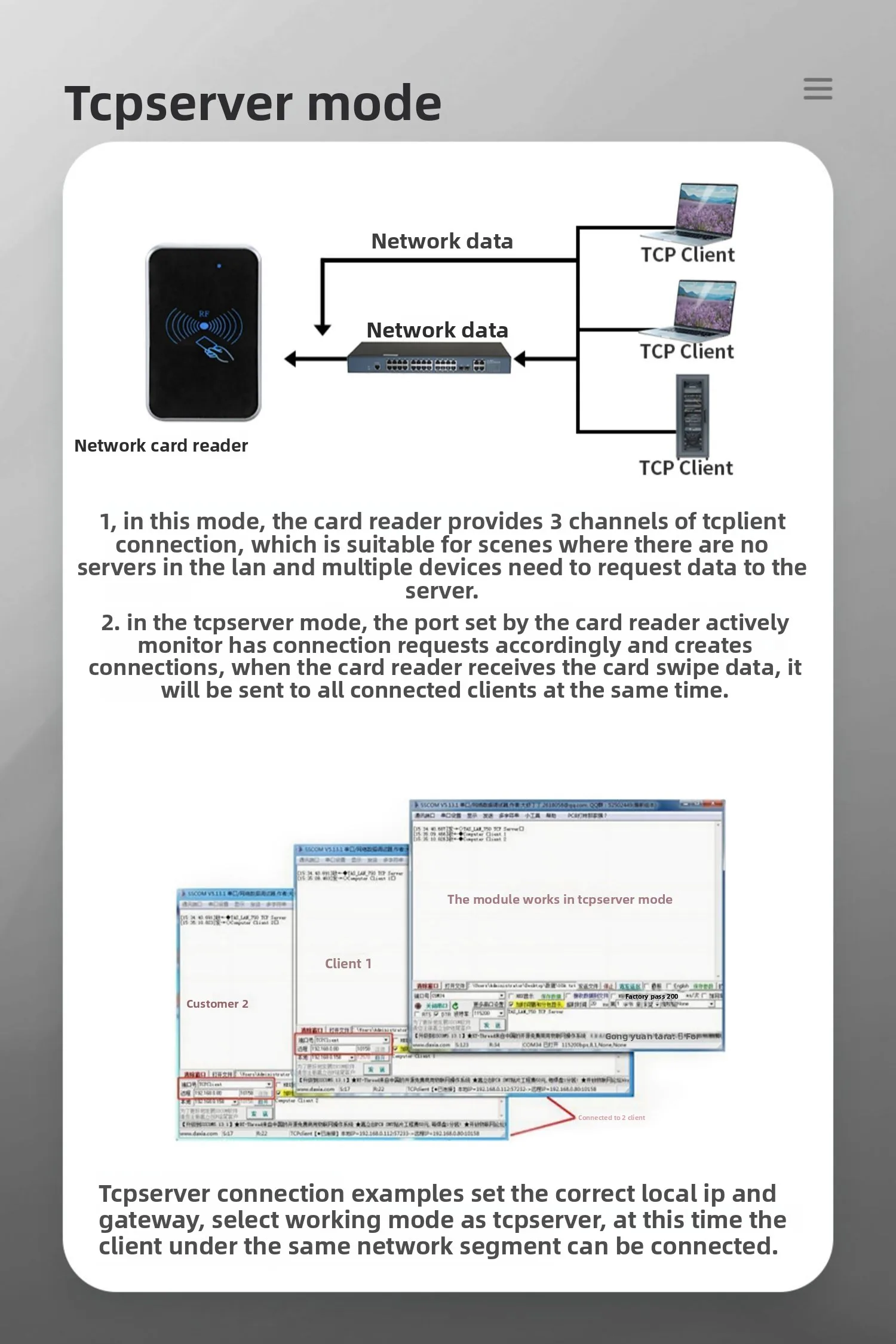

Tcp server mode
as shown above
1, in this mode, the card reader provides 3 channels of tcplient servers in the lan and multiple devices need to request data to the
connection, which is suitable for scenes where there are no server.
2.in the tcp server mode, the port set by the card reader actively connections, when the card reader receives the card swipe data, it monitor has connection requests accordingly and createswill be sent to all connected clients at the same time.
Tcp server connection examples set the correct local ip and gateway, select working mode as tcpserver, at this time the client under the same network segment can be connected.

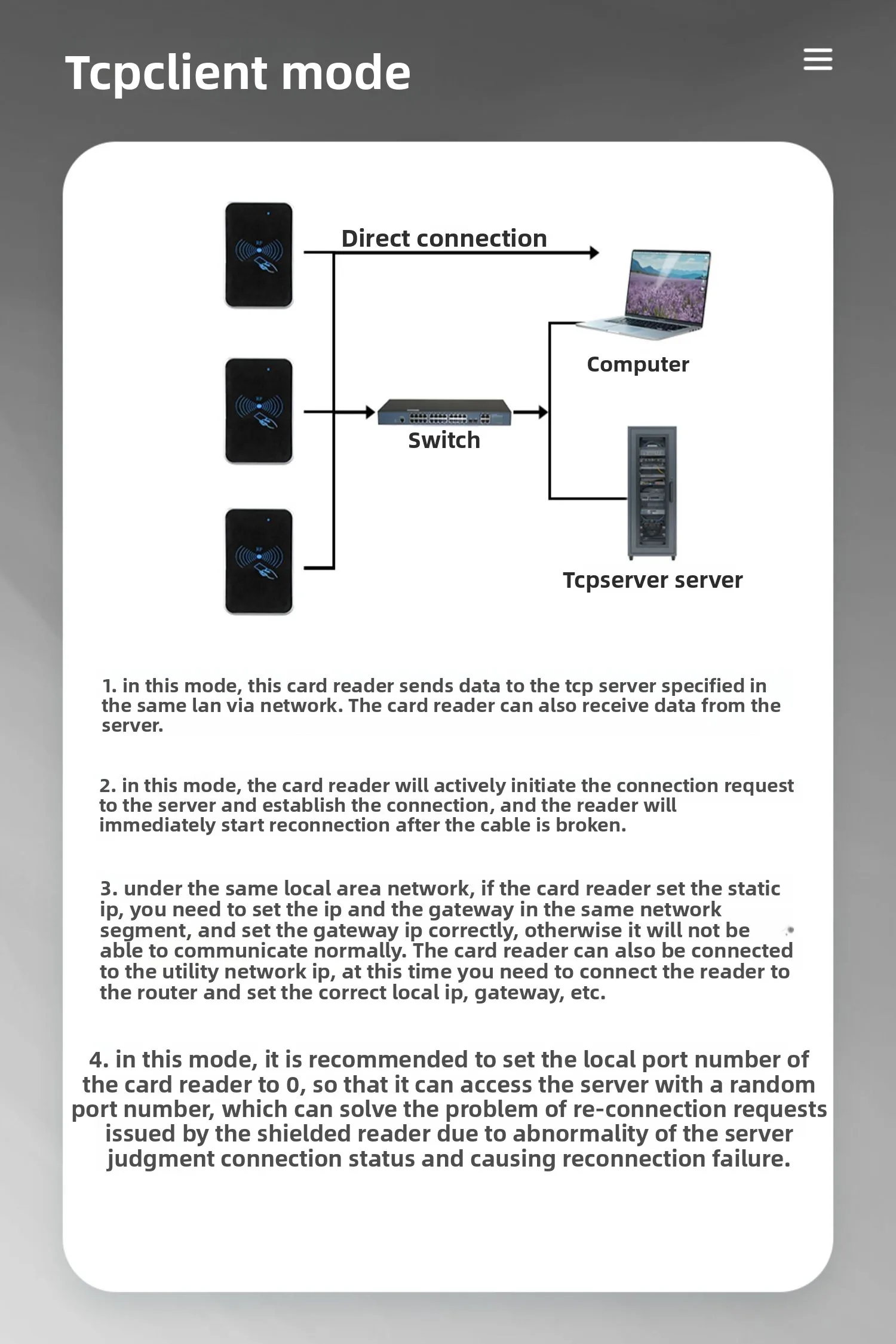

TCP Client mode
as shown above
1. In this mode, the card reader sends the data to the specified TCP server
Connect to the network within the same local area network.
2. The card reader will actively initiate a connection request, establish a connection with the server, and also establish a connection with the reader
Immediately reconnect the cable after it breaks.
3. Under the same local area network, if the card reader is set to a static Ip, the Ip address and the gateway need to be set in the same network segment, and the gateway IP must be set correctly; otherwise, normal communication will not be possible. The card reader can also be connected to a public network ip. In this case, it is necessary to connect the card reader to the router and set the correct local ip, gateway, etc.
4.It is recommended to configure the local port number to set the card reader to 0, allowing it to randomly access the server port number, which can solve the problem of reconnection requests
Warehousing and Logistics
Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
company profile
Shenzhen Keaote Electronic Technology Co., Ltd. was established in 2013. It is a professional manufacturer specializing in the research and development, production and sales of access control card readers, access control systems, RFID radio frequency identification modules, QR code card readers, access control all-in-one machines and other access control solutions. The company adheres to the business philosophy of "innovation-driven, quality-oriented, and customer-first", providing customized services for customers. High cost-performance products
Welcome to contact us for more product information and access control solutions
