SPECIFICATIONS

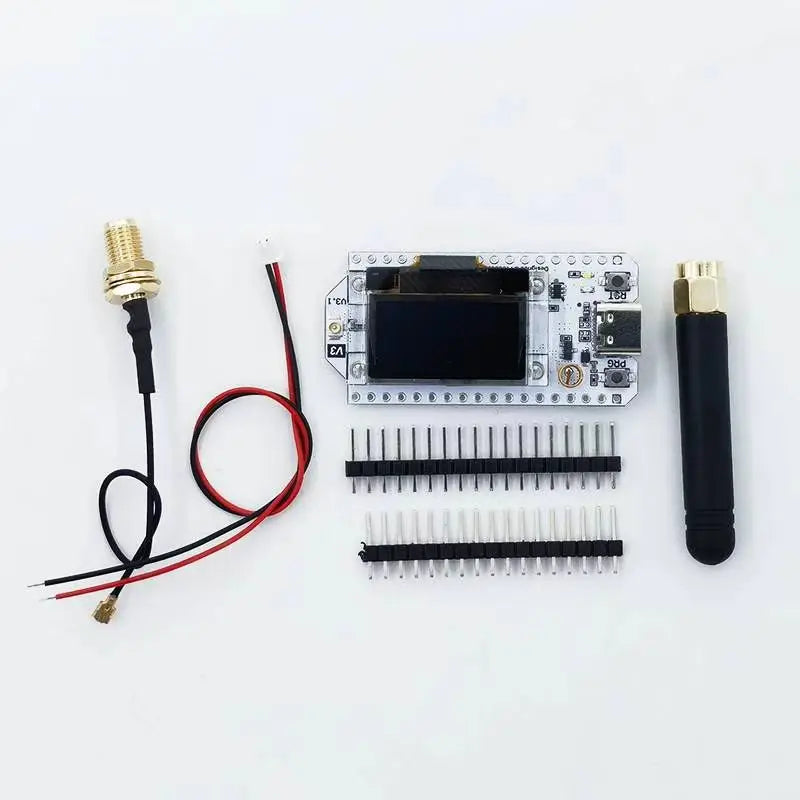

Accessory Type: USB To DC Cable

Battery: 3.7V lithium battery power supply and charging

Battery Included: no

Bluetooth: Bluetooth 5 (LE)

Brand Name: Heltec Automation

Certification: CE,FCC

Compatible With: Lora 32

Demo Board Type: RISC-V

Dimensions: 50.2 * 25.5* 10.2 mm

Frequency: 470~510MHz, 863~928MHz

Function: ESP32 LoRa WiFi BLE

High-concerned chemical: none

Intergrated Feature: WiFi 802.11b/g/n,bluetooth

LoRa Node Chip: SX1262

Master Chip: ESP32 S3FN8 (Xtensa 32 bit lx7 dual core processor)

Max. Receiving sensitivity: -136dBm@SF12 BW=125KHz

Max. TX Power: 20±2dBm

Origin: Mainland China

Supported: meshstatic

Typical Application Fields: Internet of Things (IoT)

USB to Serial Chip: CP2102

Wi-Fi: 802.11 b/g/n, up to 150Mbps

Description

Why do we need Maker series products?

Summary

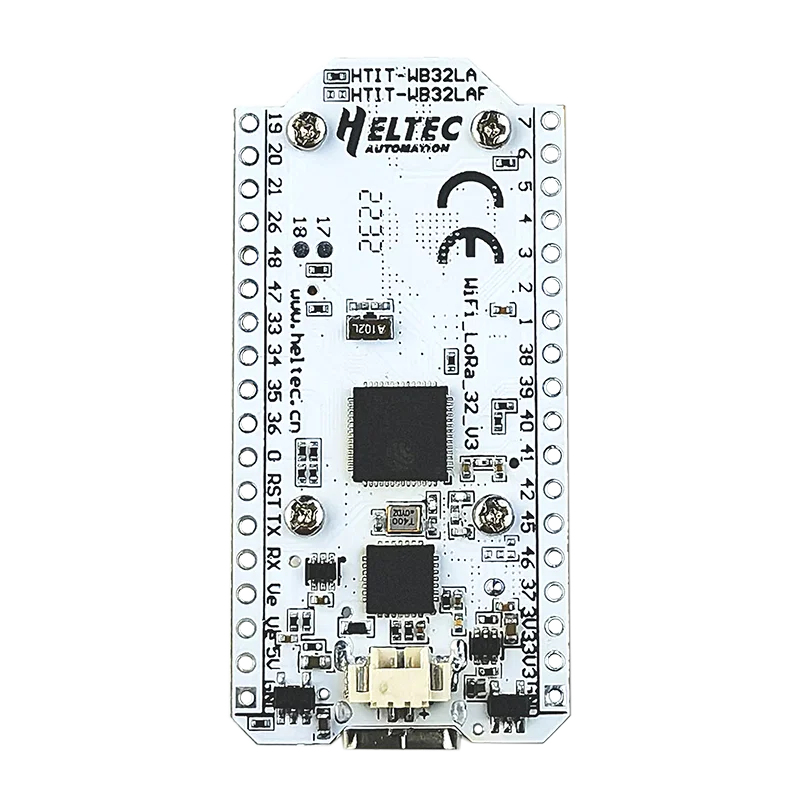

WiFi LoRa 32 (V3) is a classic IoT dev board designed & produced by Heltec Automation. Since its launch in 2017, it has been loved by developers and makers. Widely used in numerous excellent open-source projects and directly made into products for LoRa/LoRaWAN features.

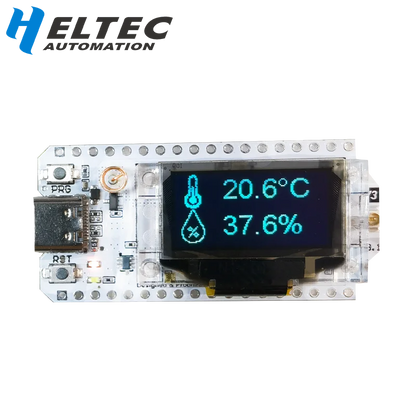

The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

WiFi LoRa 32 (V3) supports the following development methods:

Compared to WiFi LoRa 32 (V2), V3 has made the following upgrades:

WiFi LoRa 32 is compatible with the following open-source projects:

• ESP32 Paxcounter

• • Disaster Radio

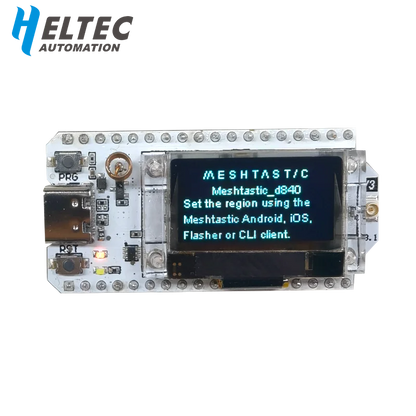

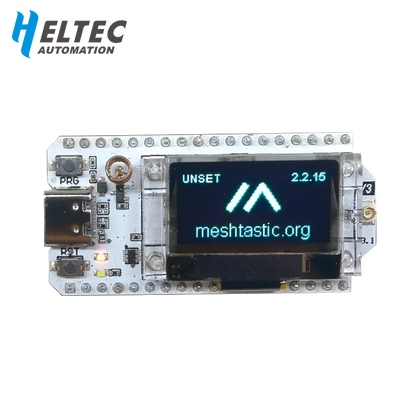

• Meshtastic

• Tiny GS

• ...

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Resource

• WiFi LoRa 32 V3 details on Heltec website

• Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

• WiFi LoRa 32 V3 Documents

• Downloadable Resource

• Hardware update logs
