SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Brand Name: PowMr

Certification: CE

Charging Technology: MPPT

Feature 1: MPPT Solar Controller

Feature 2: 60A MPPT Solar Charge

Feature 3: MPPT 60A Solar Controller

High-concerned chemical: none

Max. Solar Array Open-Circuit Voltage: 160V

Maximum Current: 60A

Model Number: MPPT 60A

Origin: Mainland China

System Voltage: 12V/24V/36V/48V

Dear Customers,

if you need to order Multiple quantities，Each order can be choose 10pcs, in order

it can delivery successful. If over 10pcs, the transit may will have a delay, cause

weight is over the limited.

thanks for your support, any question, feel free to contact us, thank you!

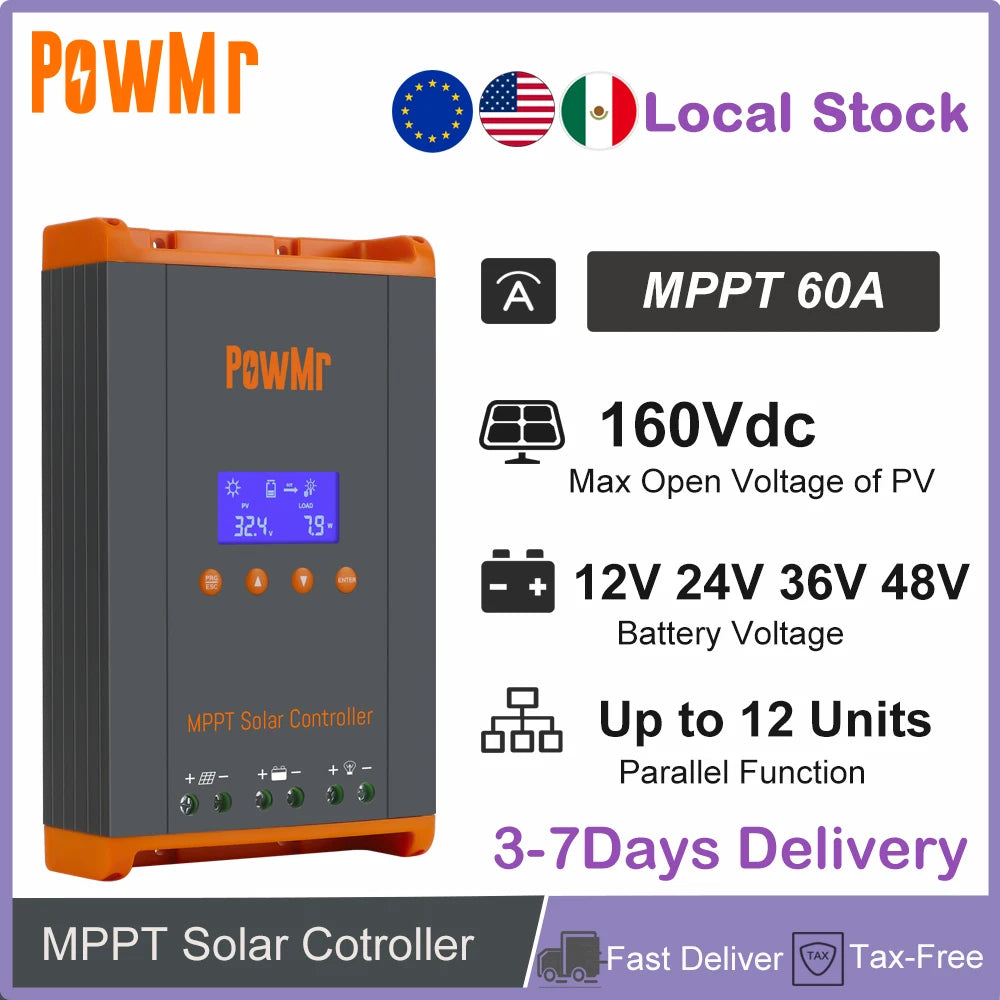

Local Stock MPPT 60A Solar Charge Controller 12V/24V/36V/48V Max Solar Panel PV 160V Parallel Max 12 Units Fit LifePO4 RV Home

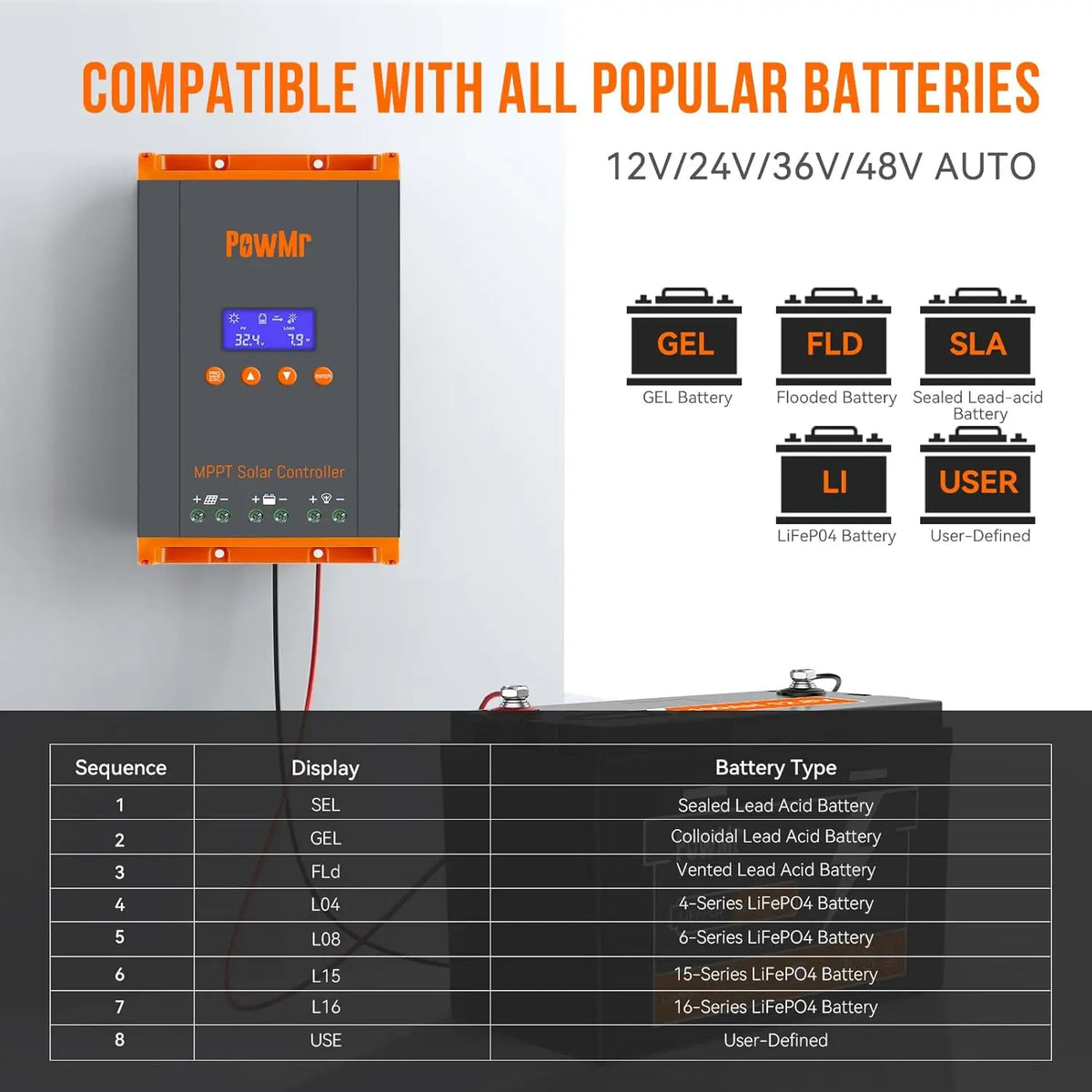

Multiple Battery Adaptation Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG

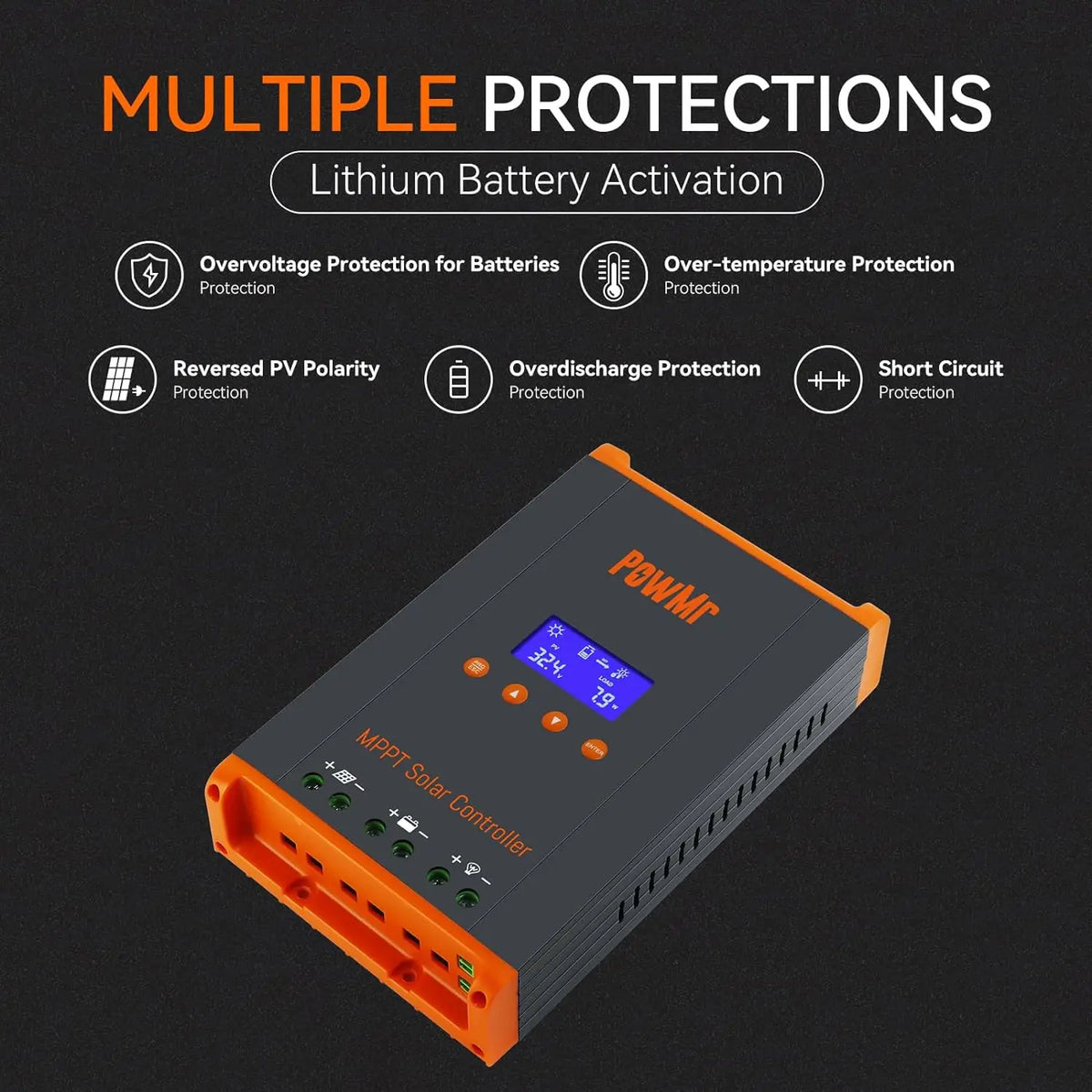

Full System Protection Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters

Plug and Play Temperature Sensor This PowMr solar charge controller updates with a temperature sensor port. And a temperature sensor is in the package. Installing this is a breeze. Plug and play!

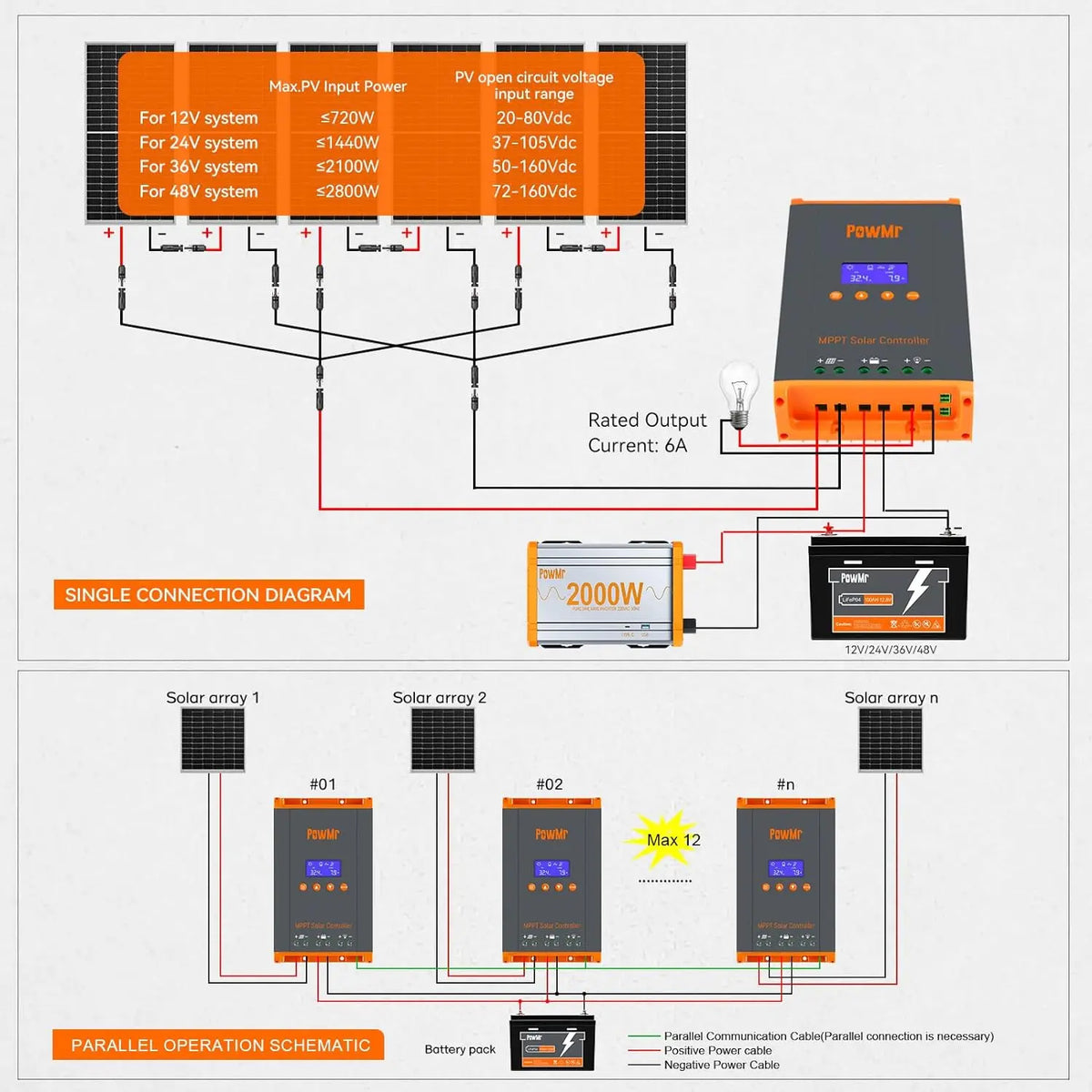

Supports Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.

Lithium Battery Activation

Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.
