BOGUANG 18v 200w 400w solar panel solar panels power generator photovoltaic placa solar battery camping equipment rv accessories

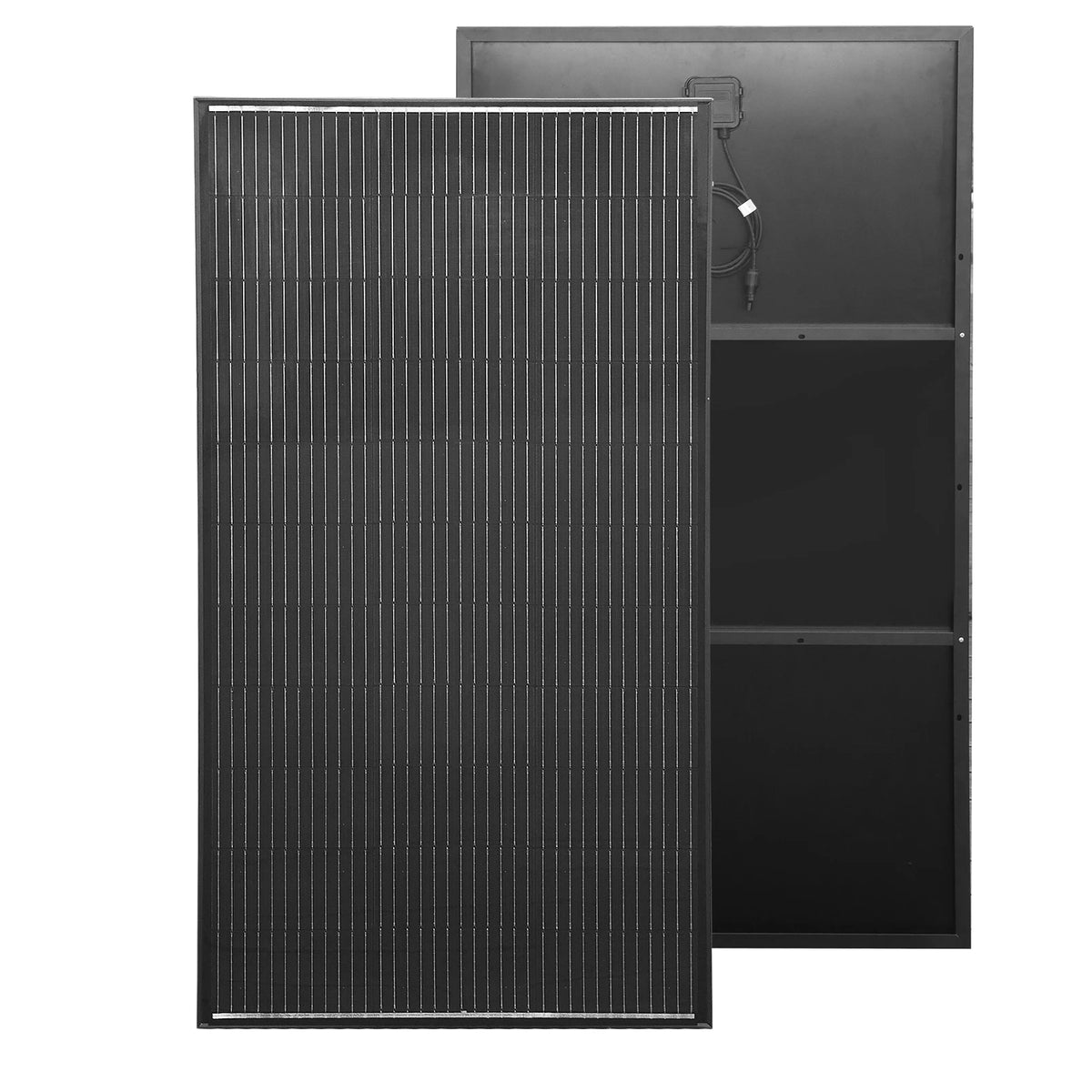

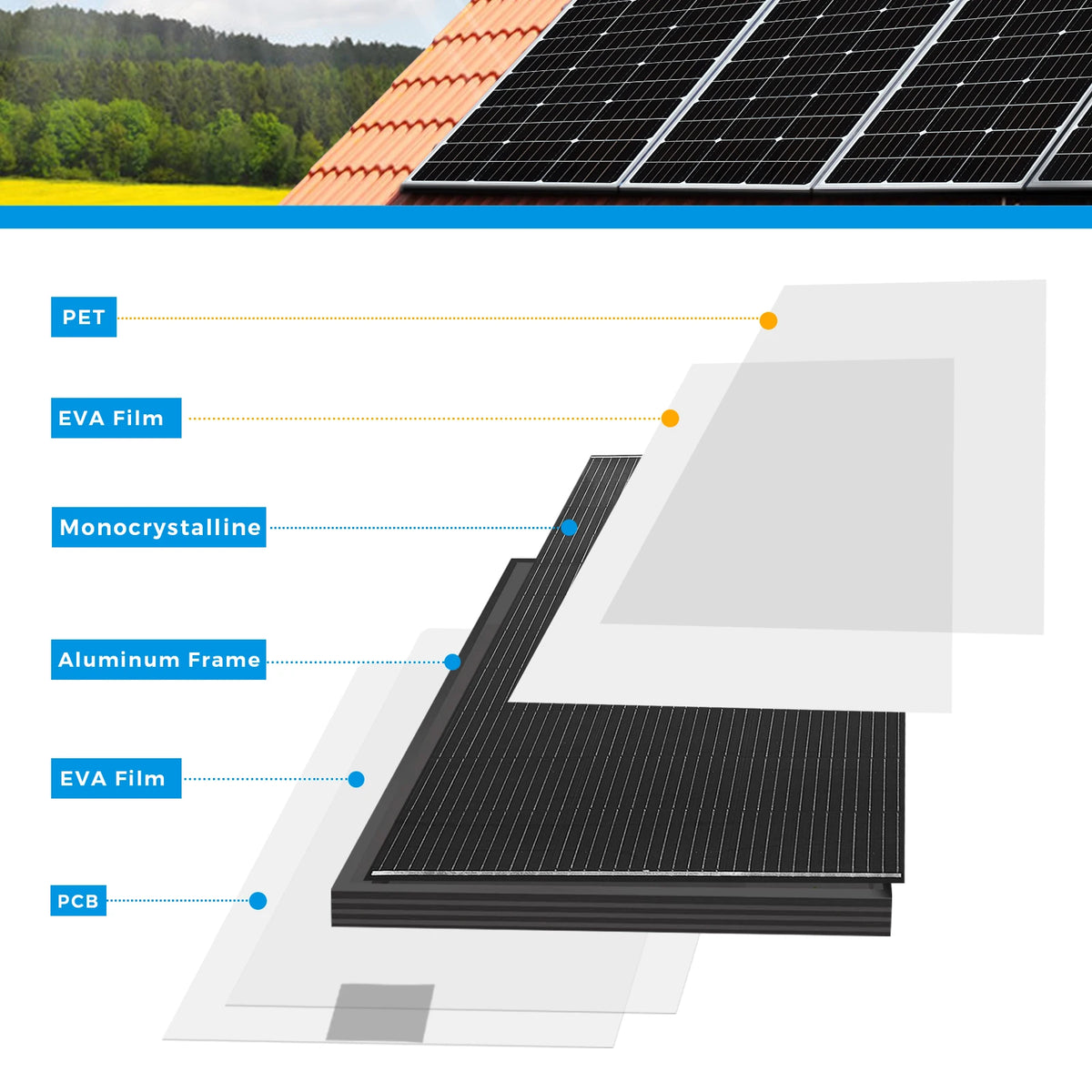

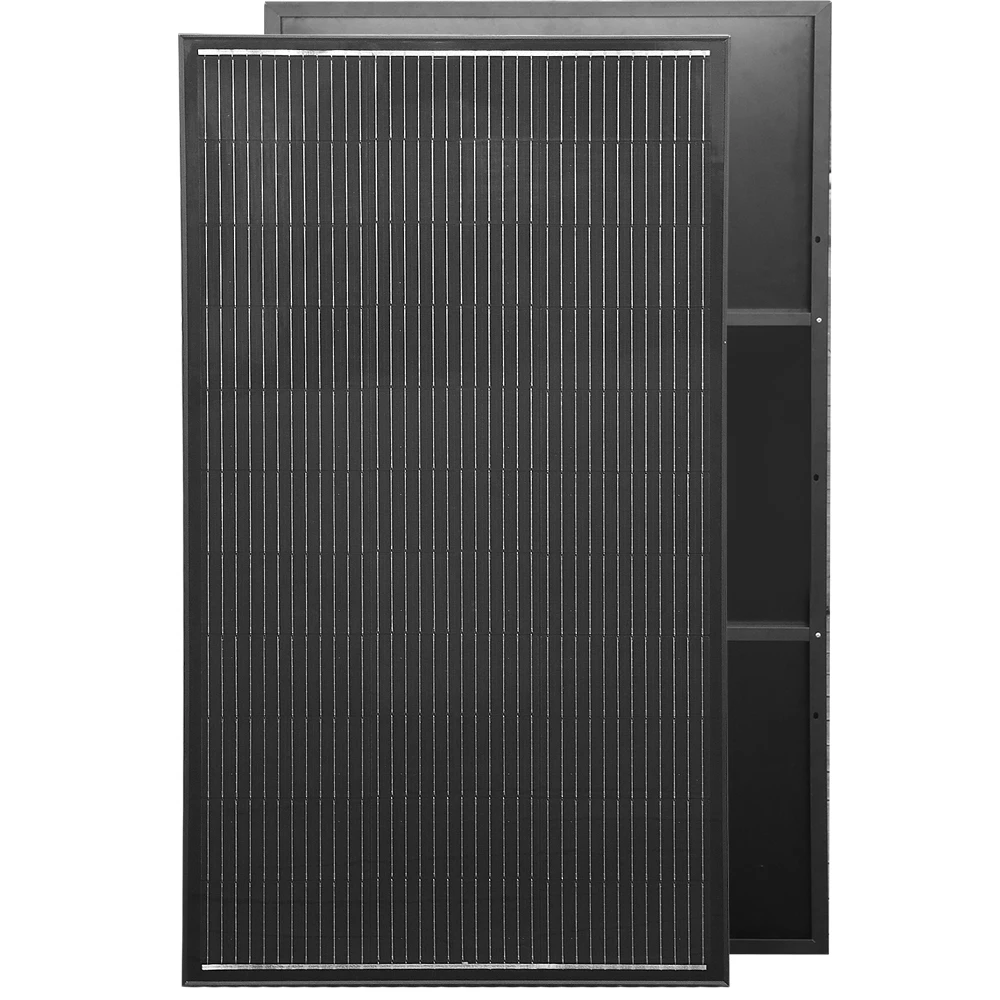

This is PET lightweight solar panel module with frame. The product is lightweight and has an aluminium frame on the back of the solar panel to protect the solar panel.

Maximum power (Pmax) 200W

Maximum system voltage 700V DC

Open circuit voltage (cov) 21.78 V

Short circuit current (Isc) 11.55 A

Vmp 18.15V

Maximum power current(Imp) 11A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 33 pieces

Cell efficiency 24%.

Weight 3.9kg

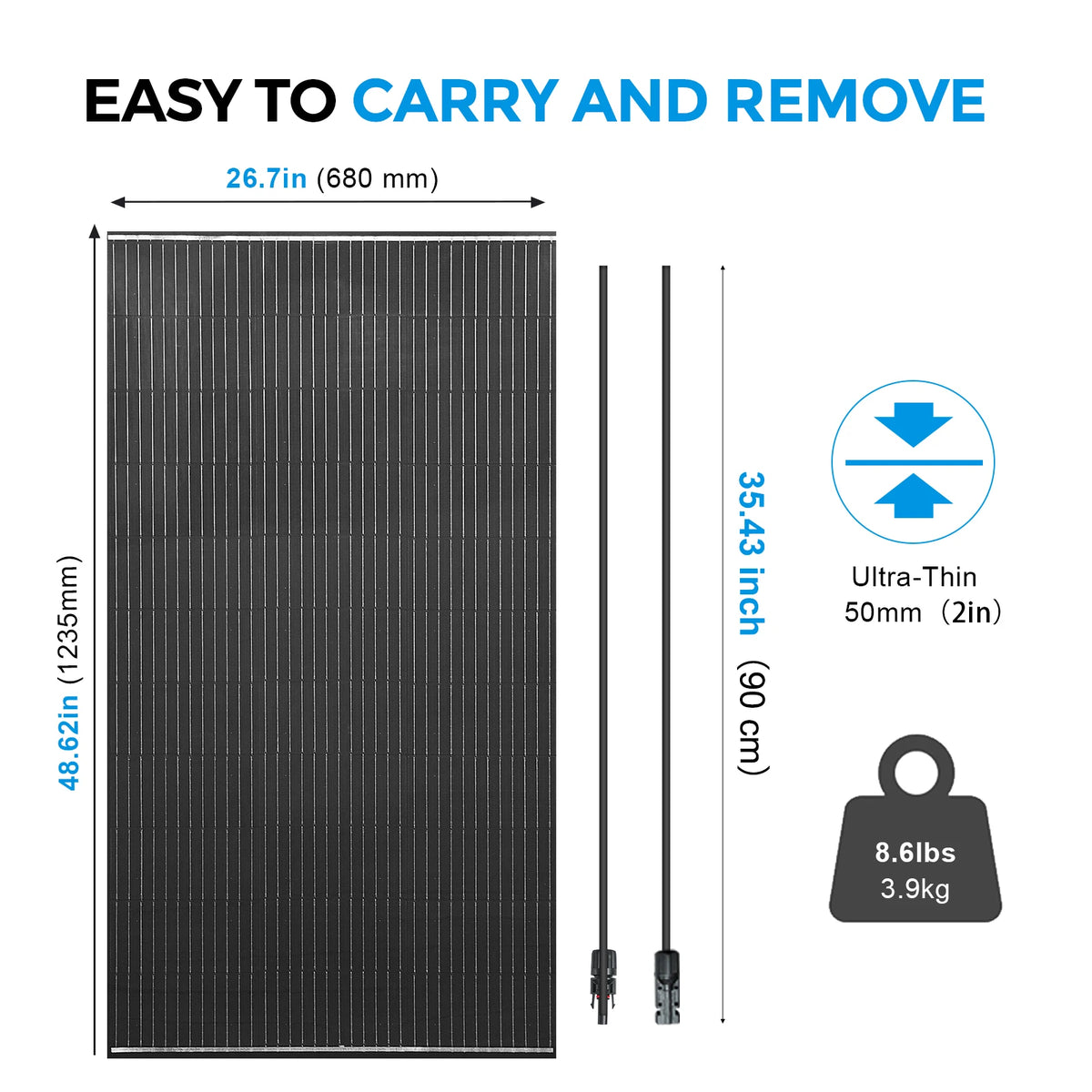

Size 1235*680*25mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Output port 0.9 m long MC 4 connector wire


[Highly efficient]The solar panel uses high efficiency 182MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.

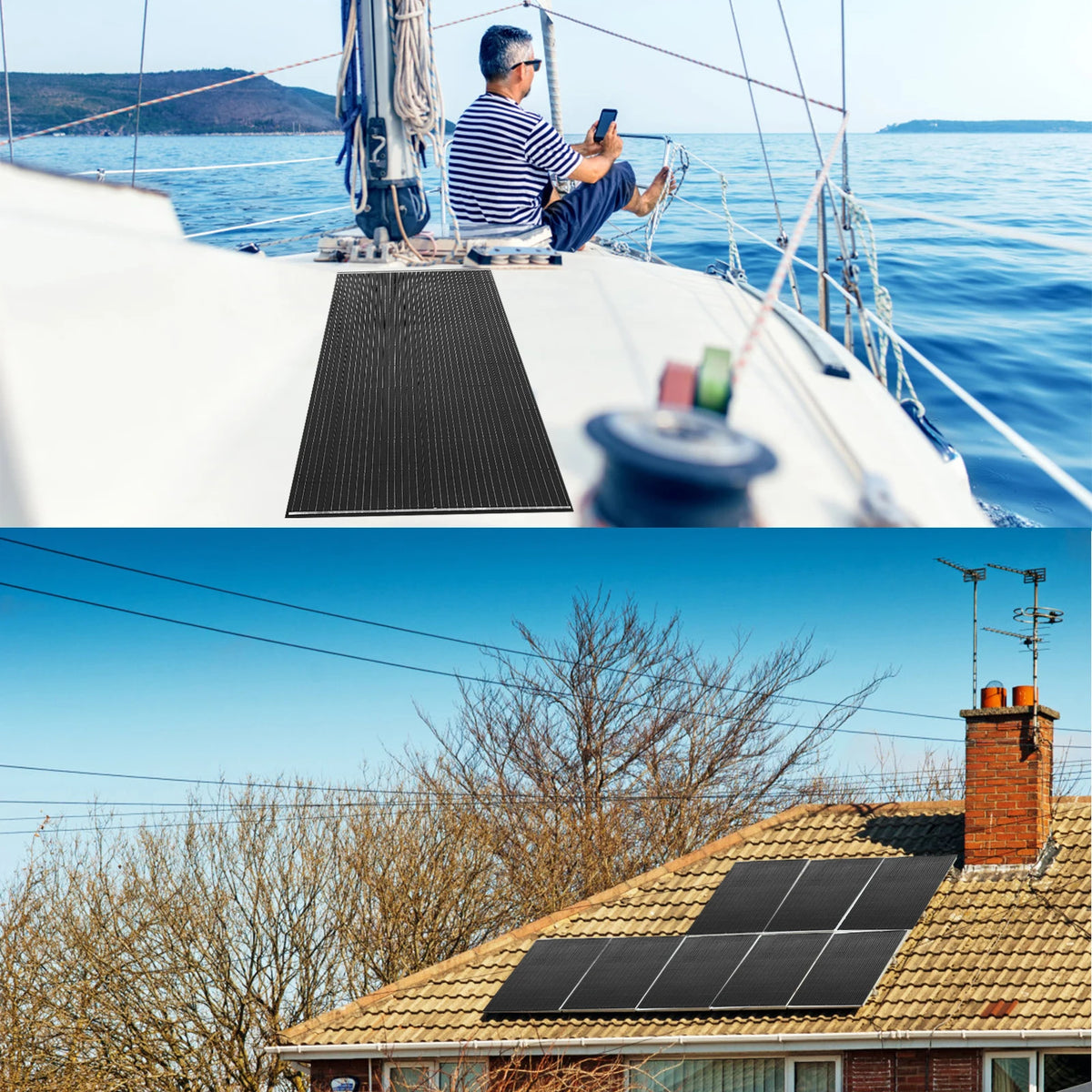

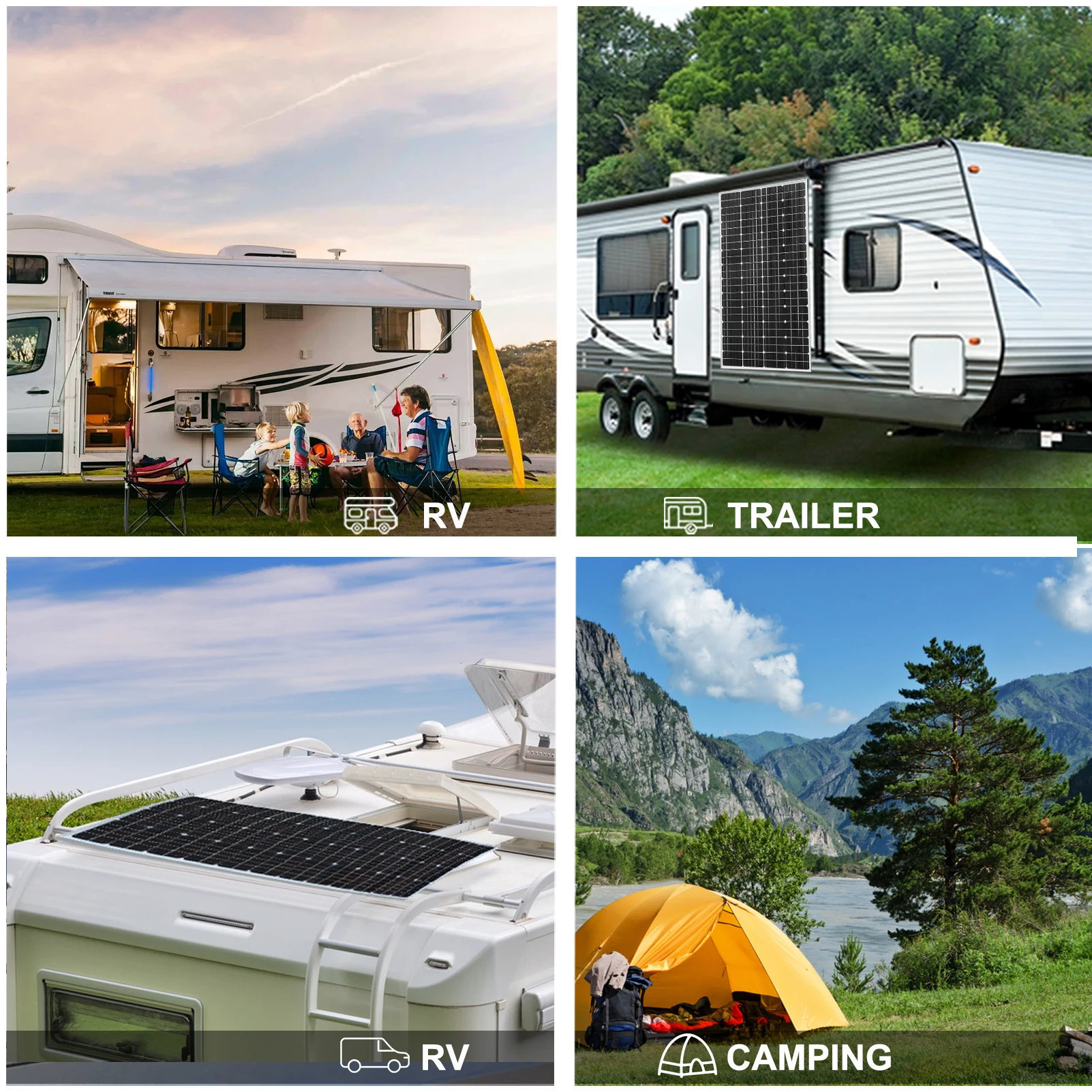

[Ultra-light ] A single solar panel weighs only 3.91kg. It can be easily picked up and carried. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents .....

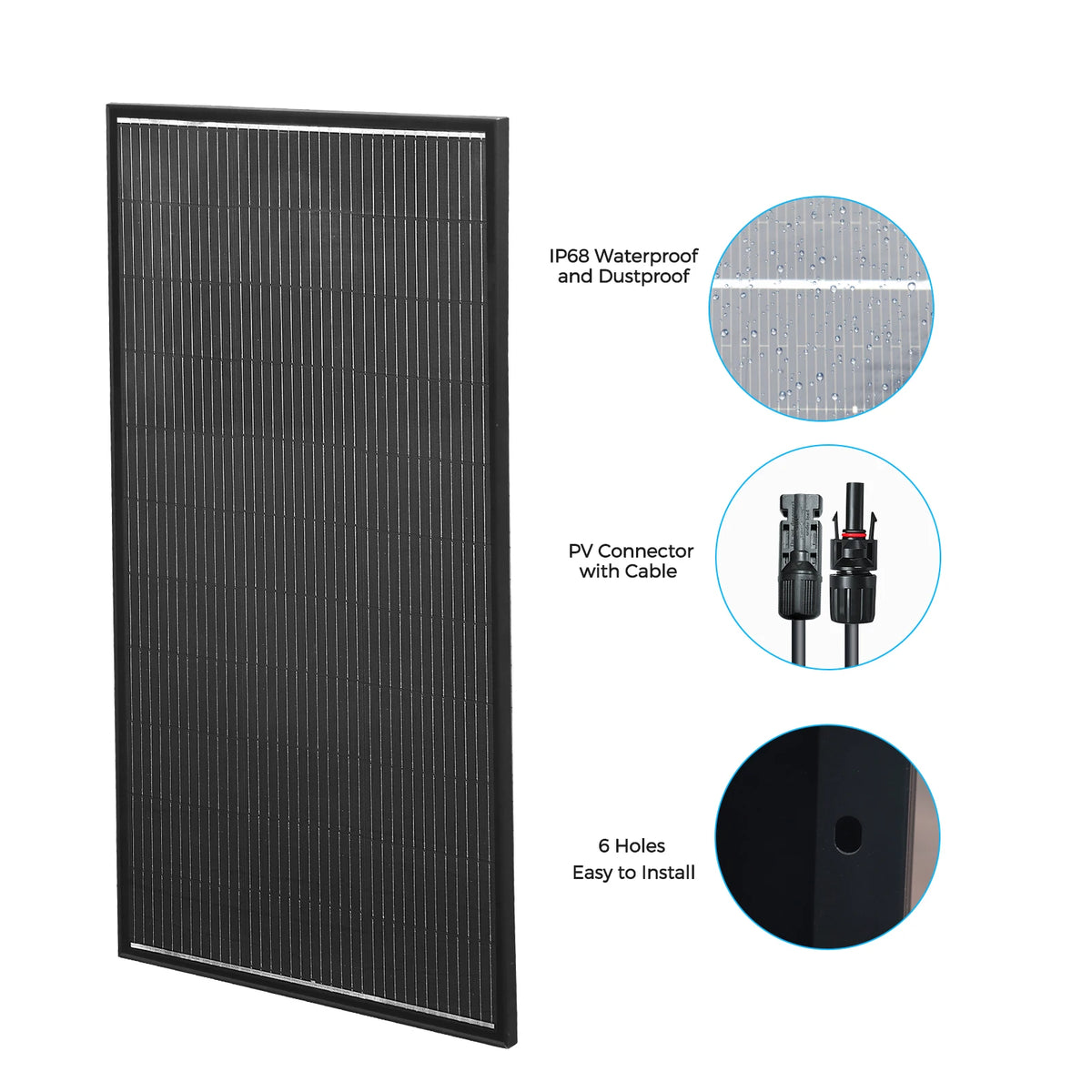

[Highly Durable] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.

Under low-light conditions, the spectral output current decreases, resulting in reduced power generation during periods of weaker irradiance such as early mornings, evenings, and overcast or rainy days.

USE NOTE

Solar system kit wiring method and precautions

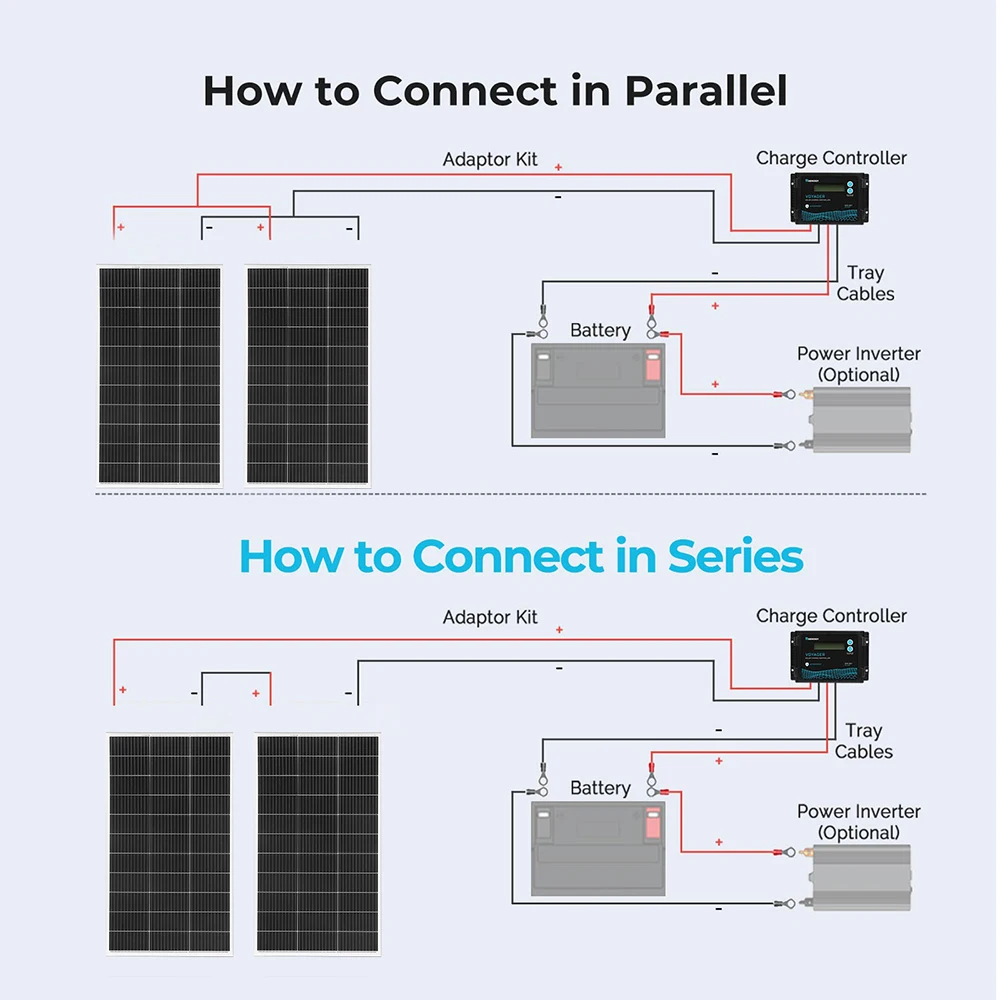

1. The solar system kit connection is divided into parallel connections or serial connections. The controller must first connect the battery and then connect the solar panels.

2. When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3. The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4. When the cable is connected to each component, the connection should be stable and there should be no looseness.

5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6. When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultan

TRANSPORTATION

We can provide free shipping for most of the products, for the EU and North America. However, some remote zip codes may require additional remote fees (especially remote islands). After the order is shipped, you will receive a shipping notification email with a tracking number and other information. You can check the status of the package through various official websites such as UPS, FedEx, DHL, USPS, Canada Post, DPD, etc. You can also query through our website, the query path is "support" --- "order tracking". Enter the tracking number to query.

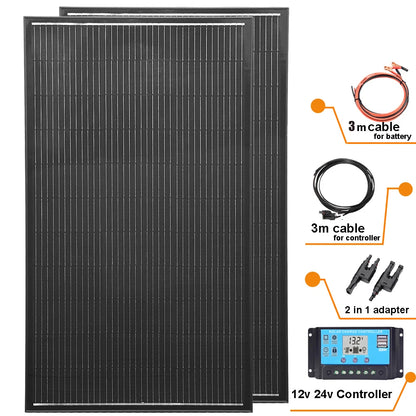

The solar panel charges regular 12V lead-acid, lithium-ion and lithium iron phosphate batteries. The solar panel needs to be configured with a controller to connect to the battery.

Solar panels charge portable 12V batteries. Solar panels can be connected directly to the battery.

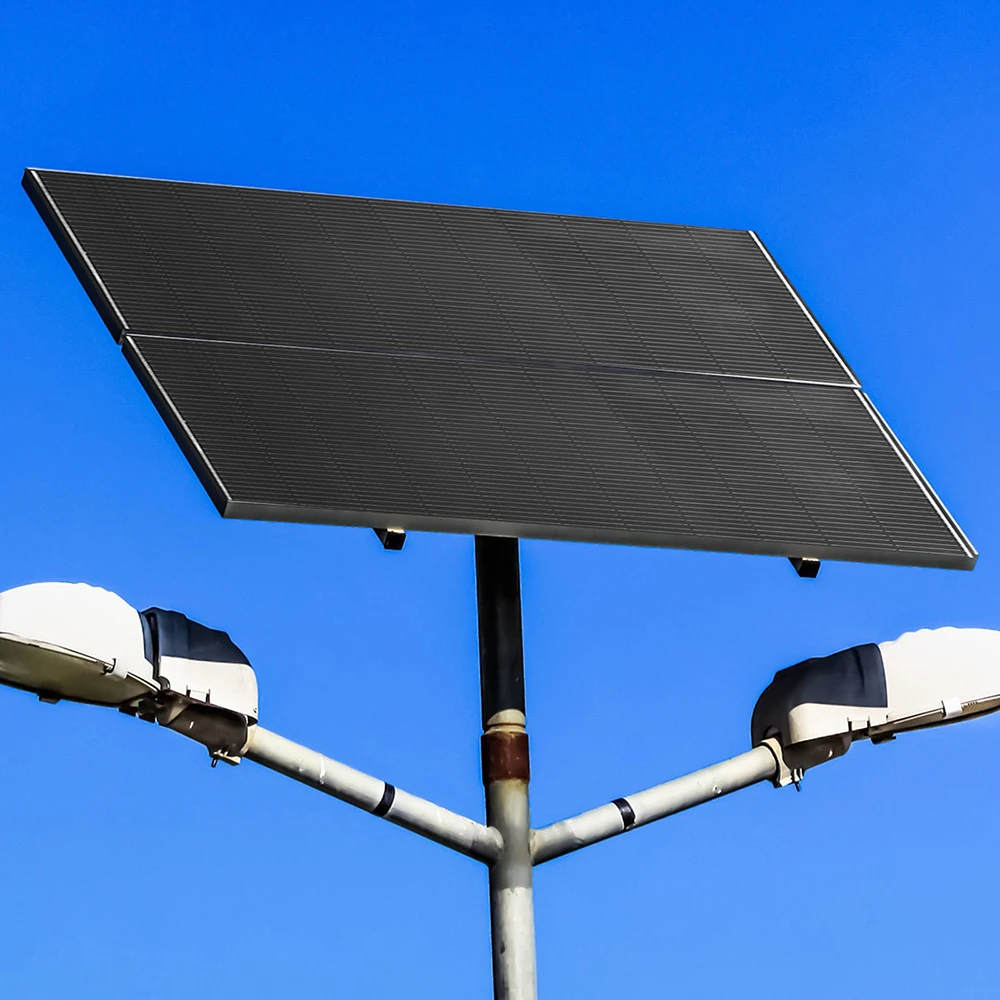

Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.

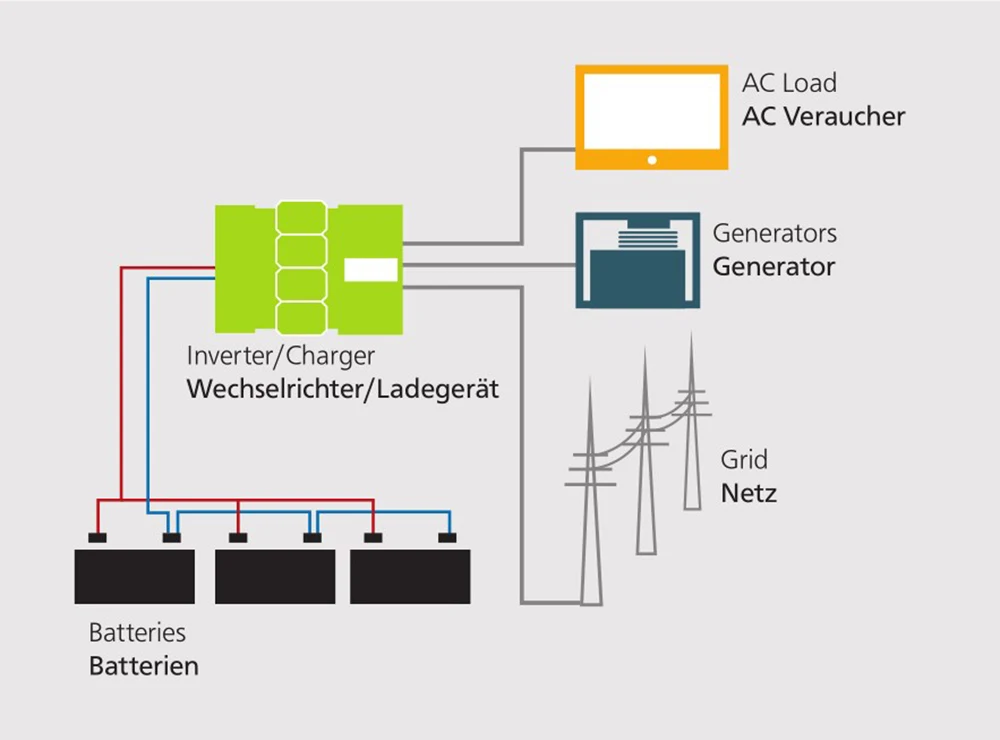

Solar panels can be used for grid-tied solar panel systems

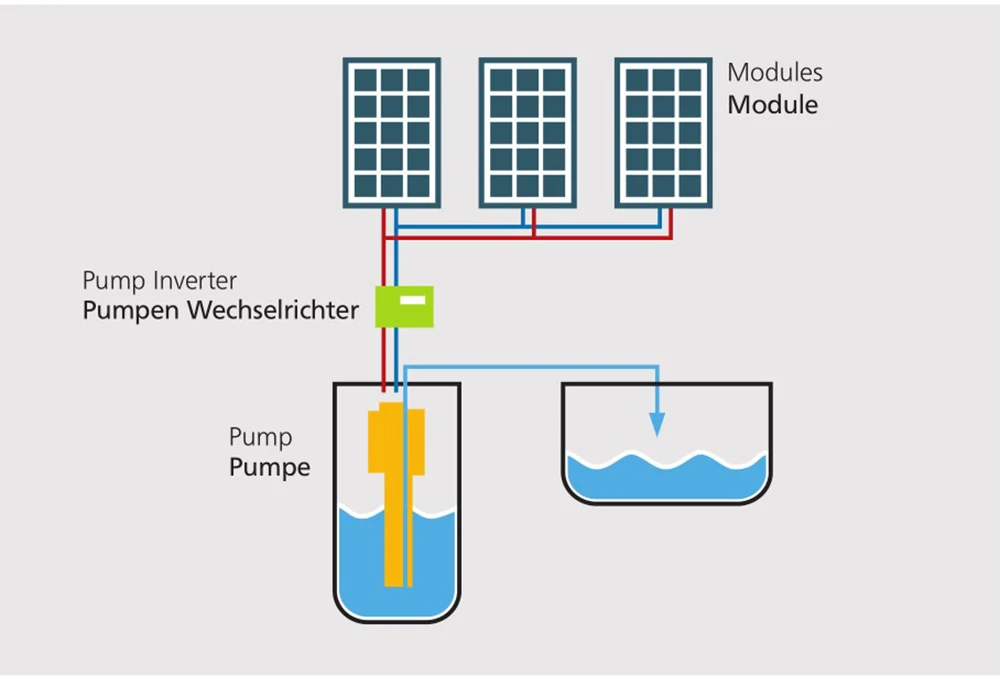

Solar panels can be connected to a DC water pump for power

The corners of this solar panel are equipped with black corner guards, which are used to protect the solar panels.
If the corner protector is damaged, you can contact us to get a replacement corner protector for free.
But it does not affect the work of solar panels. We do not accept compensation. Please understand.
Please avoid lifting heavy objects.
