SPECIFICATIONS

Battery Type: Others

Brand Name: COMICA

Built-in Battery: Yes

COMICA Model: VM40

Certification: CE,FCC,RoHS

Communication: WireLess

Diaphragm: S-Mall

Enclosure material: Plastic,Metal

Frequency response: 20Hz-20kHz

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Polar Patterns: Hypercardioid

Set Type: Multi-Microphone Kits

Style: Shotgun Microphones

Transducer: Condenser Microphone

Use: Pro Studio

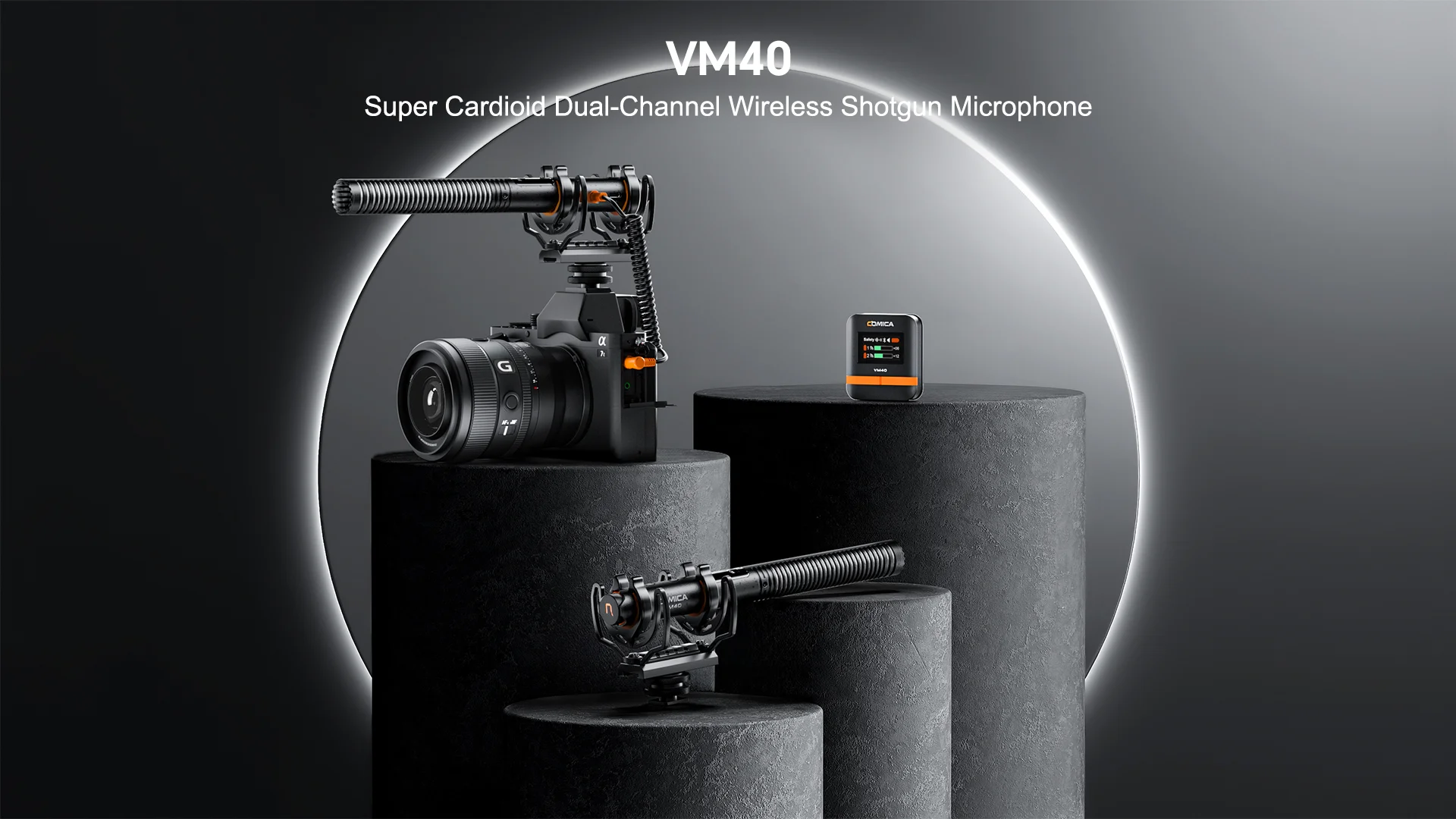

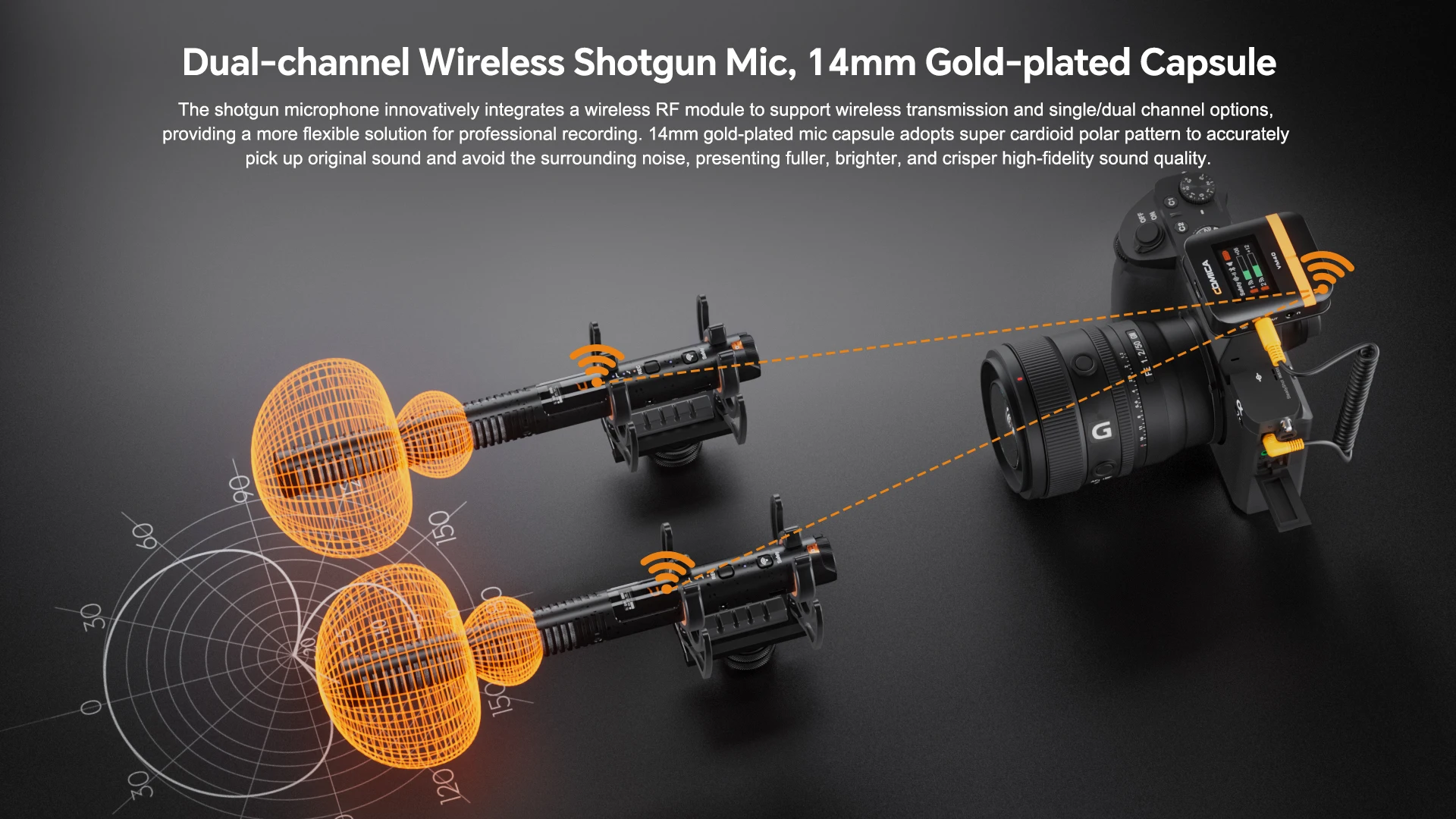

Dual-channel Wireless Shotgun Mic, 14mm Gold-plating Capsule

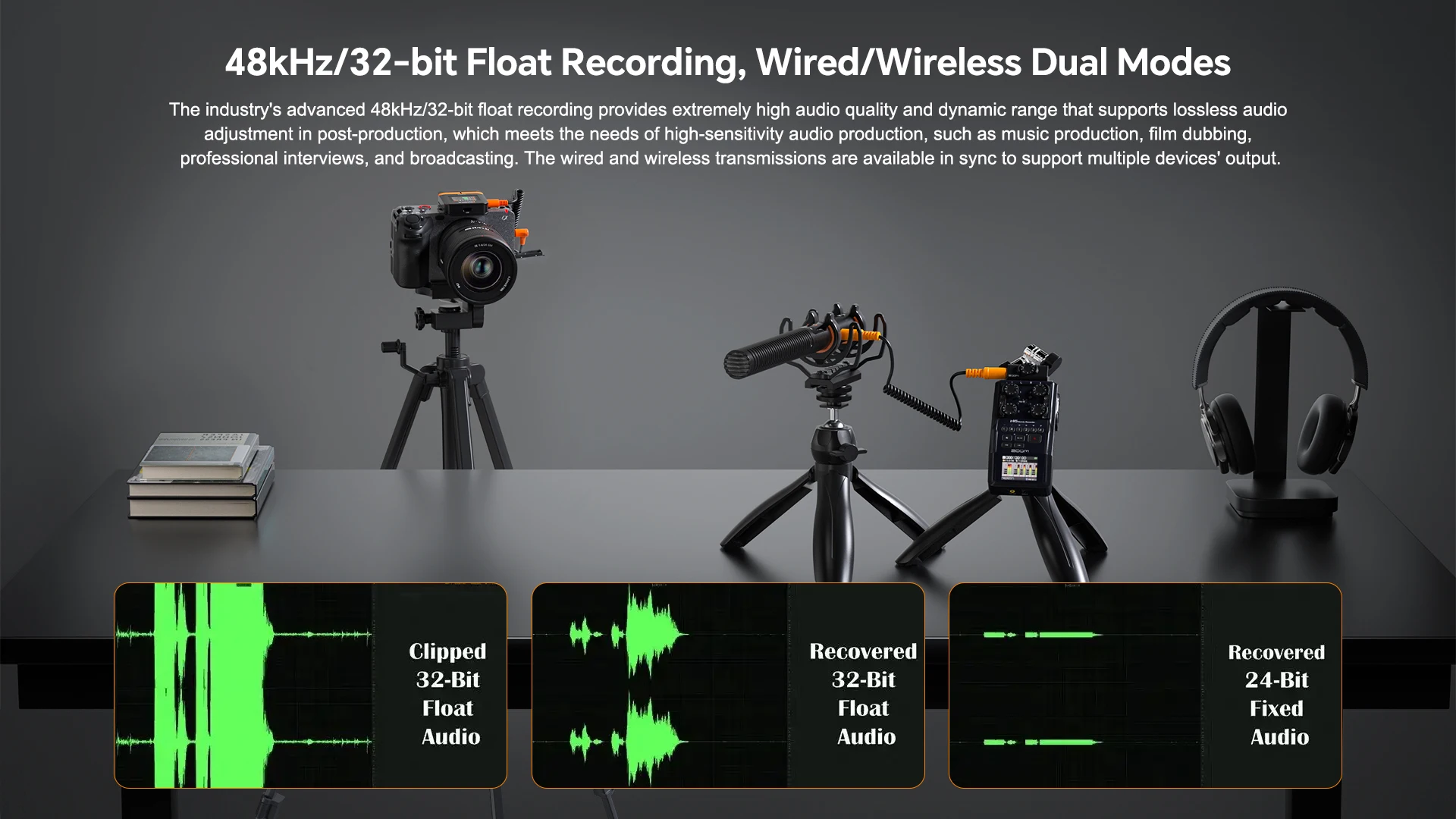

48kHz/32-bit Float Recording, Wired/Wireless Dual Modes

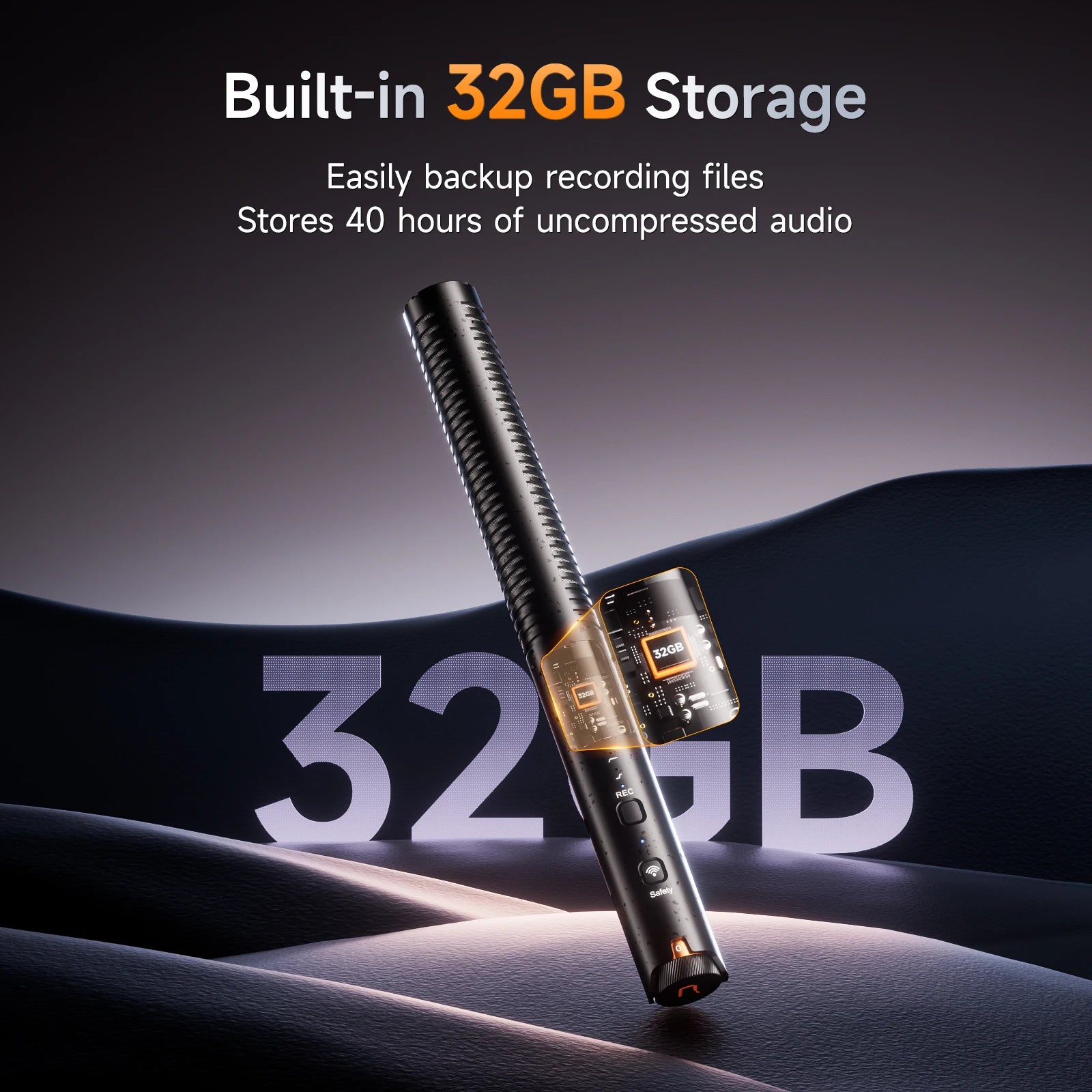

32G On-board Recording for 40-hour Audio Storage

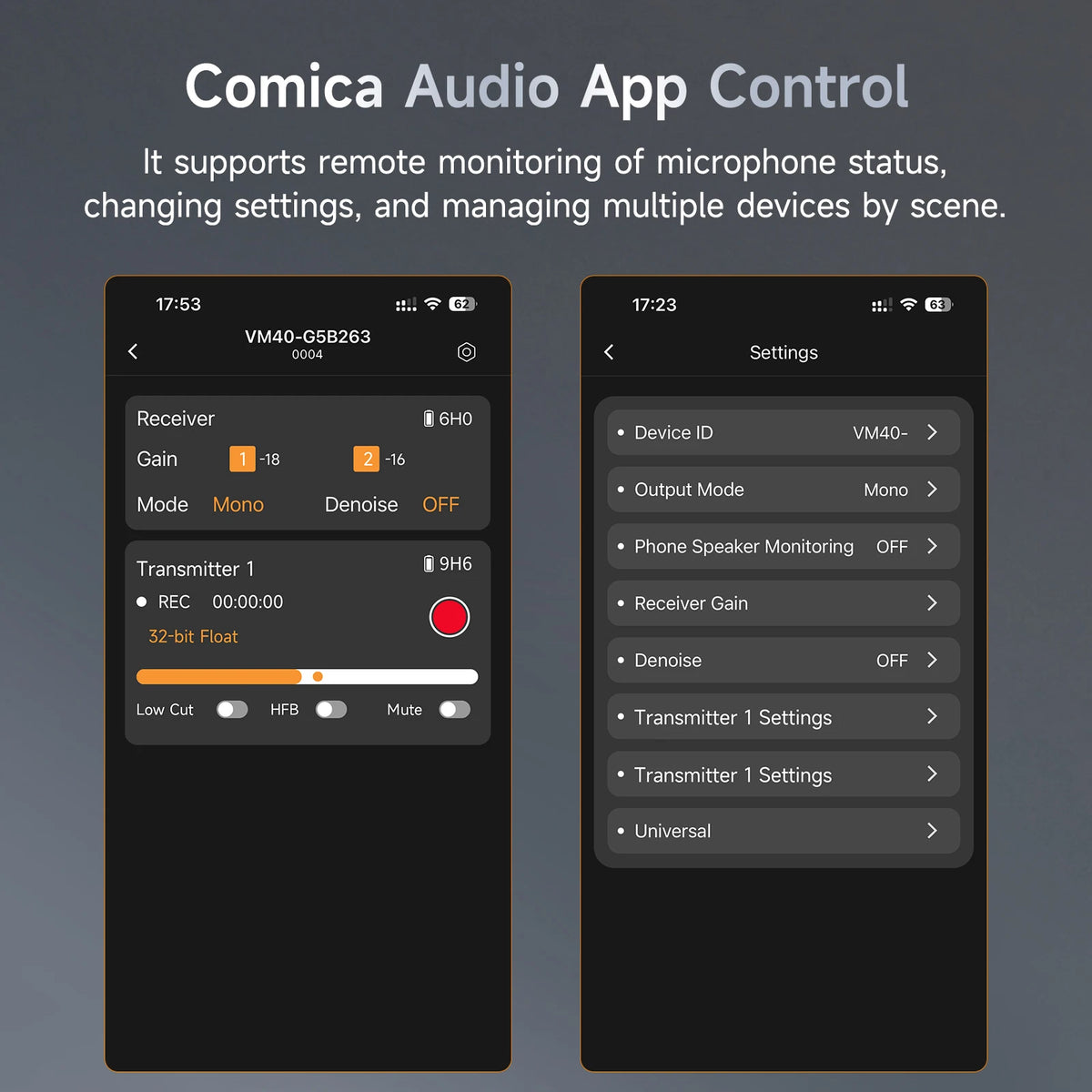

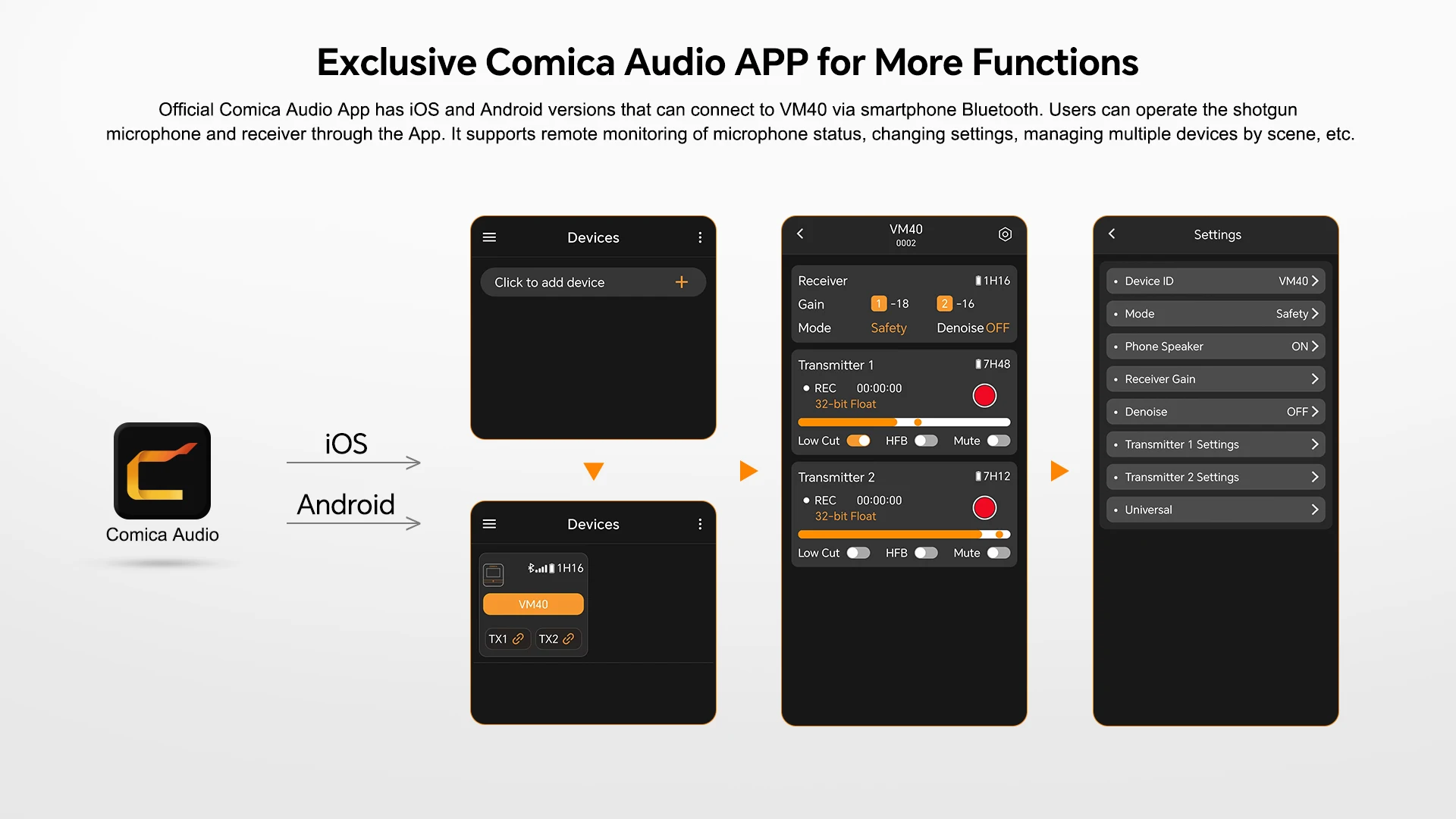

Exclusive Comica Audio APP for More Functions

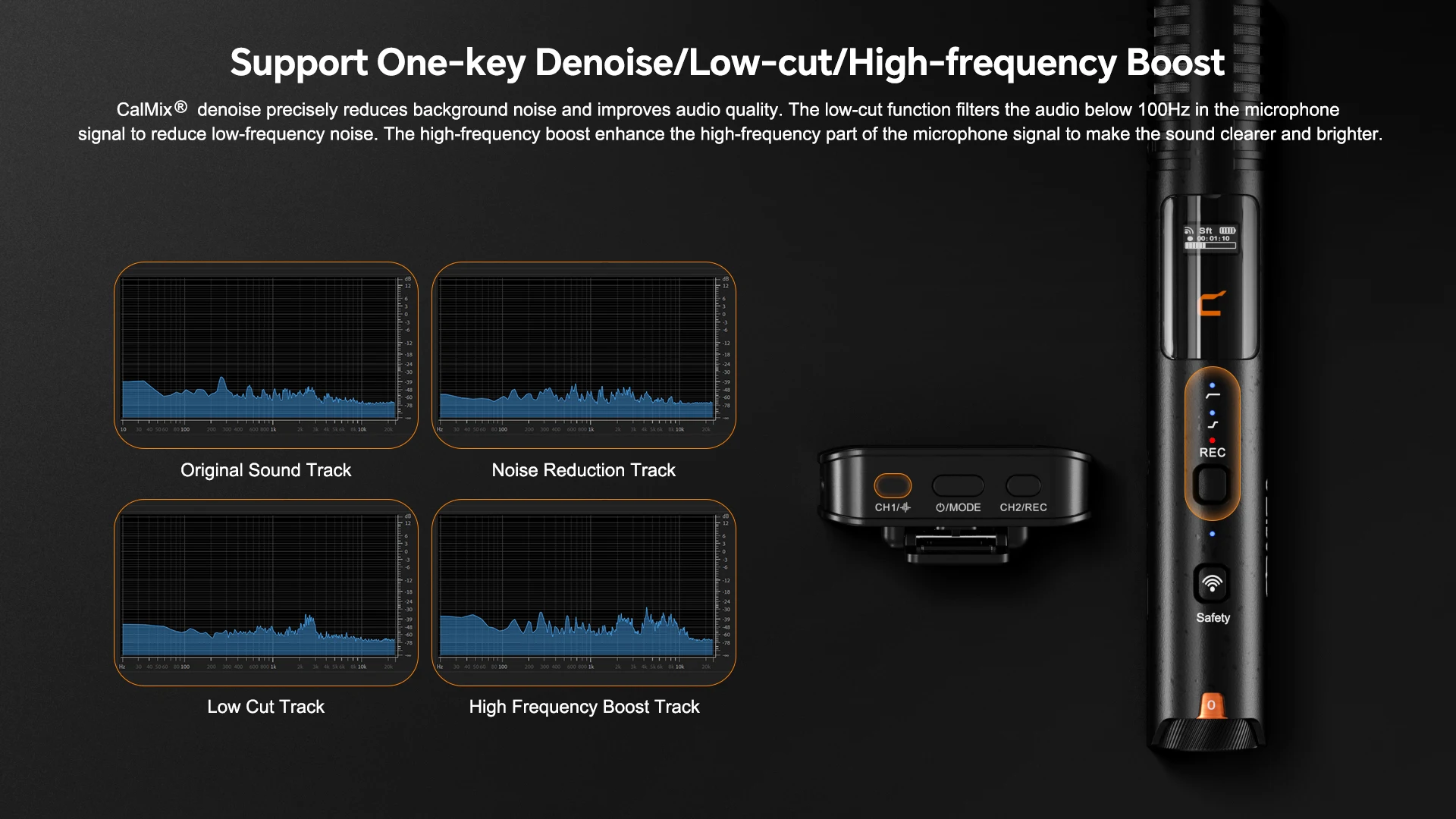

Support One-key Denoise/Low-cut/High-frequency Boost

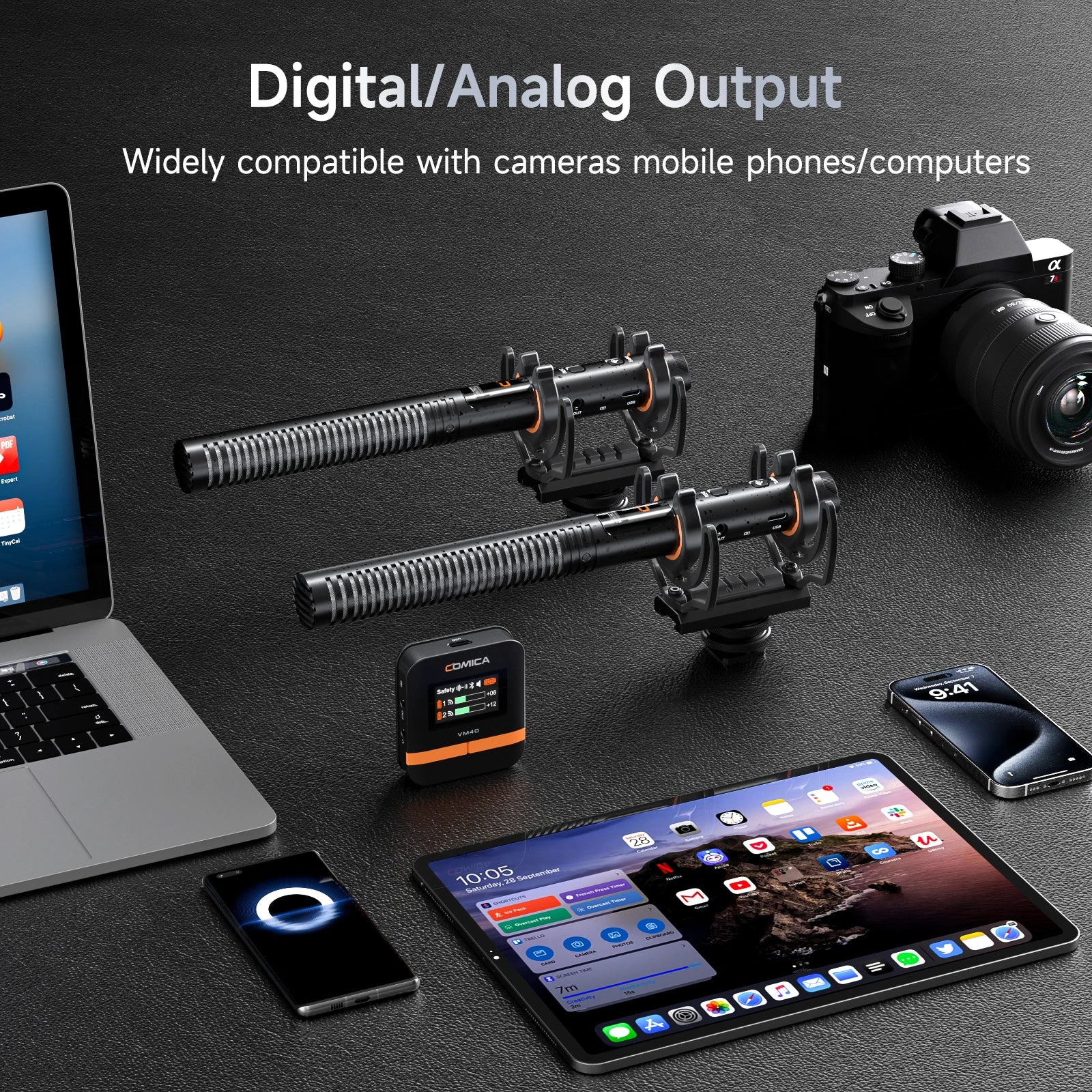

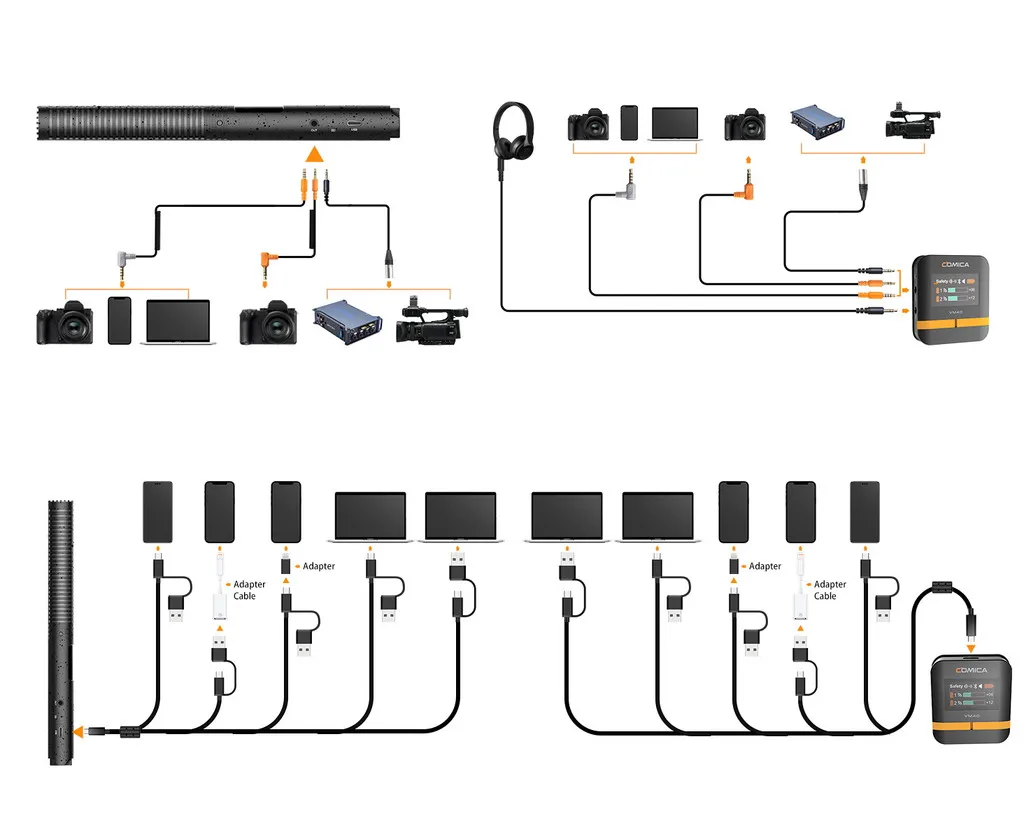

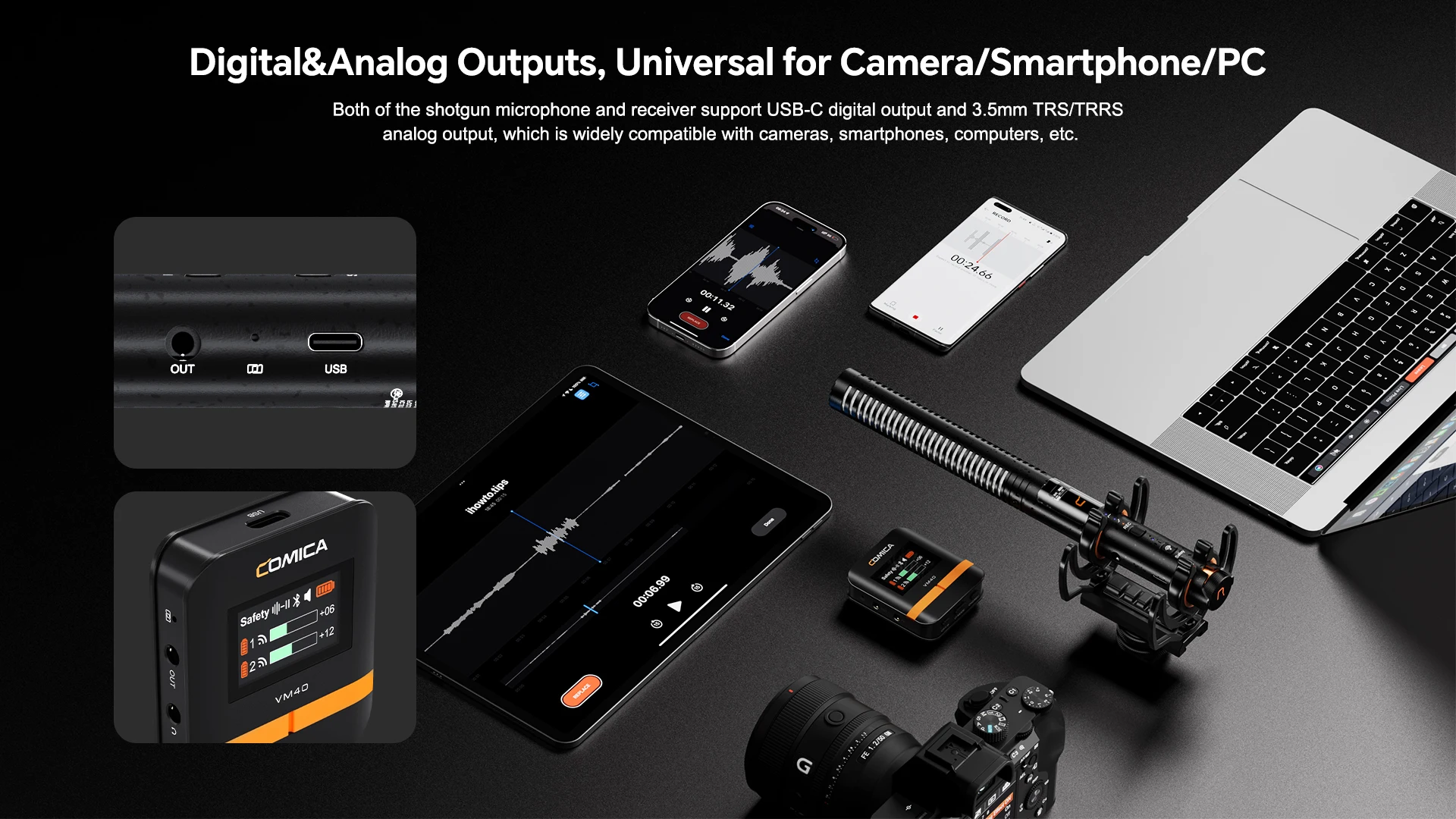

Digital&Analog Outputs, Universal for Camera/Smartphone/PC

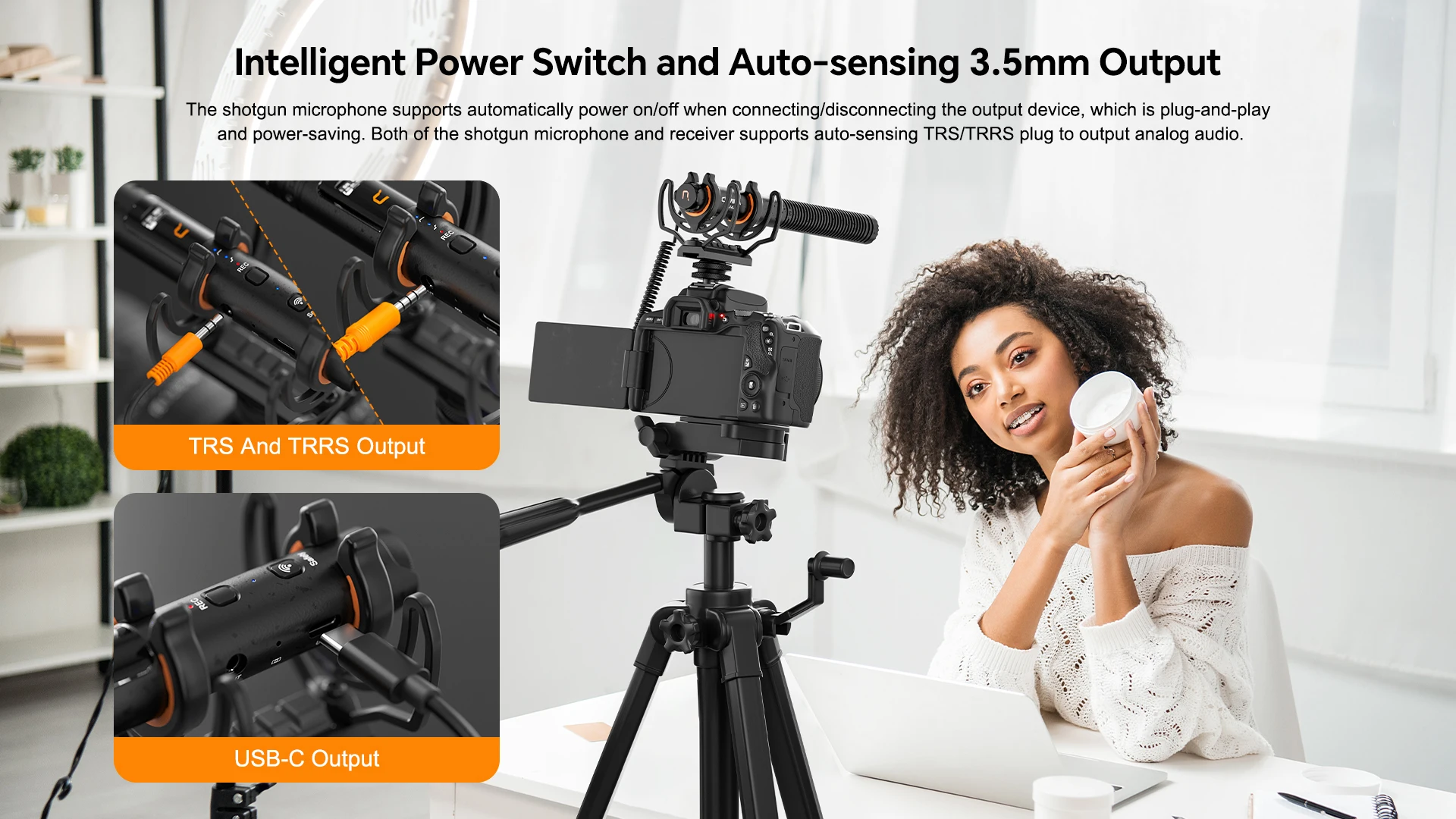

Intelligent Power Switch and Auto-sensing 3.5mm Output

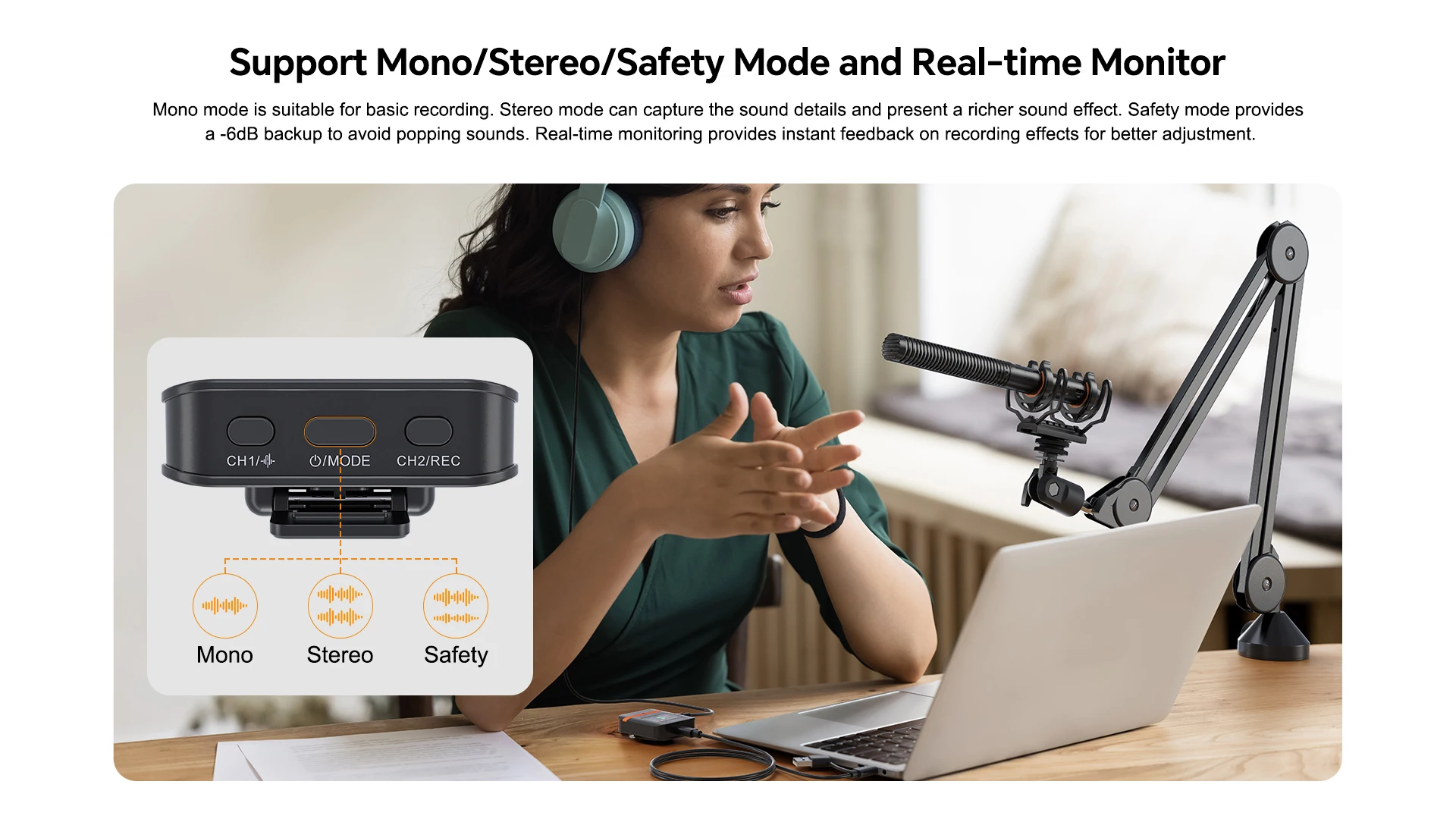

Support Mono/Stereo/Safety Mode and Real-time Monitor

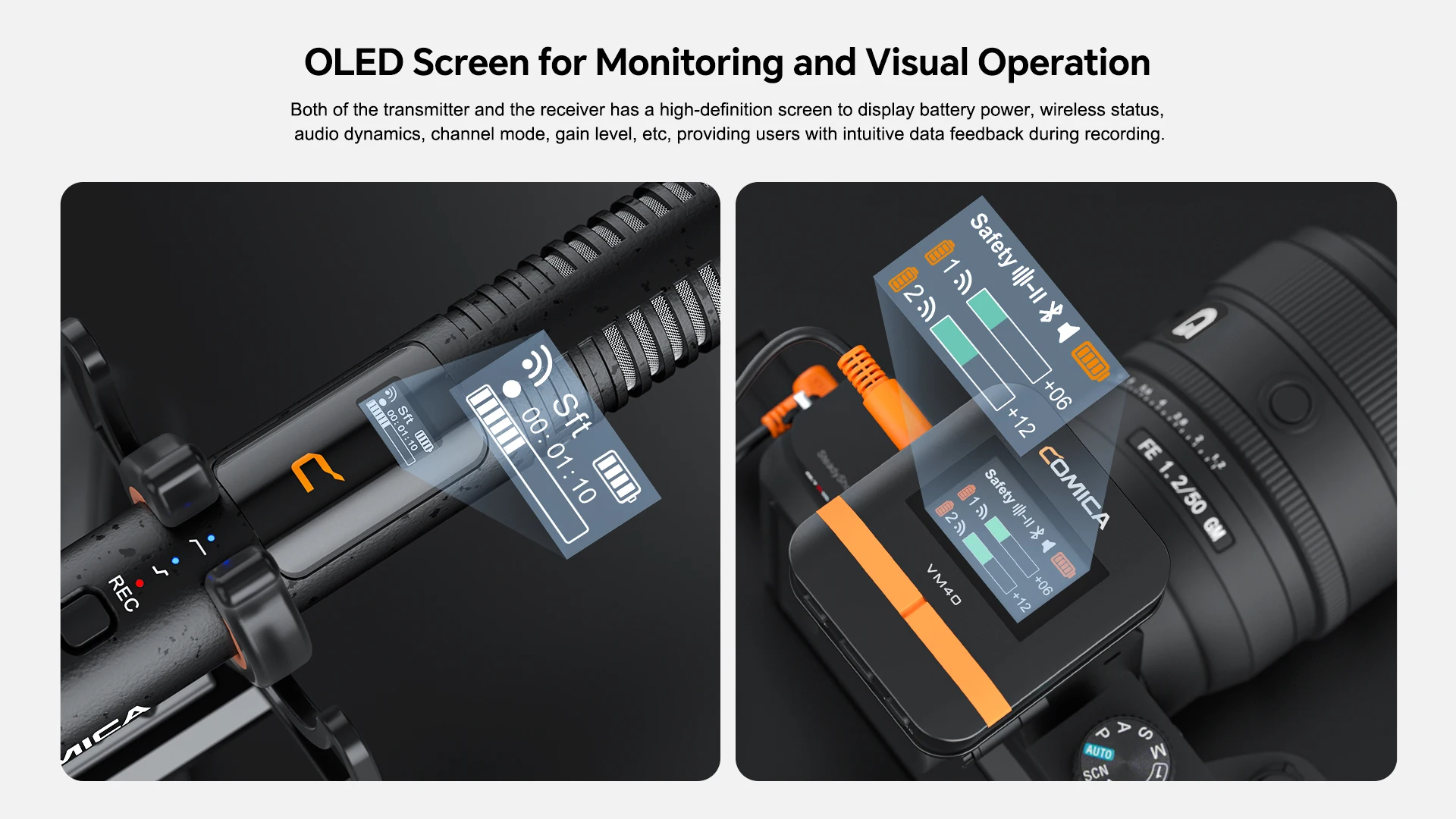

OLED Screen for Monitoring and Visual Operation

Battery Life Up to 32H/10H in Wired/Wireless Mode

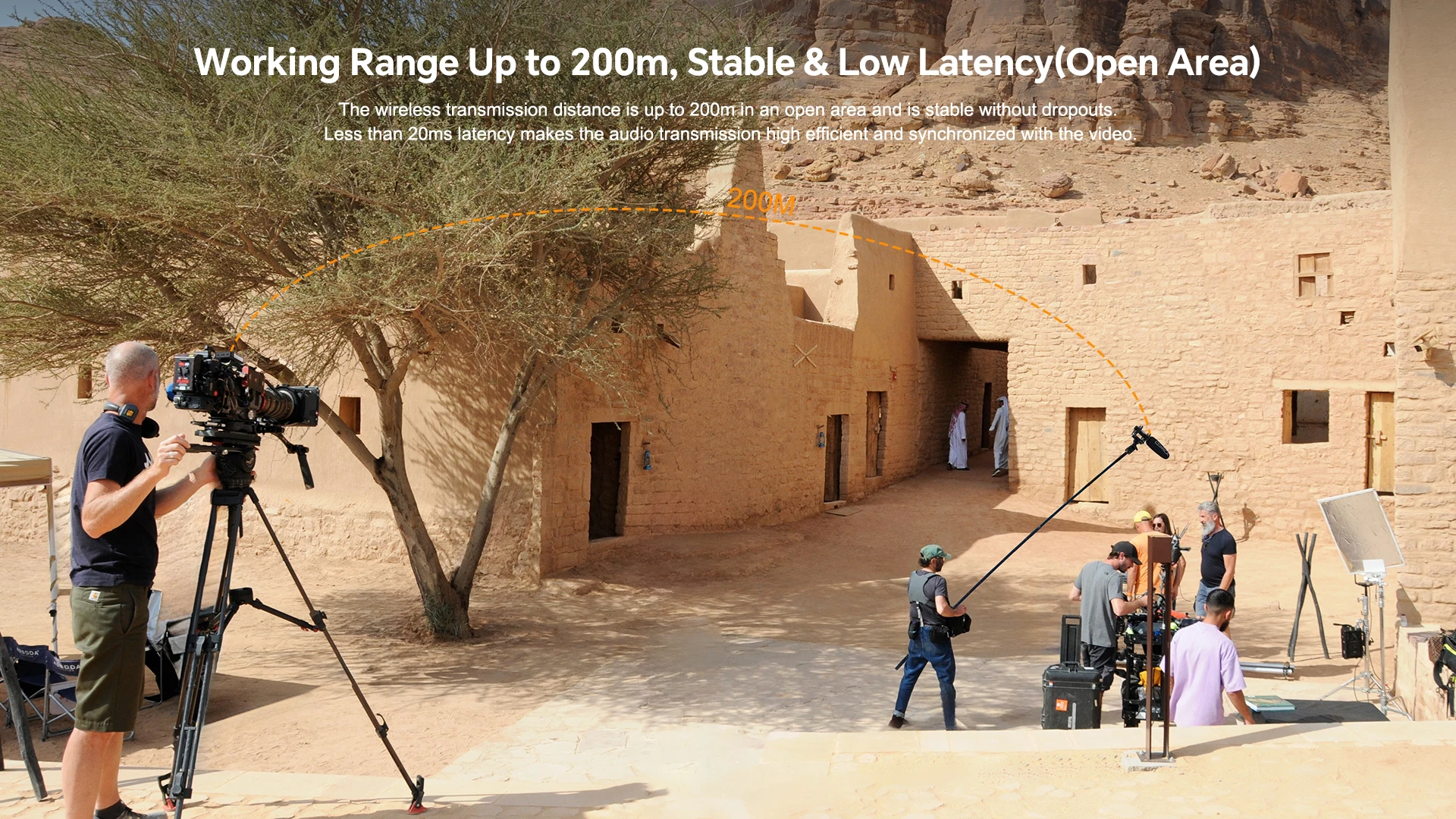

Working Range Up to 200m, Stable&Low Latency(Open Area)

Upgraded Shock-mount&Windproof Accessory

* When it needs to be used for a long time, it can be connected to the external power to realize charging while using. AC/DC power is not supported to avoid noise problem

* In wireless mode, for a better recording effect, please adjust the gain of the transmitter first. After the transmitter is adjusted to the maximum gain level, then adjust the gain of the receiver accordingly

* The device is a high-precision instrument. Please avoid falling, collision, or pounding

* Do not use this equipment in the vicinity of heat sources or interference sources, such as radiators, ovens, refrigerators, or air conditioners

* If the pick-up distance is close or when used outdoors, please put on the wind muff to prevent sound bursts or reduce wind noise

* Do not use the equipment in the rain or in a damp environment to avoid short-circuit danger

Please use it face-to-face, and don’t turn your back to the receiver. Otherwise, it is easy to generate breakpoints

RX Antenna Position

TX Antenna Position

Don't block the antenna positions of the TX and RX during use to avoid affecting the wireless distance

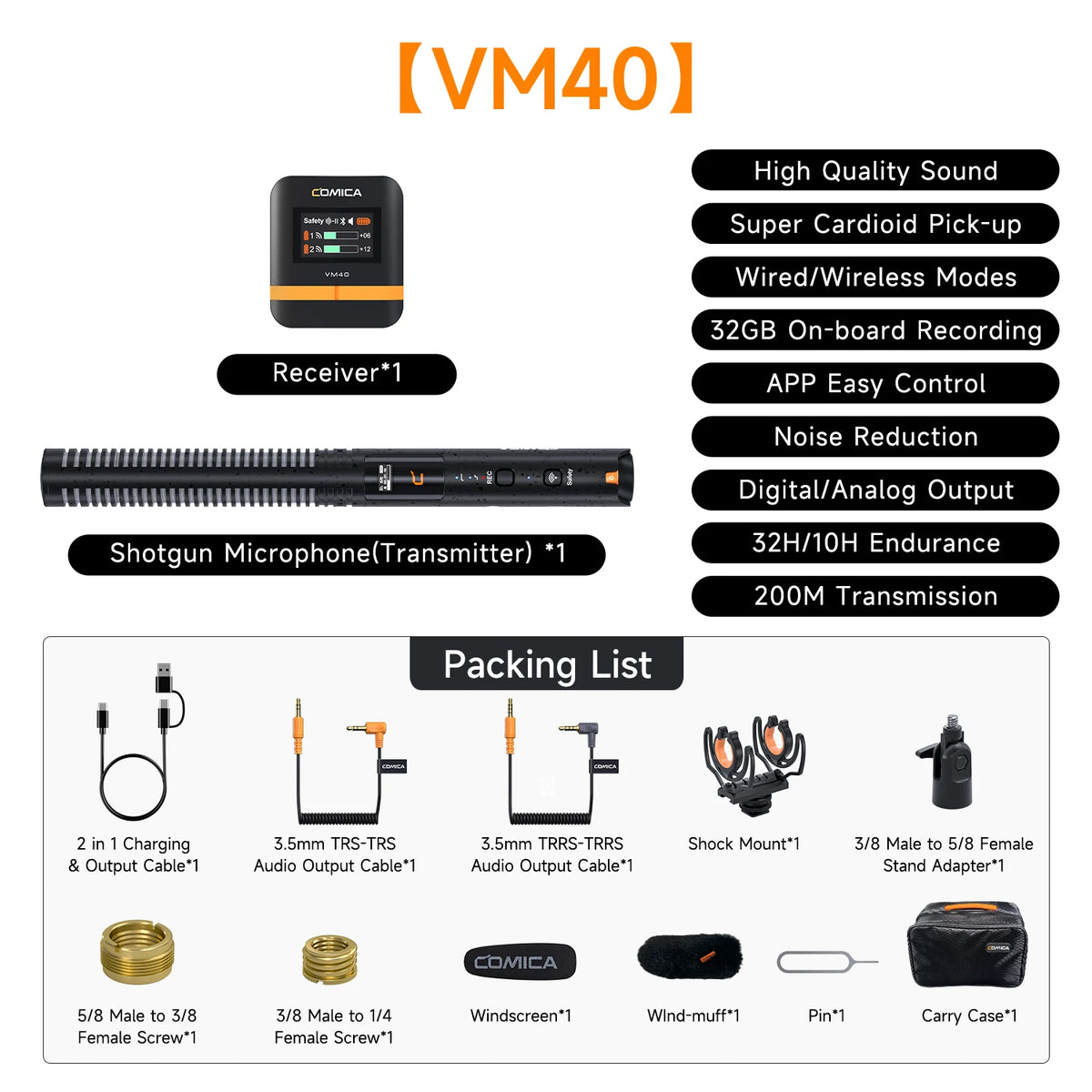

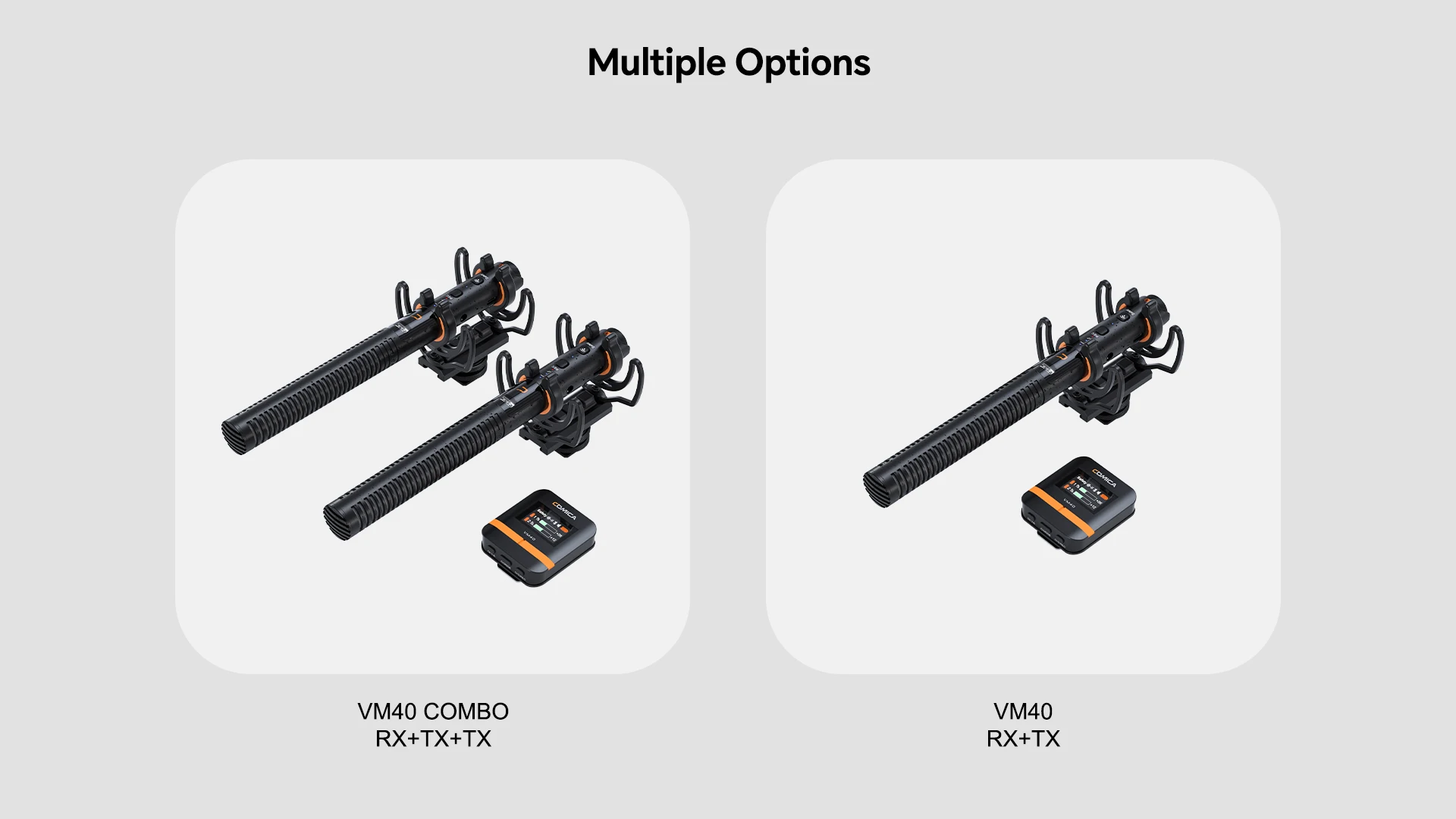

One-channel Version

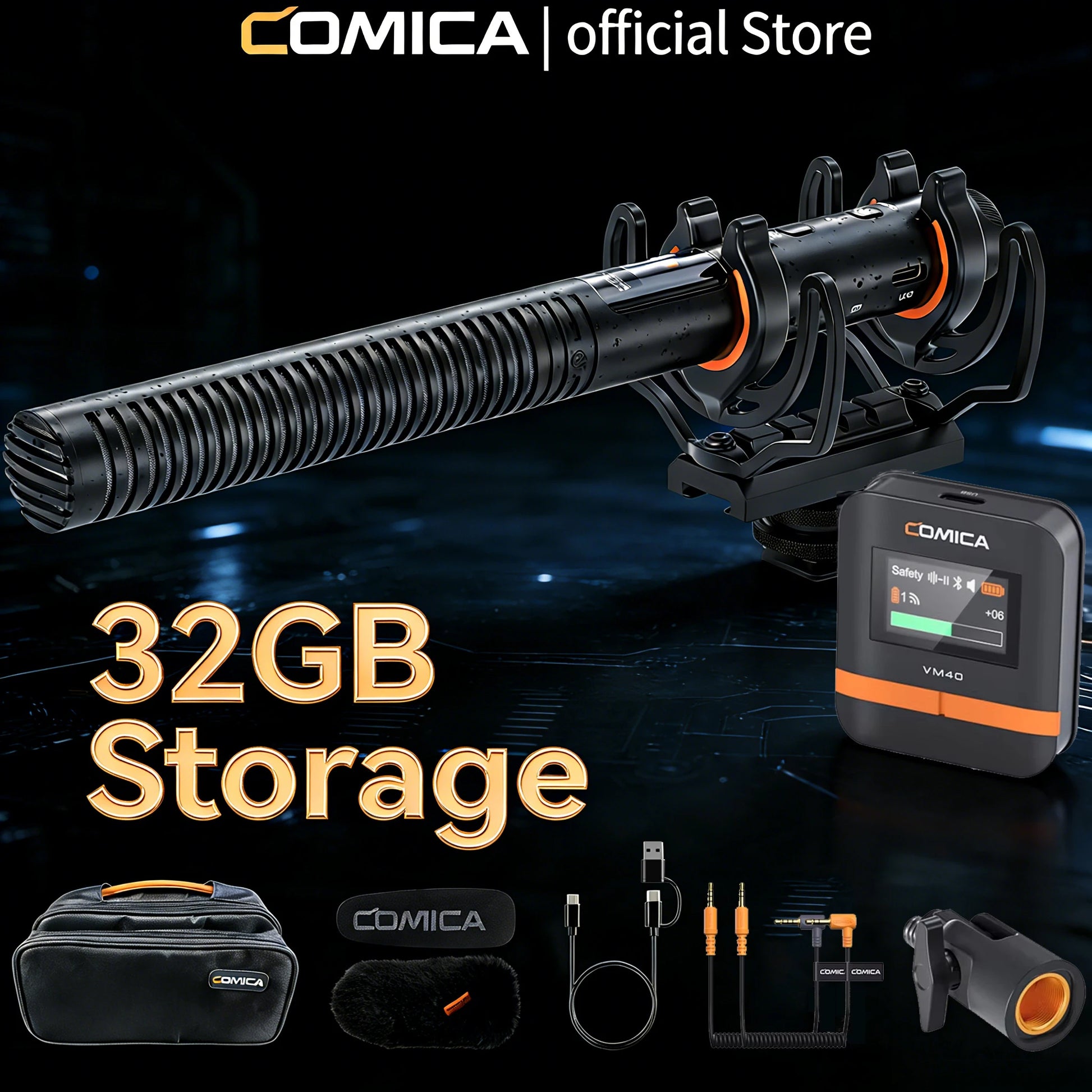

Main Parts:

1. Shotgun Microphone(Transmitter) *1

2. Receiver*1

Accessories:

3. 2 in 1 Charging&Output Cable*1

4. 3.5mm TRS-TRS Audio Output Cable*1

5. 3.5mm TRRS-TRRS Audio Output Cable*1

6. Shock Mount*1

7. 3/8 Male to 5/8 Female Stand Adapter*1

8. 5/8 Male to 3/8 Female Screw*1

9. 3/8 Male to 1/4 Female Screw*1

10. Windscreen*1

11. Wind-muff*1

12. Pin*1

13. Carry Case*1

14. User Manual*1

15. Warranty Card*1

Buyer Questions & Answers:

 Q:How to pair VM40 when pairing is abnormal?

 A:When there is an abnormality in the wireless connection, use the card pin to insert into the pairing hole and press it briefly to re-pair.

 Q:What is the file format recorded in the transmitter? How to extract the audio files in the transmitter?

 A:The onboard recording sampling rate is 24bit or 32bit float. Enter the copy state and connect to the computer for copying.

 Q:When the receiver is connected to a mobile phone, can the mobile phone play back the sound?

 A:Yes, you need to switch on the APP. If the speaker icon is displayed on the screen, it means the phone's speaker is external. If the speaker icon is not displayed, it means the phone's internal speaker.

 Q:How to connect to APP?

 A:1. Search and download the "Comica Audio" APP in the mobile app store; or scan the QR code to download through the official website

2. Turn on the mobile phone’s Bluetooth in the mobile phone settings interface;

3. After resetting the receiver Bluetooth, open the APP and click Add Device in the upper right corner of the APP interface to search and add the device: VM40;
