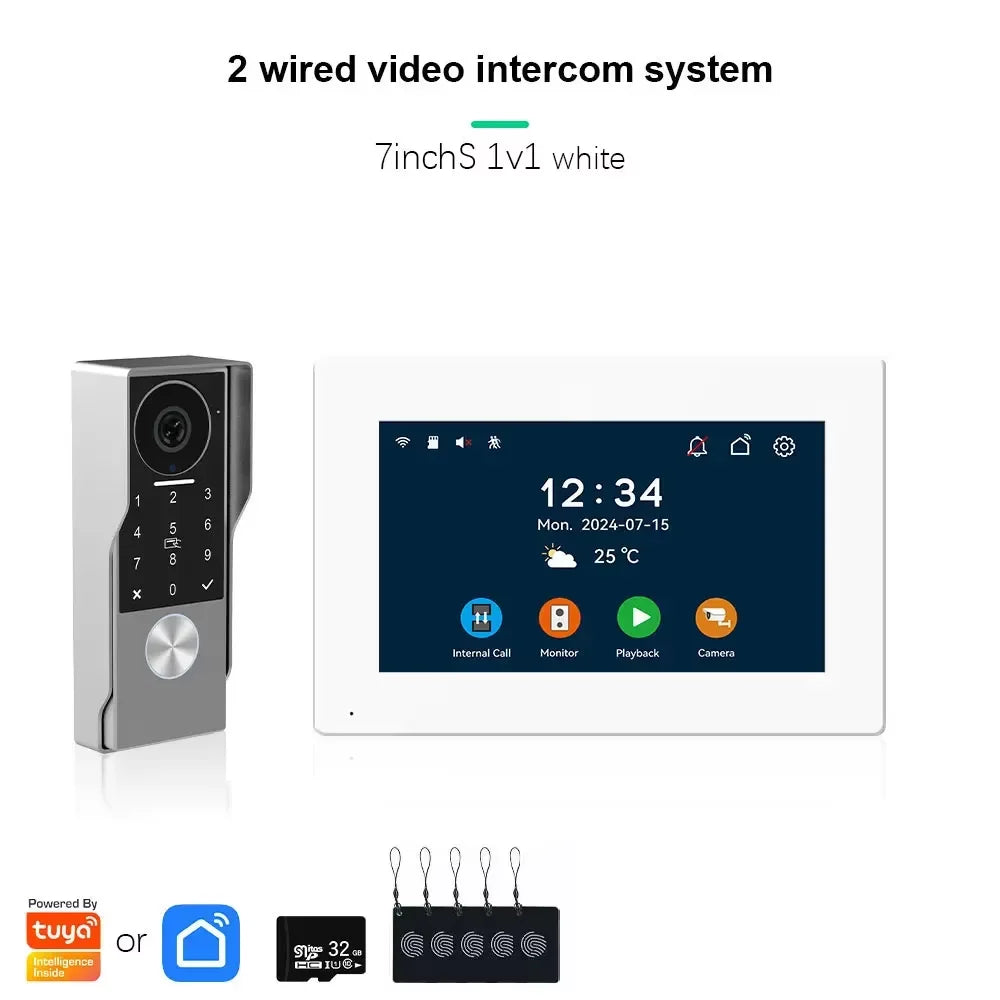

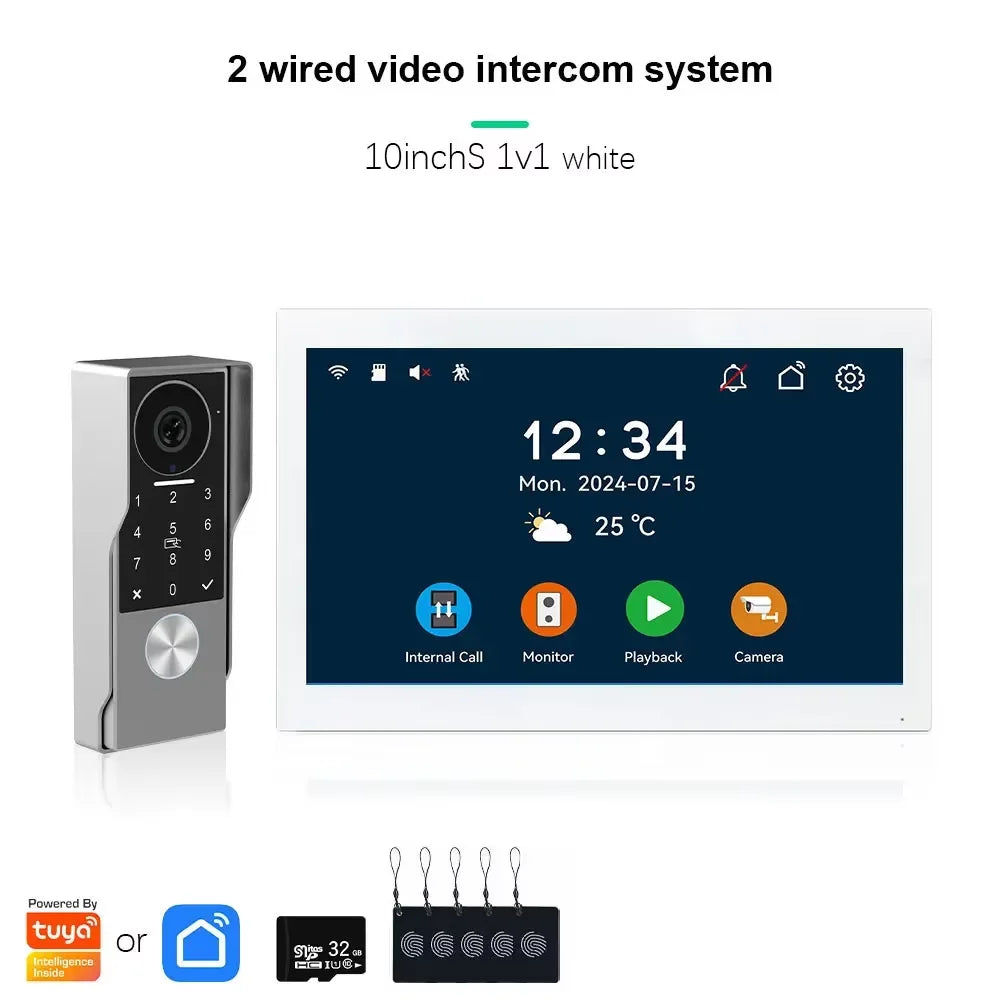

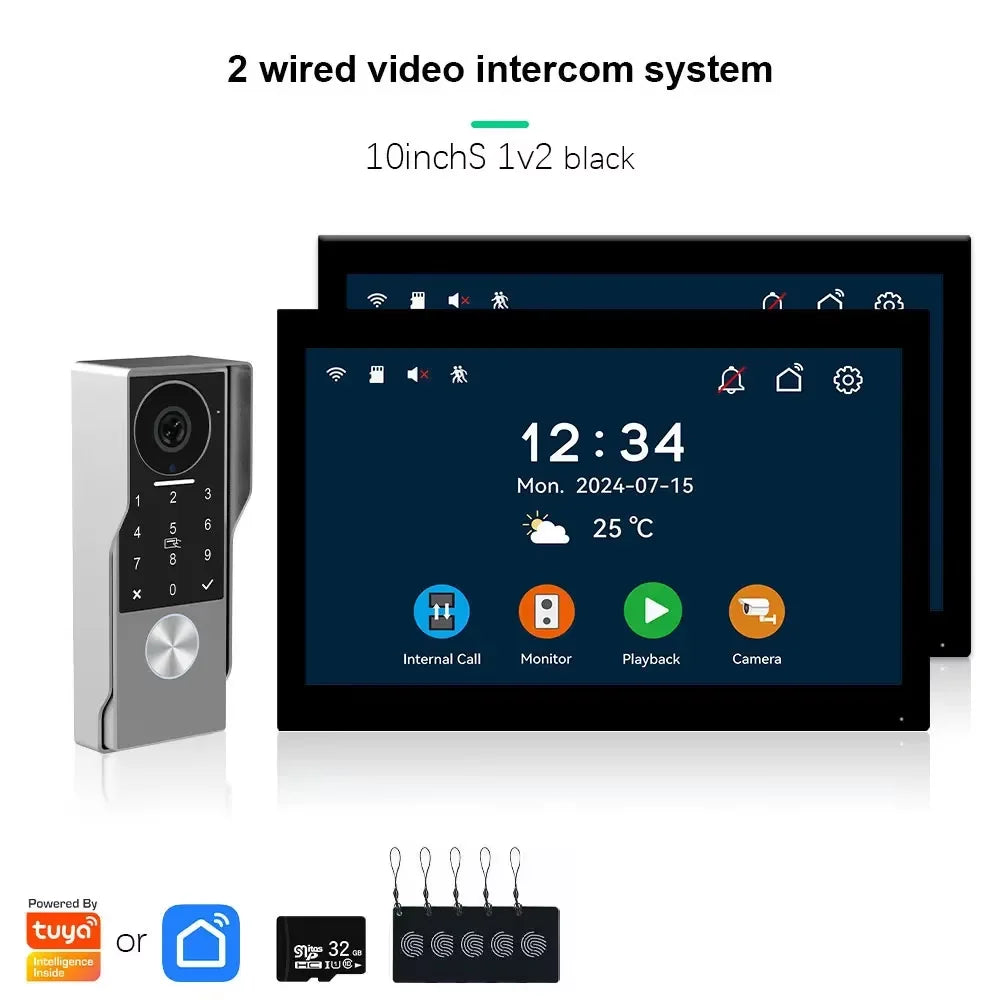

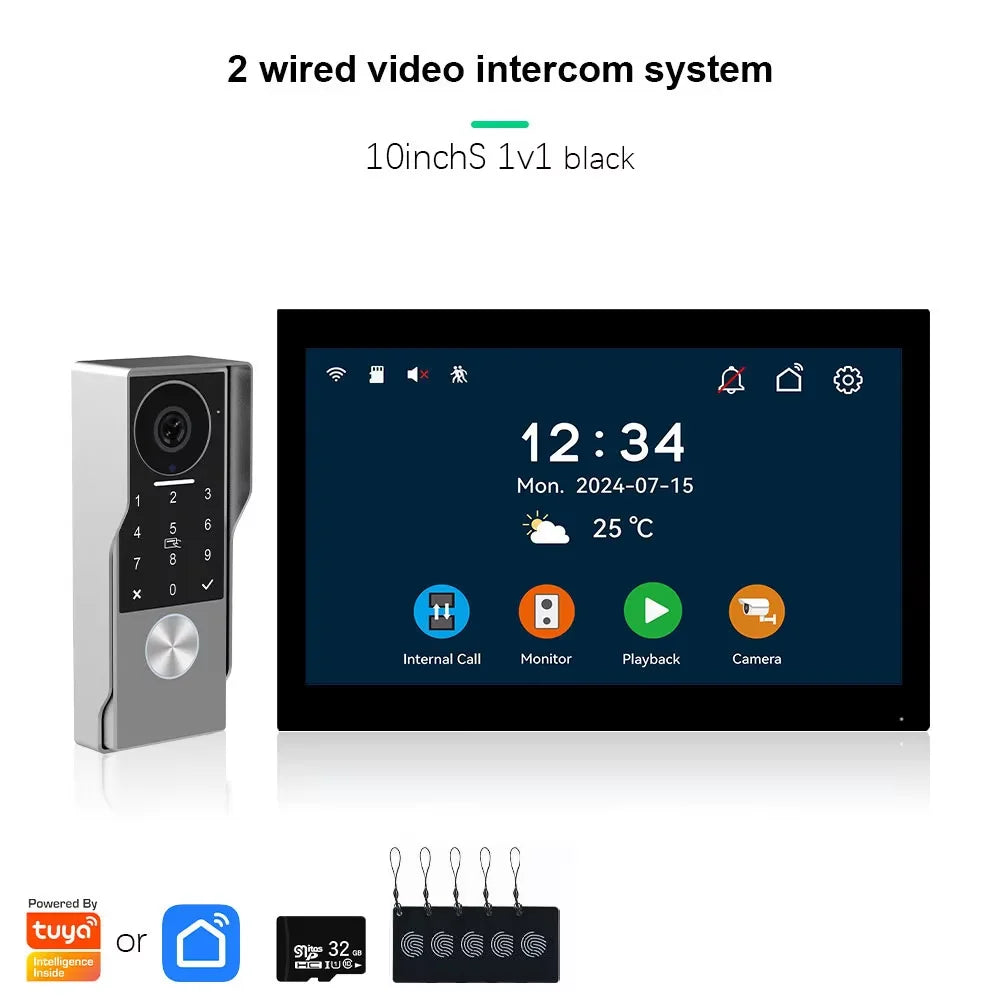

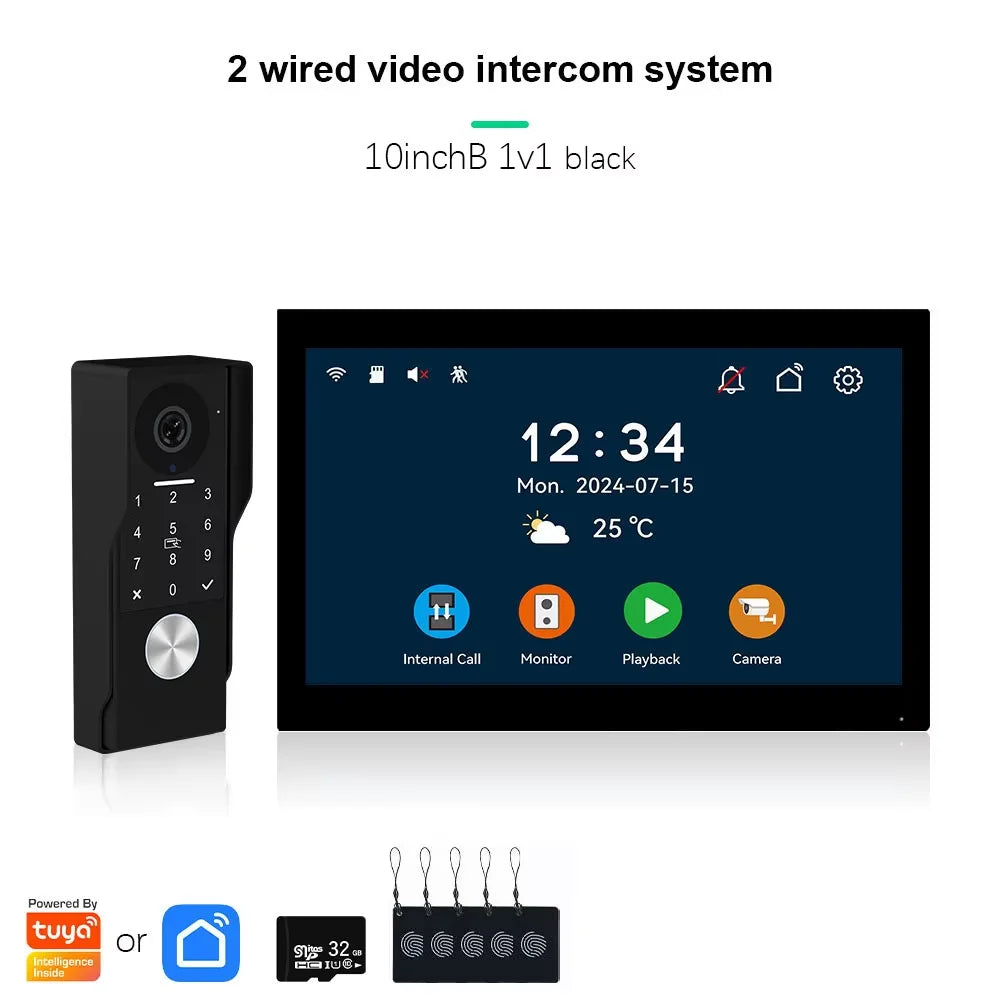

ANJIELO SMART Doorbell Video Intercom Camera System Wire 2‐wire Door Phone 10 Inch Screen 7 Protector Security
ANJIELO SMART Doorbell Video Intercom Camera System Wire 2‐wire Door Phone 10 Inch Screen 7 Protector Security
Couldn't load pickup availability
SPECIFICATIONS
ANJIELOSMART Model: 67000T-S + 67010W-2W + 60211
Access Control: Password
Answering Mode: Hands-free
Brand Name: anjielosmart
Camera: COLOR
Camera Sensor type: CMOS
Certification: CE,FCC,RoHS
Communication Interface: WireLess
Connection Method: Wired
Display Screen Size(inch): 10
Display Screen Type: Color Touch Screen
Doorbell: Yes
High-concerned chemical: none
IP Camera Interface: Yes
Installation: Wall Mounting
Kit Configuration: One to Two video doorphone
Material: Metal/ABS
Model Number: 67000T-S + 67010W-2W + 60211
Origin: Mainland China
Plug Type: EU Plug,US Plug,AU Plug,UK Plug
Power (W): 220v
Resolution: 1080p
Samrt Home Interface: Yes
Sensor Size(Inch): 1/3
Size: 30*22*12
Smart home platform: Tuya,Samsung Smart Home
Technology: DIGITAL
Type: intercom system
Viewing Angle (°): 120
Waterproof: Yes
Touch Screen Interface
Enjoy a user-friendly experience with the 10-inch color touch screen, providing easy navigation and operation.

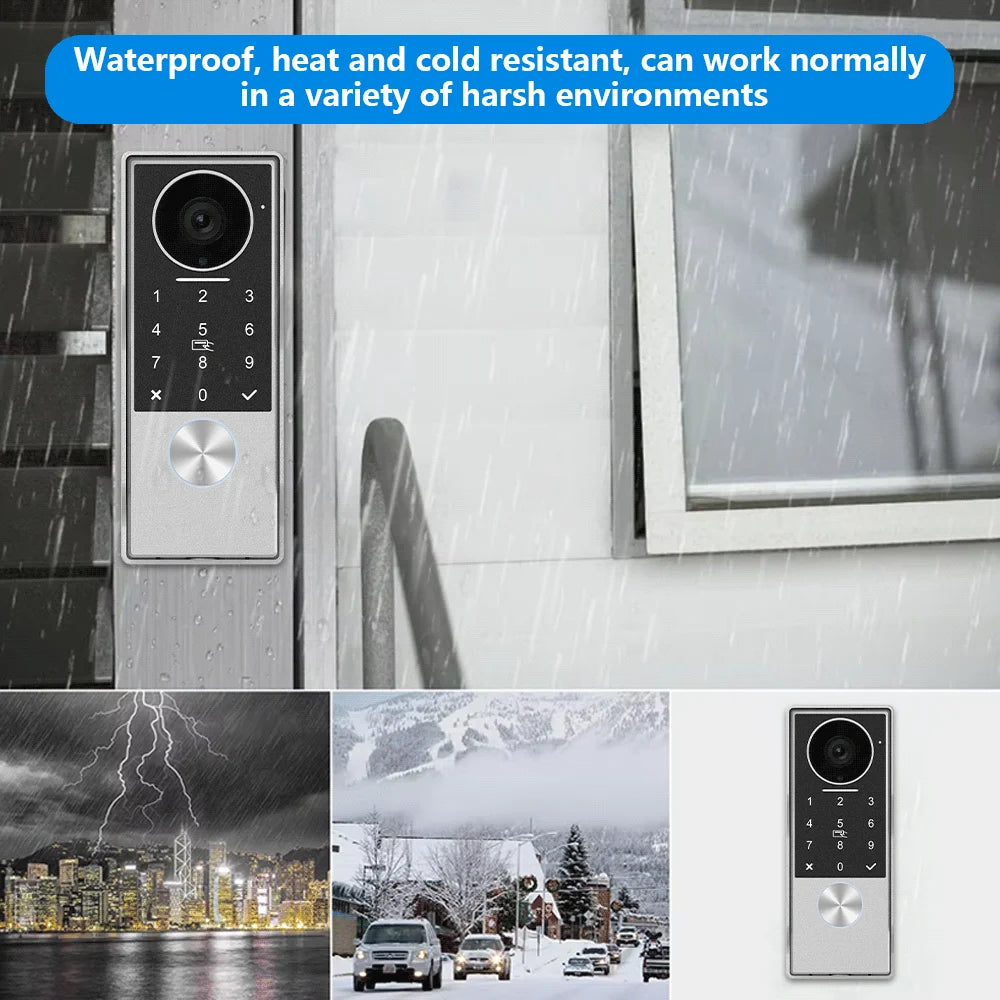

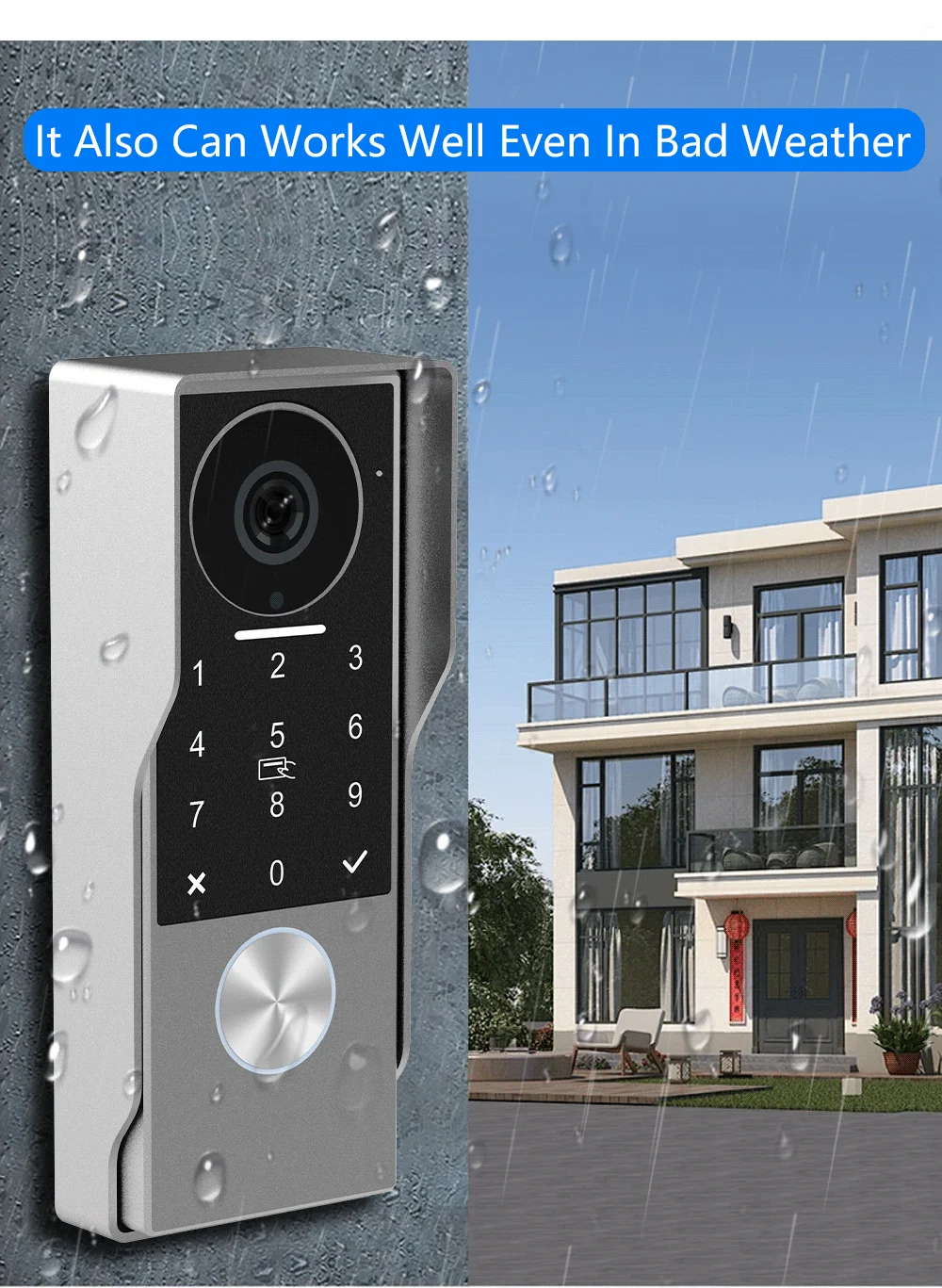

Waterproof Design
Designed for durability, this waterproof intercom system withstands various weather conditions.
Smart Home Integration
Seamlessly integrate with your smart home through Tuya platform, offering convenient control from your device.
Wireless Connectivity
Experience seamless communication with wireless connectivity, allowing for easy setup and use.
High-Resolution Camera
Capture clear footage with the 1080p resolution camera, ensuring crisp images for security and communication.

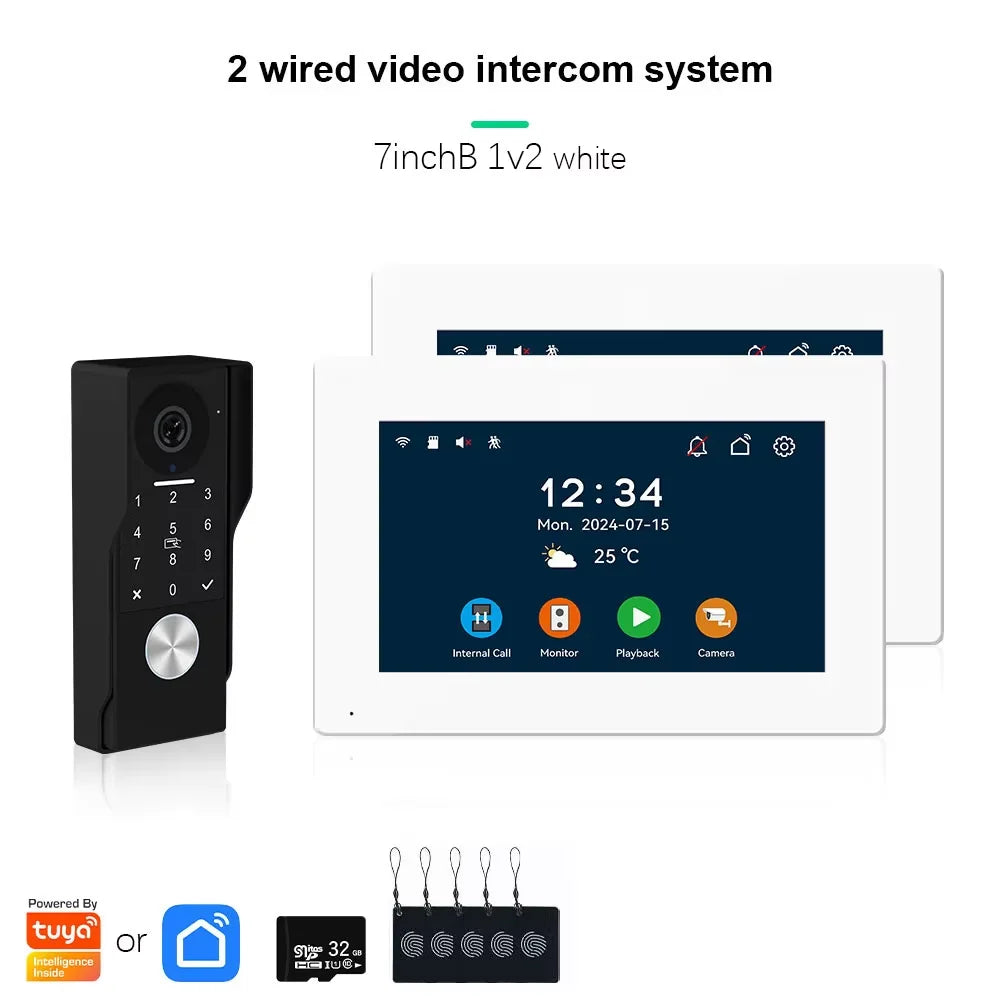

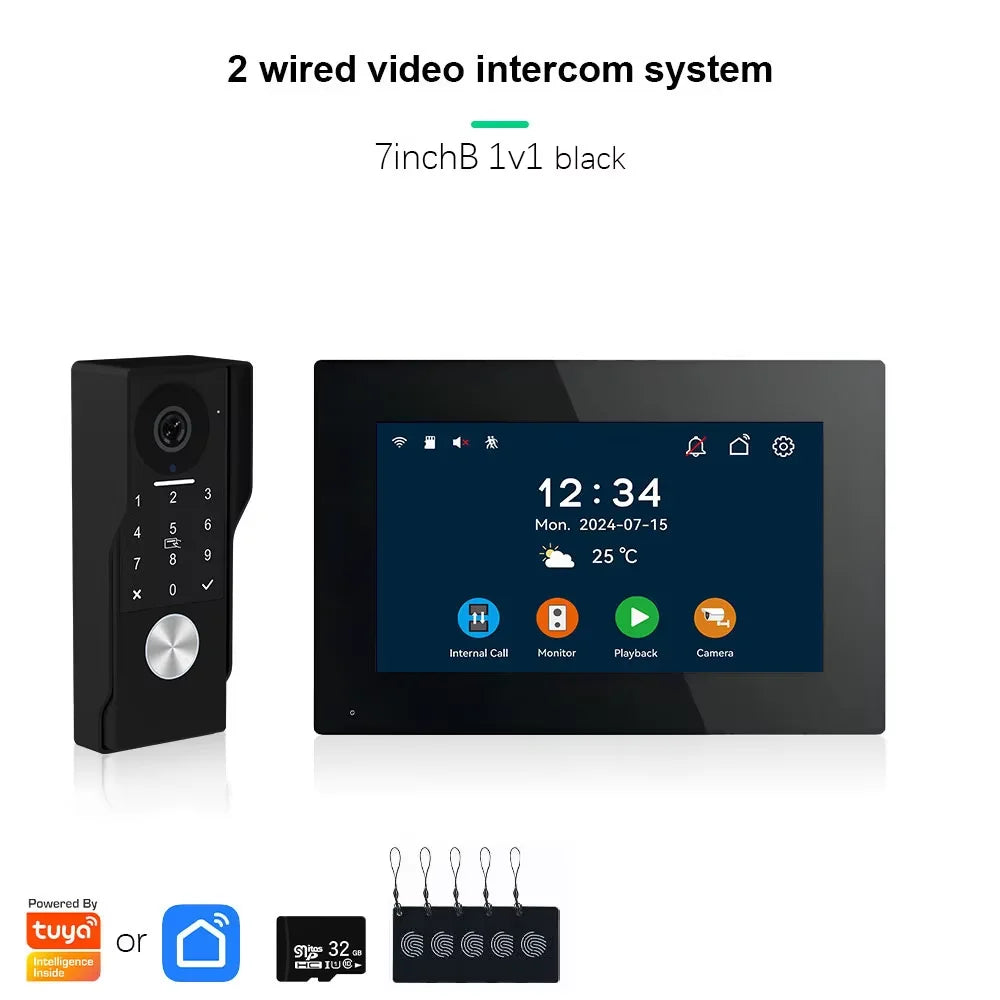

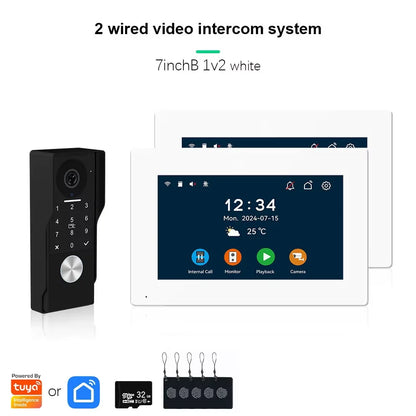

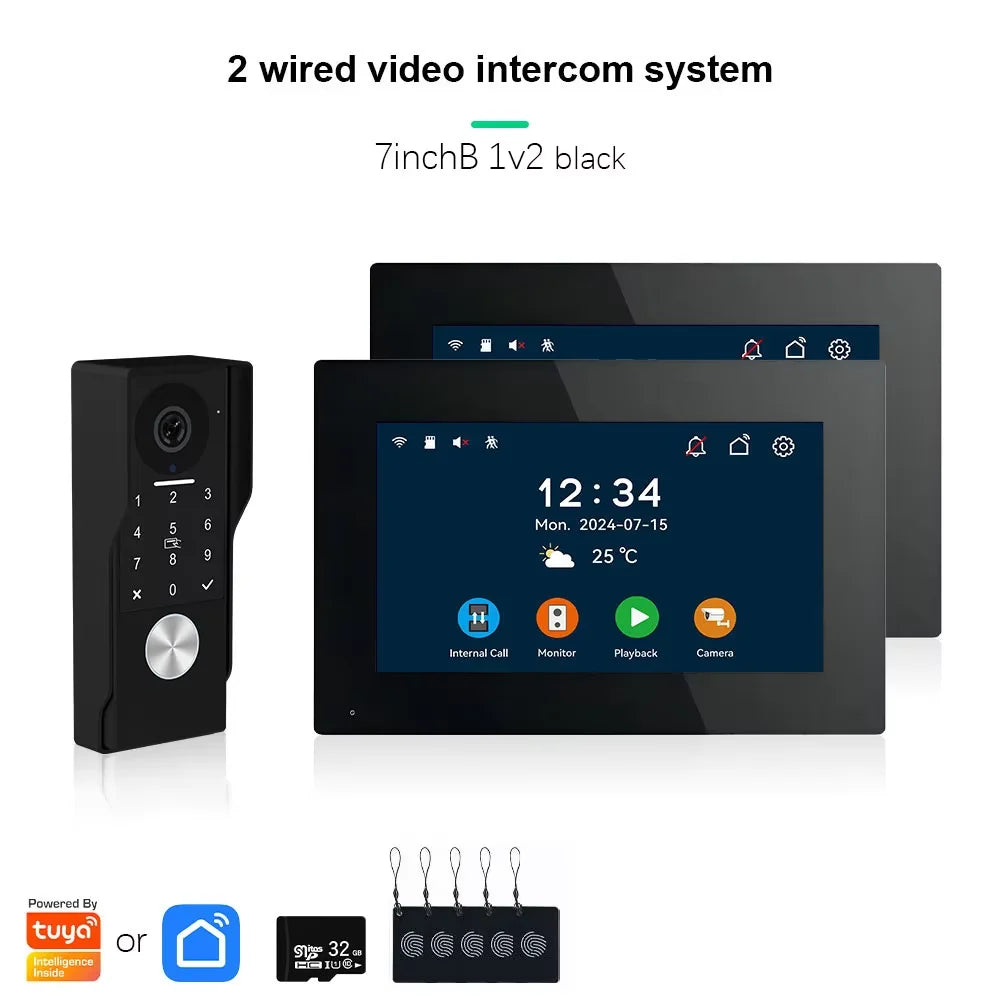

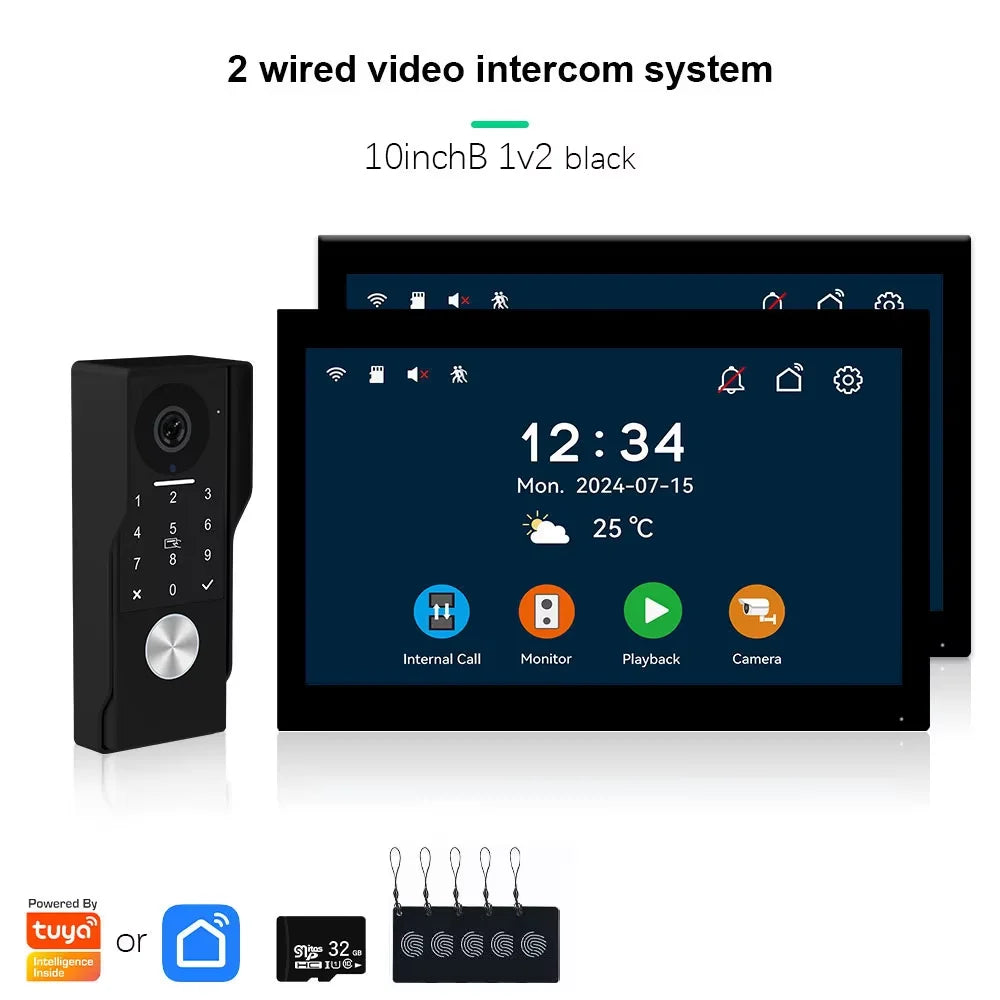

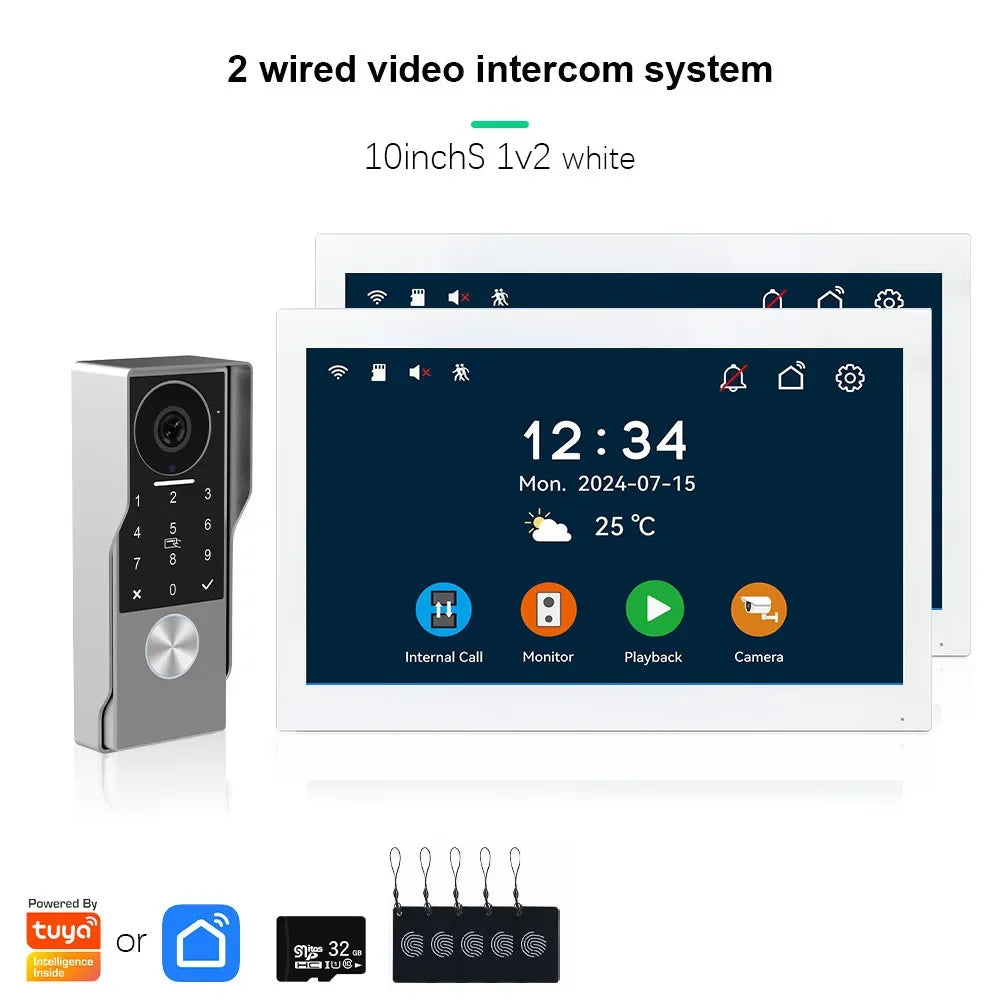

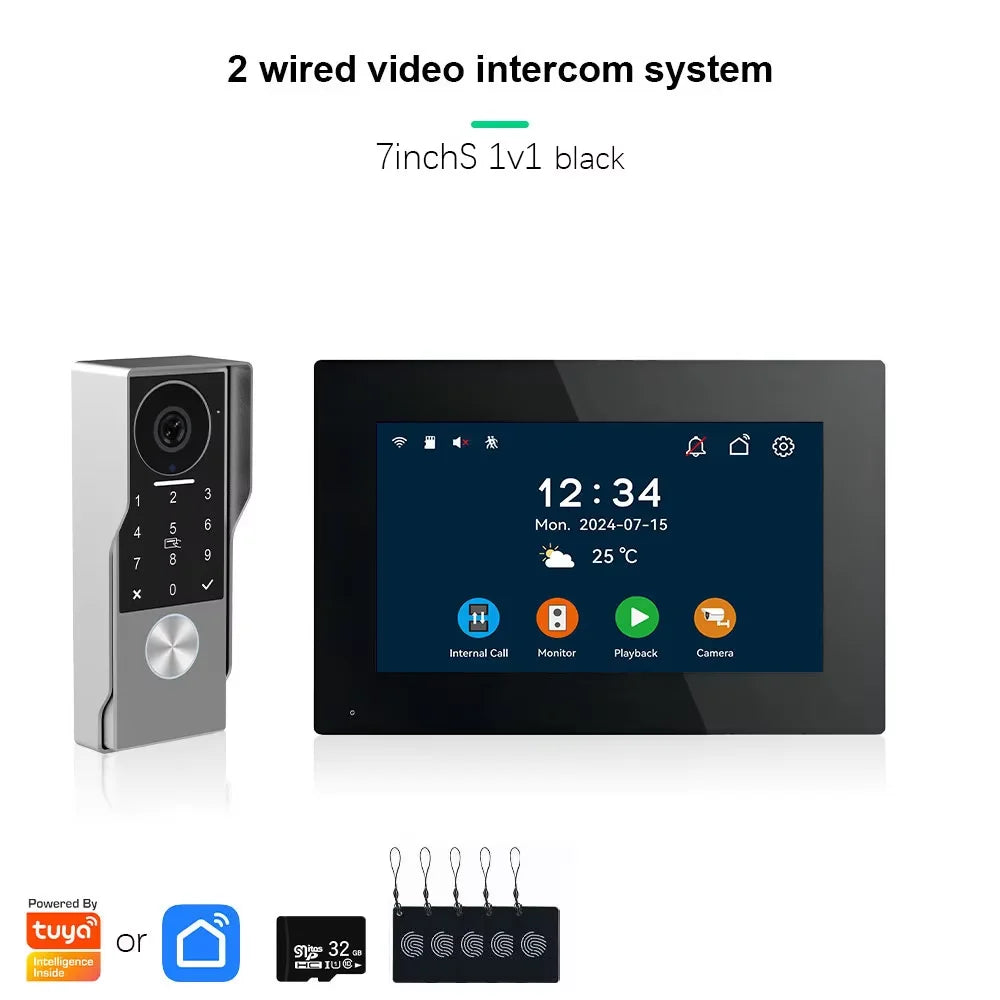

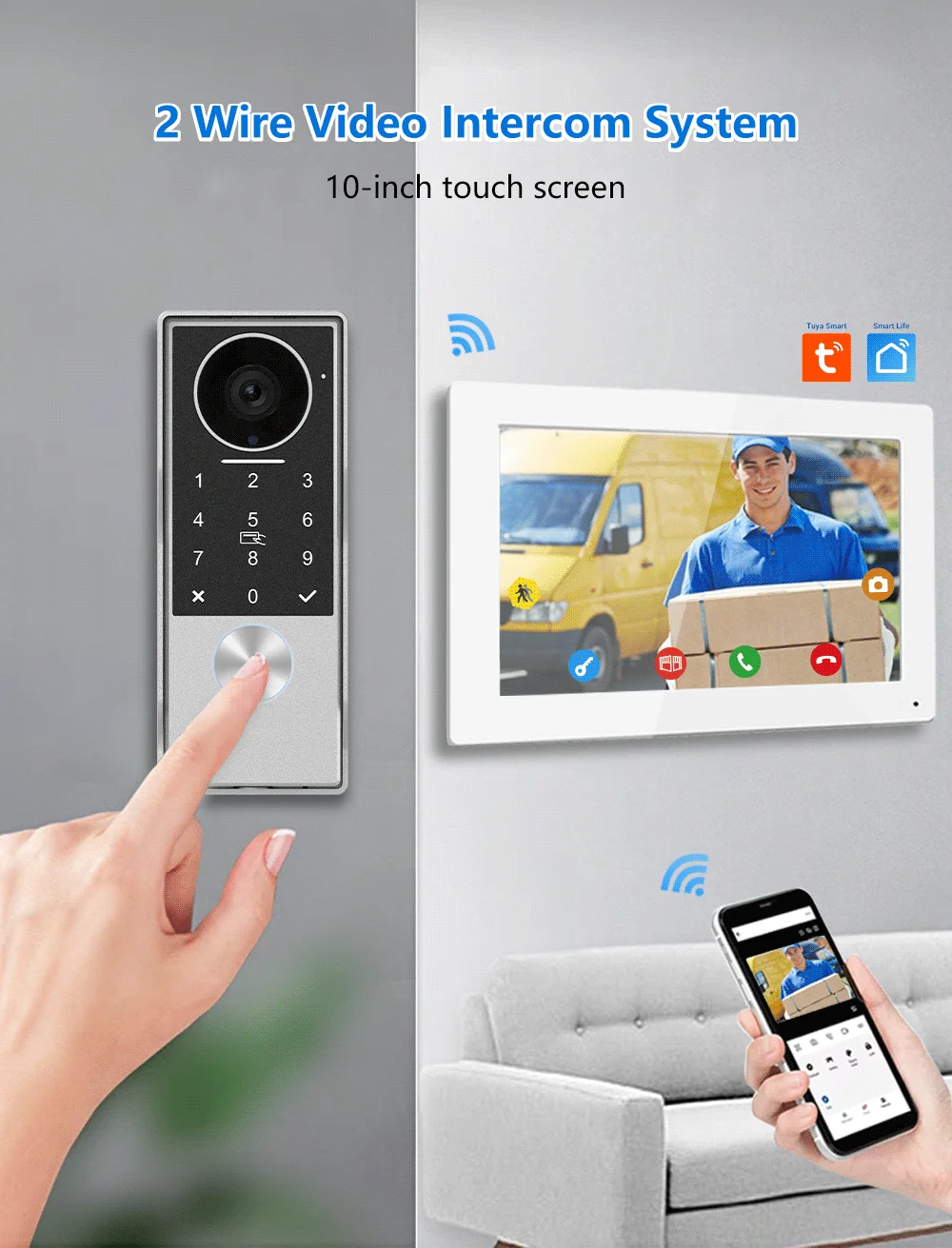

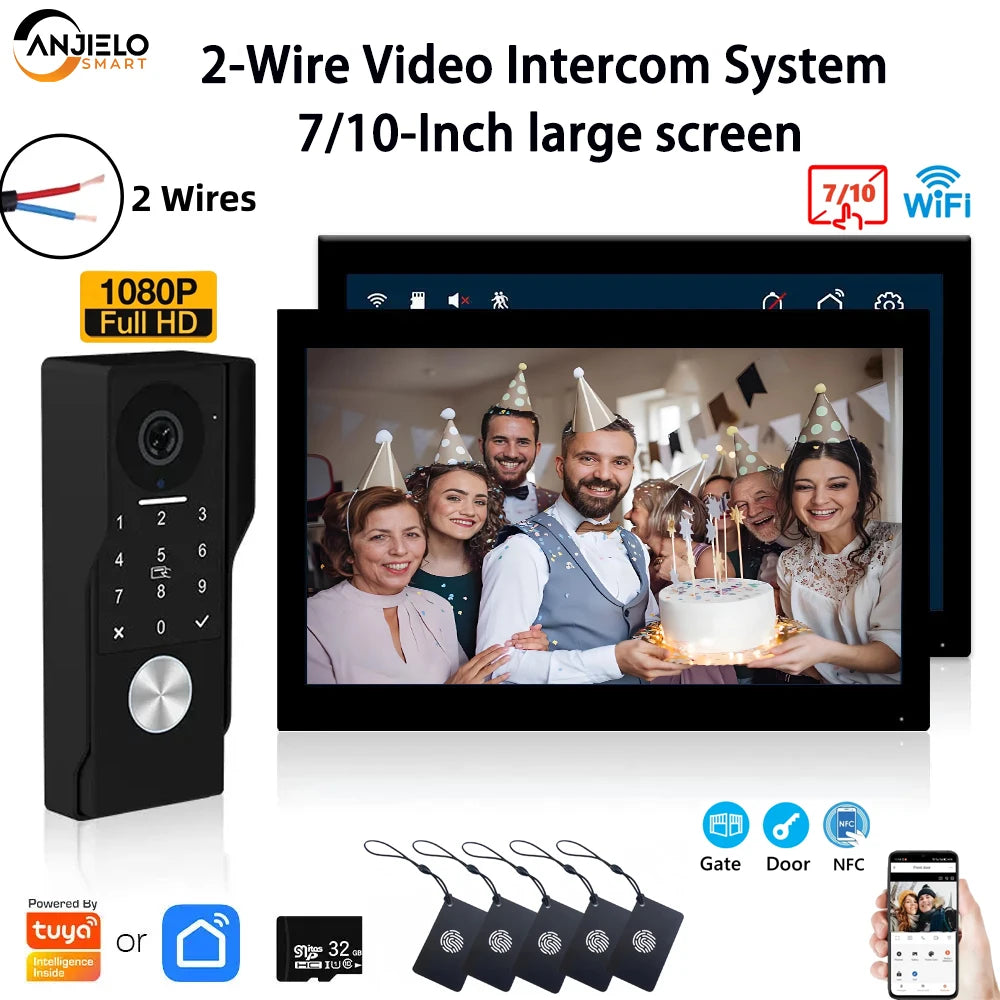

Powerful & Versatile 2-Wire Video Intercom System: Secure Access for Complex Properties
Seamless Smart Home Integration (TUYA): Fully supports TUYA Smart, enabling effortless integration with your existing smart home ecosystem. Control access, view live feeds, and manage settings remotely via the intuitive TUYA app.

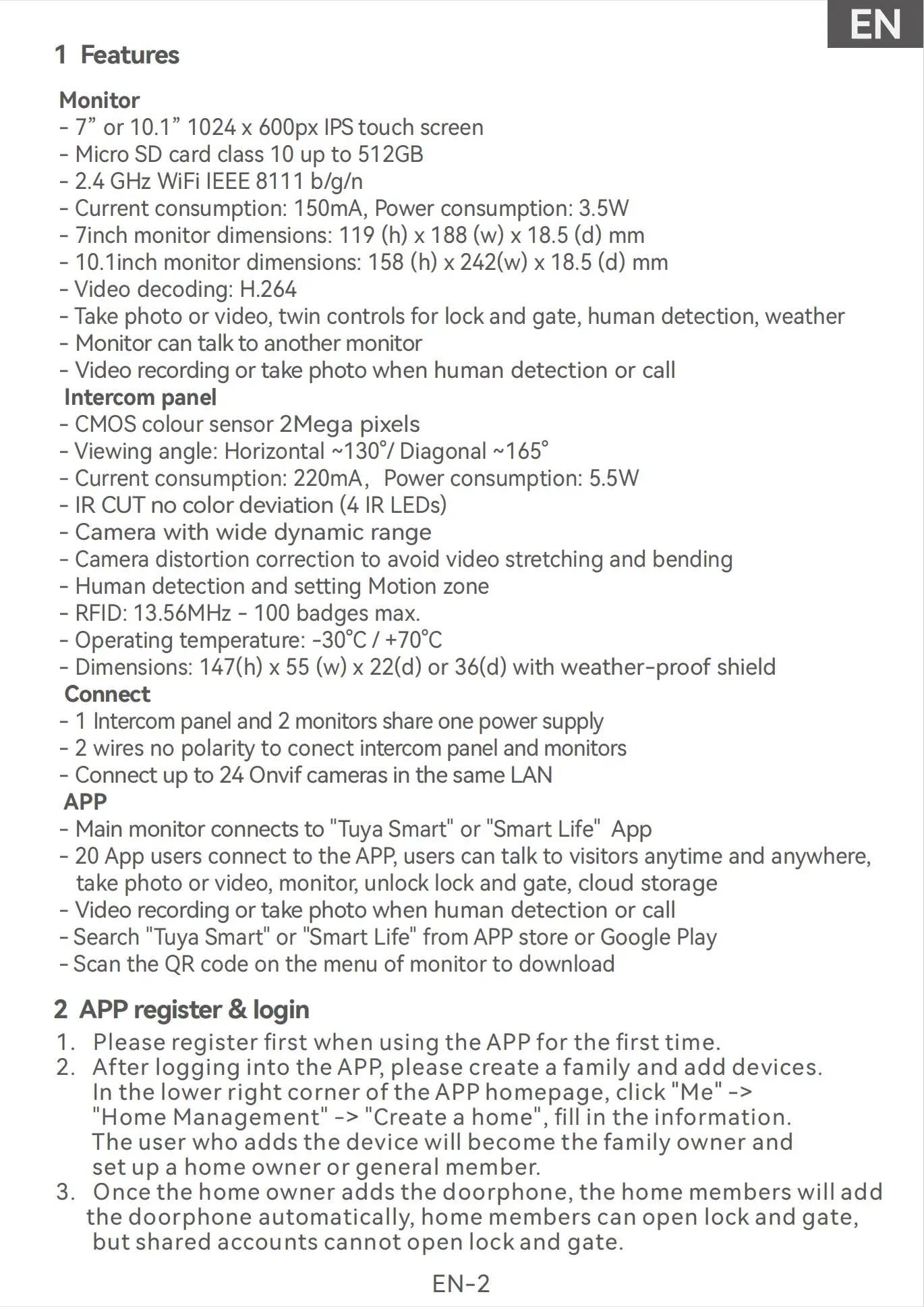

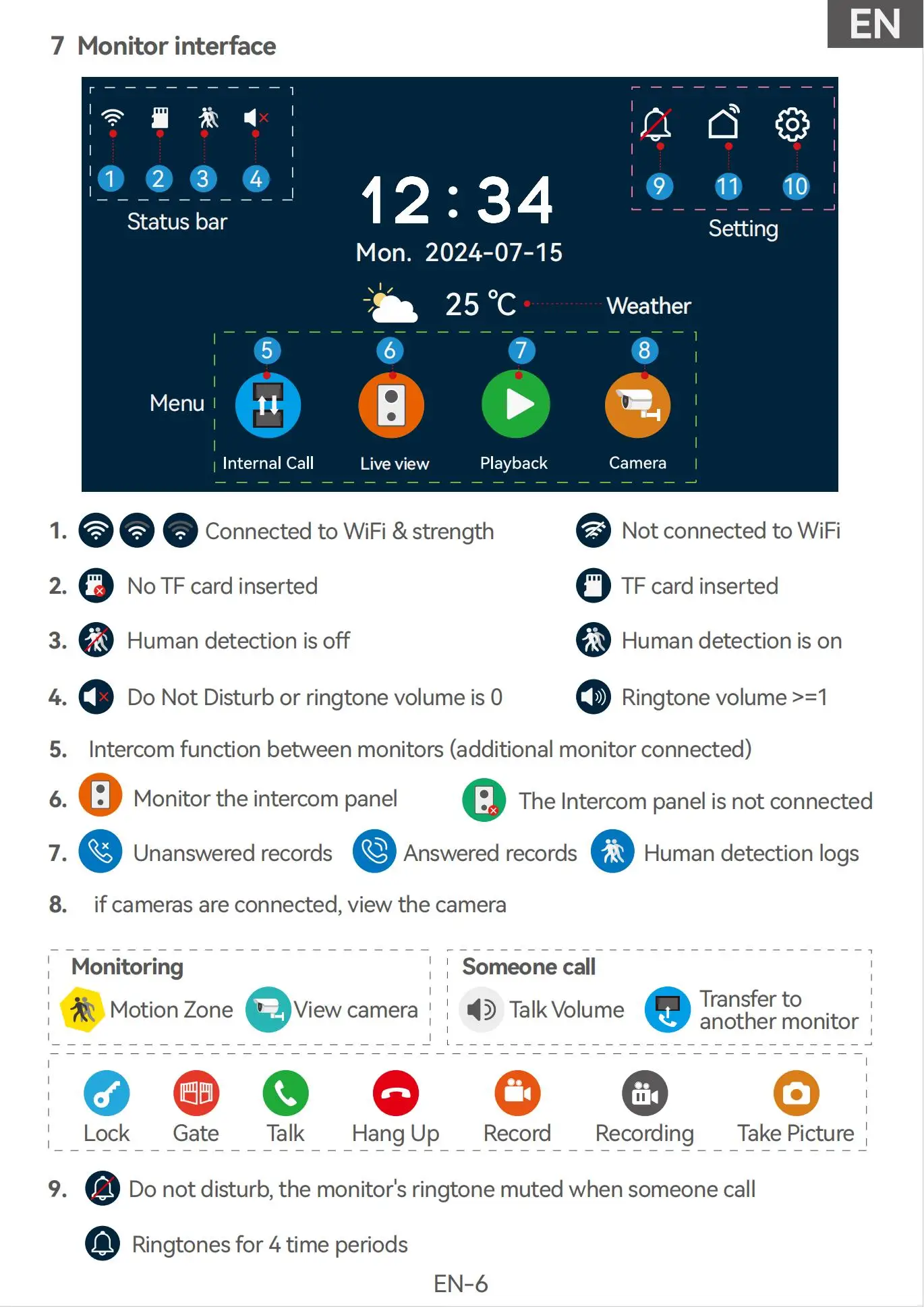

Monitor
- 7” or 10.1” 1024 x 600px IPS touch screen
- Micro SD card class 10 up to 512GB
- 2.4 GHz WiFi IEEE 8111 b/g/n
- Current consumption: 150mA, Power consumption: 3.5W

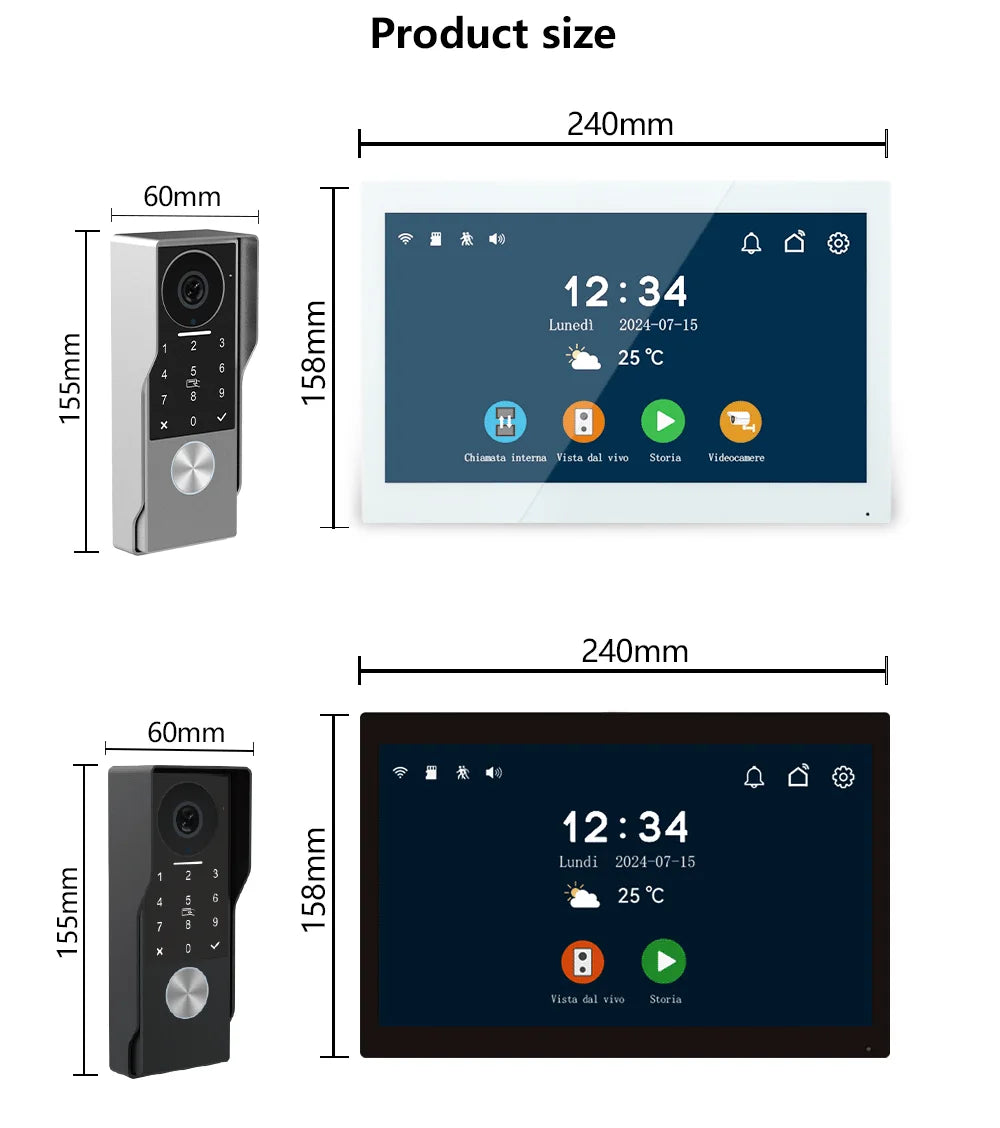

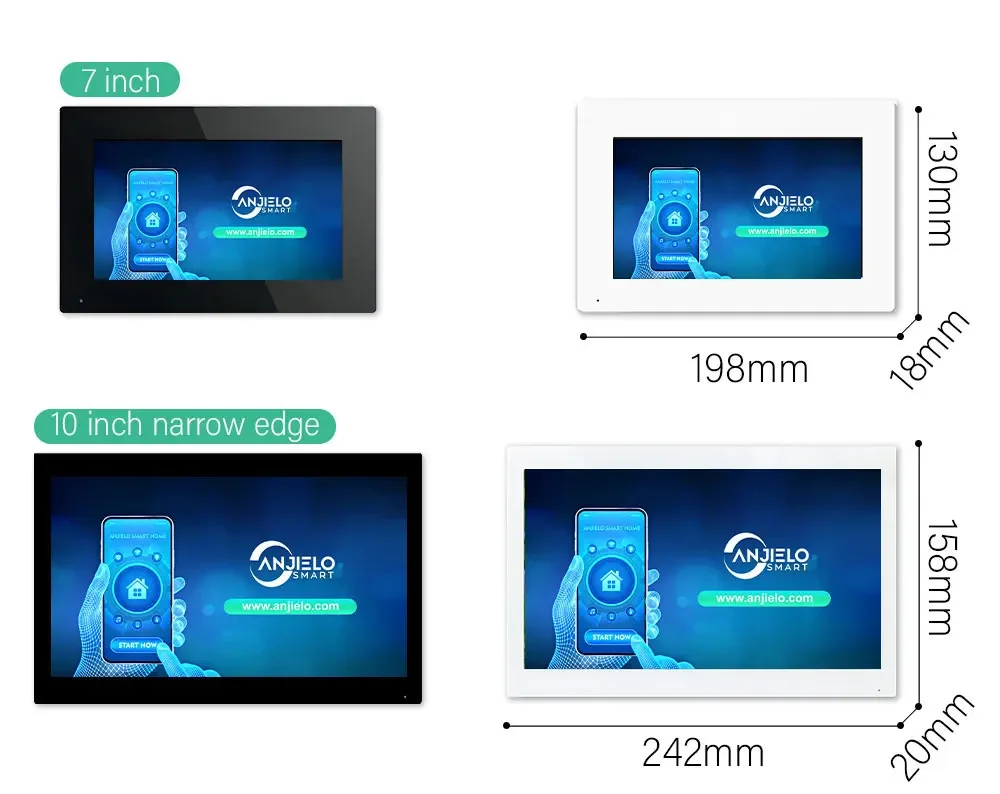

- 7inch monitor dimensions: 119 (h) x 188 (w) x 18.5 (d) mm
- 10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm
- Video decoding: H.264
- Take photo or video, twin controls for lock and gate, human detection, weather
- Monitor can talk to another monitor
- Video recording or take photo when human detection or call
Intercom panel
- CMOS colour sensor 2Mega pixels
- Viewing angle: Horizontal ~130°/ Diagonal ~165°
- Current consumption: 220mA，Power consumption: 5.5W
- IR CUT no color deviation (4 IR LEDs)
- Camera with wide dynamic range
- Camera distortion correction to avoid video stretching and bending

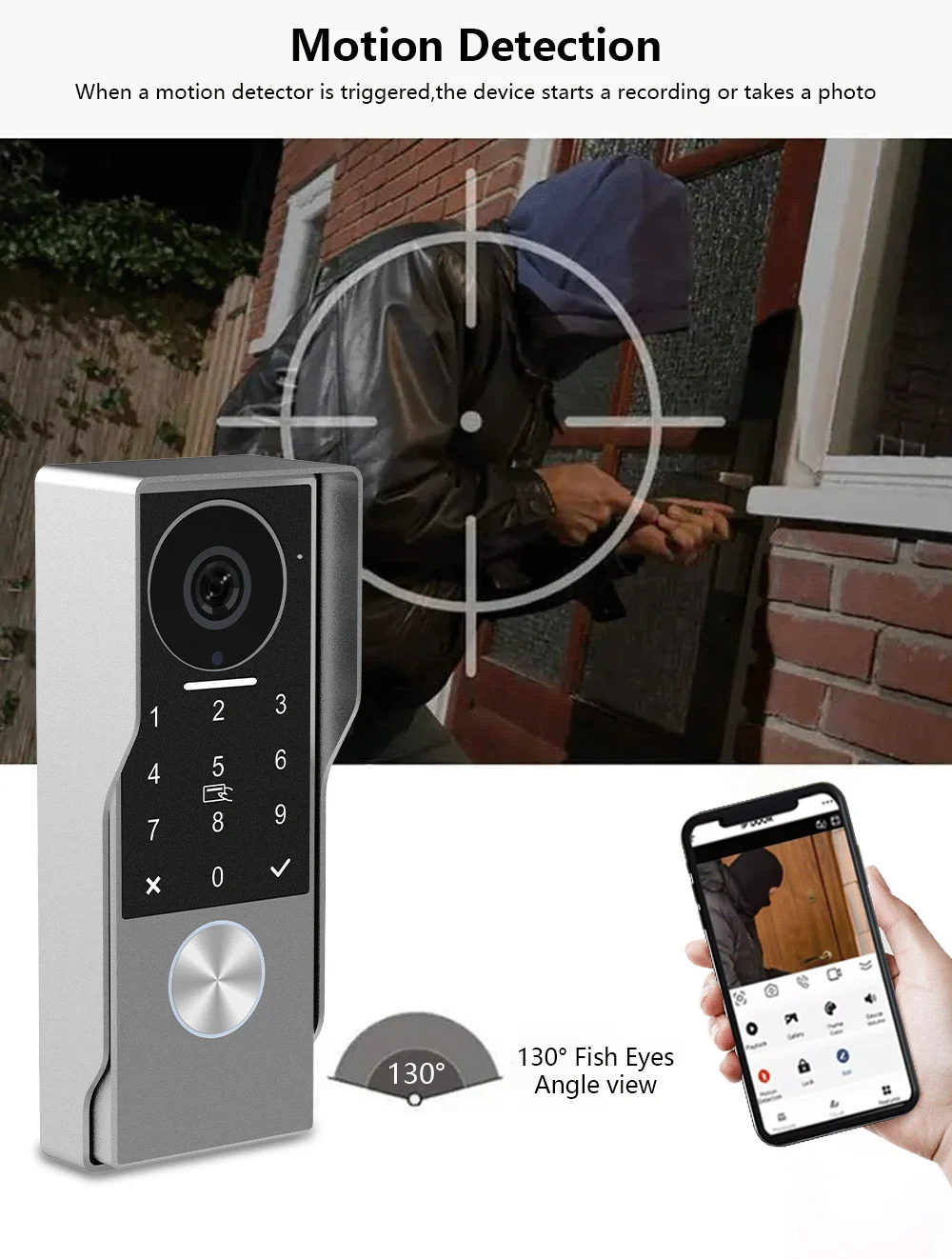

- Human detection and setting Motion zone

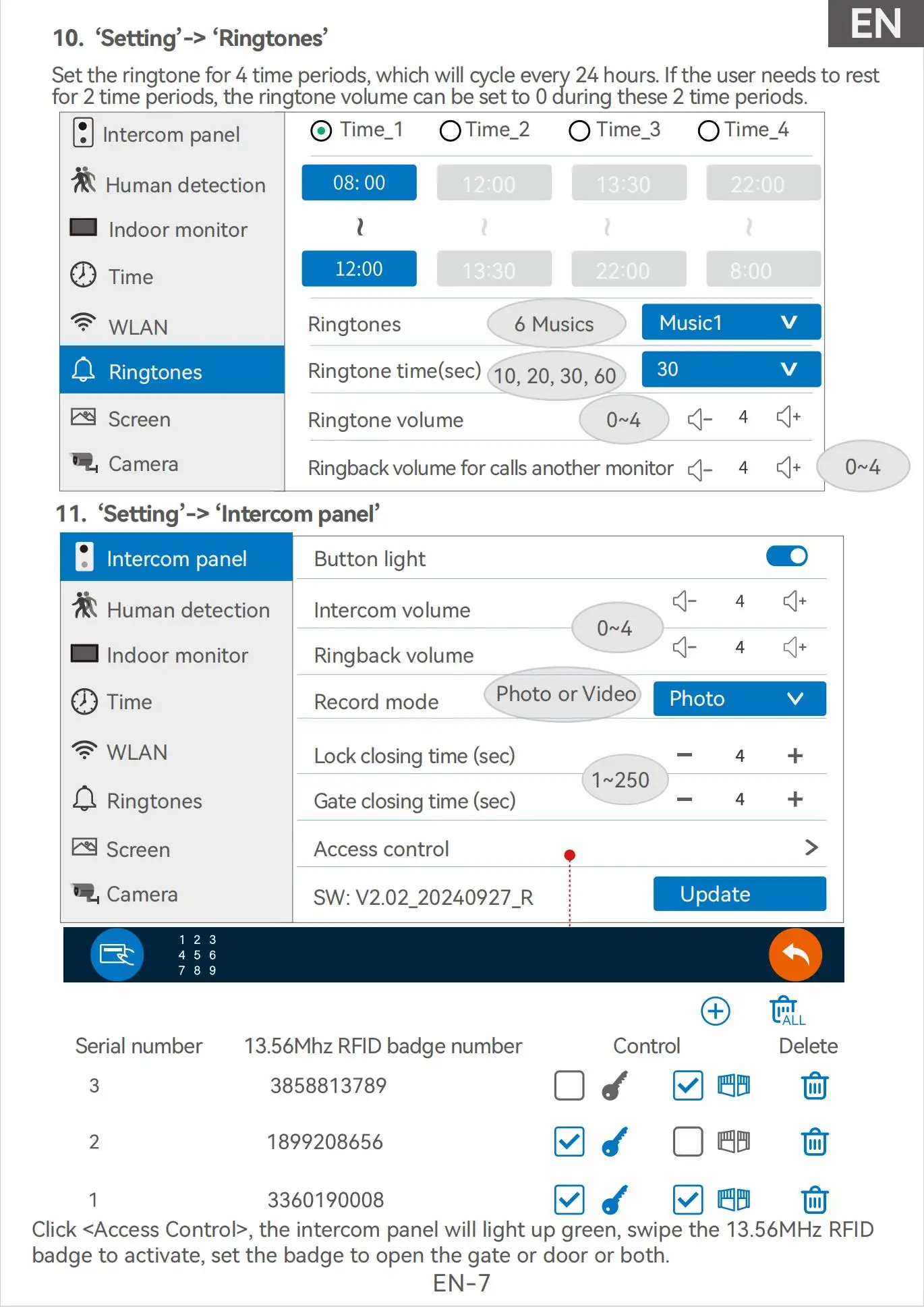

- RFID: 13.56MHz - 100 badges max.
- Operating temperature: -30°C / +70°C

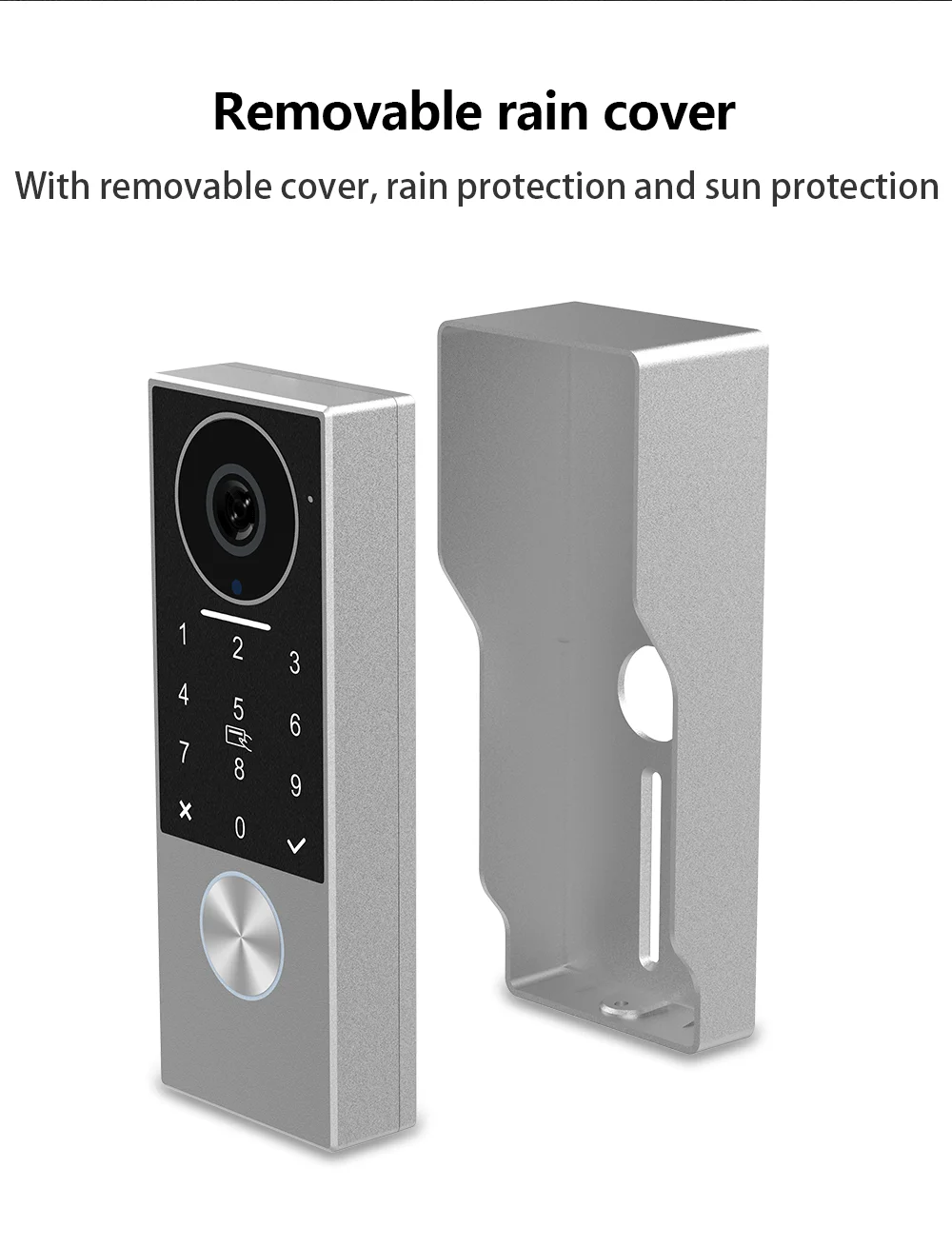

- Dimensions: 147(h) x 55 (w) x 22(d) or 36(d) with weather-proof shield

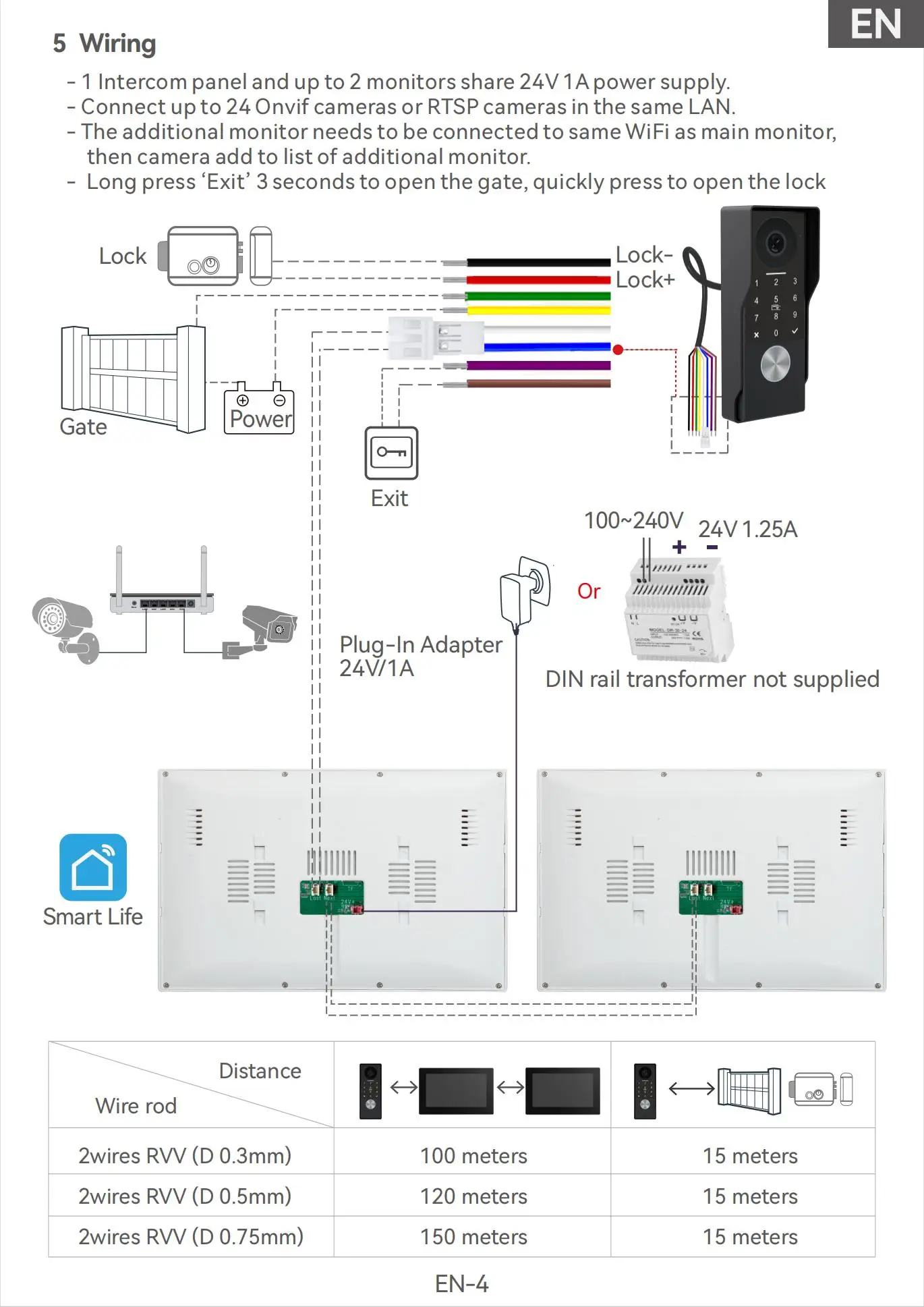

Connect
- 1 Intercom panel and 2 monitors share one power supply
- 2 wires no polarity to conect intercom panel and monitors
- Connect up to 24 Onvif cameras in the same LAN(Supports integration with up to 24 IP cameras, creating a comprehensive surveillance network viewable directly through the intercom monitors or the TUYA app.)

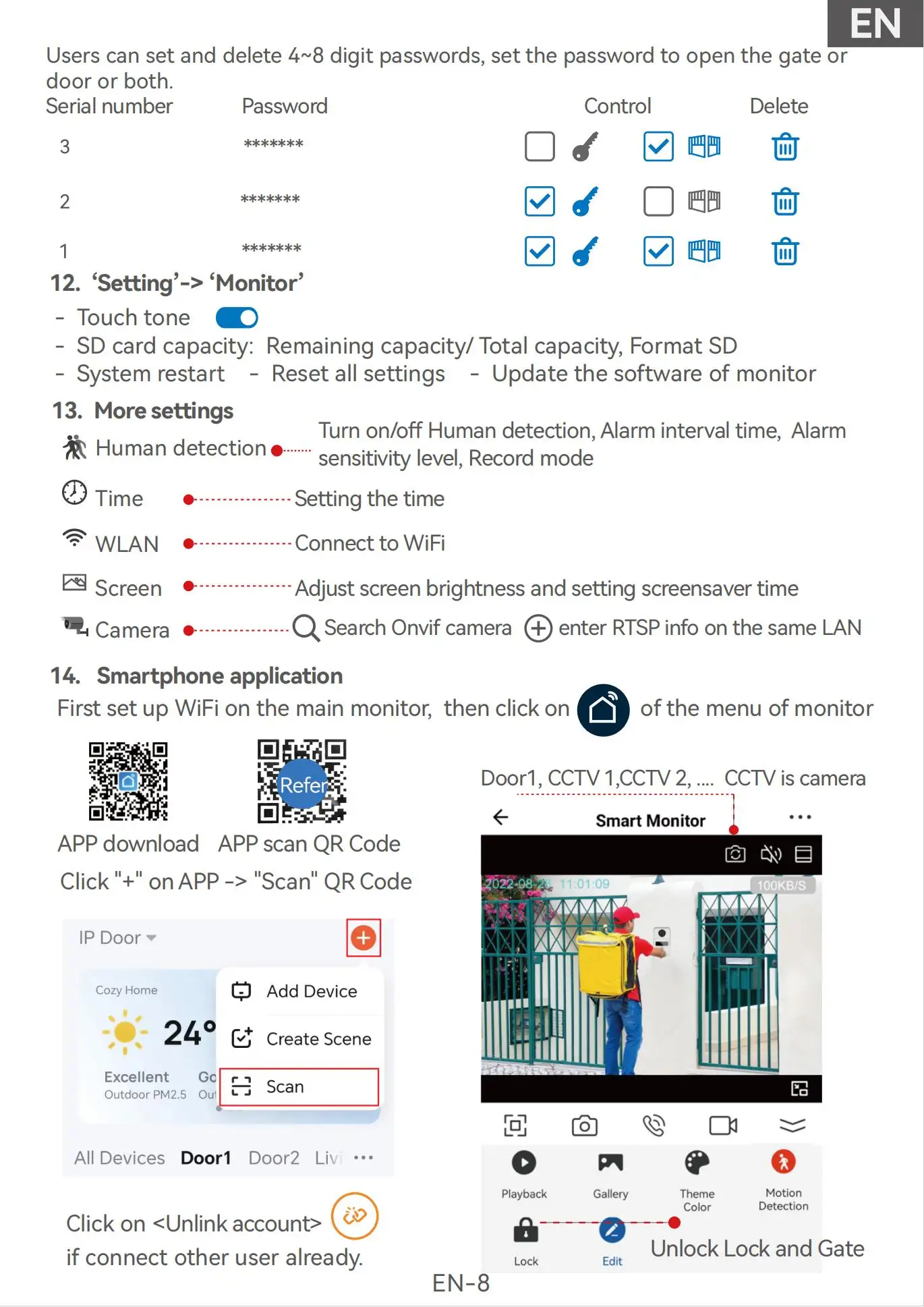

APP
- Main monitor connects to "Tuya Smart" or "Smart Life" App
- 20 App users connect to the APP, users can talk to visitors anytime and anywhere,
take photo or video, monitor, unlock lock and gate, cloud storage
- Video recording or take photo when human detection or call
- Search "Tuya Smart" or "Smart Life" from APP store or Google Play
- Scan the QR code on the menu of monitor to download
Multi-Method Access Convenience: Offers flexible unlocking options
- IC Card Access: Grant secure entry using authorized contactless IC cards.
- PIN Code Entry: Utilize secure keypad codes for easy access without keys or cards.
Ideal For: Gated communities, apartment buildings with separate vehicle/pedestrian access, large homes with driveways, and commercial properties requiring robust access control and surveillance.
