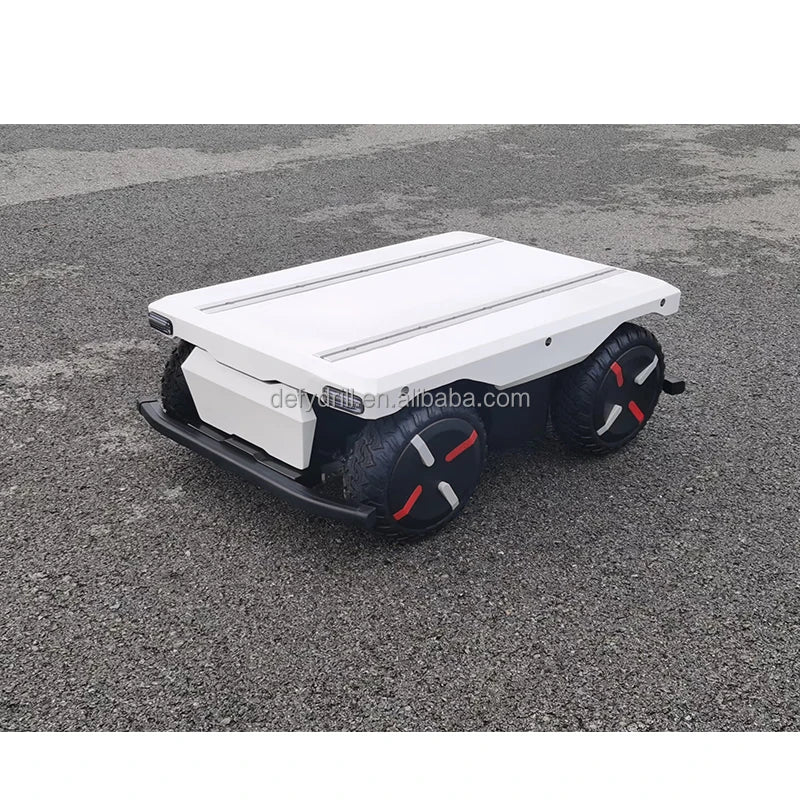

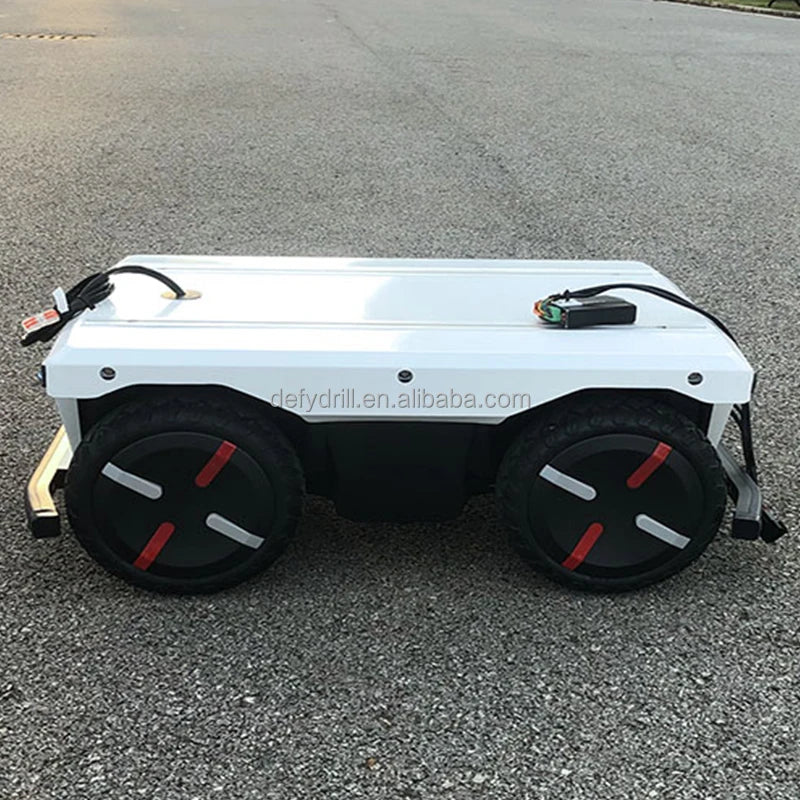

80kg Payload Automatic 4WD Wheeled Robot Delivery Vehicle, Unmanned UGV Platform for Autonomous Logistics
80kg Payload Automatic 4WD Wheeled Robot Delivery Vehicle, Unmanned UGV Platform for Autonomous Logistics
Couldn't load pickup availability
SPECIFICATIONS
After Warranty Service: Online Video Technical Support
Application: Developable Moblie Platform
Brand Name: NONE
Certification: CE
Color: Customized Color
Dimensions: Sludge Cleaning Robot
Material: Aluminum Alloy
Model: UGV-8
Model Number: Dredging Robot
Origin: Mainland China
Packing: wooden case
Payload: 80kg
Place of Origin: China
Product name: wheeled robot car chassis unmanned inspection vehicle UGV-5
Speed: 5km/h
Warranty: 1 Year
Weight: Underwater Dredging Robot
is_customized: Yes

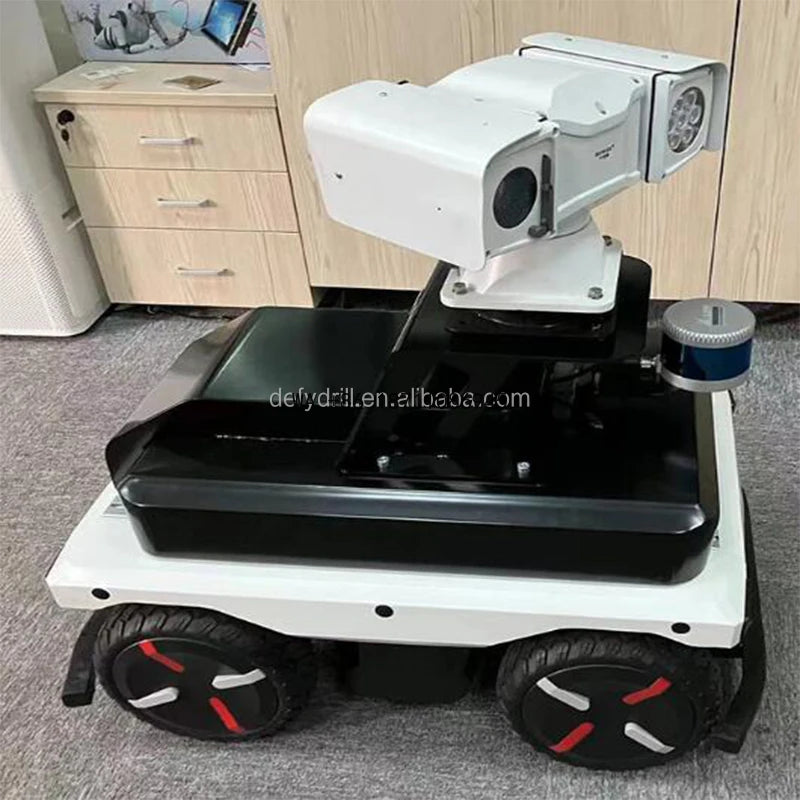

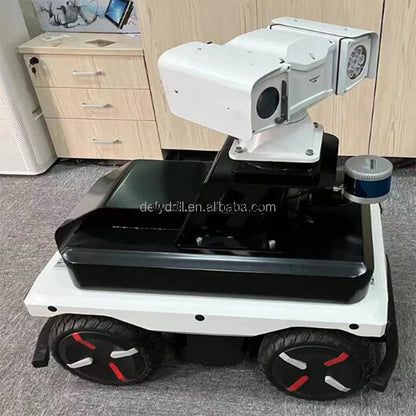

80kg payload cheap delivery robot AGV platform UGV wheeled robot with robot arm and PTZ
1. Introduction:
UGV-8 is a small robot chassis, using lightweight, modular, intelligent design concept to create a mobile robot development platform. It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of typical pavement. Stereo , radar, GPS, IMU, manipulator and other equipment can choose to be installed on the chassis as an extension application, can be applied to scientific research, distribution, logistics and other fields.
2. Application:
1. Scientific research or education.
2. Food delivery vehicle.
3. Disinfecting robot
4. Unmanned service robot
5. Unmanned inspection vehicle
6. Advertising vehicle.
3. Advantage:
1. Simple and easy to operate.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel drive.
4. Vehicle-grade drive by wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.
4. Specification:
|
Specification of the Entire Vehicle |
|
|
Item |
Data |
|
L*W*H |
820*572*310mm |
|
Min. Ground clearance |
87mm |
|
Overall weight |
About 43kg |
|
Rated load |
80kg |
|
Chassis and Performance |
|
|
Item |
Data |
|
Steering |
Front wheel Differential steering |
|
Brake form |
Anti-drag braking |
|
Tire outer diameter |
266mm |
|
Running speed |
≤5km/h |
|
Driving range |
5-10km |
|
Braking distance |
0.4m |
|
Turning radius |
0.5m |
|
Climbing angle |
≤15° |
|
Obstacle passing |
8cm |
|

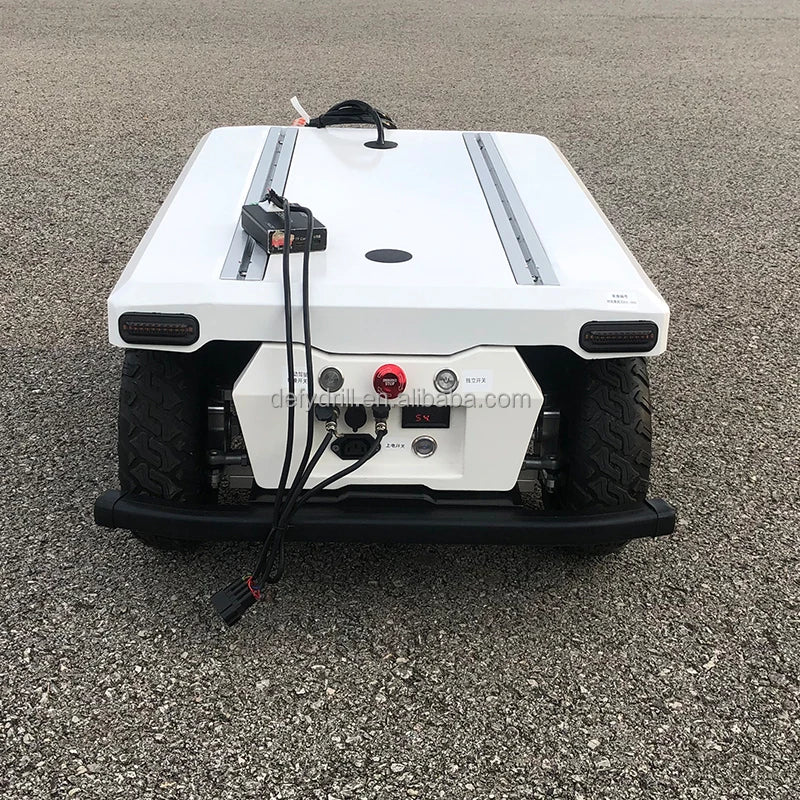

Safety protection |
Touch stop bar; Emergency brake button |
|
Electric drive |
|
|
Item |
Data |
|
Motor type |
Wheel hub motor (Permanent Magnet Synchronous Motor with encoder) |
|
Motor Power |
300W*4 |
|
Battery parameters |
48V/20Ah battery |
|
Battery working temperature |
-10~60℃ |
|
Charger |
AC220V independent charger |
|
Charging time |
≤3h (Quick charging can be customized) |
|
Protection class |
IP35 (IP66 can be customized) |
|
Other |
|
|
Communication protocol |
Open underlying CAN protocol |
|
Motion control |
VCU control |
|
Sensor type |
Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensor |
