SPECIFICATIONS

Brand Name: YoufangSmart

Feature 1: Robot Car Kit

Feature 10: 4WD Metal Mecanum Wheel

Feature 11: Programmable robot

Feature 12: Mecanum Wheel

Feature 13: For UNO Board

Feature 14: Programmable robot Kit

Feature 15: Trolley Omnidirectional Metal Wheel

Feature 16: Ps2 Programmable Robot

Feature 17: 80kg Load Heavy-Duty

Feature 18: 4WD Mecanum Wheel

Feature 19: RC Robot Car Chassis

Feature 2: Robot Car

Feature 3: Max 80Kg Load

Feature 4: RC Tank

Feature 5: Ps2 Handle Project

Feature 6: Encoder Motor

Feature 7: For Arduino Robot DIY Kit

Feature 8: Hall motor

Feature 9: Encoder Motor 1-50

High-concerned chemical: none

Is Electric: No battery

Model Number: Robot car

Origin: Mainland China

Power Source: Electric

Recommend Age: 14+y

Theme: Animals & Nature,Transportation,Fantasy & Sci-Fi,Occupations,Sports,Music

Warning: Be care for power

Youfang Smart is smarter, tech, and healthier

    We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This rc robot is a new, very intelligent robot designed by our institute, but also the enlightenment of children and engineers to learn and educate, we will release more technology, education, health new products from time to time, can be used as children's robot gifts, adult learning demoboard.I believe you will like our robot.

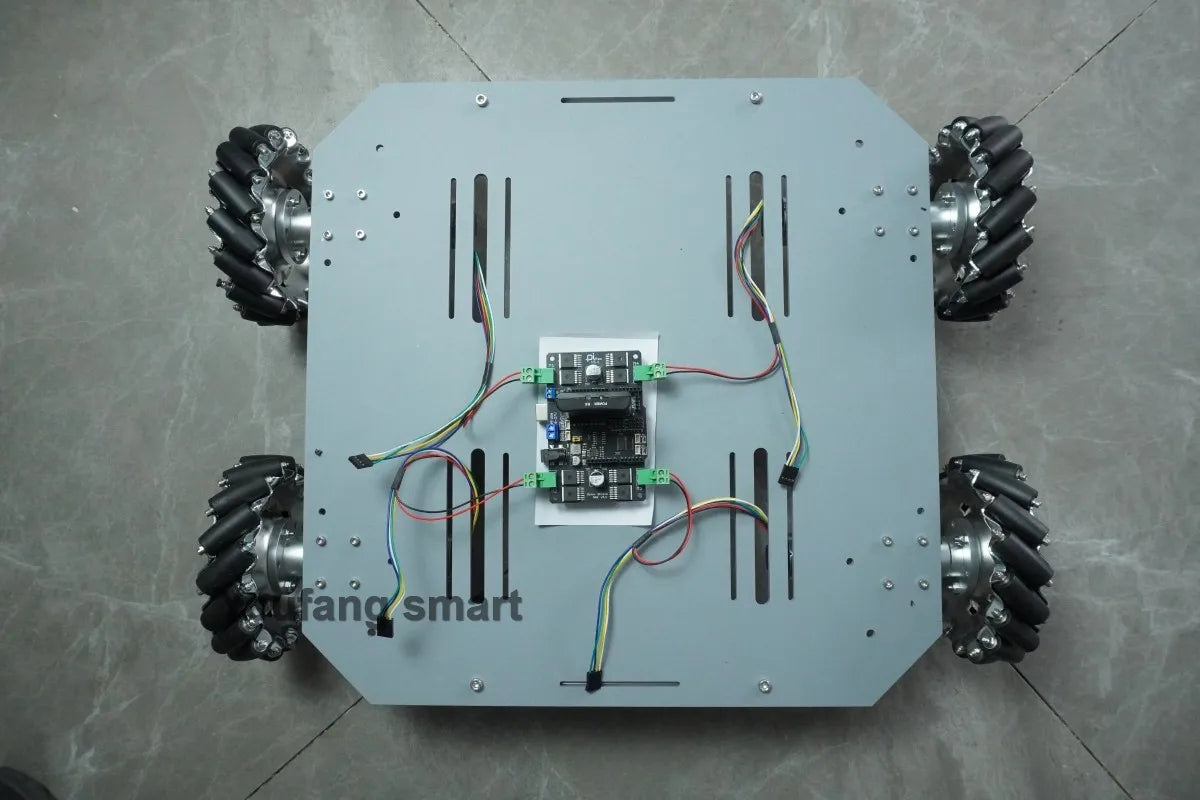

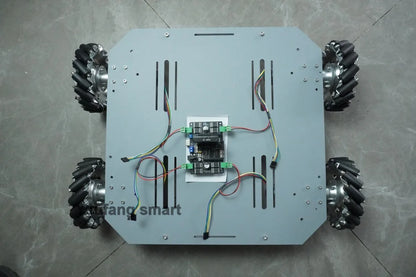

70kg Load Heavy-Duty RC Tank With Ps2 4WD Mecanum Wheel Trolley Omnidirection Metal Car Chassis for Programmable Robot DIY Kit

【 Read carefully before buying 】

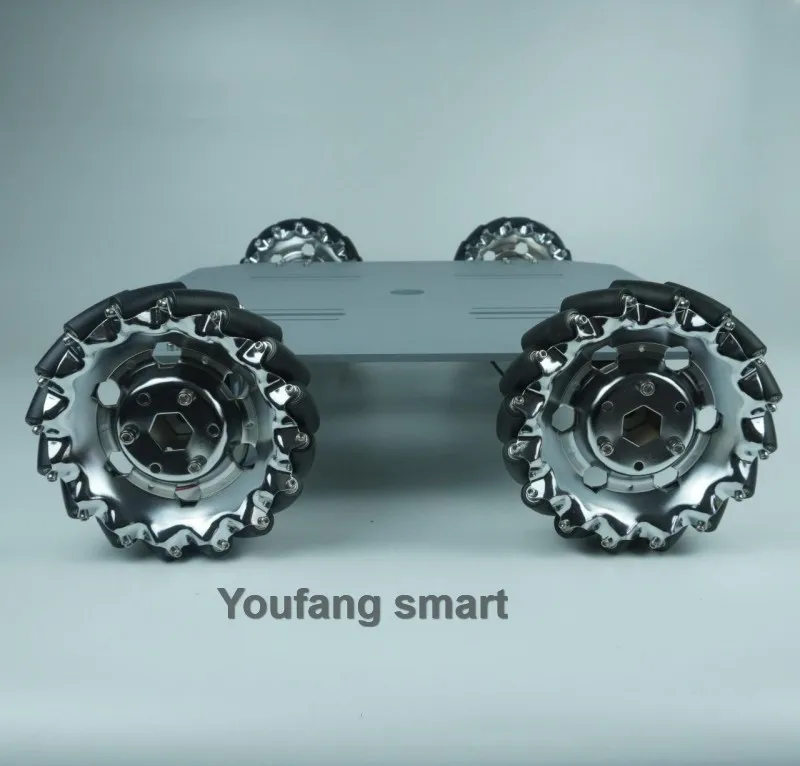

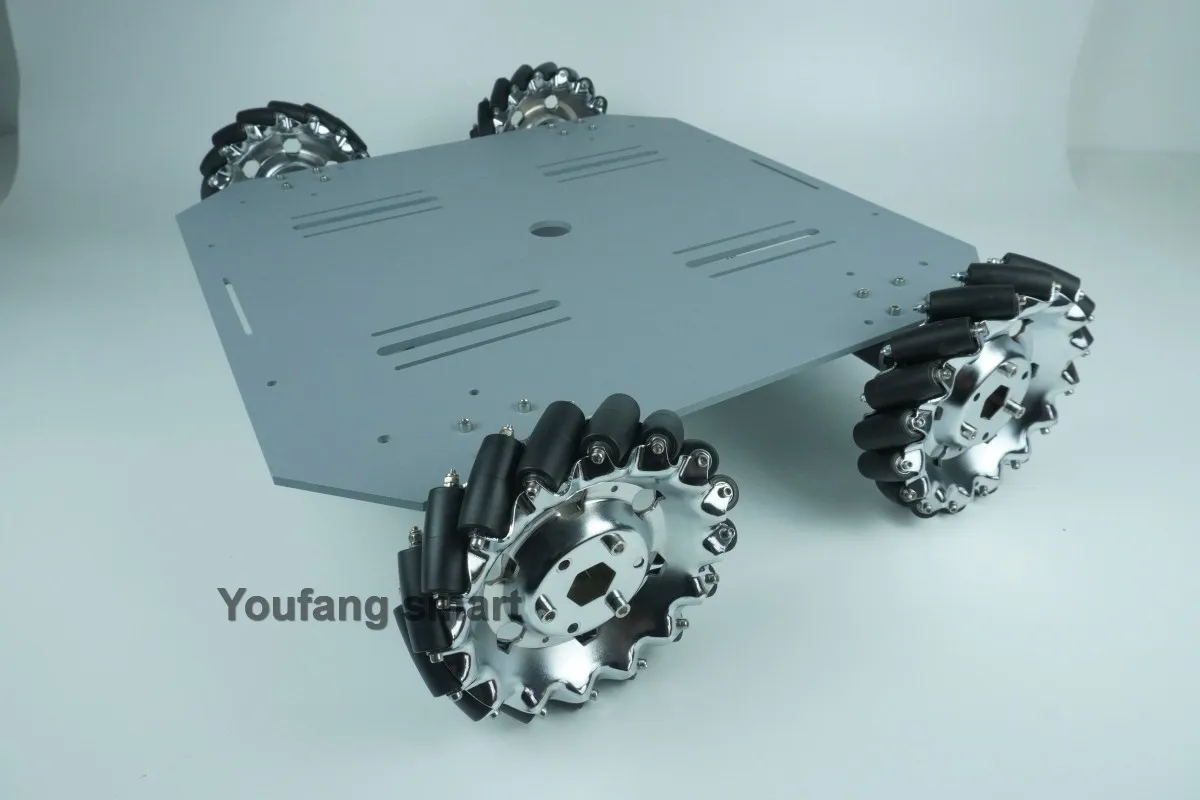

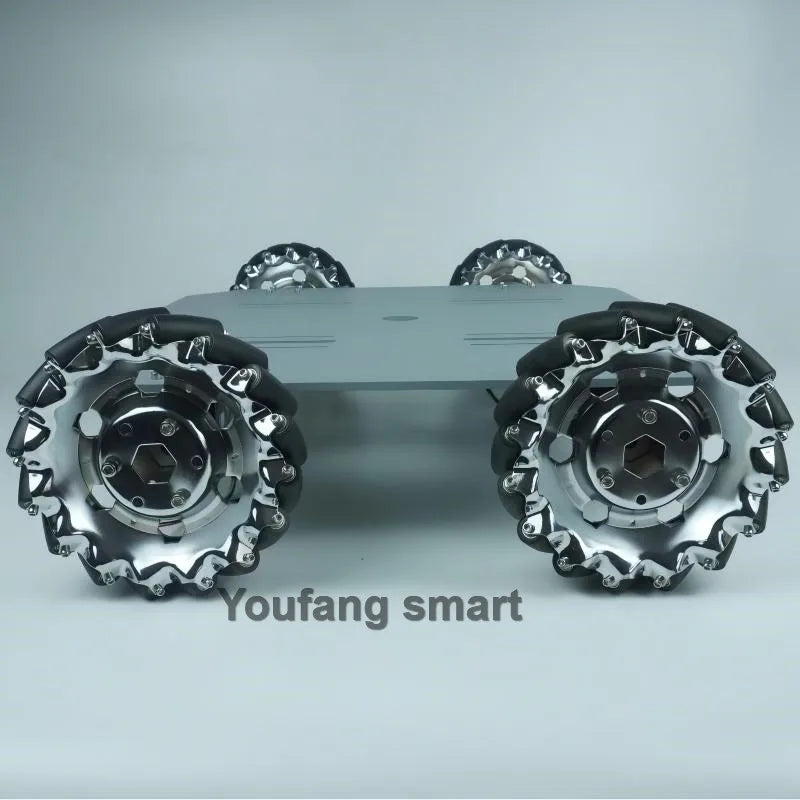

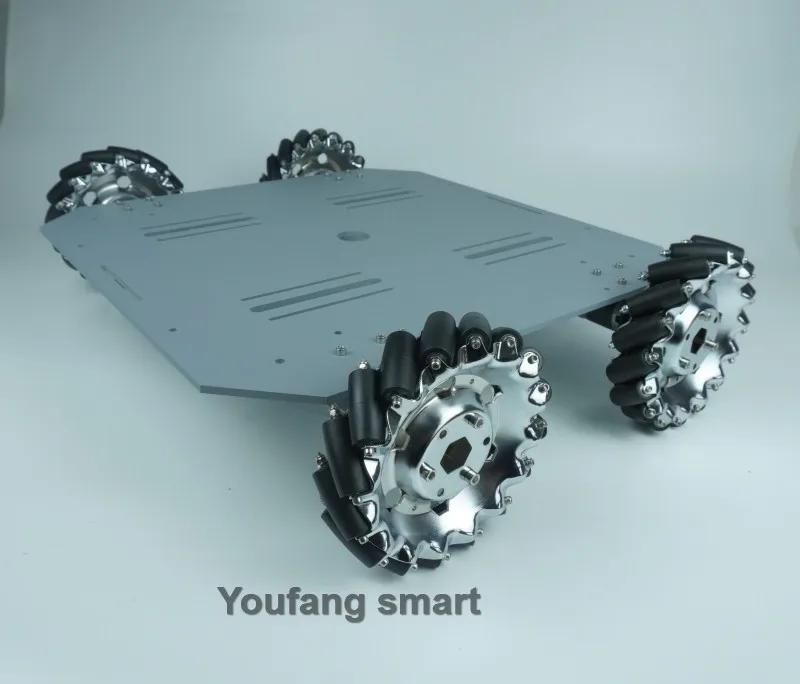

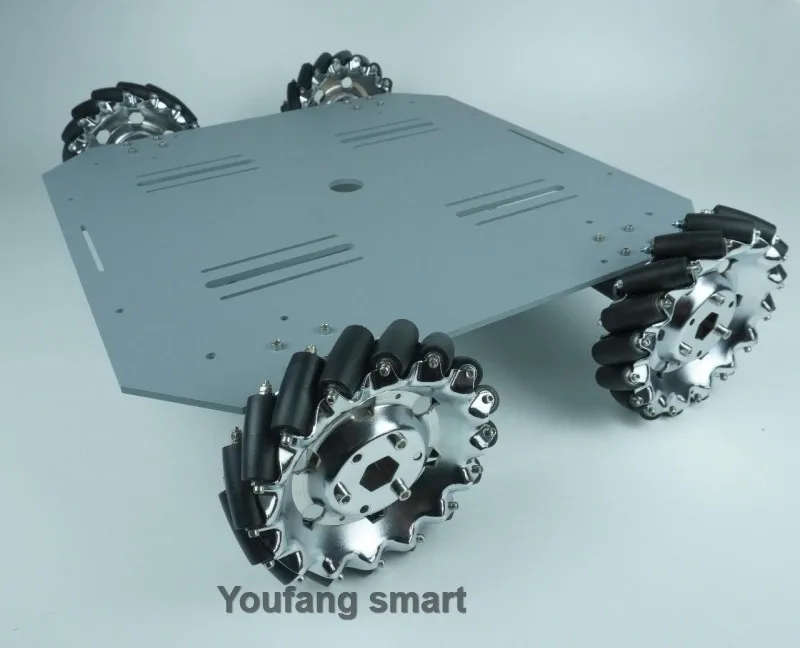

Title: 4WD 80kg large load McNamum wheel chassis omnidirectional mobile trolley Intelligent vehicle chassis programmable development

Parameters of the car:

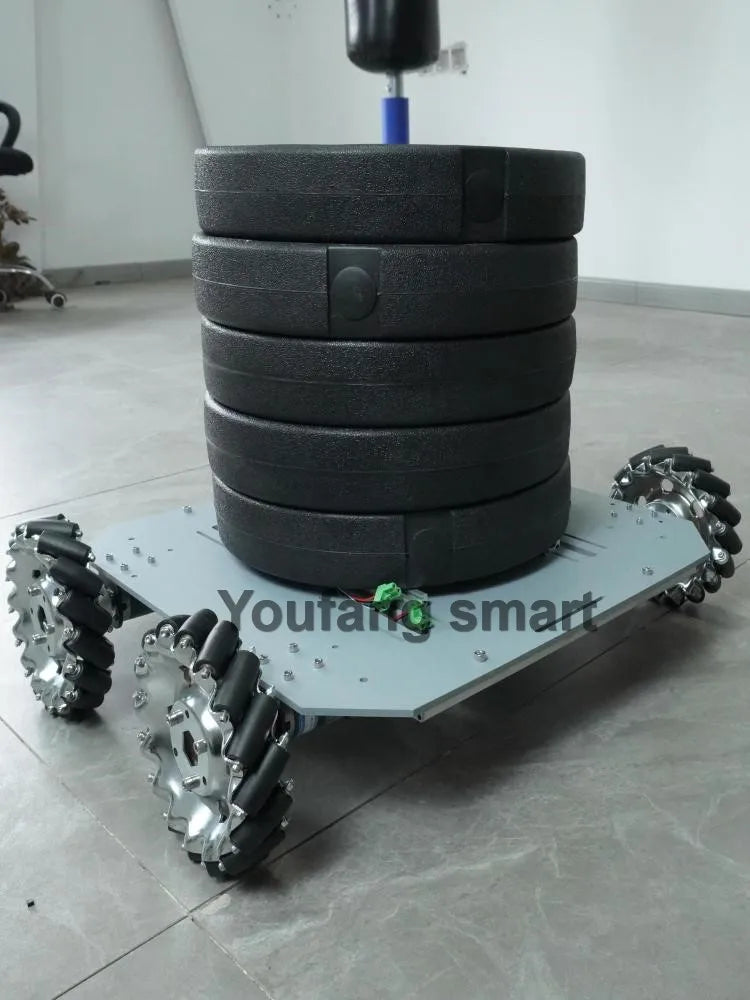

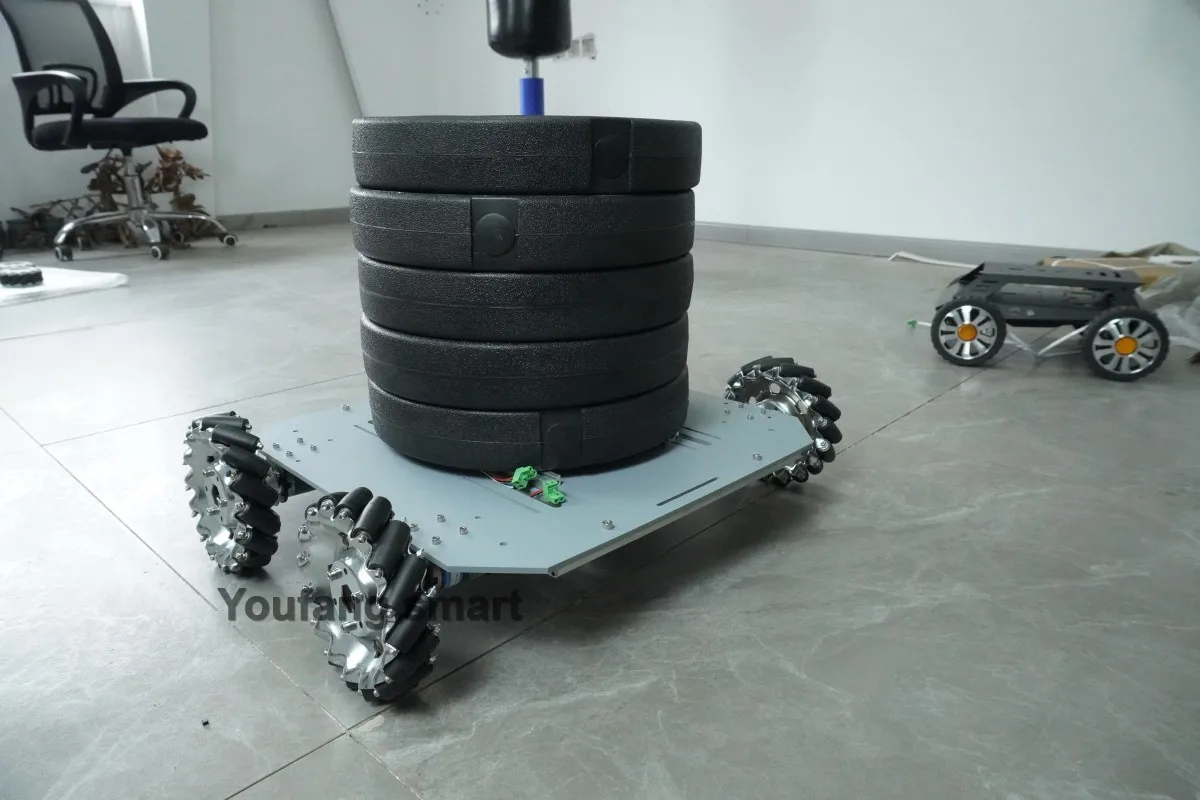

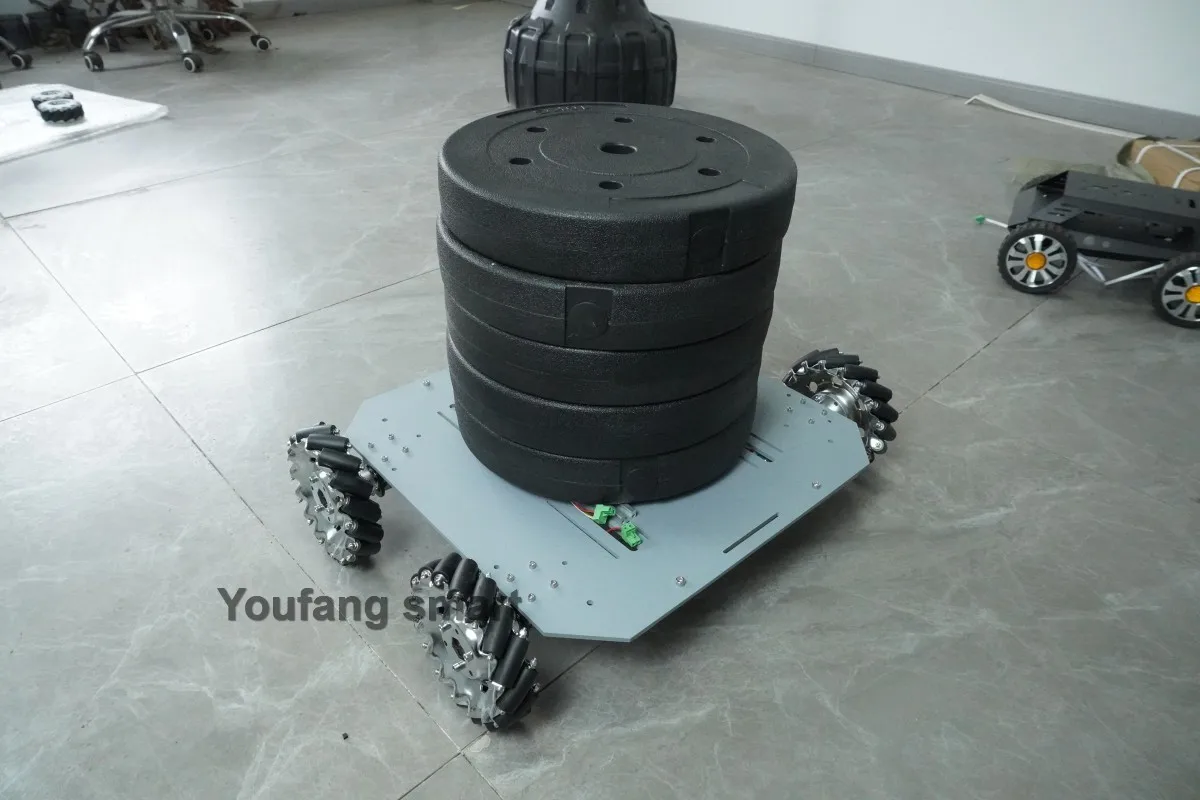

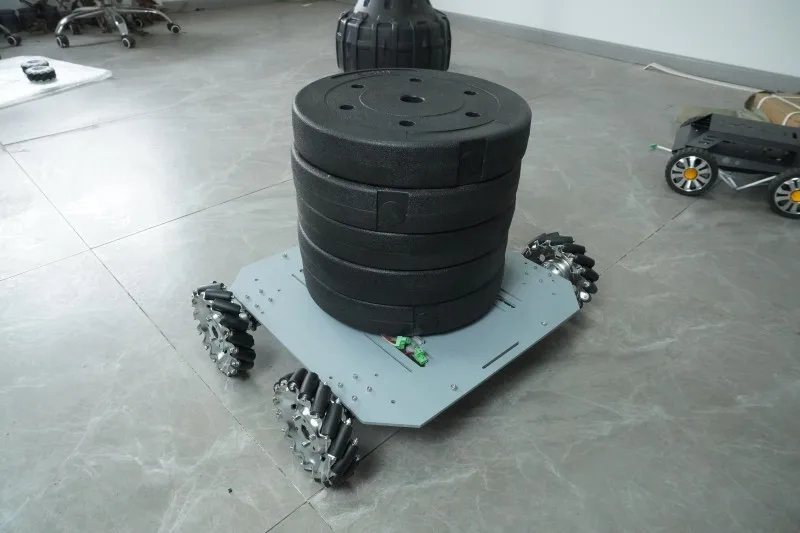

Load: up to 80kg(max)

Car dimensions length, width and height: 450 + 600 + 120mm

Frame board size length and width: 450+450mm

Frame plate size thickness: 5mm

Wheel diameter: 152mm

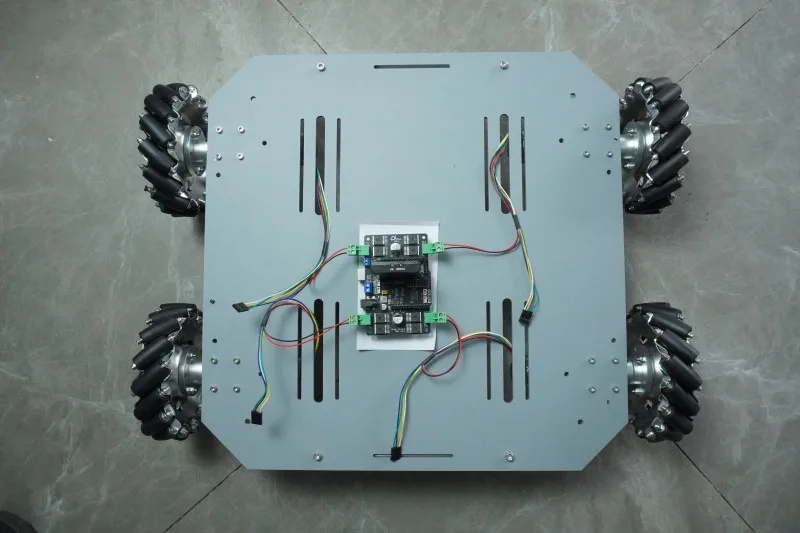

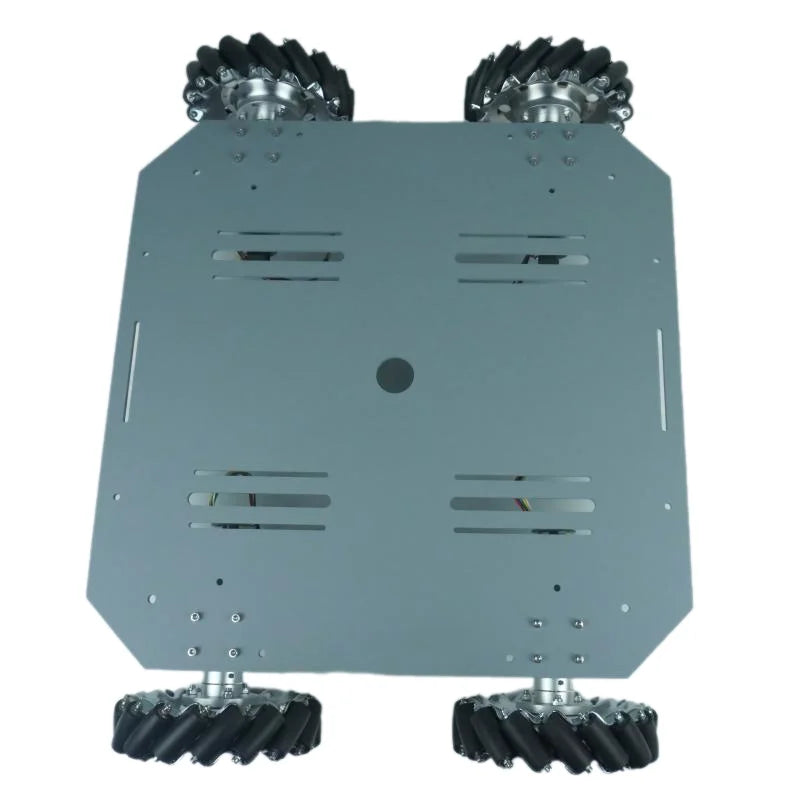

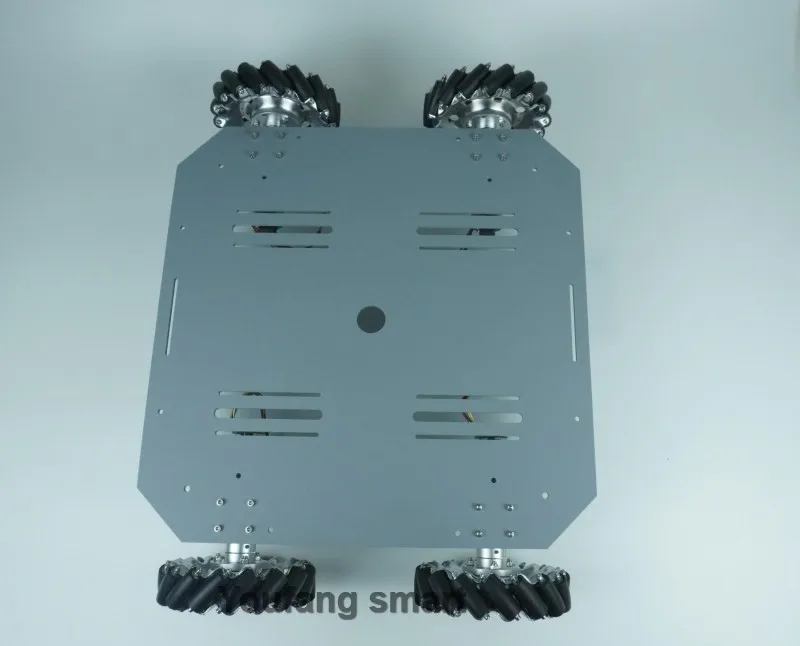

Plate Chassis:

Chassis plate size: 450 * 450 * 5mm (length * width * thickness)

Chassis plate material: Aluminum alloy(Surface blasting oxidation)

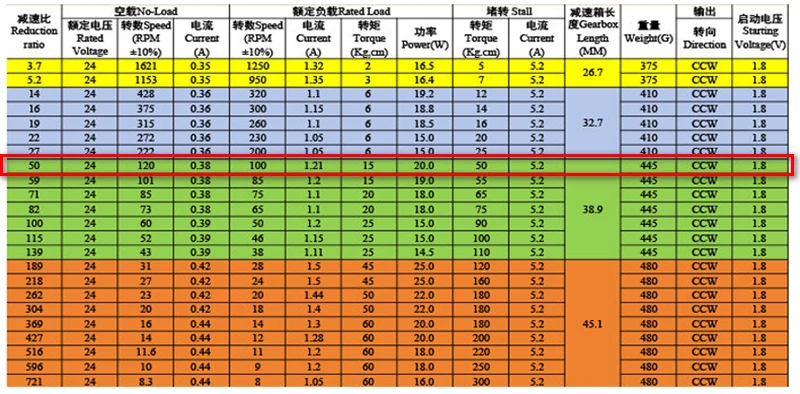

Motor parameters:

Model: 36GP-555 Permanent Magnet Planetary Geared Motor

Size: 36 * 114mm (excluding output shaft and terminal)

Shaft length: 20.0mm unidirectional shaft

Shaft diameter: 8mm D-shaped shaft double ball bearing positioning structure

Weight: about 480g

The input voltage is 24V

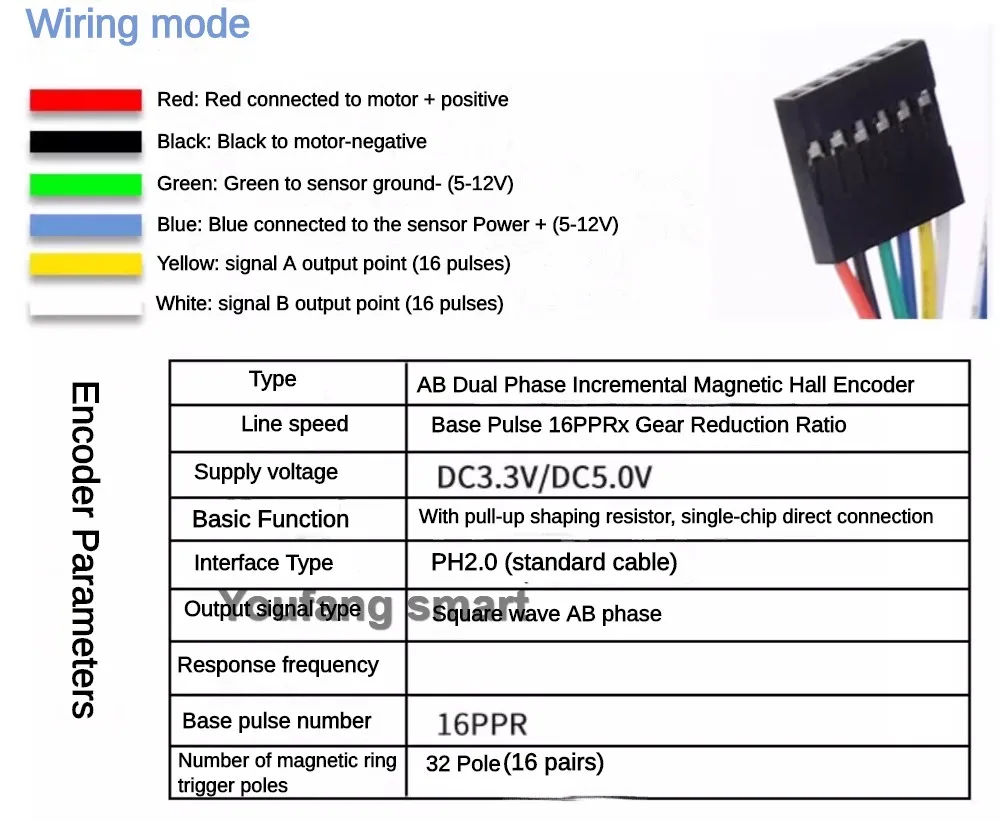

Wiring specifications: PH2.0-6PIN terminal connector

Encoder specifications: AB dual-phase encoder 11-line basic signal voltage 3.3V or 5.0V

Reduction ratio ratio: 50 (The reduction ratio determines the output torque!) The higher the reduction ratio, the greater the torque and the lower the speed! ）

Maximum no-load RPM: 120

L size mm: 38.5

Rated RPM: 100

Rated torque Kgf.cm:15

The ultimate load torque Kgf.cm:50

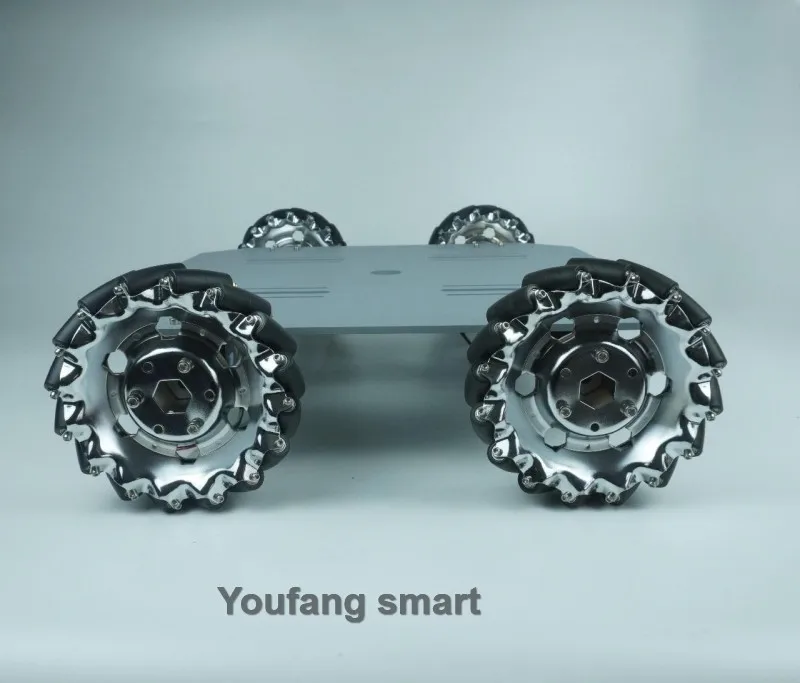

Mecanum Wheel:

Size: 6 inch diameter / 152mm

Weight: about 700g / piece

Small roller: full bearing structure, very smooth. A set of four bearing 150Kg

The diameter of the middle hole is 20mm, surrounded by a 6-division distribution circle with a diameter of 45mm, and the size is 5.20mm in diameter

Overall wheel thickness: 45mm

• Package list:

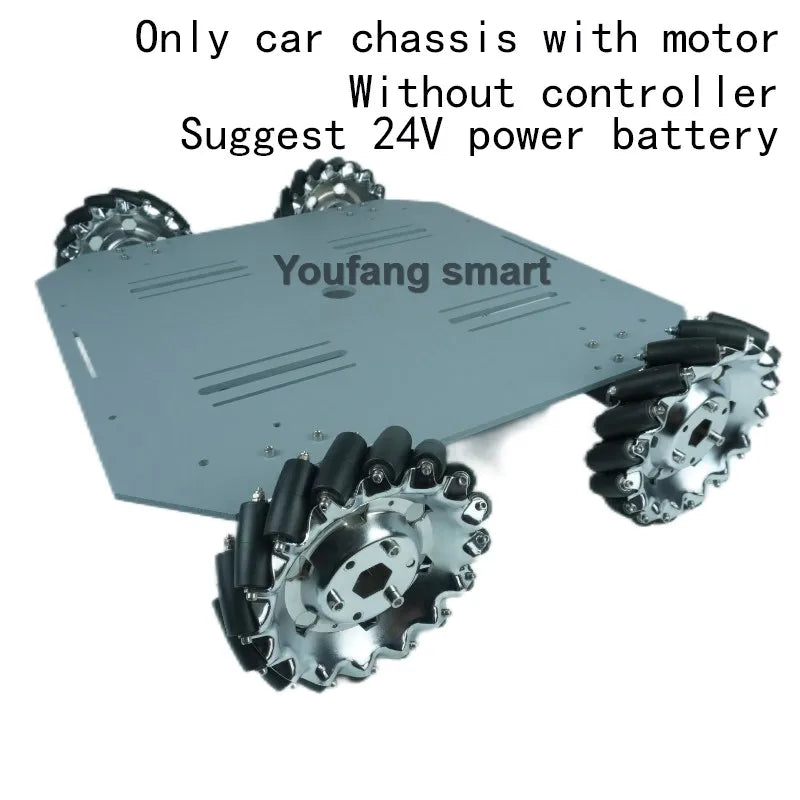

Only car chassis:

450*450*5mm Aluminum Alloy plate*1

152mm mecanum wheel*4

24V Motor*4

Motor Bracket*4

Motor Wires* 1set

Screws* 1 set

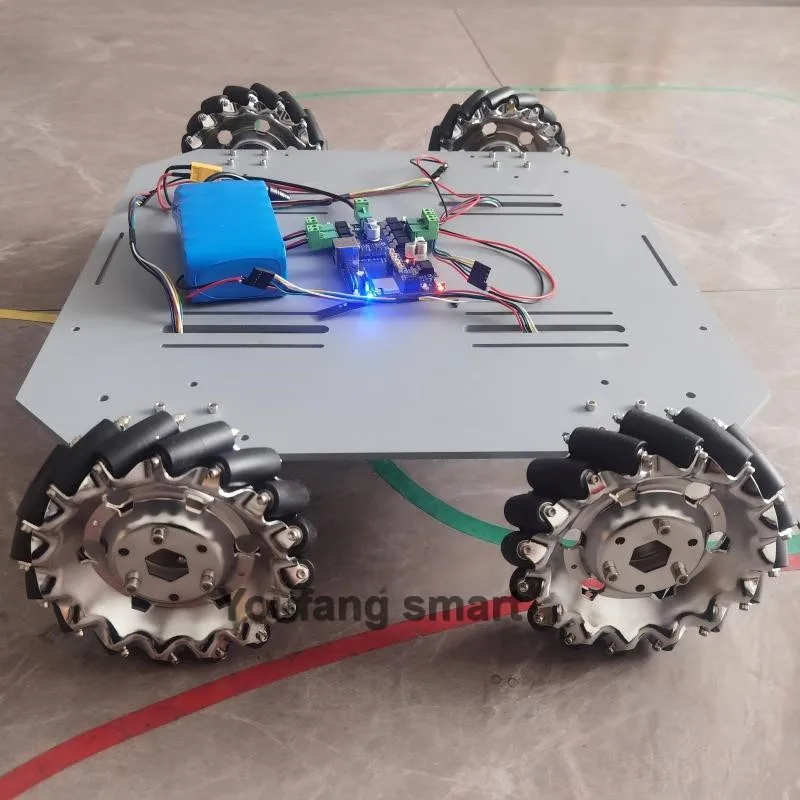

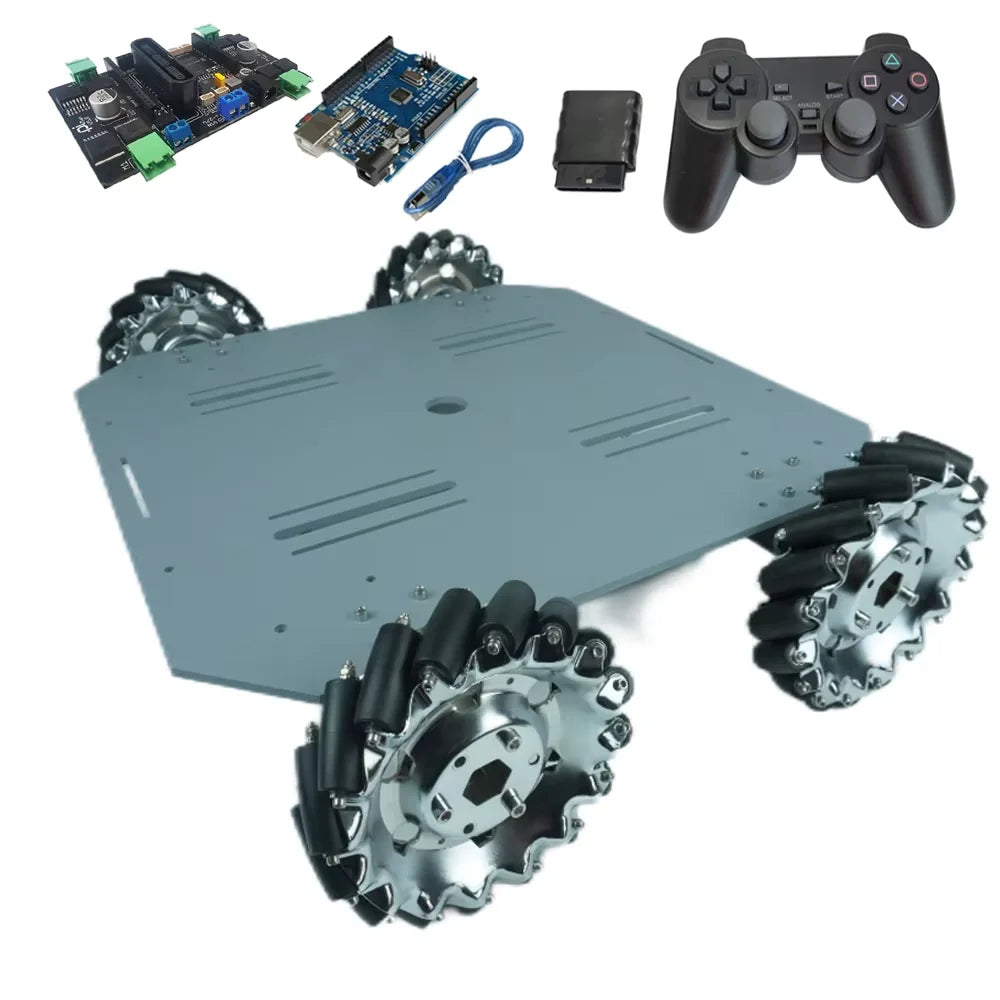

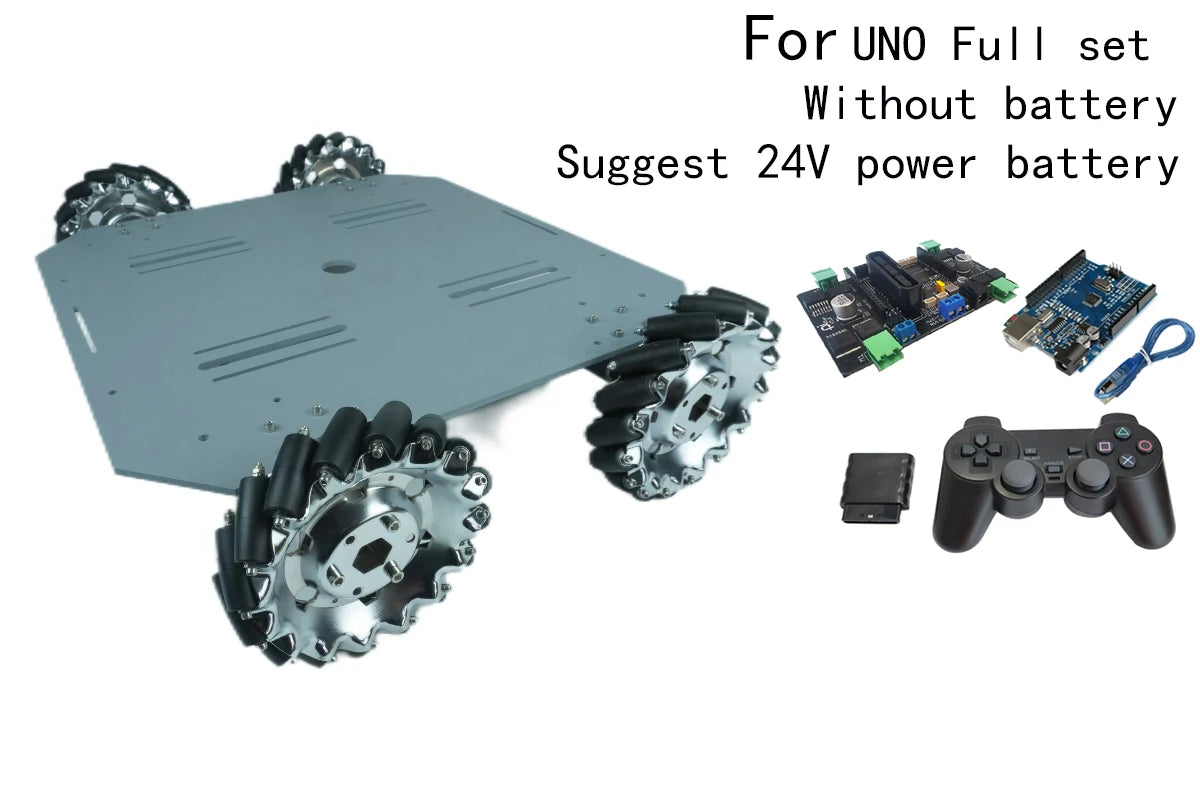

UNO Full set:

450*450*5mm Aluminum Alloy plate*1

152mm mecanum wheel*4

24V Motor*4

Motor Bracket*4

Motor Wires* 1set

Screws* 1 set

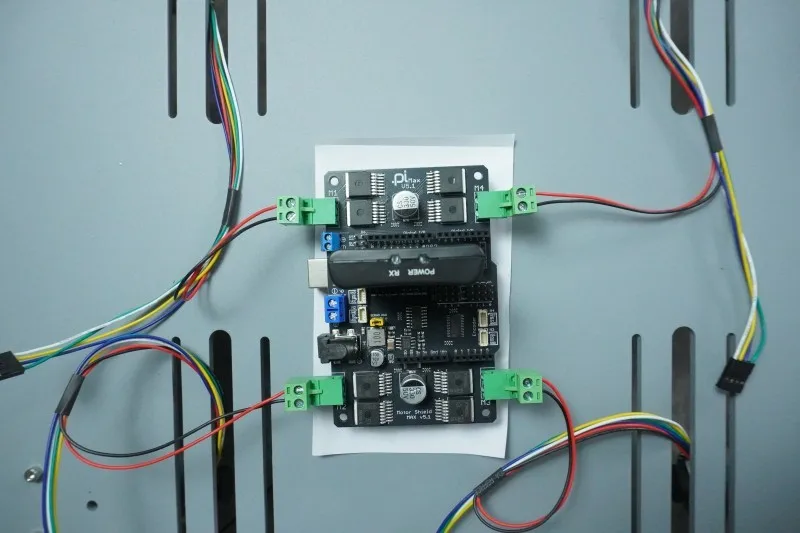

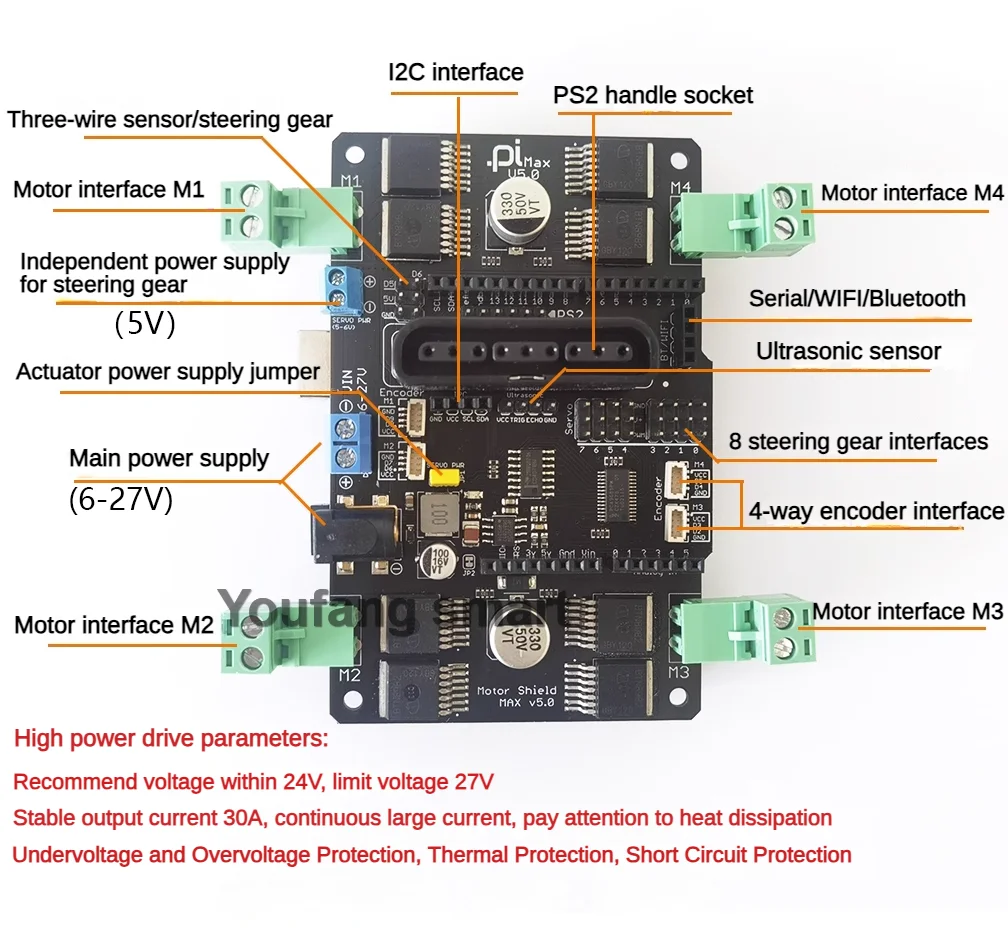

With UNO RC controller(Ps2 control distance: about 10-50m)

Note:

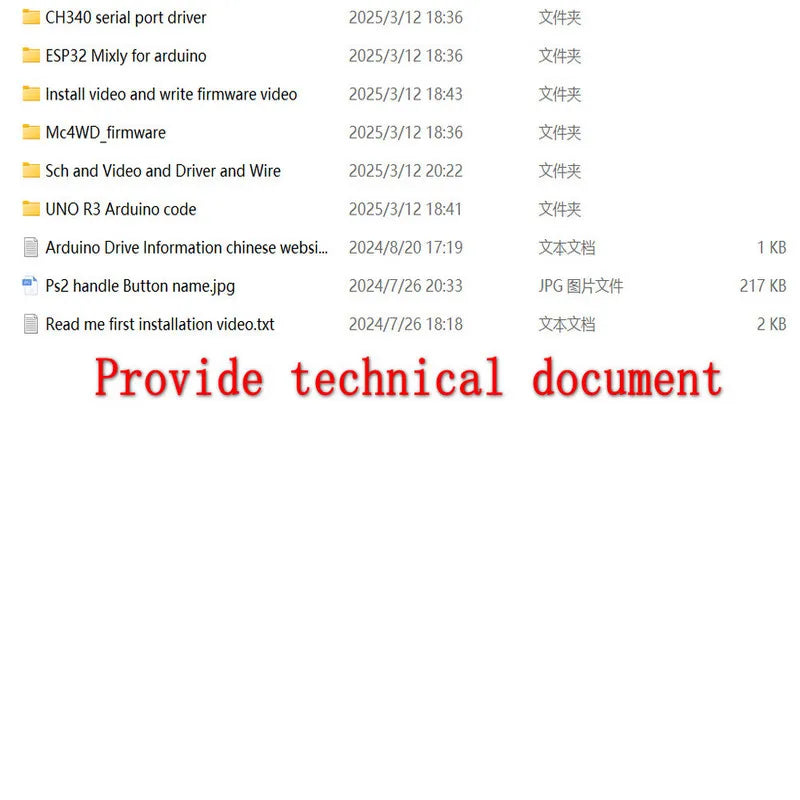

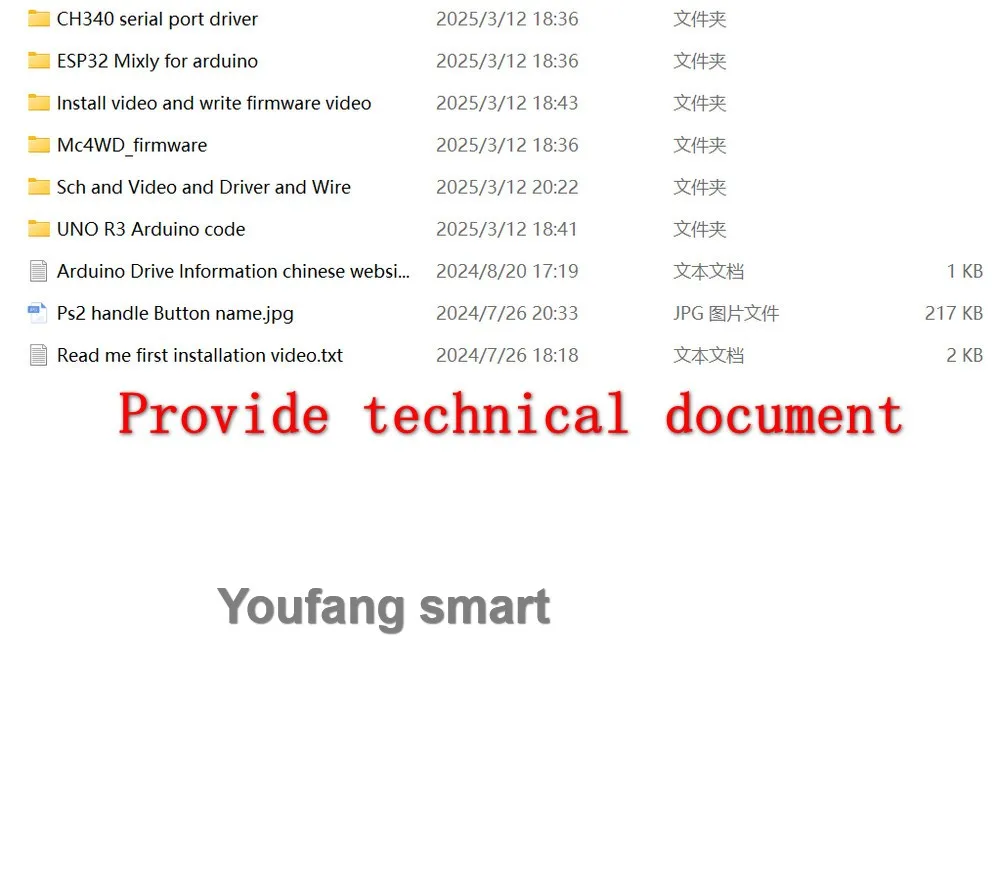

1.This is unassembled, you need to assemble it, we provide tutorials and open source code for free，Please leave your email address

2.Due to the customs policy, the product is mailed without a battery, and 24 V is recommended.It is recommended to use 24V power lithium battery.
