SPECIFICATIONS

Access Control: None

Answering Mode: Hands-free

Brand Name: HSmartcam

Camera: COLOR

Camera Sensor type: CMOS

Certification: CE

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 7

Display Screen Type: Color Touch Screen

Doorbell: Yes

High-concerned chemical: none

IP Camera Interface: No

Installation: Wall Mounting

Kit Configuration: One to Four Video Doorphone

Material: Acrylic Wire Drawing Panel

Model Number: V7022B-MSA

Origin: Mainland China

Power (W): 220v

Resolution: > 420 TV Line

Samrt Home Interface: No

Sensor Size(Inch): 1/3

Size: 7 Inch Video Intercom System

Smart home platform: Tuya

Technology: ANALOG

Type: intercom system

Viewing Angle (°): 100

Waterproof: Yes

Zone Input: None

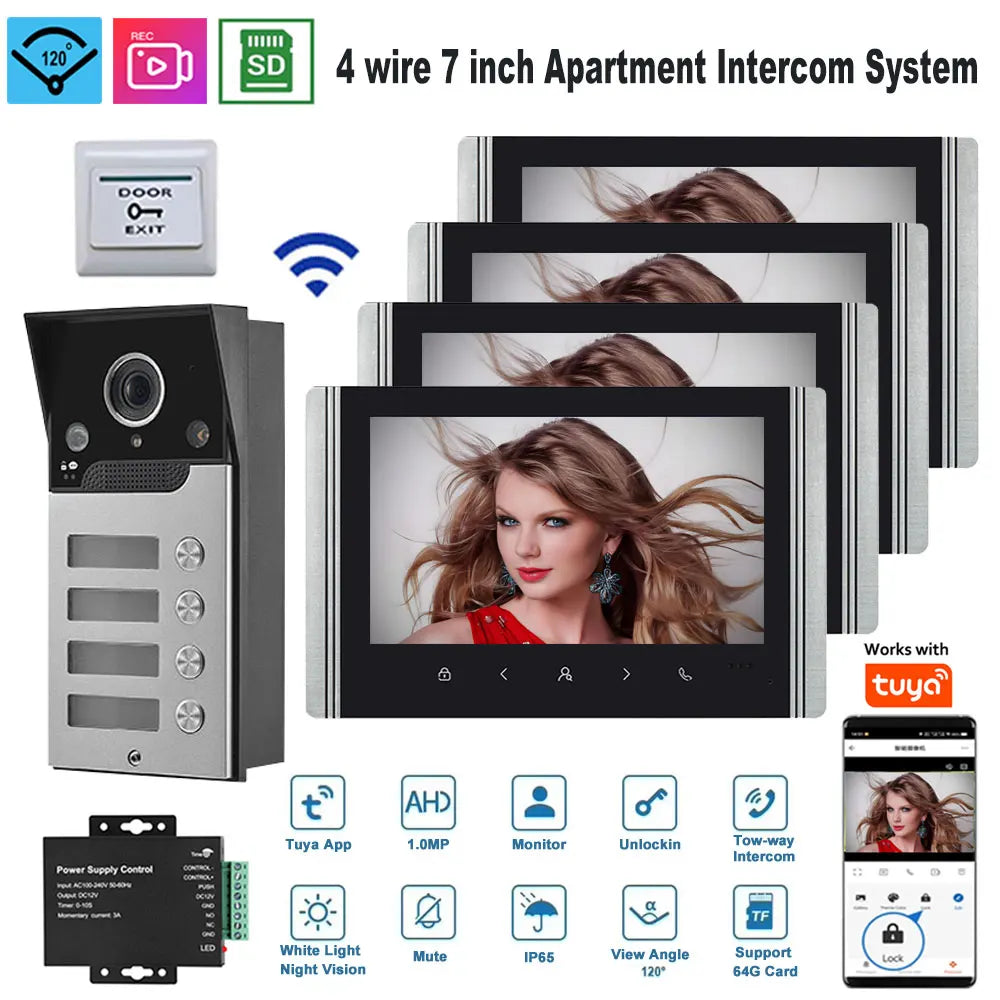

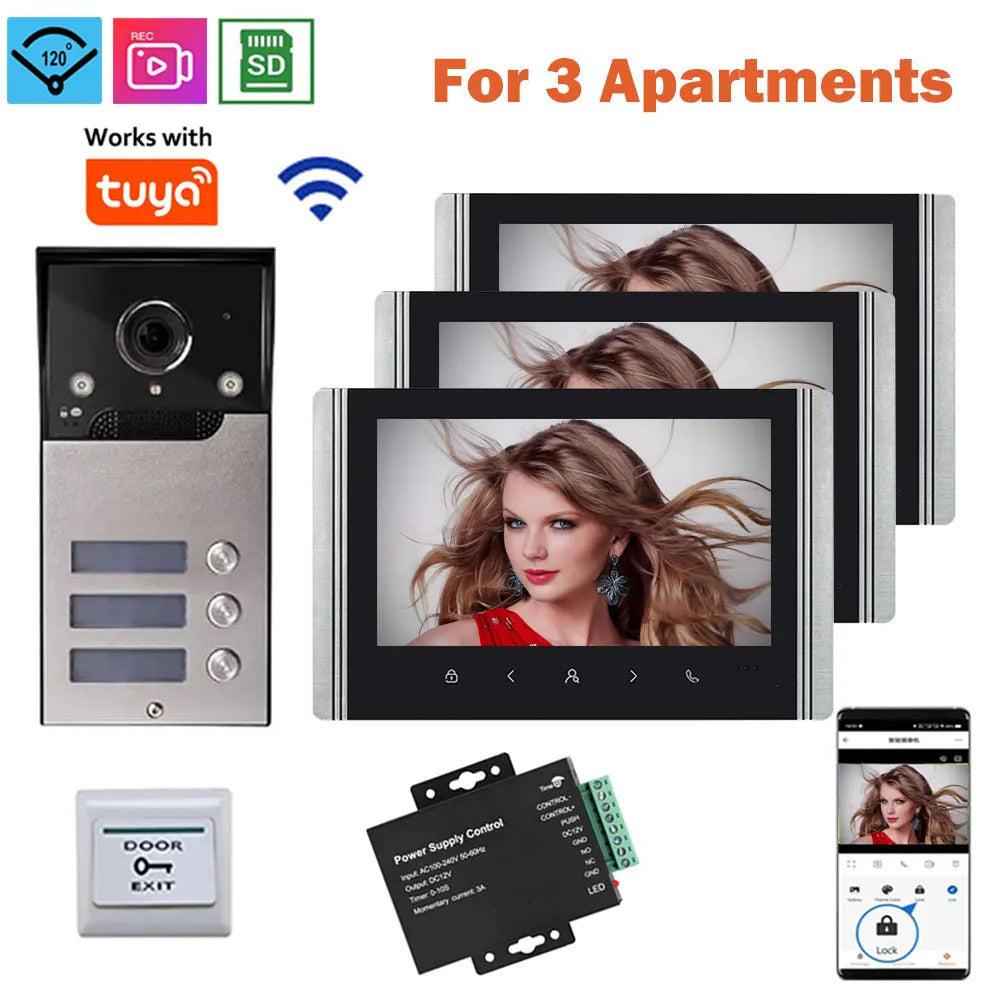

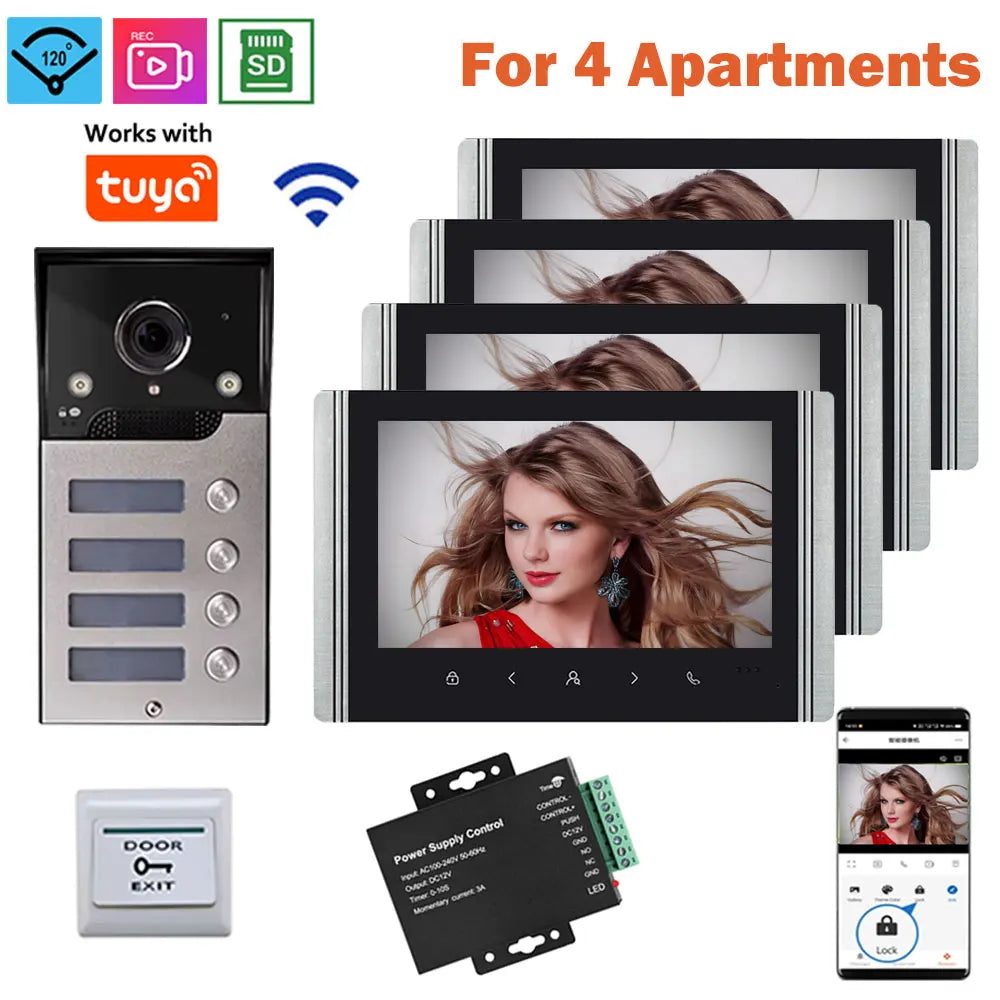

4 Wire WiFi 7 inch HD Video Door Phone Apartment Building Video Doorbell Intercom System Tuya Remote Unlock for 2/3/4 Family2-4Unit Home 4 Wire 7inch LCD Wifi Video Intercom for Apartments Residential Video Door Phone System with Tuya APP Unlock

Home 7inch LCD Wifi for Apartments Residential 1080P Intercom Doorbell with Tuya APP Unlock 2/3/4 Unit Video Door Phone System*7 Inch TFT LCD indoor monitor,wire drawing acrylic case, slim design,fashionable Touch button,7 inch LCD monitor including one 1200TVL outdoor camera and one indoor monitor, which combines functions of visual intercom, real-time surveillance, remote unlock, rainproof and night vision, which is widely used in villas, apartments, houses, hotels, offices, public buildings and so on.

*Outdoor doobell camera:1/3'' COMS,2.8mm lens,1200TVL,IR day/night vision,Metal material&waterproof.

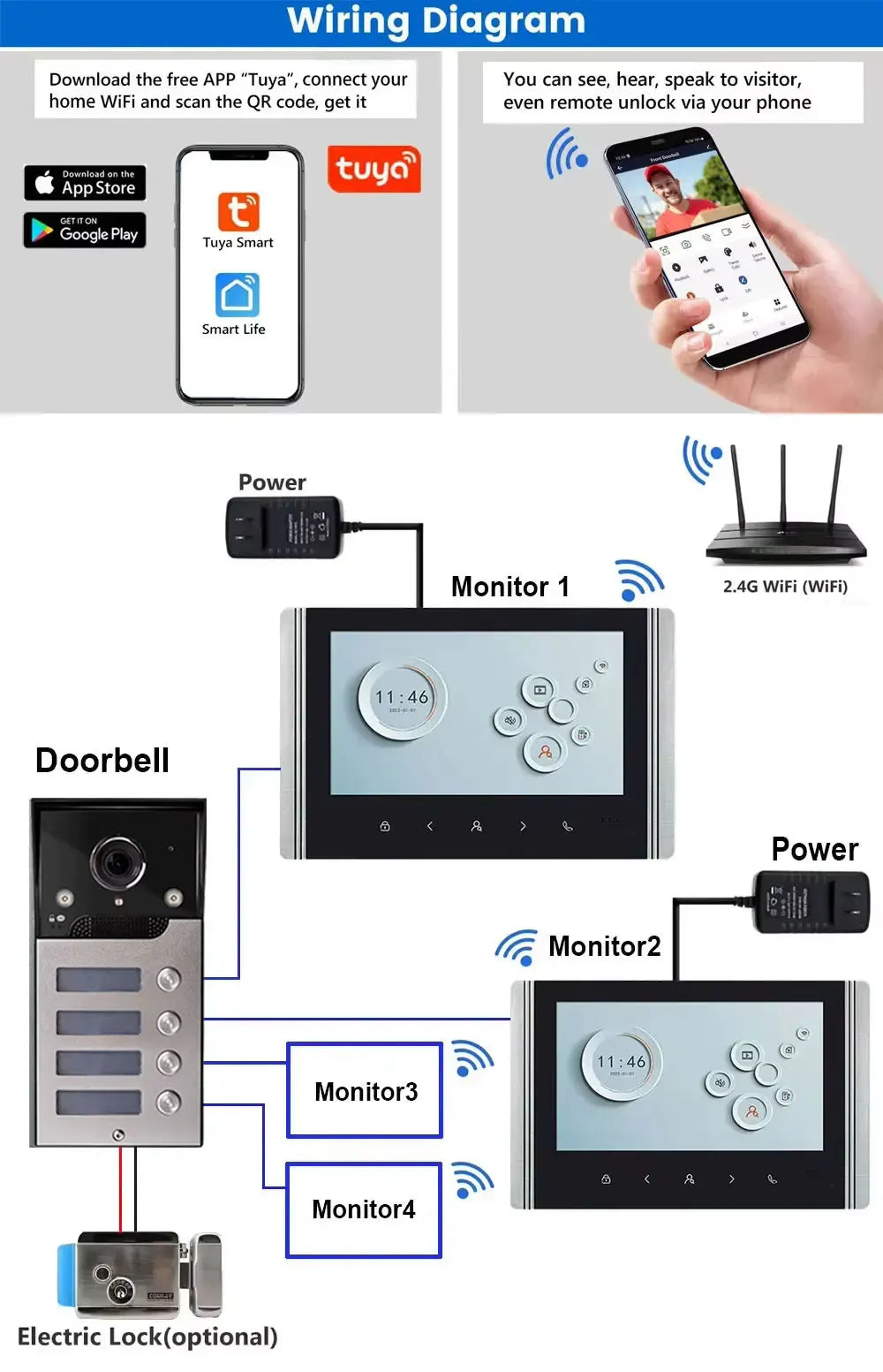

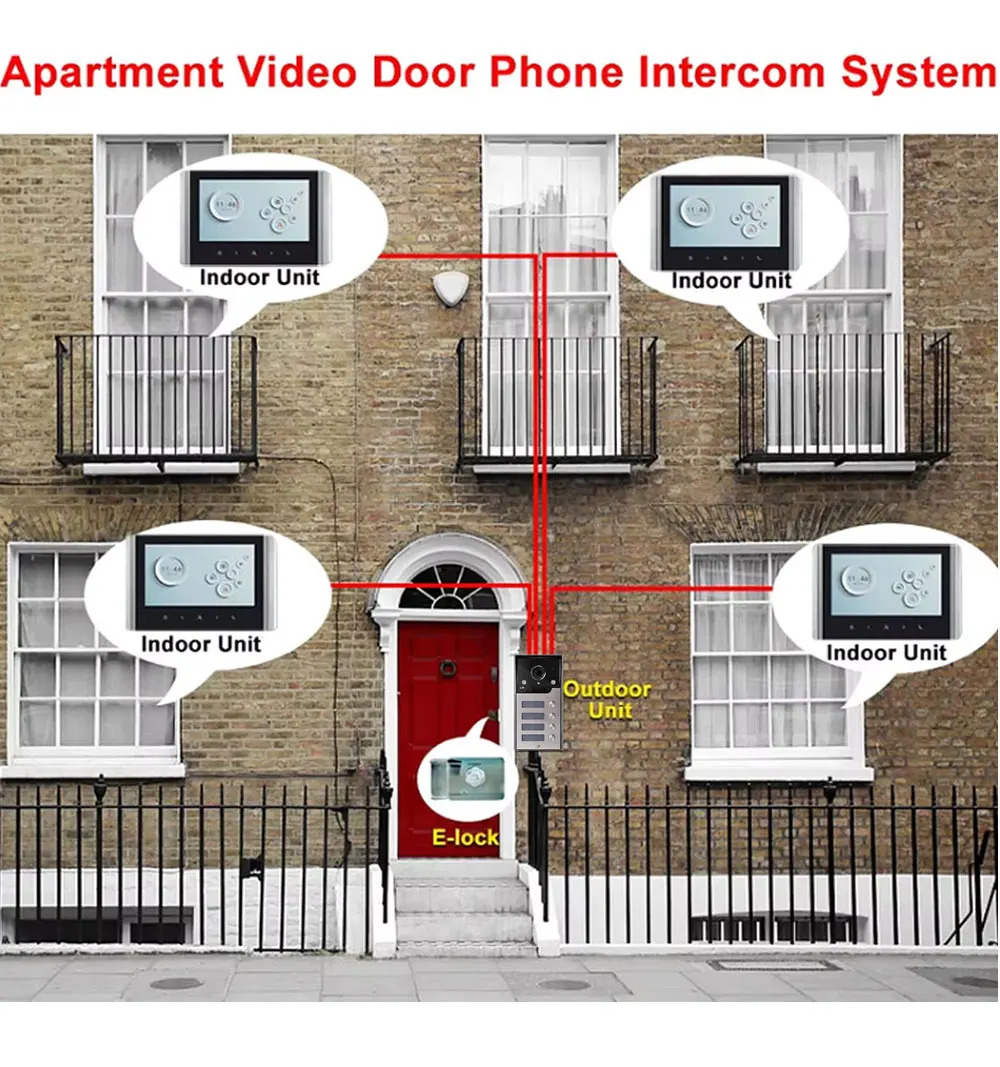

*Dual-way intercom, video and audio chat, Call transfer between monitor and doorbell,or monitor and monitor,Support call transfer between monitor and doorbell,or monitor with another monitor in another room,downstairs or upstairs.This set of products is Record Wired Wifi 2/3/4 Apartments Video Door Phone Intercom System.The display equipped with imported high-definition TFT-LCD screen,with clear image and ture colors,.It supports one-button unlocking and one-button answering etc. Intercom, remote unlock function.The system has 1 doorbell and 2/3/4Units monitors. It supports maxi 4Units monitors. 1 call button for 1 monitor, so you can call directly the room you want.

The visitor press any apartment "call" button of outdoor unit, the related indoor monitor will ringing and show the visitor's video

The householder press "talk" button to dual intercom with the visitor, press "unlock" button to unlock the door

The householder press "monitor" button to monitor the status of outdoor unit, press "talk" button to talk

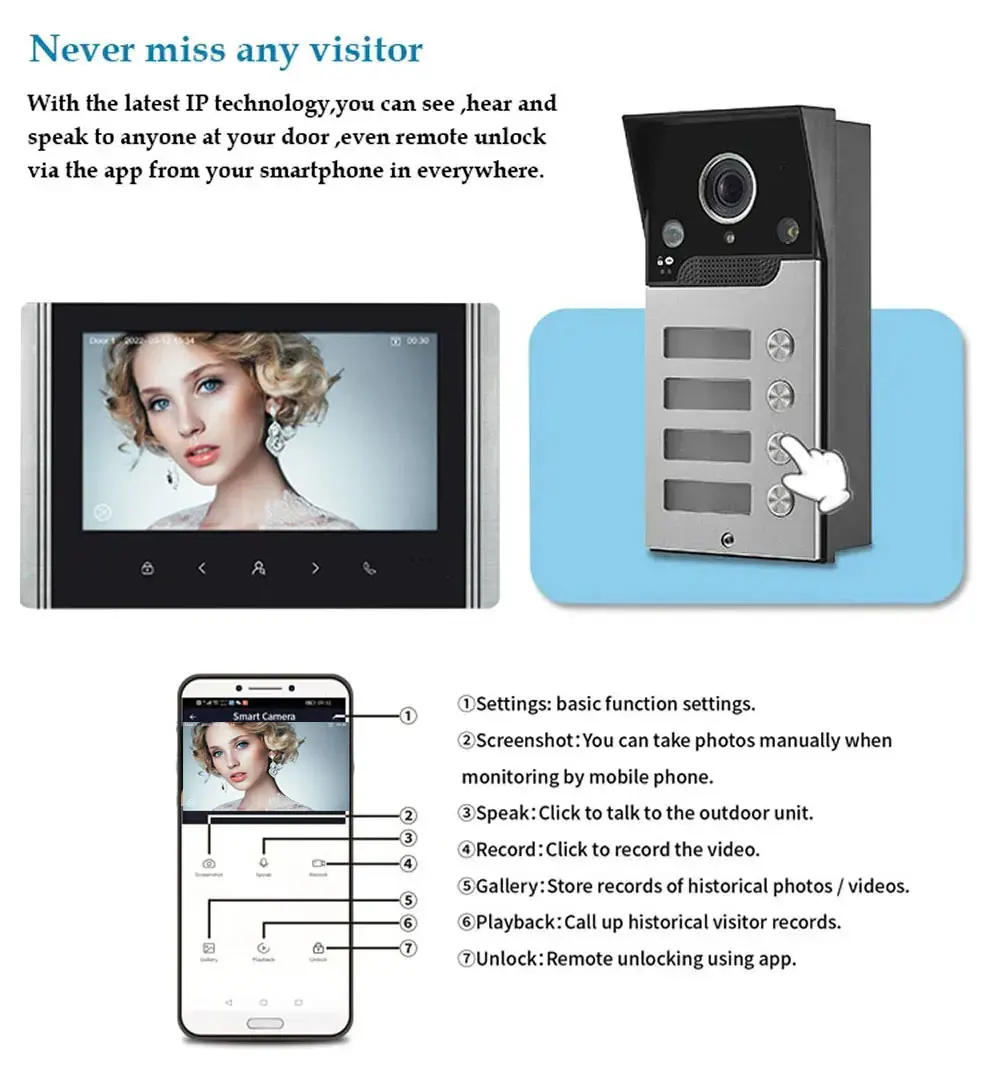

Support Tuya APP remote operation

Max Support 128G SD Card(SD card is not included)

Outdoor camera APP remote unlock the door lock, each apartment can unlock the door by APP

This kinds of video interocm door phone systems can work with all kinds of electric control door lock/ Electromagnetic lock/Electronic drop bolt lock/Electric strike lock etc.

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside, Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion.

This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door.Features:

*7 inch high definition LCD monitor,with taking picture,visitor records function.

*Multi apartments intercom system, outdoor unit use 1200TVL high-definition camera, indoor monitor is with functions of monitor, intercom, unlock, hands-free, take pictures automatically and don't disturb function.

*Support mobile APP with monitor, indoor monitor can take pictures and video record, support Max128G TF card(TF card is not included).

*One device can be added and connected to several mobile phones in the meantime,and up to four mobile phones are allowed to open and view the outdoor unit in the meantime

*Indoor monitor volumes and image brightness & color can be adjusted by your own preference.

*WIFI Video Door Phone:Indoor monitor can connect to wireless WIFI router.

*with a rain-cover, installation is more convenient.

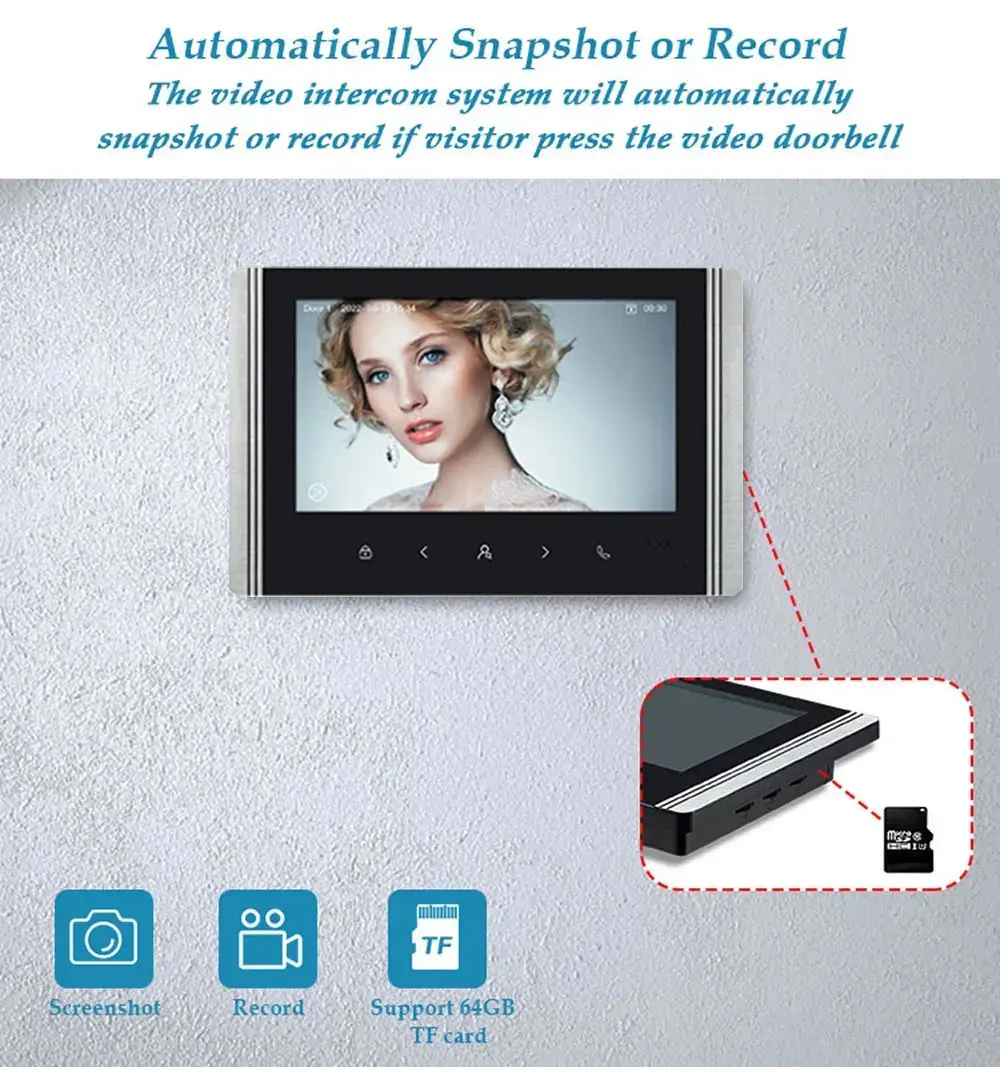

Automatically Record Video or Take Pictures

When the outdoor unit calls the indoor unit, the indoor unit can automatically record video or take pictures (this function needs to be set on the interface).

The indoor unit supports a maximum of 64GB memory card(Not include)Specifications

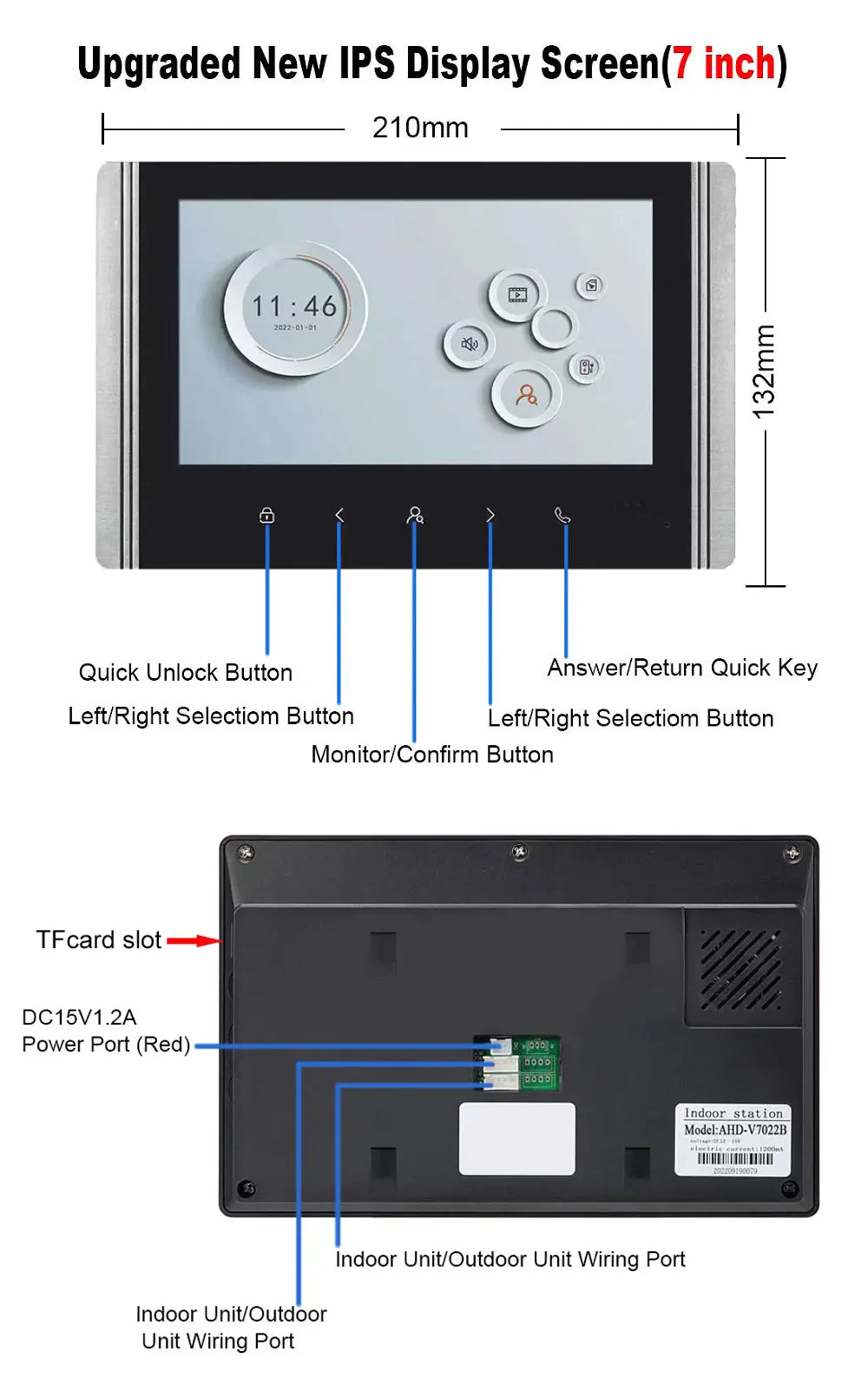

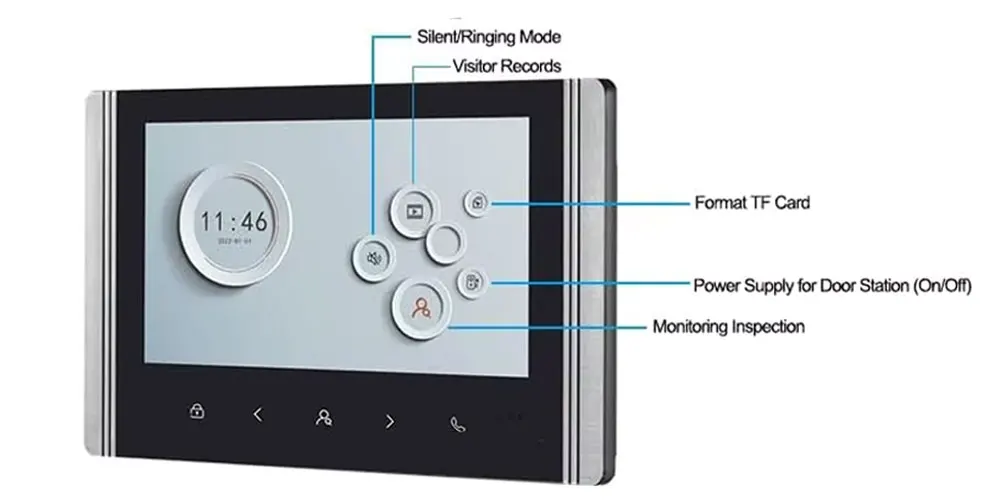

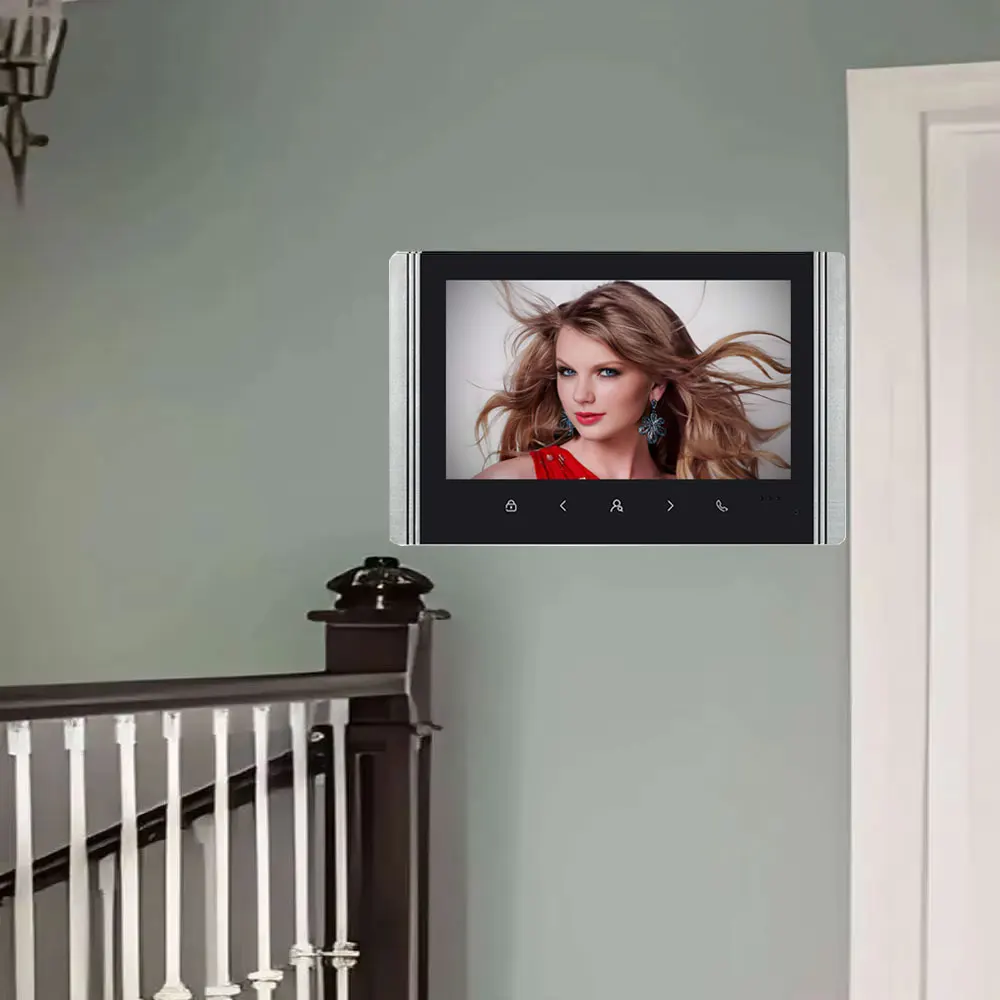

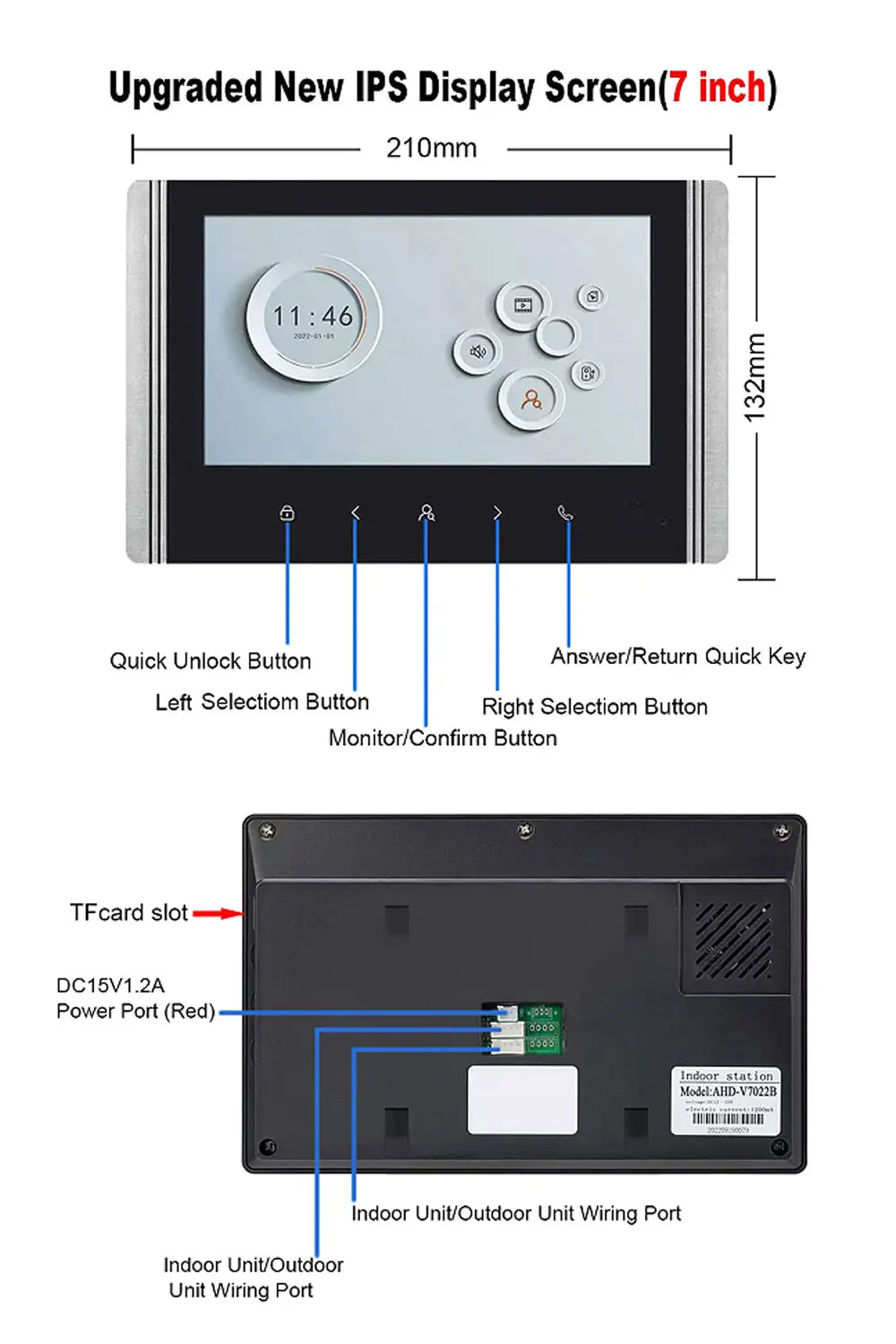

Indoor Monitor

Input power: AC 100-240V 50/60Hz

Output power: DC15V; 1.2A

Monitoring/Talking Time:90s

Setting: Color/Brightness/Volume

Ringtones:52

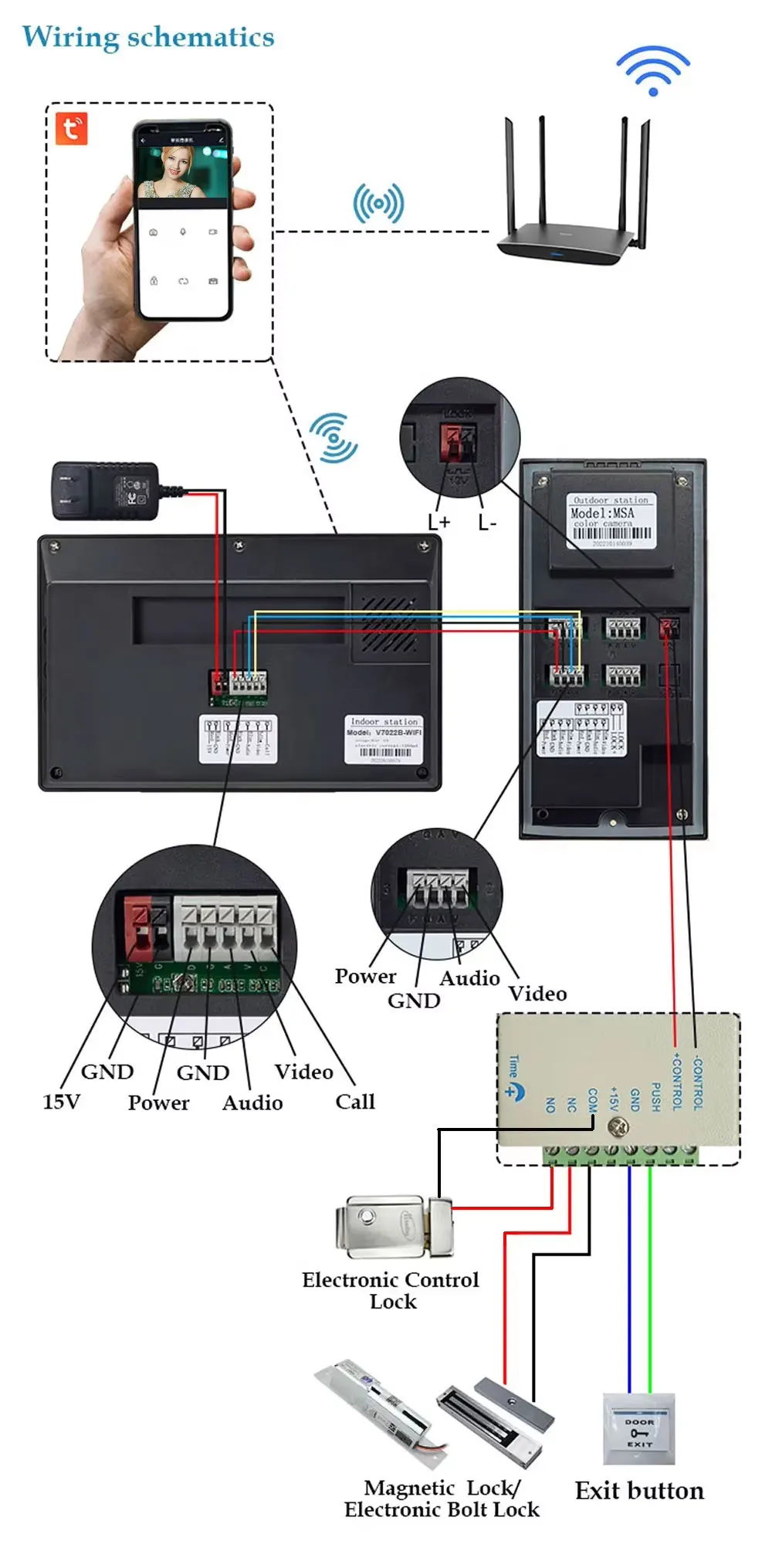

Connection Wire: R V V 4/5 wire

Support Unlock:From Monitor

Installation:Wall Mount

Material:ABS plastic

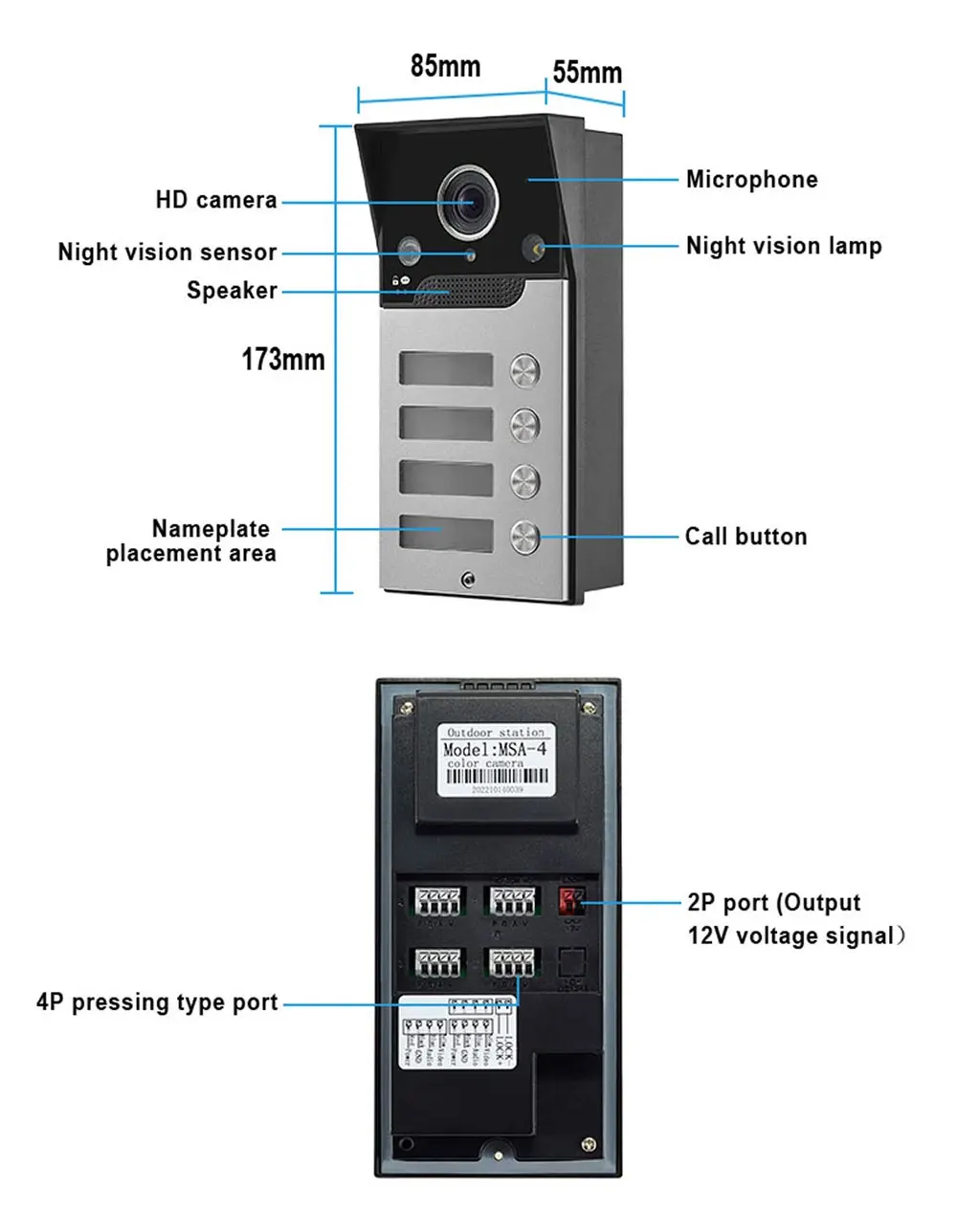

Outdoor camera:

Camera resolution: 1200Lines.

Camera: 1/3 Color CMOS Camera.

Built-in microphone and speaker

Power Adapter: From Monitor, DC15V.

Viewing angle: (U/D/L/R, degree): 60/35/70/70.

Connection: 4 cored wire (Up to 4 monitors).

Case: Aluminum material, weatherproof.

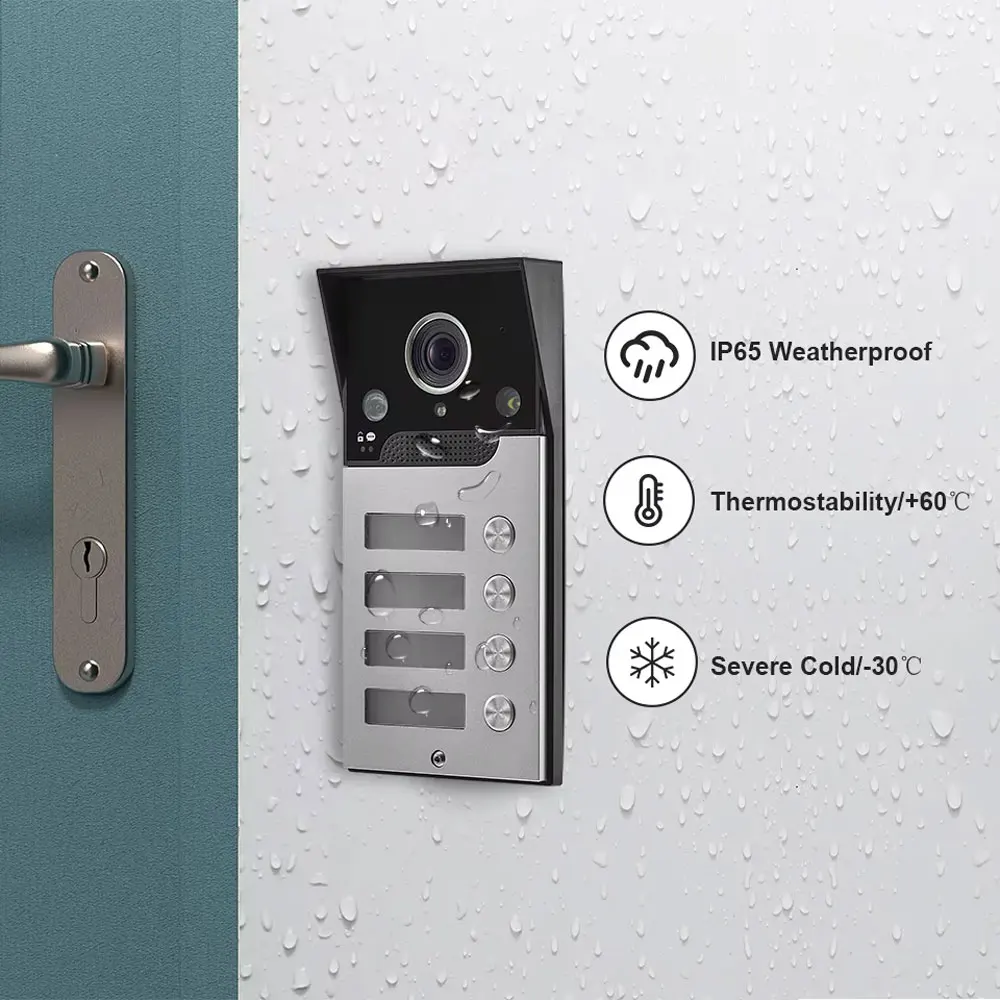

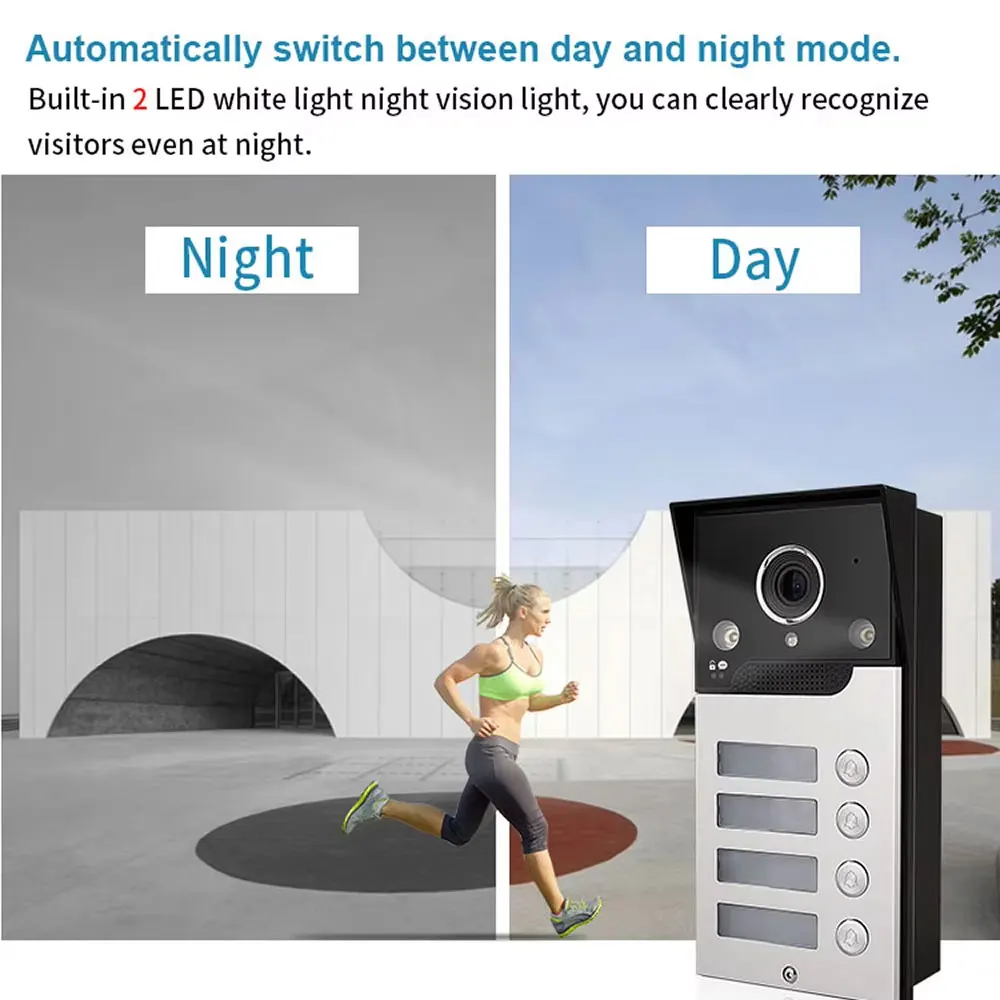

Waterproof & Night Vision Camera

The Outdoor doorbell is constructed with a aluminum front panel for protection from vandalism, while waterproofing protects from the rain or snow.700TVL IR night vision camera makes you to see clearly who rings the bell even at night, it can capture images in low-illumination environment.Can automatically balance the light and dark area of the video to give you a better night vision experience.

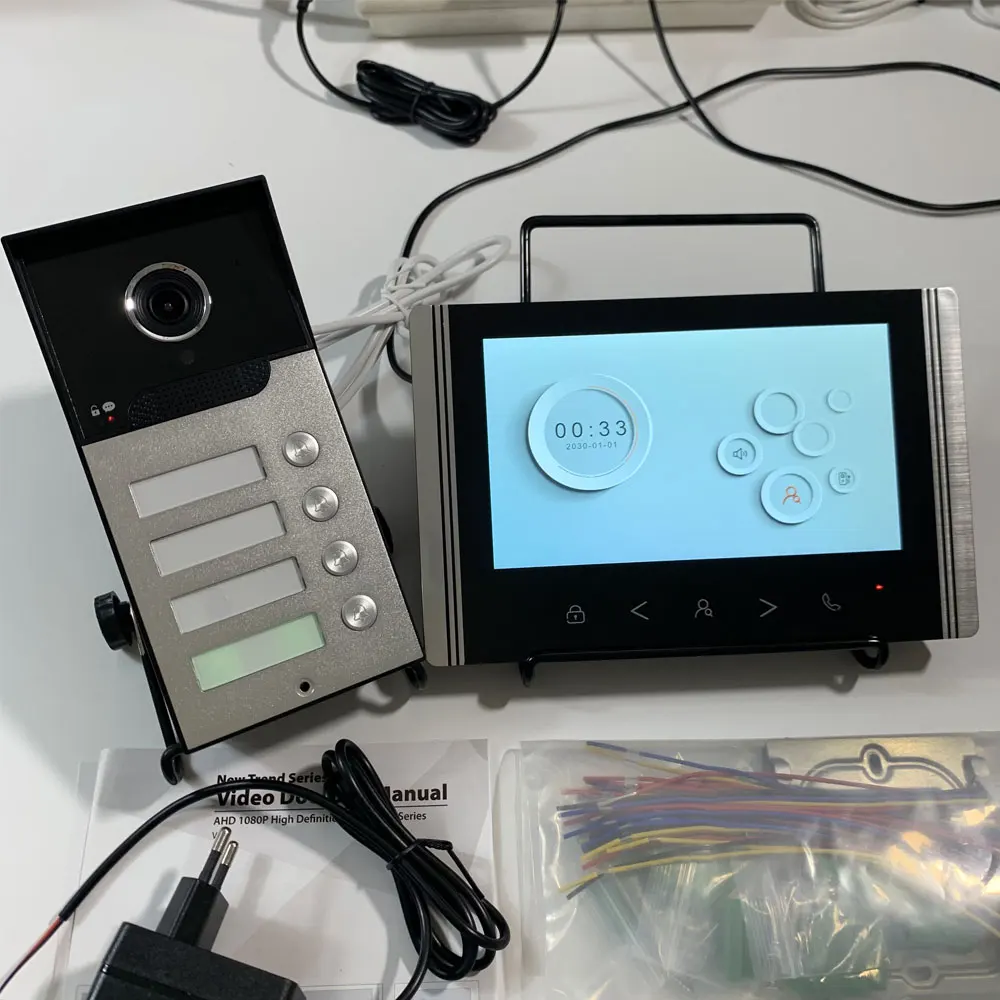

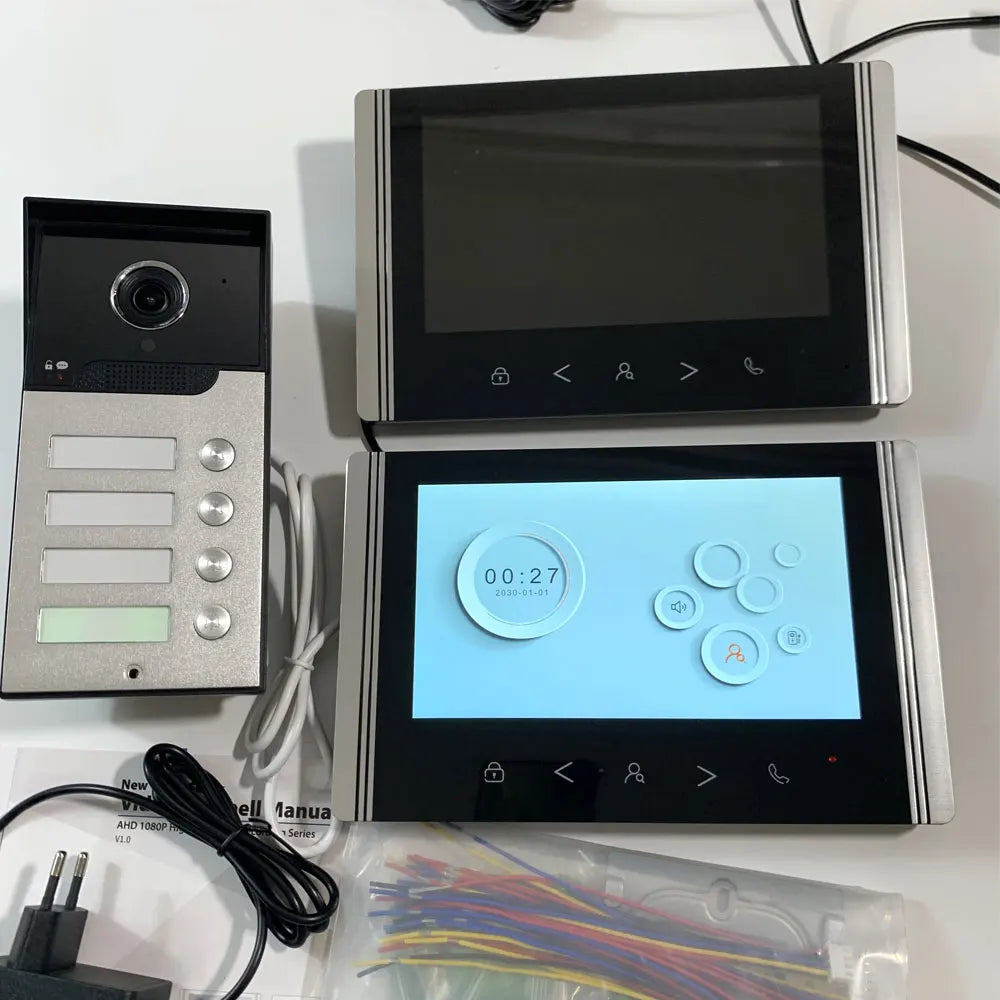

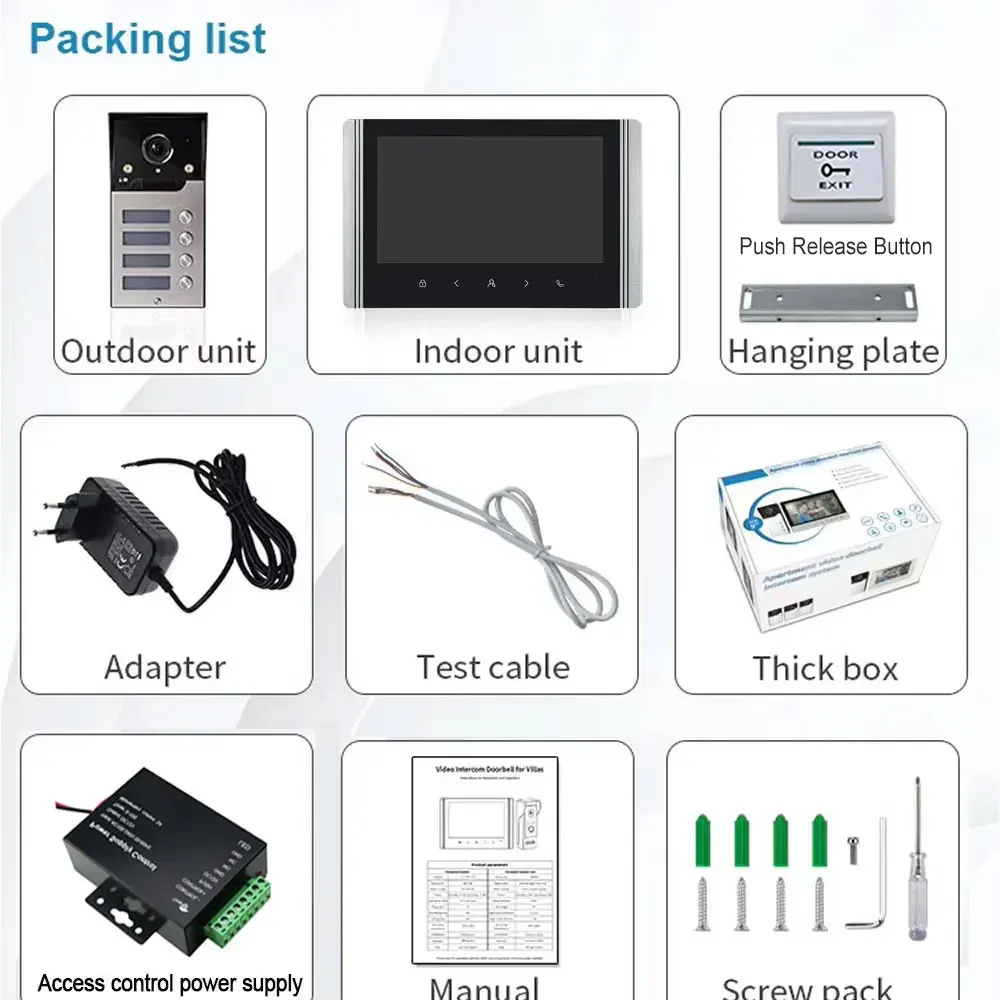

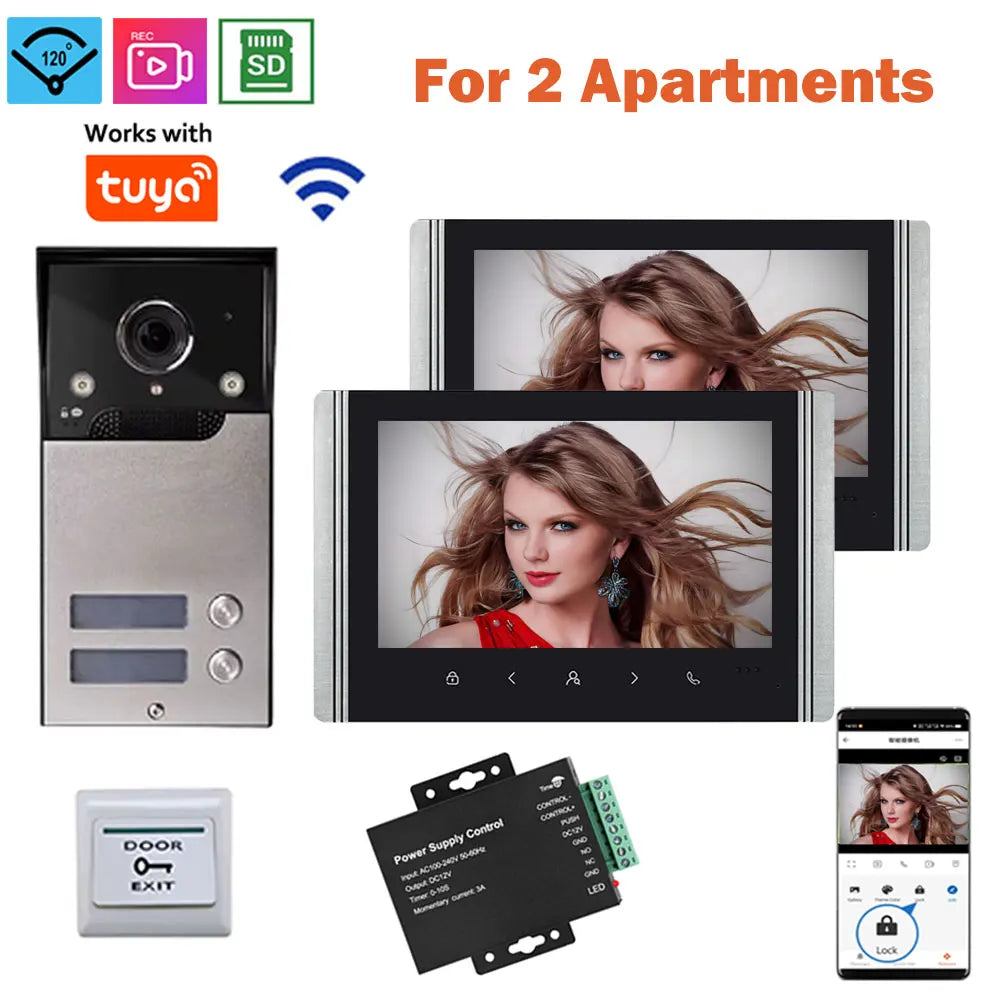

Package Including

1* Outdoor unit（Camera）

 Indoor Unit （2-4 Monitor）

1* Power adapter （US /AU / EU / UK plug）(optional)

1 x 12V3A DC BOX

1 x Push Release Button

2-4* Mounting plate

2-4* Bag of screws (optional)

1*User manual

According to the quantity of display, power distribution adapter!

Applicable to all electronic locks
