SPECIFICATIONS

Application: Developable Moblie Platform, Unmanned vending vehicle

Apply to: unmanned delivery vehicle

Brand Name: NONE

Dimensions: Crawler Dredging Robot

Keyword: wheeled AI robot vehicle

Loading capacity: 50kg

Machinery Test Report: Provided

Model Number: Pipeline Dredging Robot

Origin: Mainland China

Place of Origin: Henan, China

Product Keywords: RC robotic chassis vending

Product name: 50kg loading delivery robot all terrain wheeled unmanned vehicle

Size: 500*500*377mm

Type: robotic chassis

Video outgoing-inspection: Provided

Walking Speed: 5-10km/h

Warranty: 1 Year

Weight: Sewer Dredging Robot,45kg

is_customized: Yes

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com



Product Overview

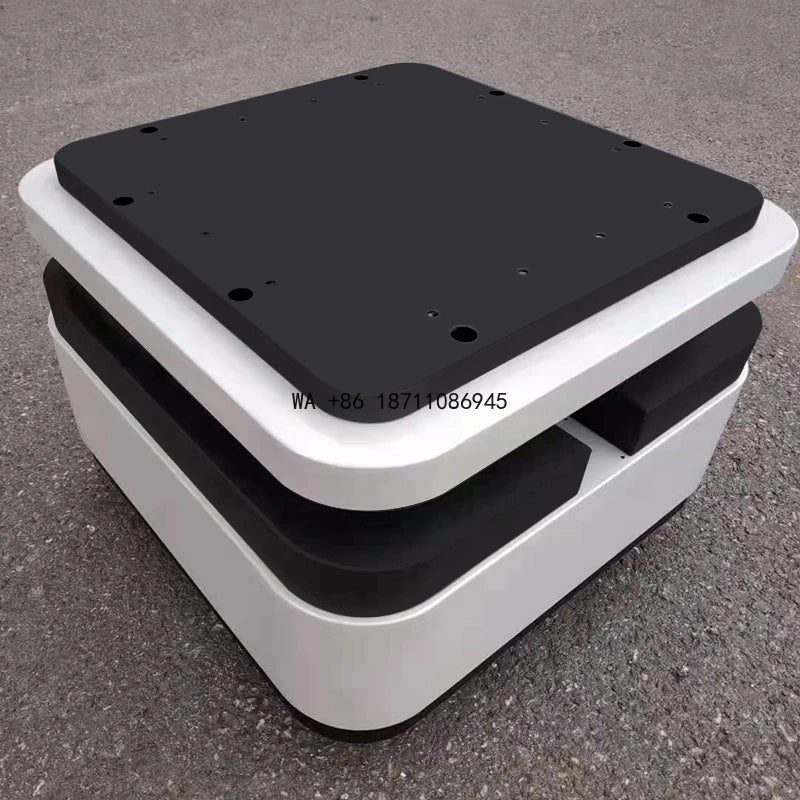

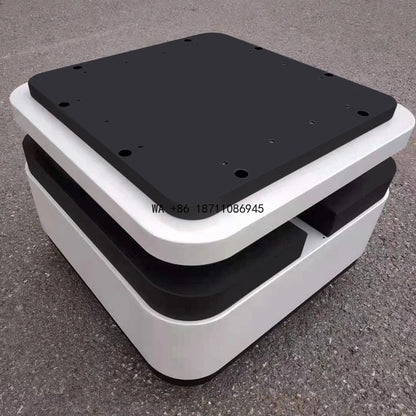

UGV-5 50kg payload Delivery Robot Undercarriage

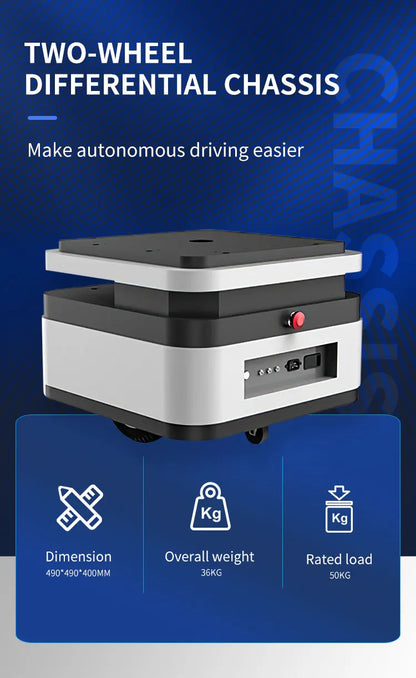

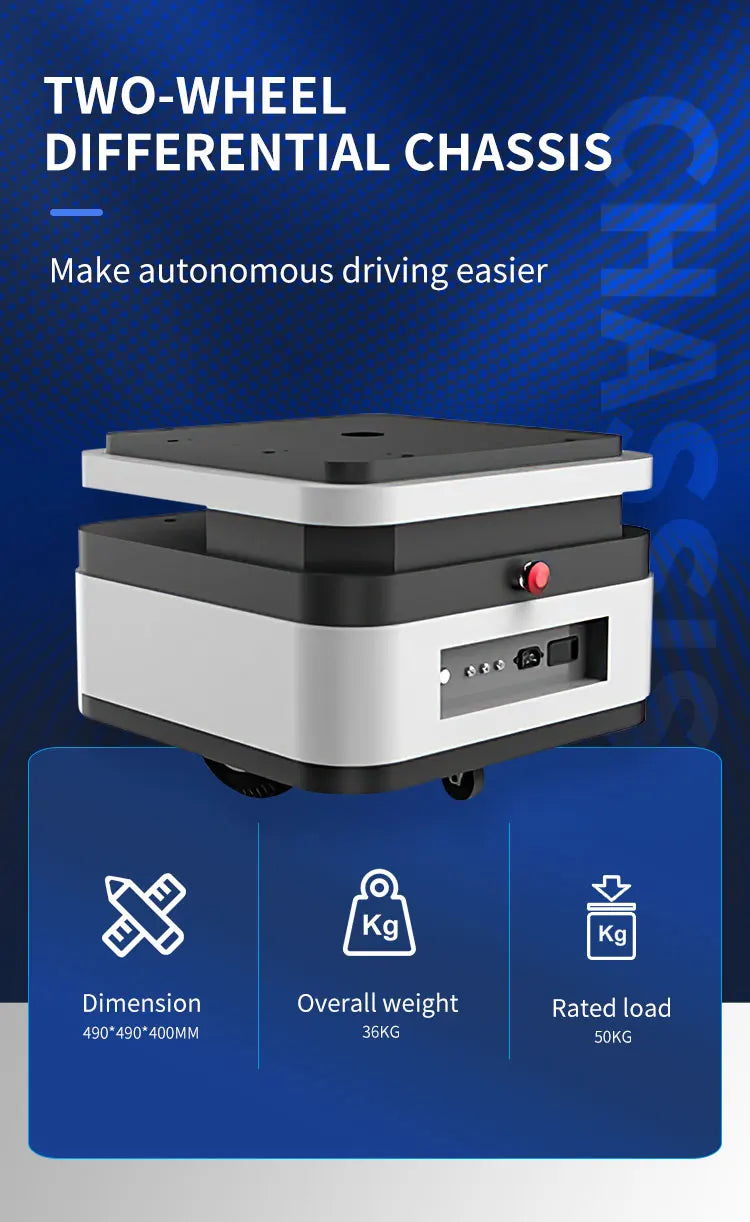

UGV-5 is a small robot chassis. It is a mobile robot development platform built with the design concept of being lightweight, modular, and intelligent. It has strong load capacity, stable control performance, a wide range of applications, and can be flexible movement on all kinds of typical pavement. Stereo s, radars, GPS, IMU, manipulators, and other equipment can choose to be installed on the chassis as an extension application and can be applied to scientific research, distribution, logistics, and other fields. Its two-wheeled differential steering chassis makes auto driving easier.

FEATURES AT A GLANCE

Unmanned Robot Vehicle :

Lightweight, Modular, Intelligent

High power hub motor:

Hige efficiency, easy control

Rail Level Driver Controller(MCU):

Fast response, Stable and reliable

High power hub motor

Hige efficiency, easy control

Rail Level Driver Controller(MCU)

Fast response, Stable and reliable

Rail Level drive-by-wire control system

VCU, Read parameters, Intelligent

Features

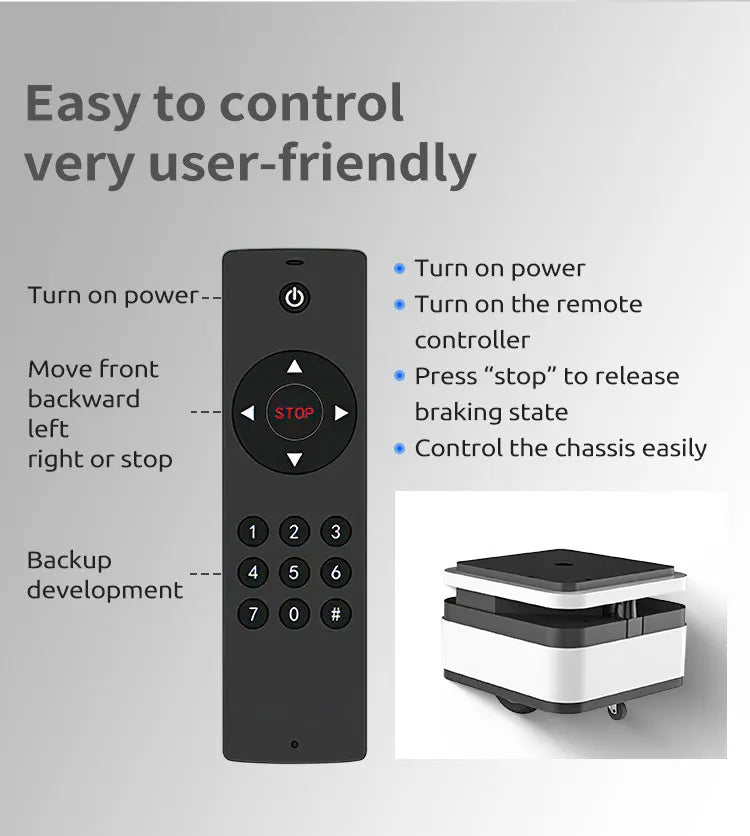

1. Simple and easy to operate.
2. High configuration core hardware.
3. The two 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by front-wheel drive, rear-wheel drive, or four-wheel drive.
4. Rail level drive controller(MCU), MCU control, fast response, stable and reliable.
5. Vehicle-grade drive-by-wire chassis control unit(VCU).
6. Electronic control logic design more suitable for autonomous driving needs.
7. Reading parameters, coordinating power output, intelligent body system.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Dimension	500*500*377mm
2	Payload	50kg
3	Weight	45kg
4	Steering	Differential steering
5	Brake form	Anti-drag braking
6	Minimum ground clearance	132mm
7	Drive mode	Front Ackerman steering, rear hub motor drive
8	Brake mode	Hydraulic holding brake, anti-cracking brake
9	Tire outer diameter	200mm
10	Speed	≤5km/h(50km/h adjustable)
11	Driving range	5-10km (5km/h is EXW speed)
12	Braking distance	0.4m
13	Turning radius	0.5m
14	Max. Climbing	15°
15	Obstacle clearance height	30mm
16	Security	Touch stop bar, emergency brake button
17	Motor type	Wheel hub motor (Permanent Magnet Synchronous Motor with encoder)
18	Motor Power	300W*2
19	Battery	48V/8Ah ternary lithium battery
20	charger	AC220V independent charger
21	Charging time	≤3h (Quick charging can be customized)
22	External power supply	12V/2A (can be customized)
23	Protection class	IP35 (IP66 can be customized)
24	Communication Interface	Open the underlying CAN protocol
25	Move control	VCU control
26	Sensor type	Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensors

Successful Project

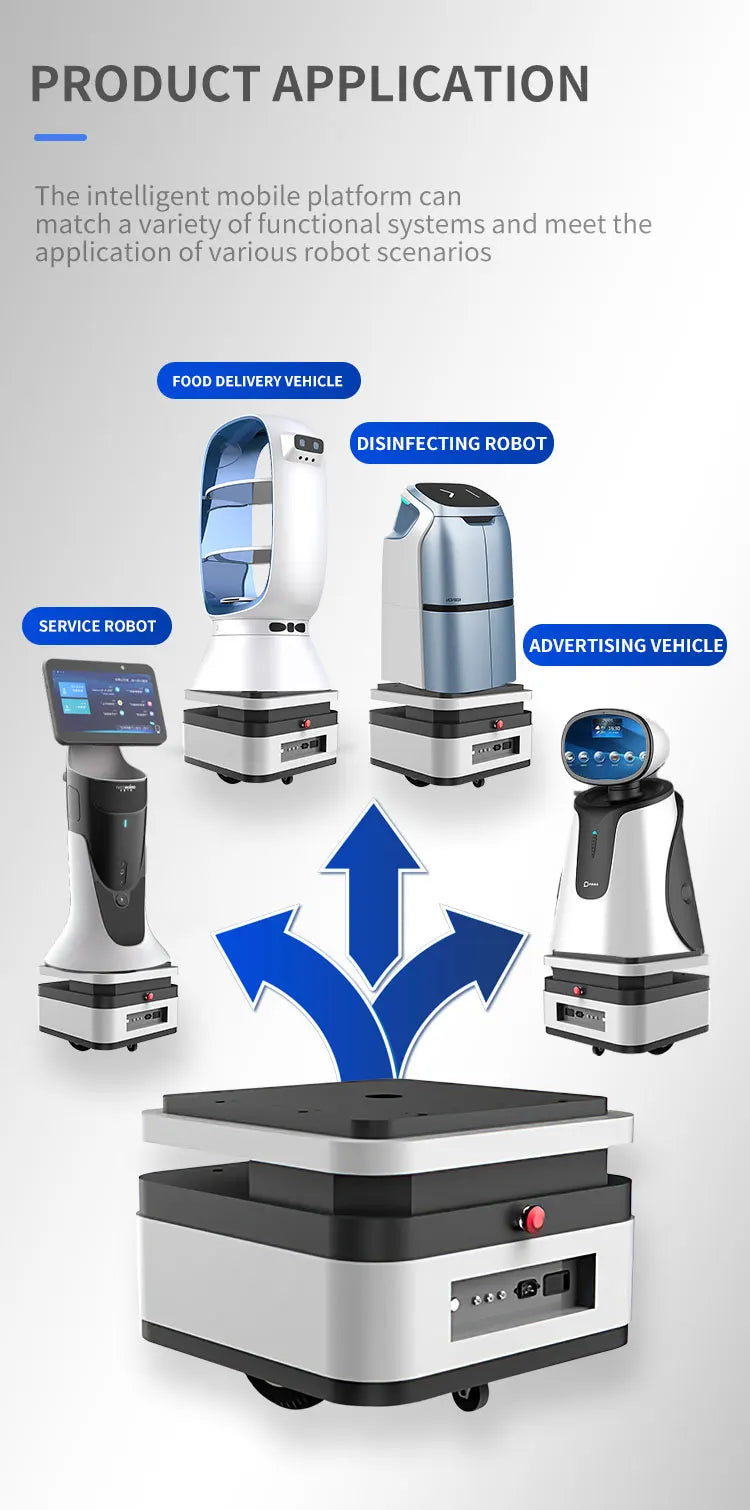

Application

1. Food delivery vehicle.
2. Disinfecting robot
3. Unmanned service robot
4. Unmanned inspection vehicle
5. Advertising vehicle.
