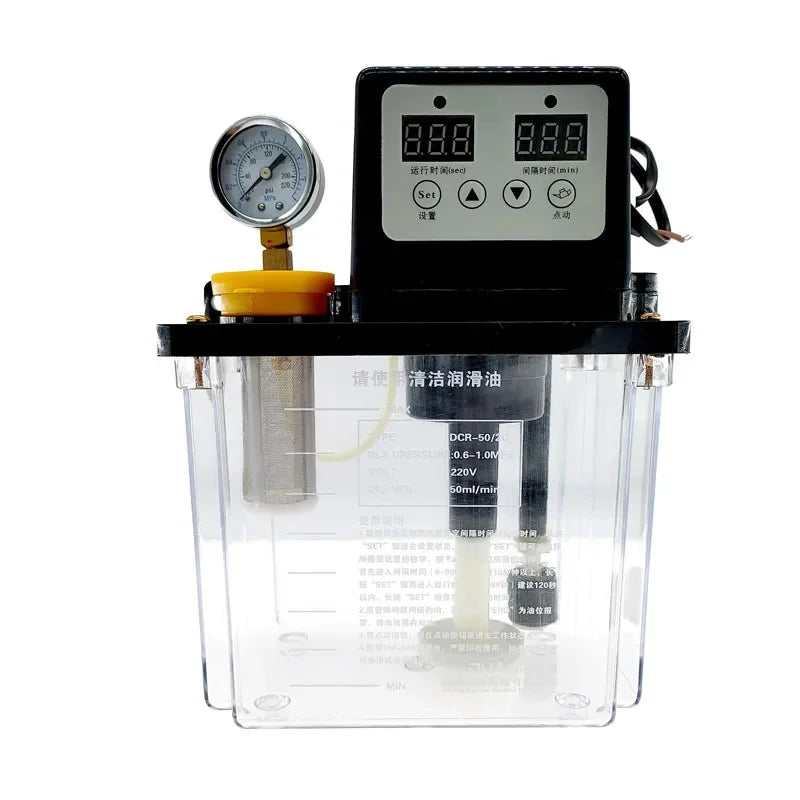

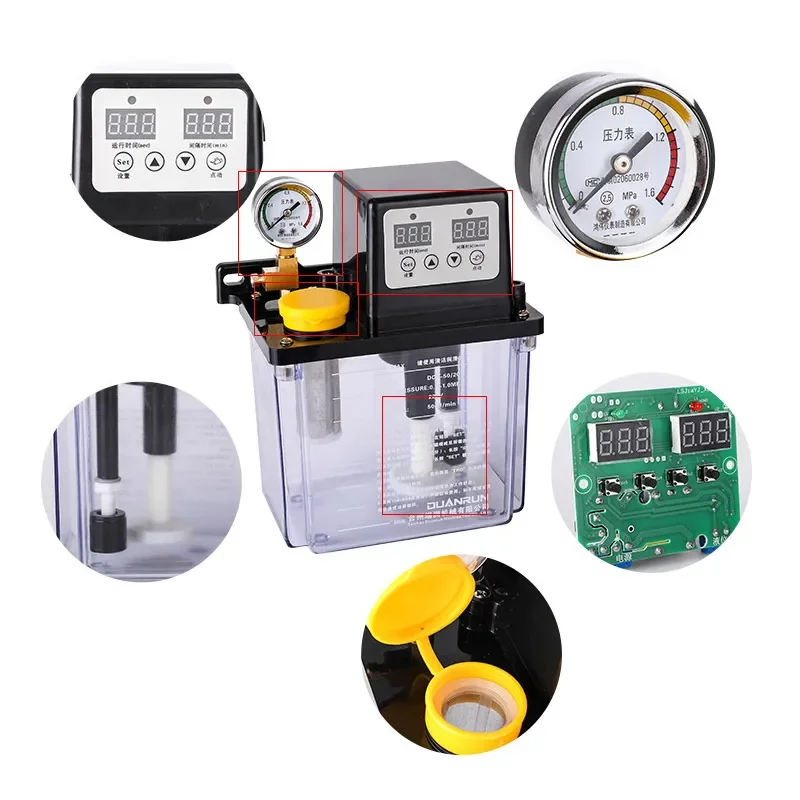

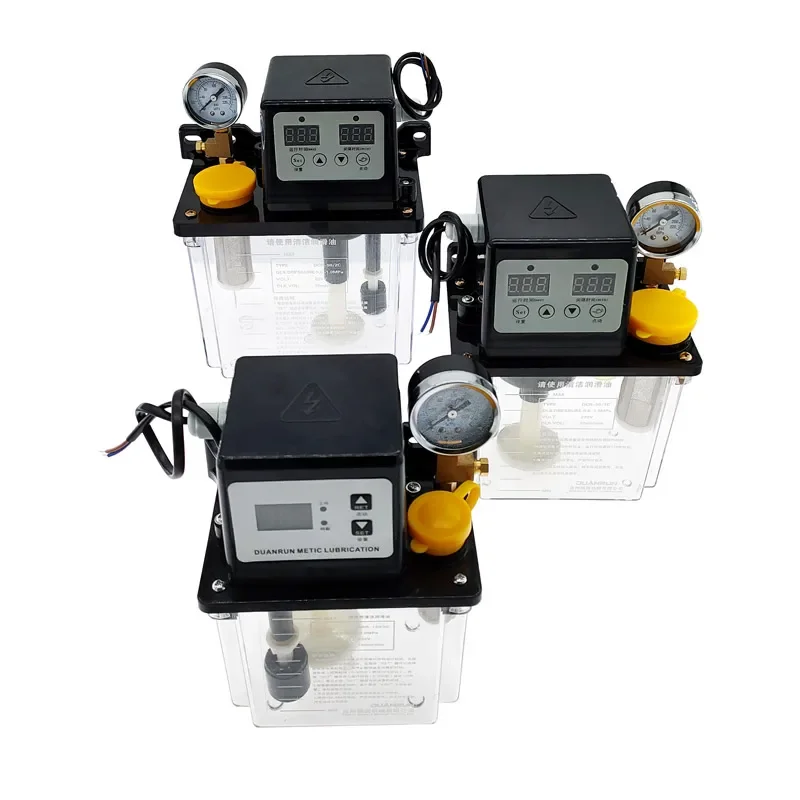

2L Lubricant Pump Automatic Lubricating Oil Pump Volt AC 220V CNC Electromagnetic Lubrication Pump Lubricator
2L Lubricant Pump Automatic Lubricating Oil Pump Volt AC 220V CNC Electromagnetic Lubrication Pump Lubricator
Couldn't load pickup availability

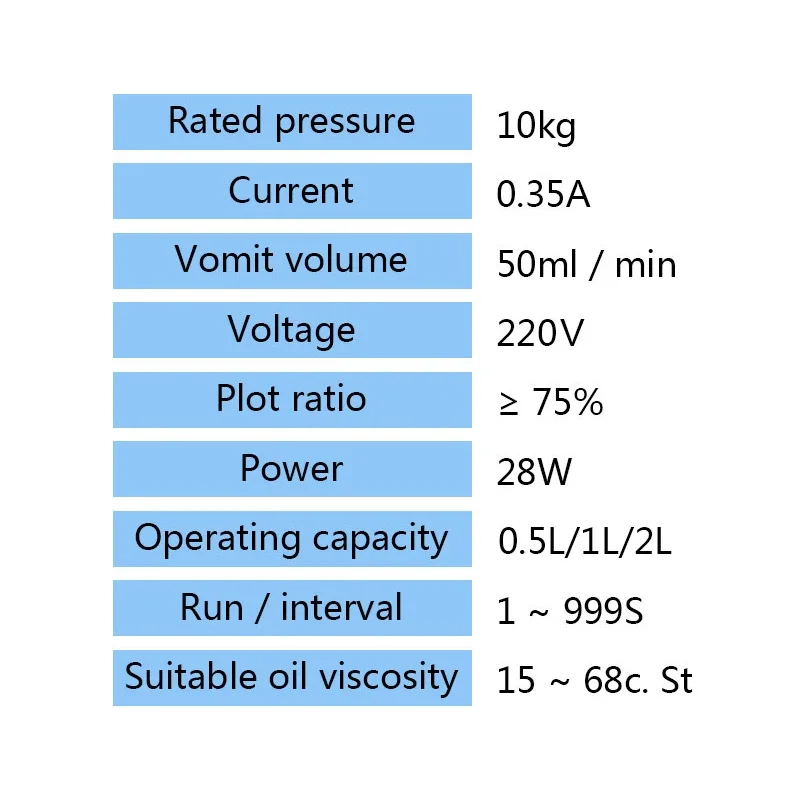

SPECIFICATIONS
Application: Automatic CNC control solenoid pump
Brand Name: NONE
Certification: CE
Does it include batteries: Not included
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Fuel: lubricating oil
High-concerned chemical: none
Model Number: 2L
Origin: China Mainland
Power (W): Electric
Power Source: Other
Pressure: Low Pressure
Standard or Nonstandard: Standard
Structure: Lubricating oil pump
Theory: Electromagnetic Pump
Use: Oil
Instructions:

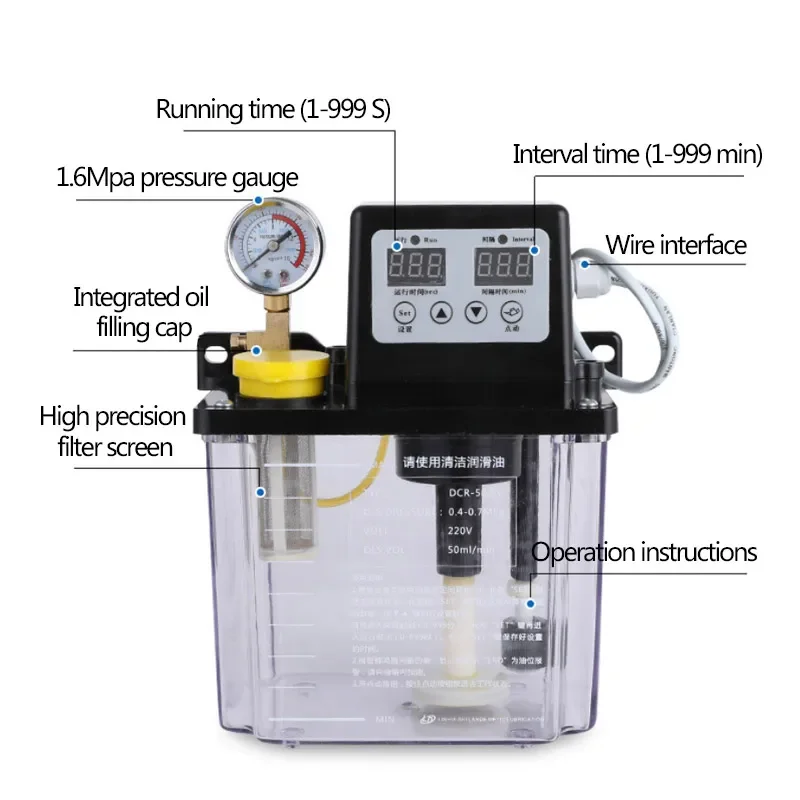

1. Set the interval time and operation time according to the actual oil consumption of the equipment. Long press the "SET" key to enter the setting state, then short press the "SET" key to select the number to be set, press โฒโผ to increase or decrease to the required time. First enter the interval time (0 ~ 999 minutes), more than 10 minutes is recommended.ย Then press the "SET" key to enter the running time (0 ~ 999 seconds), within 120 seconds is recommended. Finally, long press the "SET" key to save the set time.
2. The alarm buzzer rings intermittently, and the display screen shows "ERO" for oil level alarm. Please fill the oil tank.
3. With inching button, press and hold the inching button to enter the working state.
4. Use 15#-68# lubricating oil only, recycling is strictly prohibited. If it is not used according to the regulations, the oil pump will be damaged.
