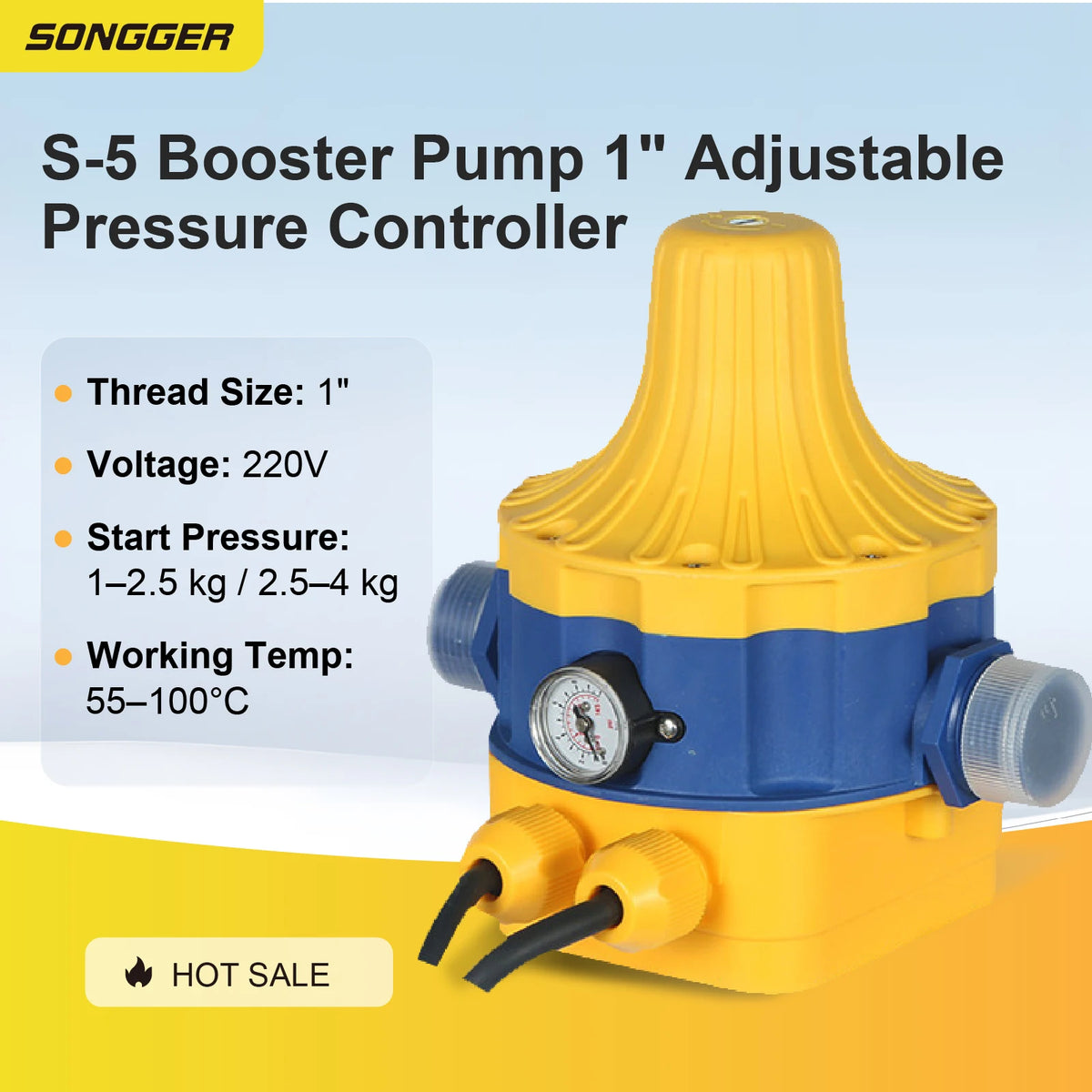

SPECIFICATIONS

Brand Name: NONE

Current: 10A

High-concerned chemical: none

Origin: Mainland China

Power: 1.1KW

Pump Head: ≥25m or ≥40m

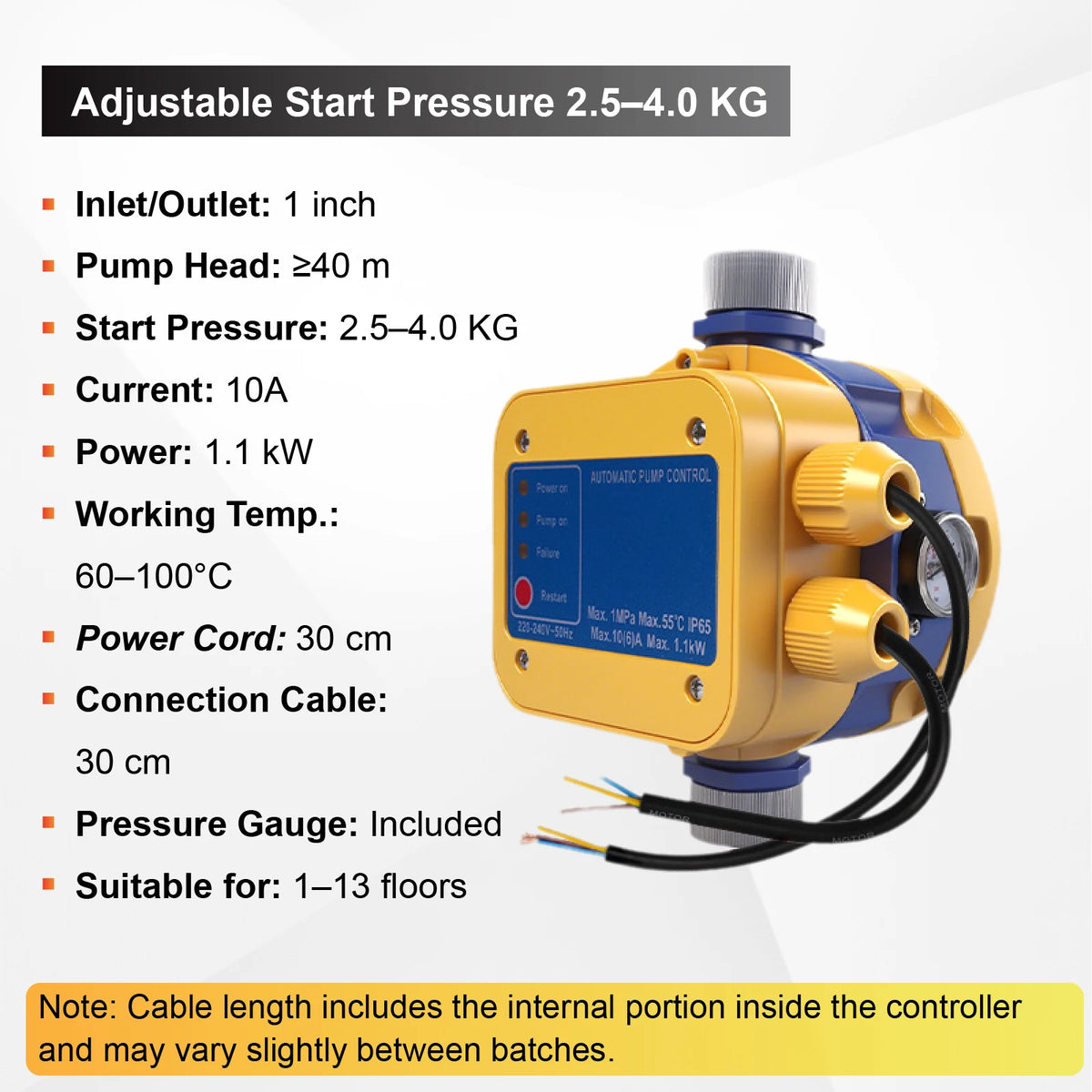

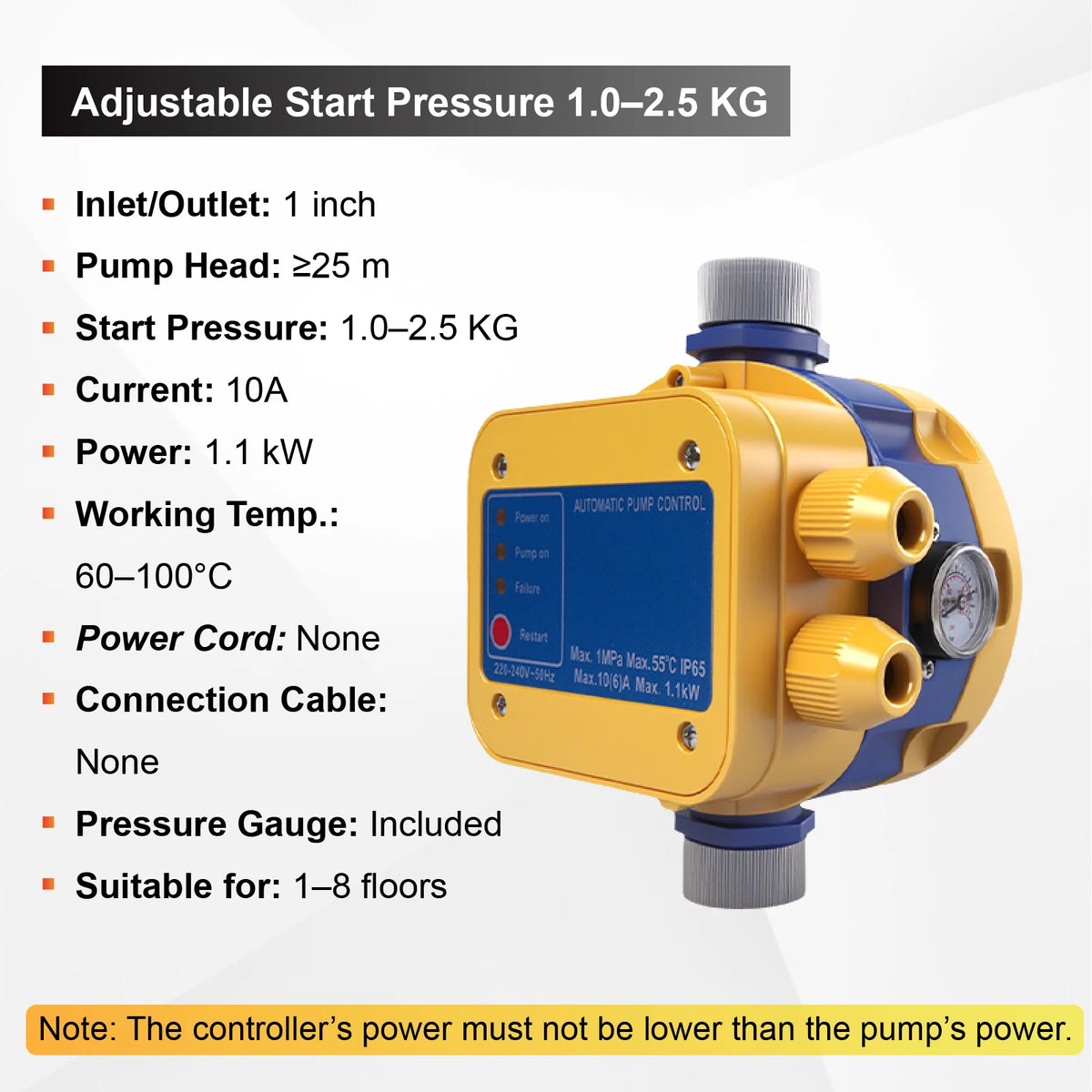

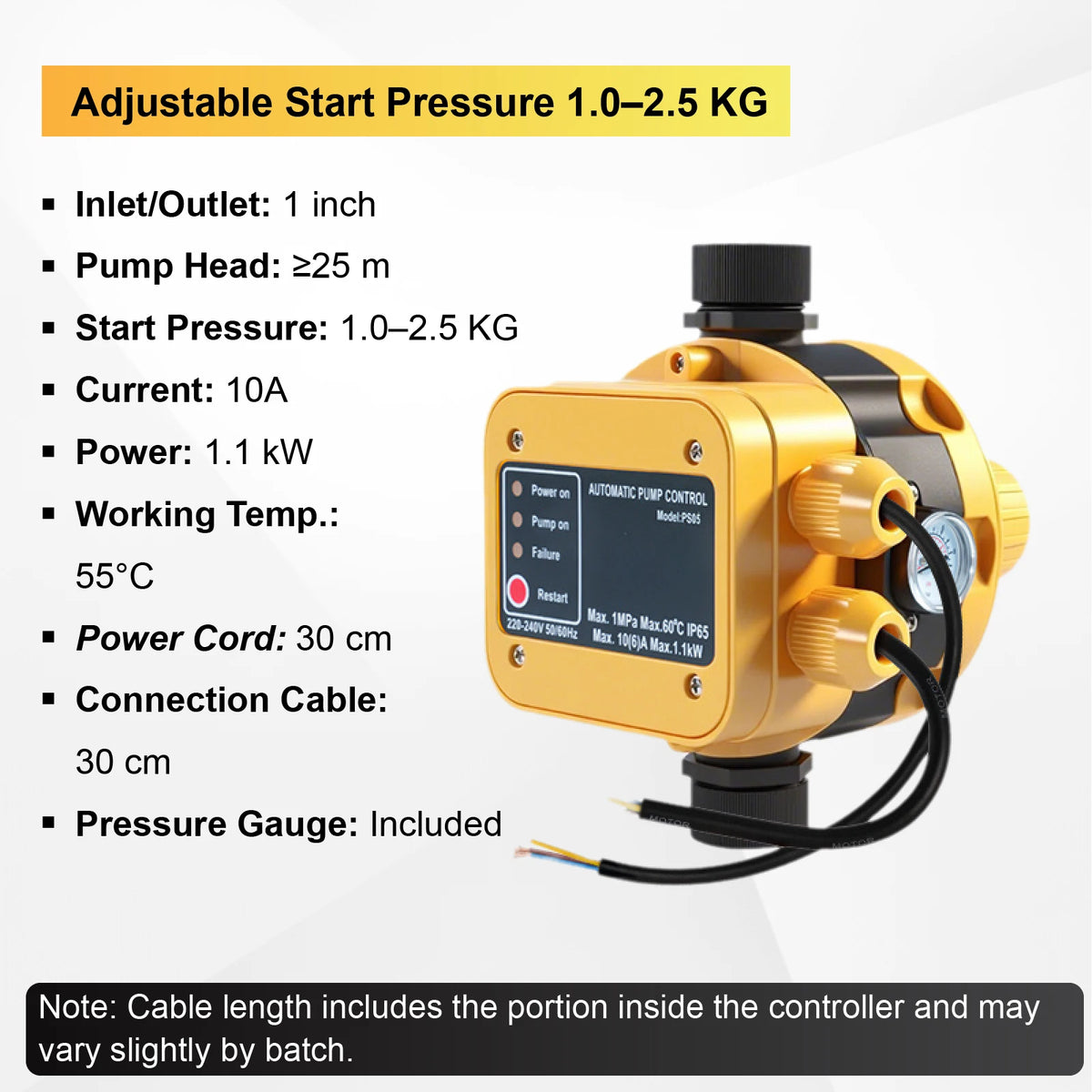

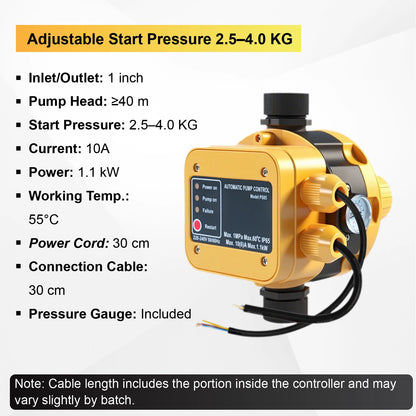

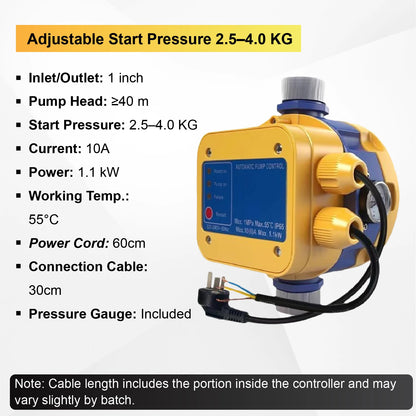

Start Pressure: 1-2.5KG or 2.5-4KG

Thread: 1 inch

Working Temperature: 60-100°C

1.NOTE

Default configuration includes:

Thread: 1 inch

Rated Voltage: 220V

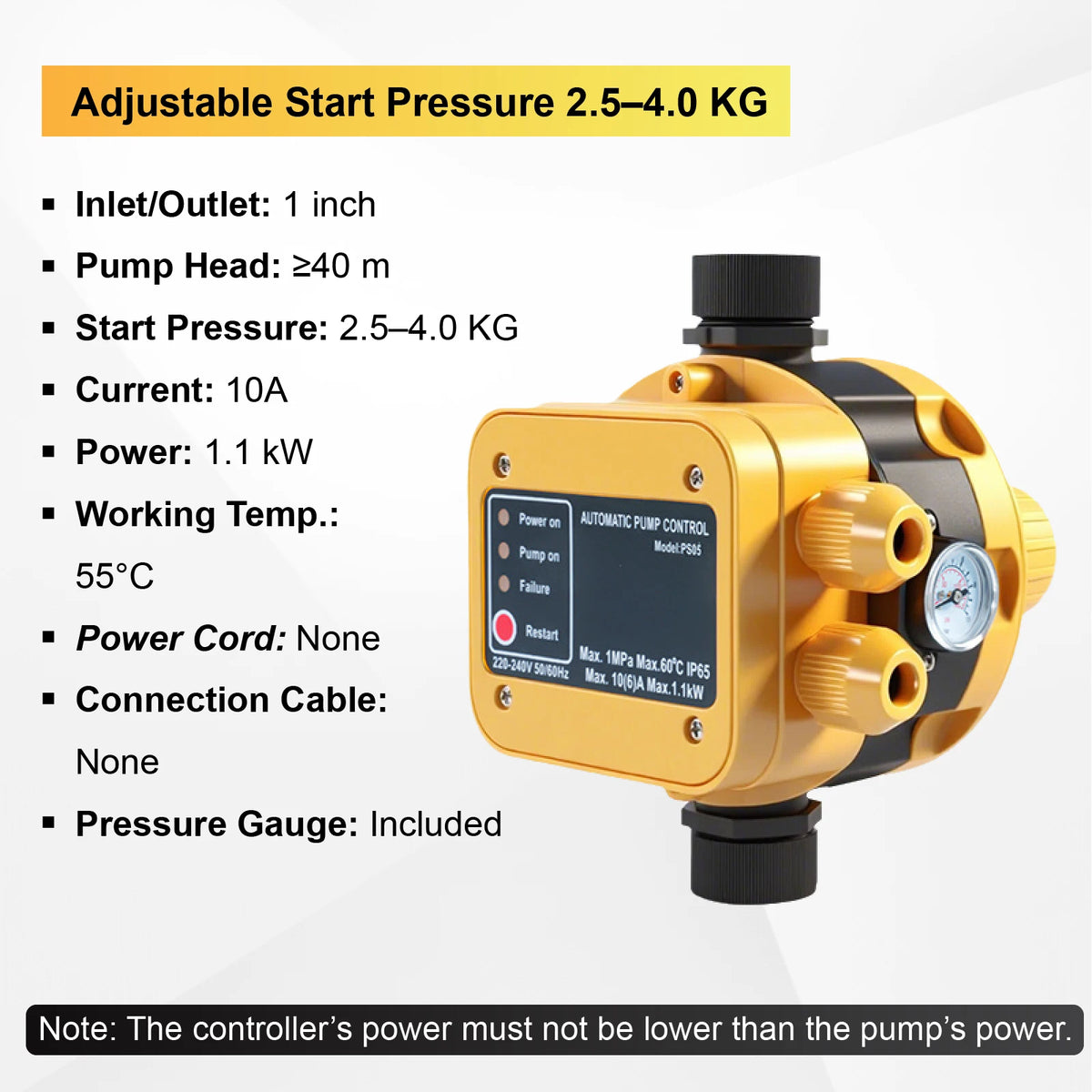

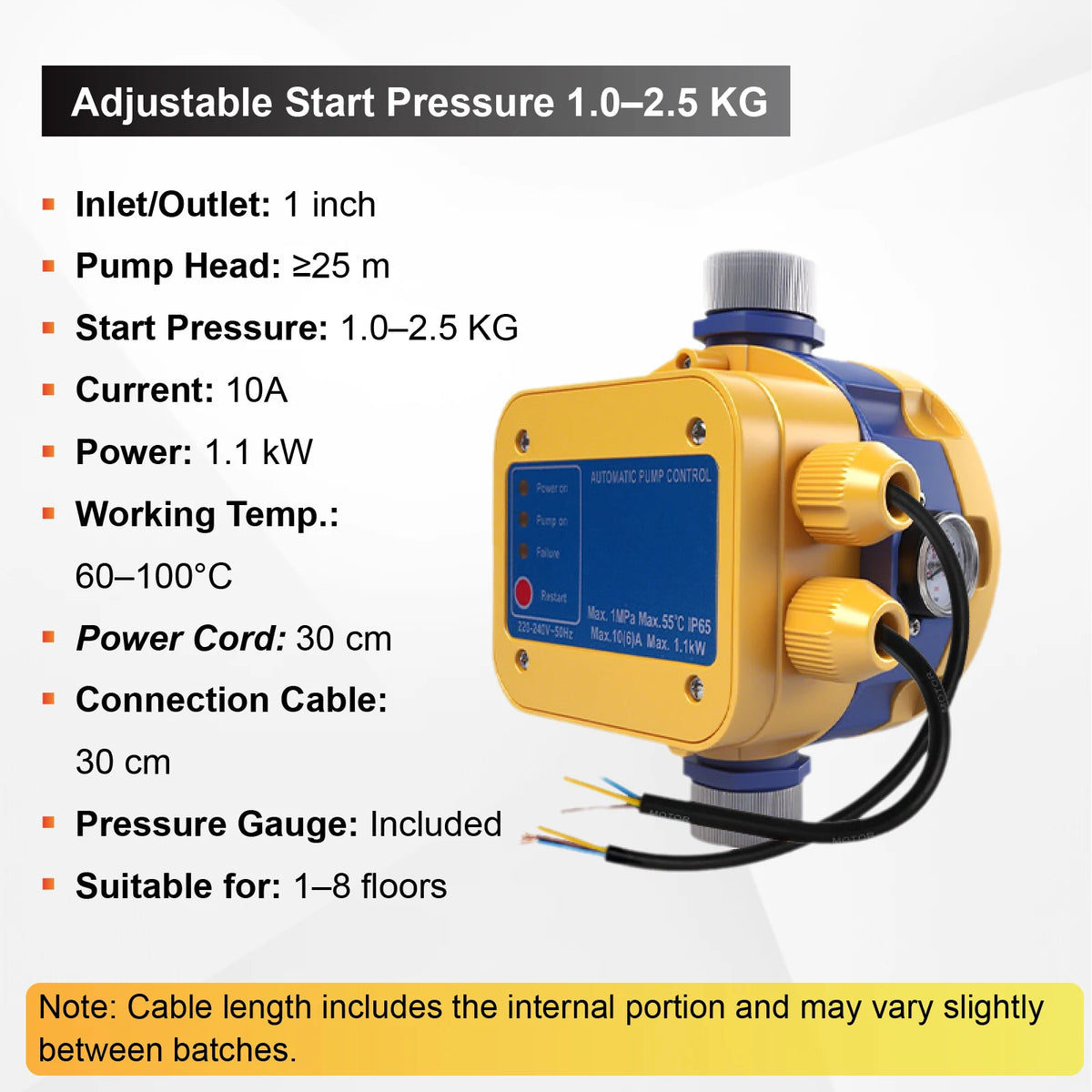

Start Pressure: 1–2.5KG or 2.5–4KG

Working Temperature: 60–100°C

Pump Head: ≥25m or ≥40m

Current: 10A

Power: 1.1KW

Power Cable: Optional

Signal Cable: Optional

Pressure Gauge: Included

Please note:1.Pressure adjustment does not refer to adjusting the stop pressure or water output volume; it refers to adjusting the start pressure or the speed of the start-up time.

2.The controller’s power rating must not be lower than the pump’s power rating.

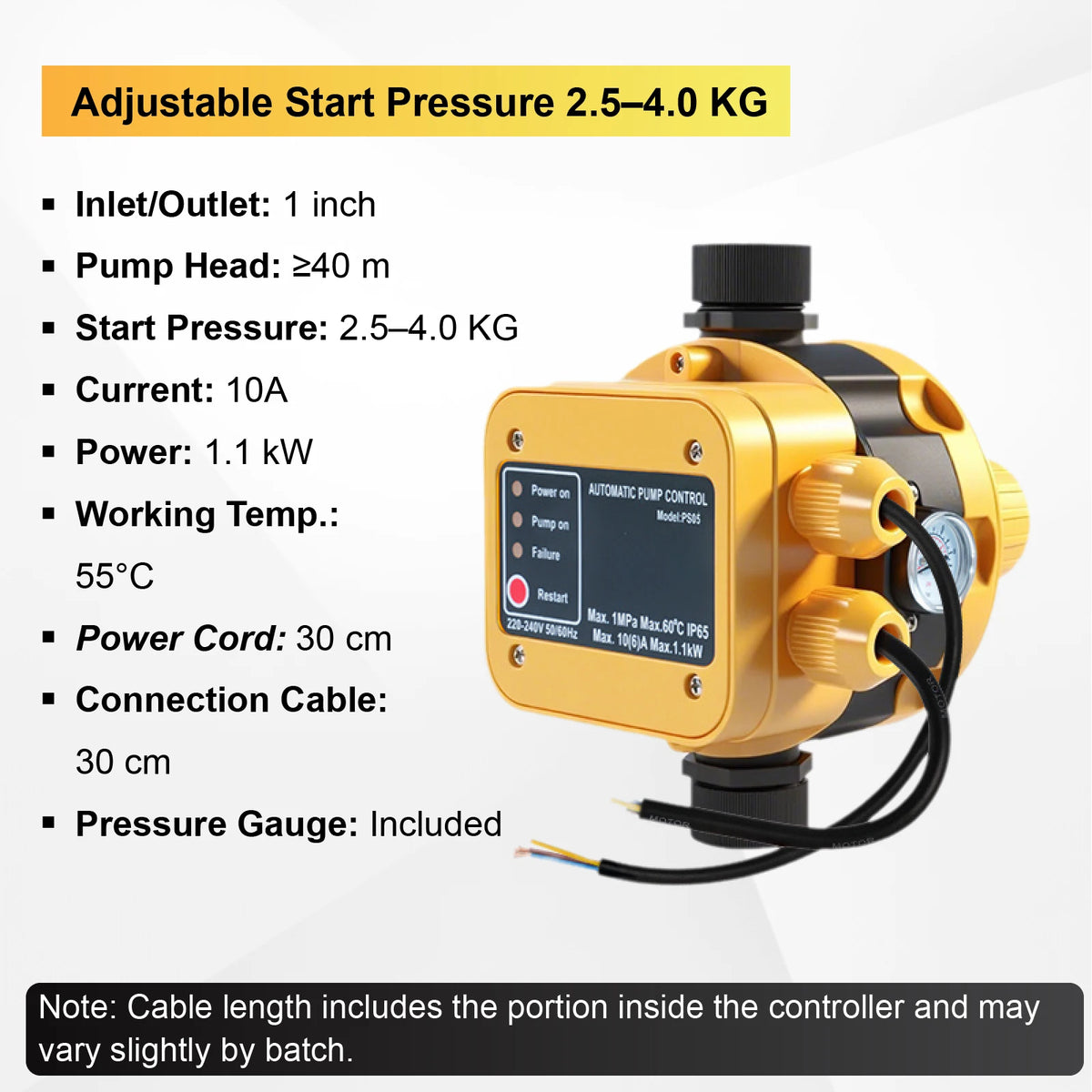

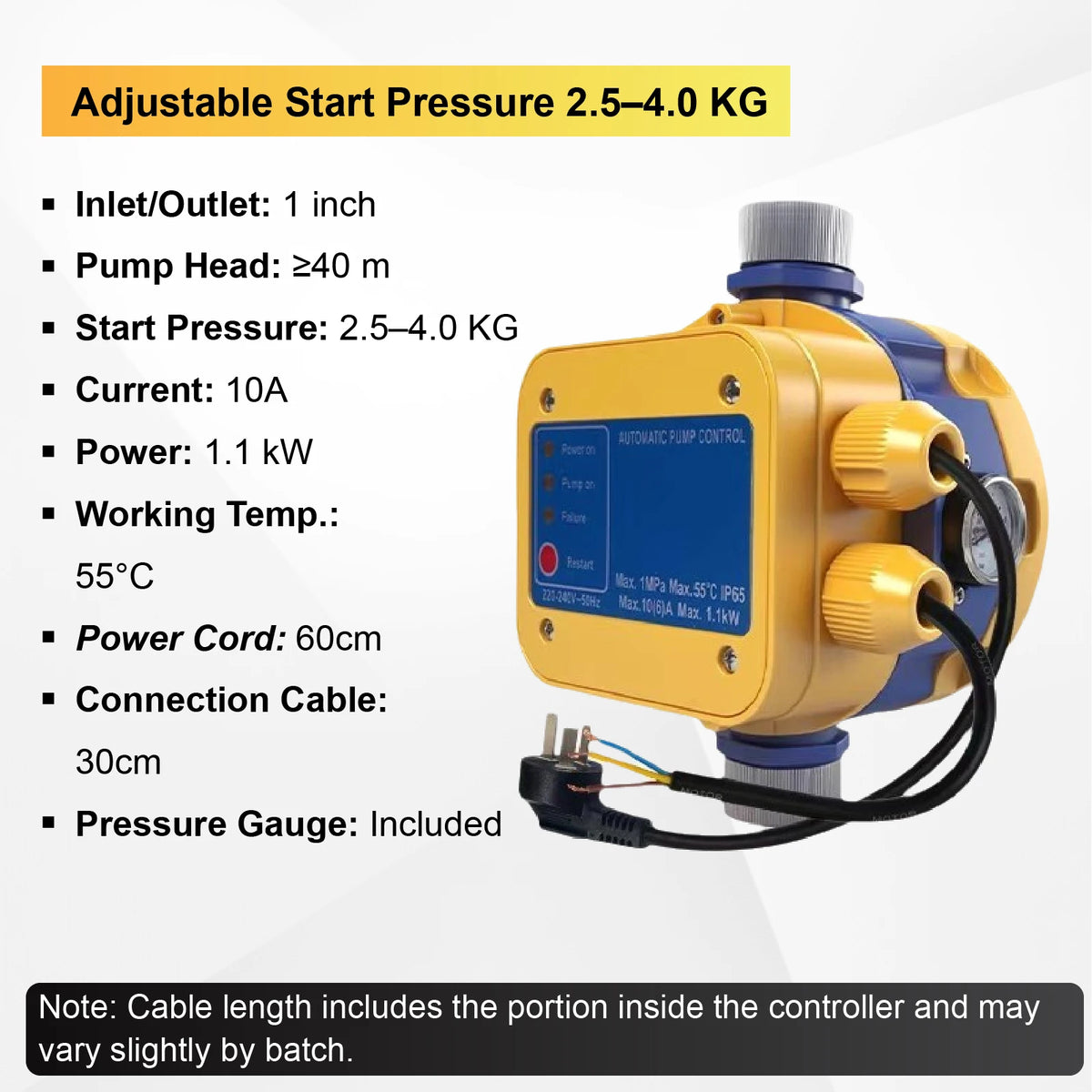

3.The cable length includes the portion inside the controller that is not exposed. The dimensions may vary slightly between batches.

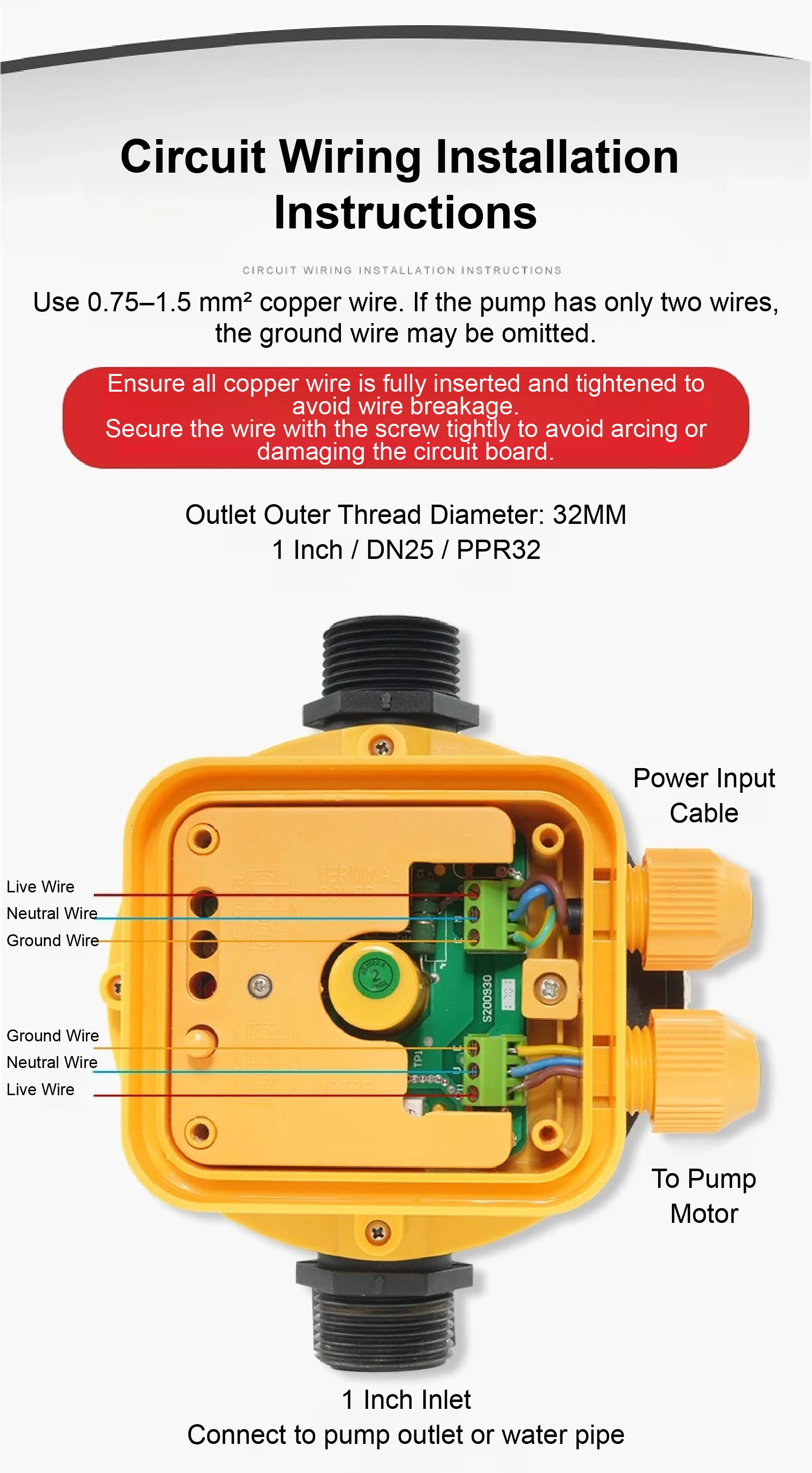

4.For electrical wiring, please use 0.75–1.5 mm² copper wires. If the water pump has only two wires, the ground wire may remain unconnected. ·

Due to page limitations, some parameters may not be fully listed.
For any questions, please contact us.

2. Parameters

3. Features

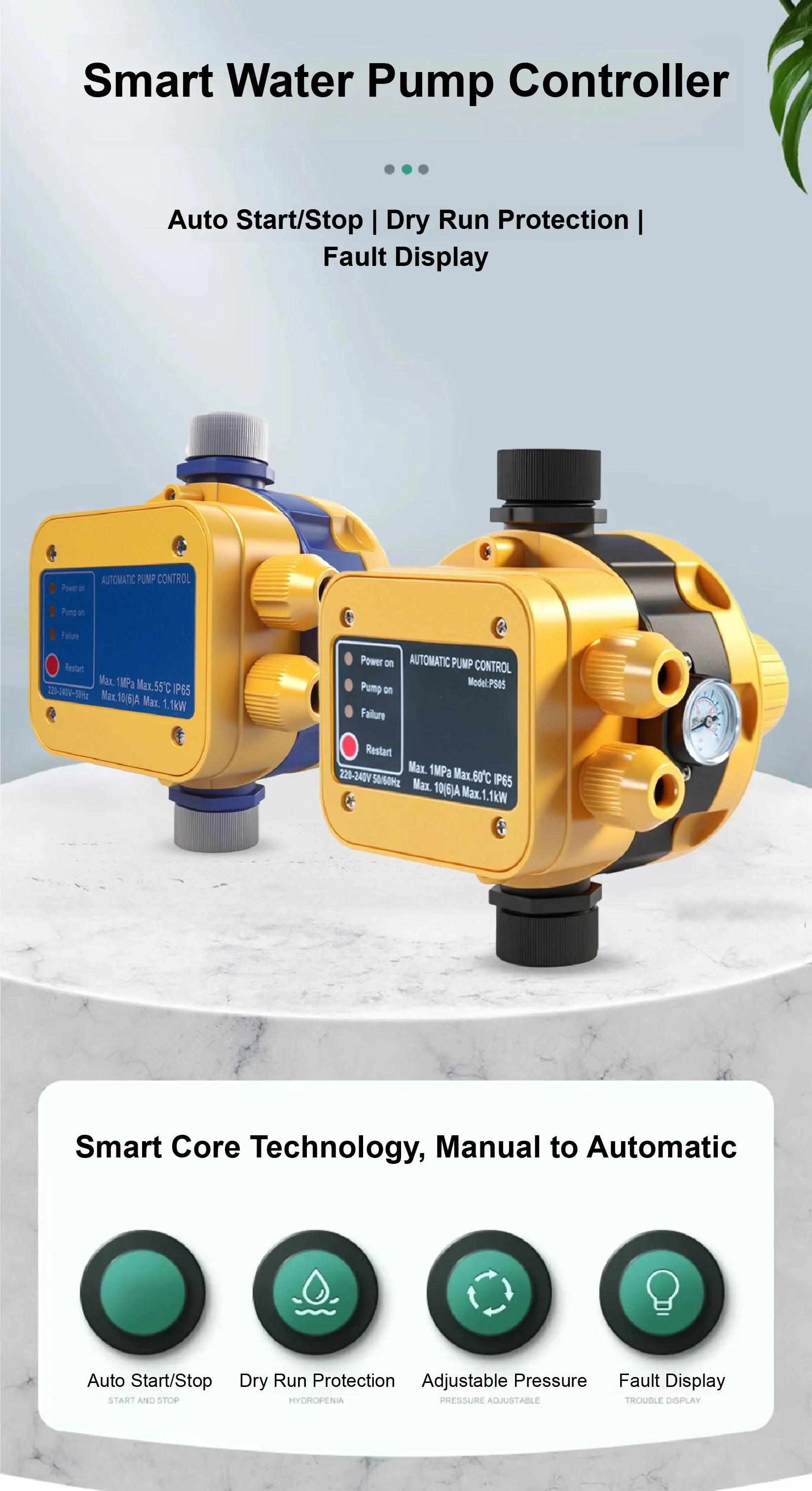

Automatic Start & Stop
Starts and stops the water pump automatically based on pressure detection, providing convenient and efficient water control.

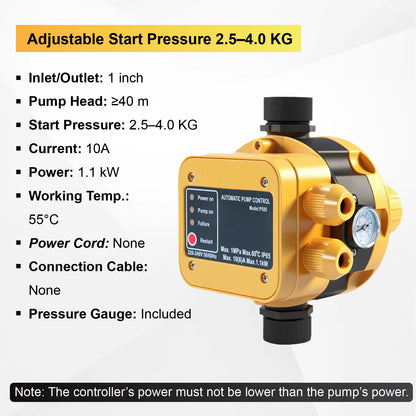

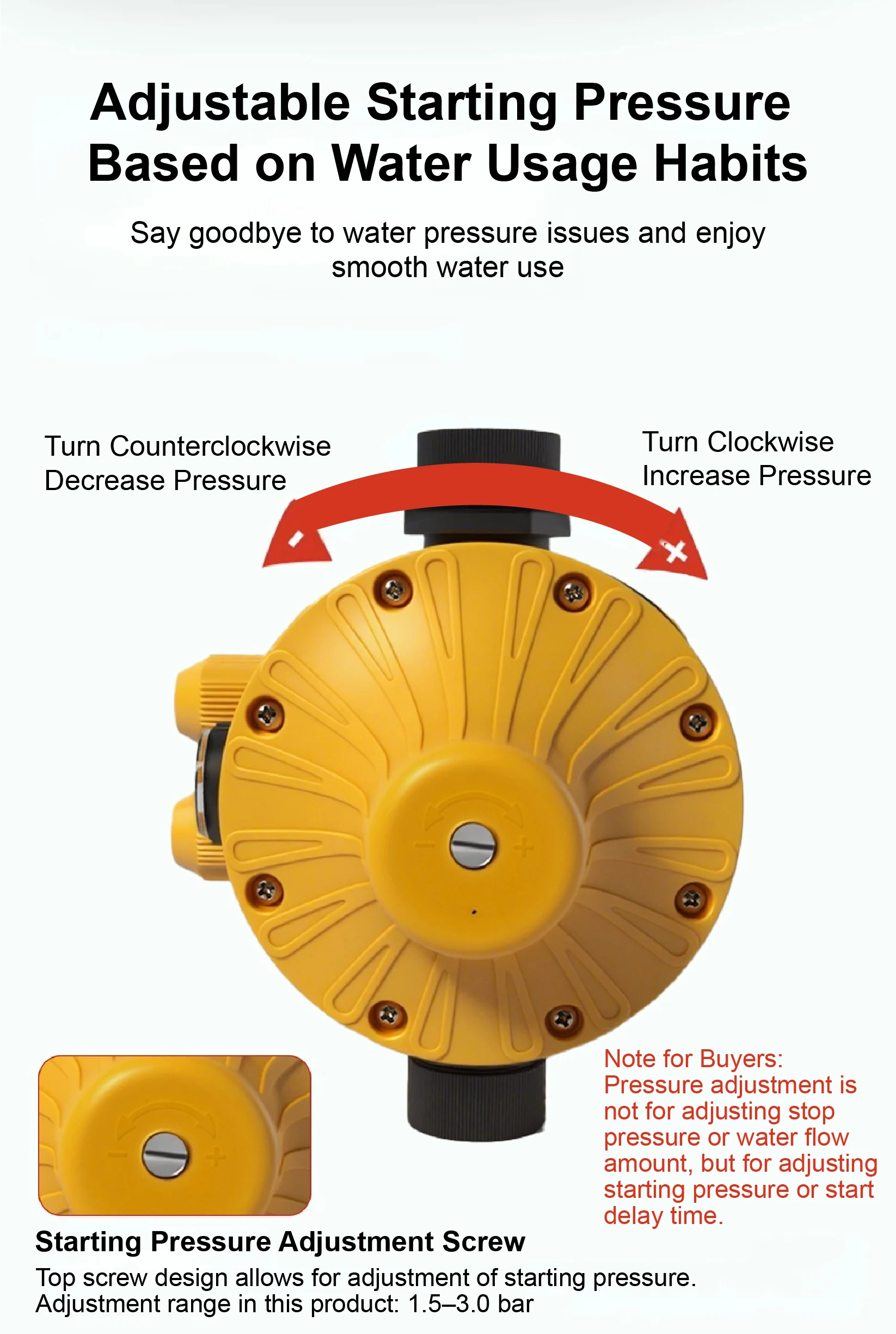

Adjustable Start Pressure
Top-mounted screw design allows you to fine-tune the start pressure from 1.5 to 3.0 bar according to your water usage habits.

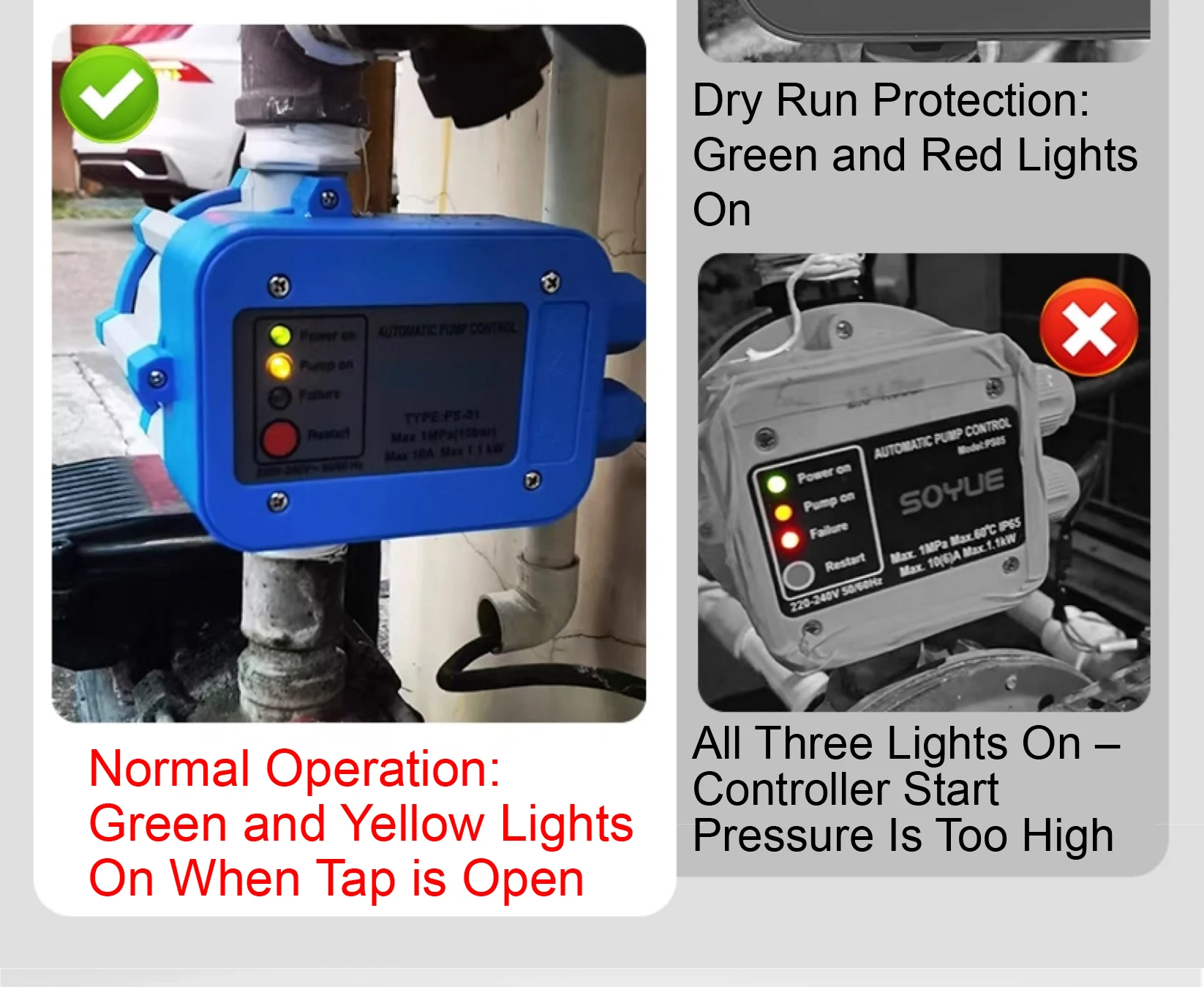

Dry-Run Protection
Automatically shuts off the pump when no water is detected to prevent motor damage and extend pump lifespan.

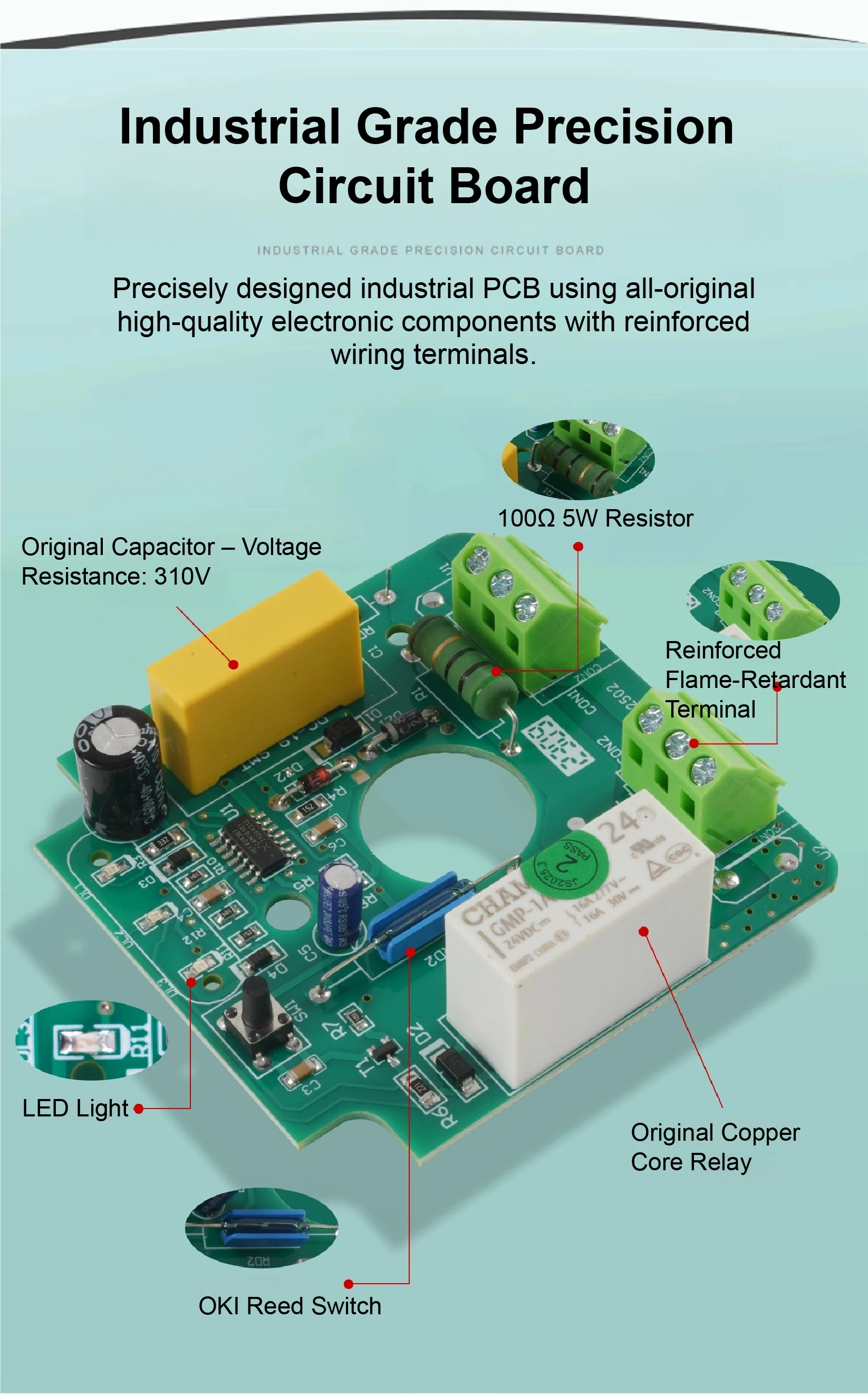

Industrial-Grade Circuit Board
Engineered with high-quality components and reinforced terminals for durability and long service life.

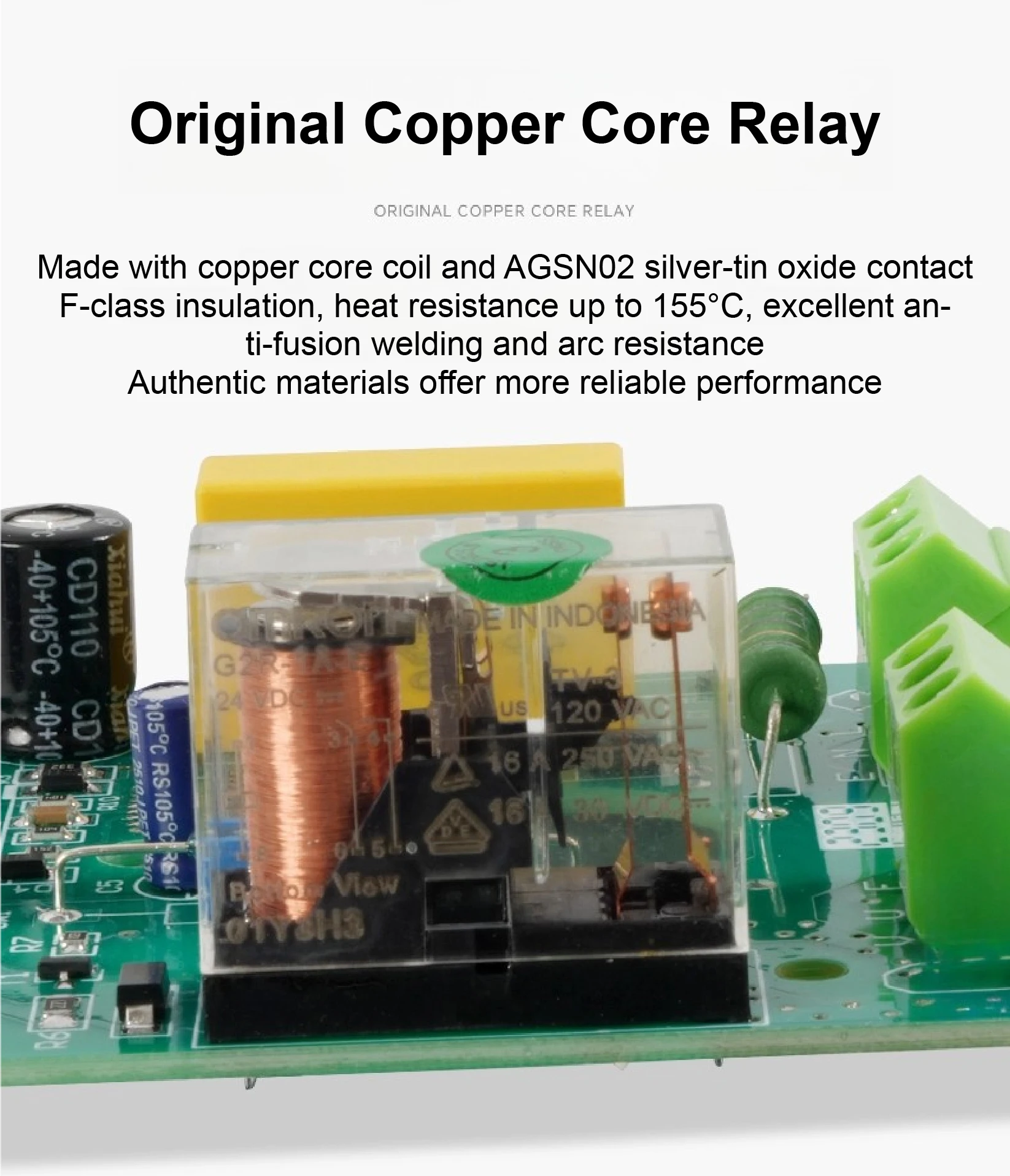

Copper Core Relay with Silver-Oxide Contacts
Features AGSN02 silver-oxide tin contacts, F-class insulation (155°C), excellent arc resistance, and long-lasting performance.

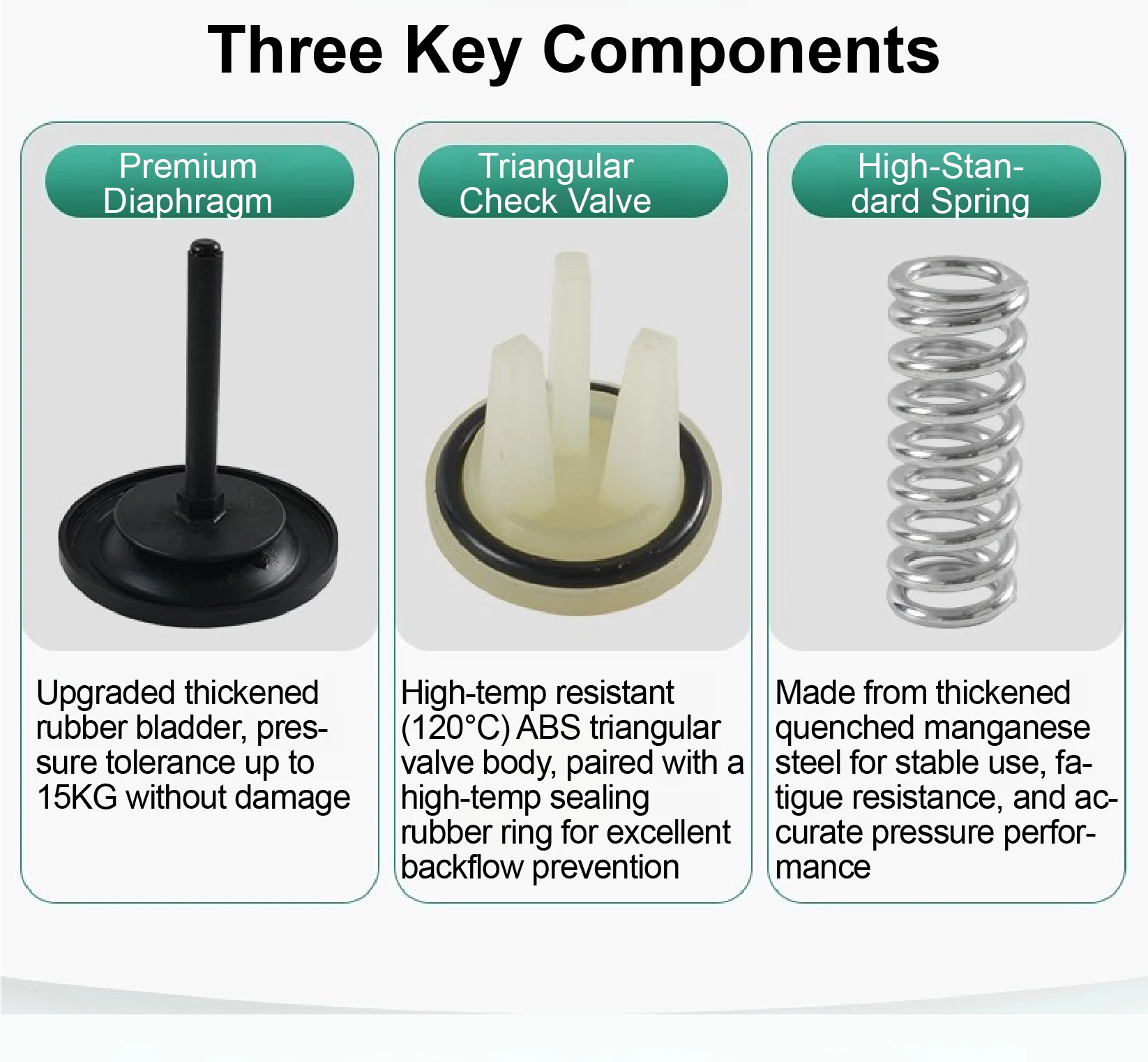

Reinforced Rubber Pressure Bladder
High-strength rubber bladder with pressure tolerance up to 15KG, resistant to rupture and deformation.

High-Temperature ABS Valve Body
Withstands temperatures up to 120°C. Equipped with heat-resistant seals to ensure leak-proof performance.

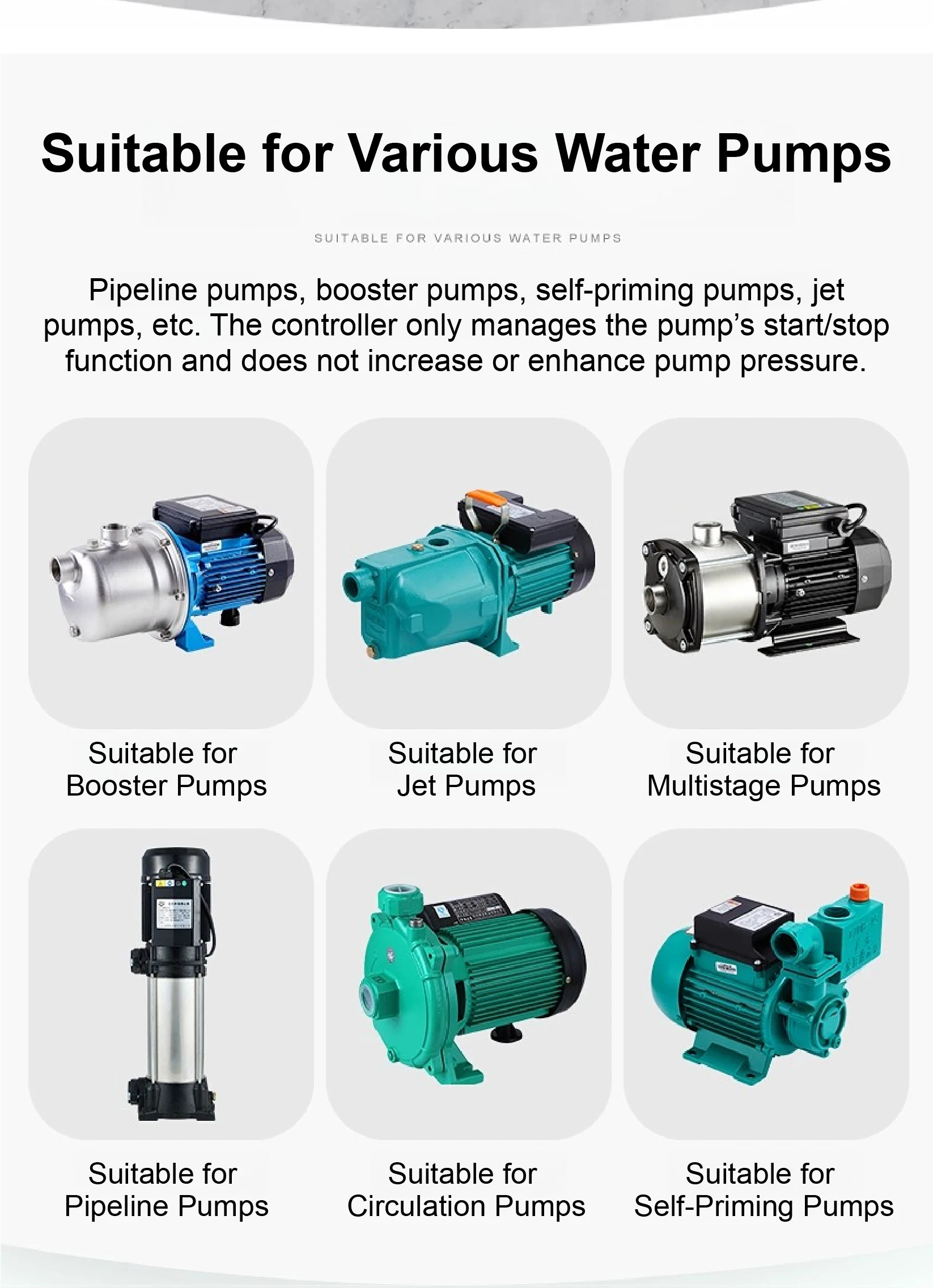

4. Applications

Suitable for a wide range of pumps, including:

Pipe pumps

Booster pumps

Jet pumps

Circulation pumps

Self-priming pumps

Note: This controller only manages start/stop functions. It does not increase the water pump's pressure.

5. FAQs

Q1: Can I use this controller with a 1.5KW water pump?
A1: No. This controller supports pumps up to 1.1KW. For higher power pumps, please use an AC contactor.

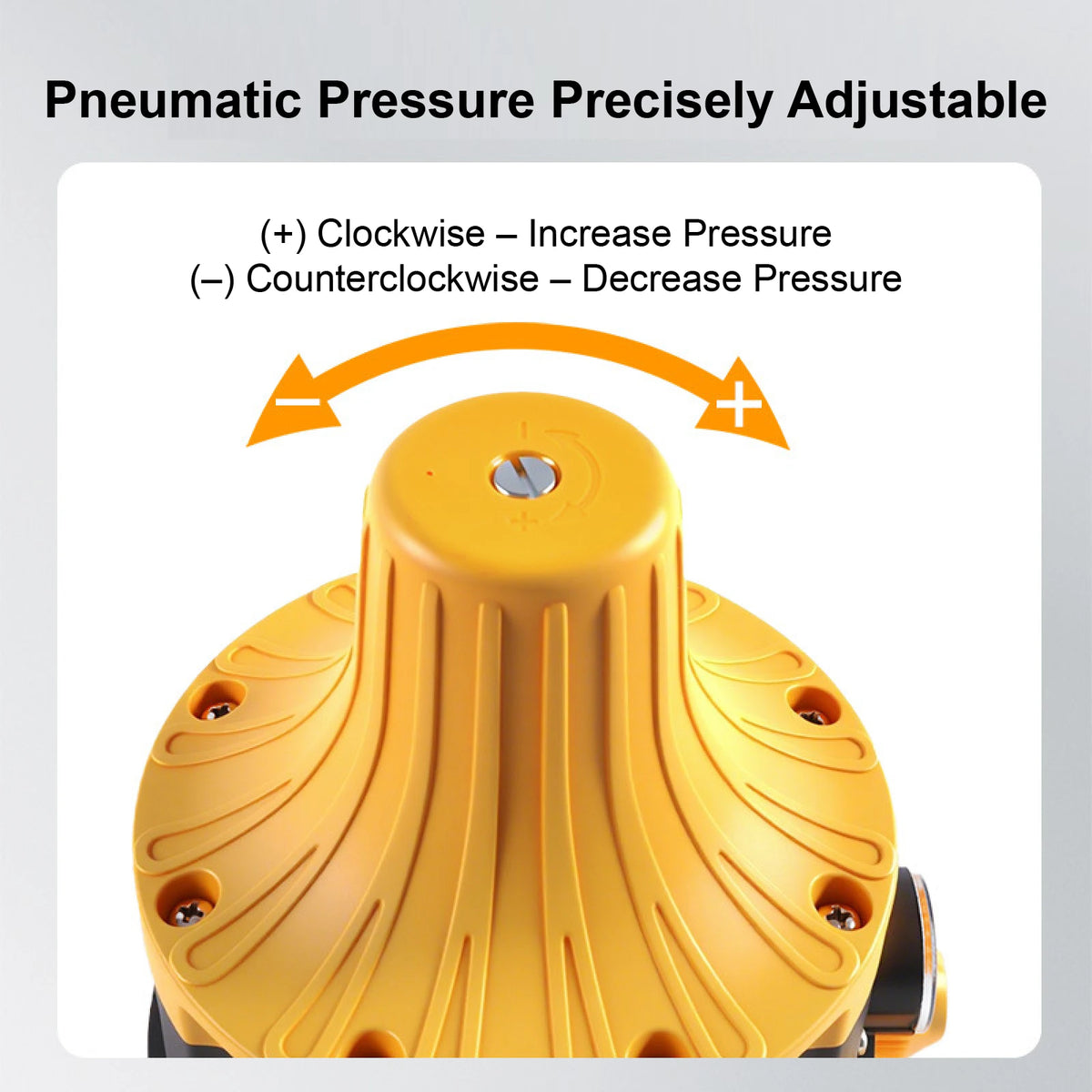

Q2: How do I adjust the start pressure?
A2: Use the screw on the top of the controller to set the pressure between 1.5–3.0 bar based on your requirements.

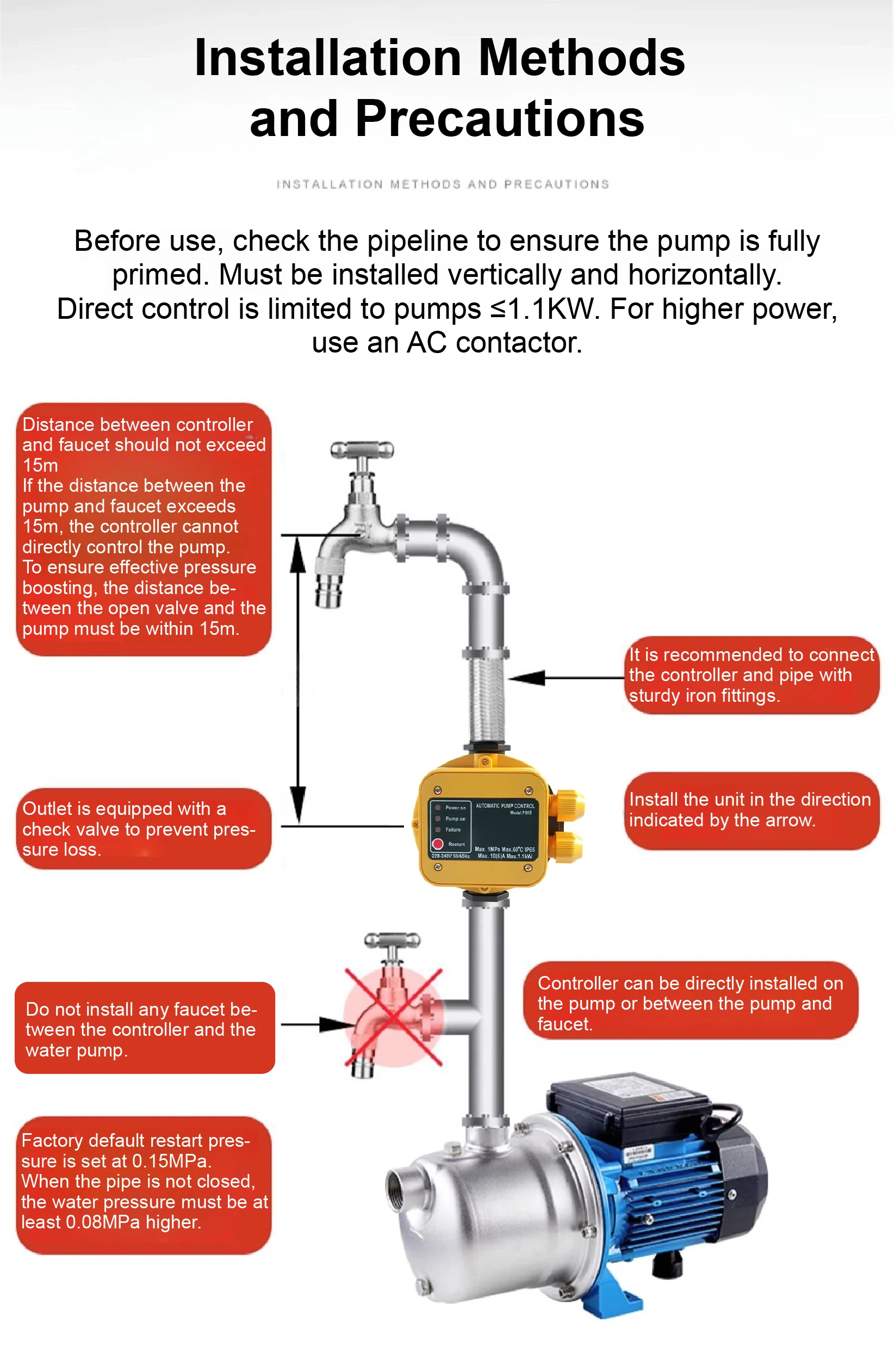

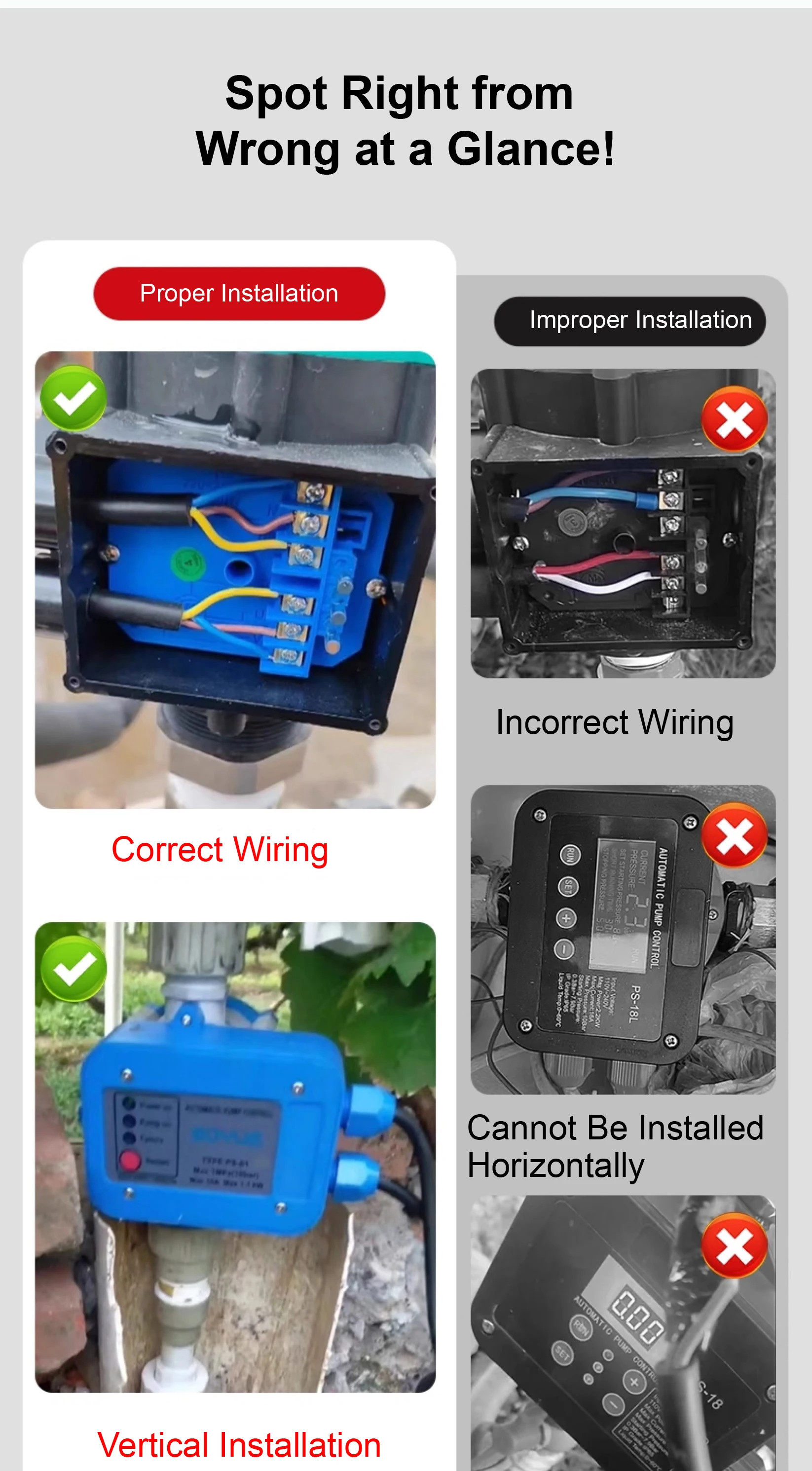

Q3: What type of wire should I use for installation?
A3: Use 0.75–1.5mm² copper wire. Make sure all wires are tightly secured to avoid sparking or circuit board damage.
