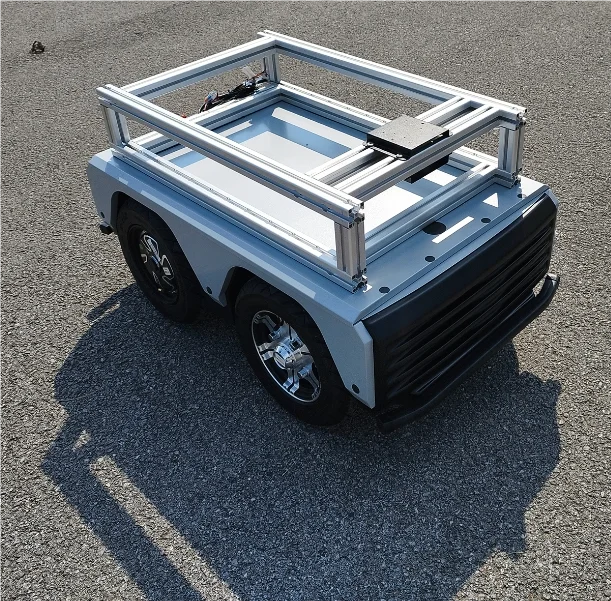

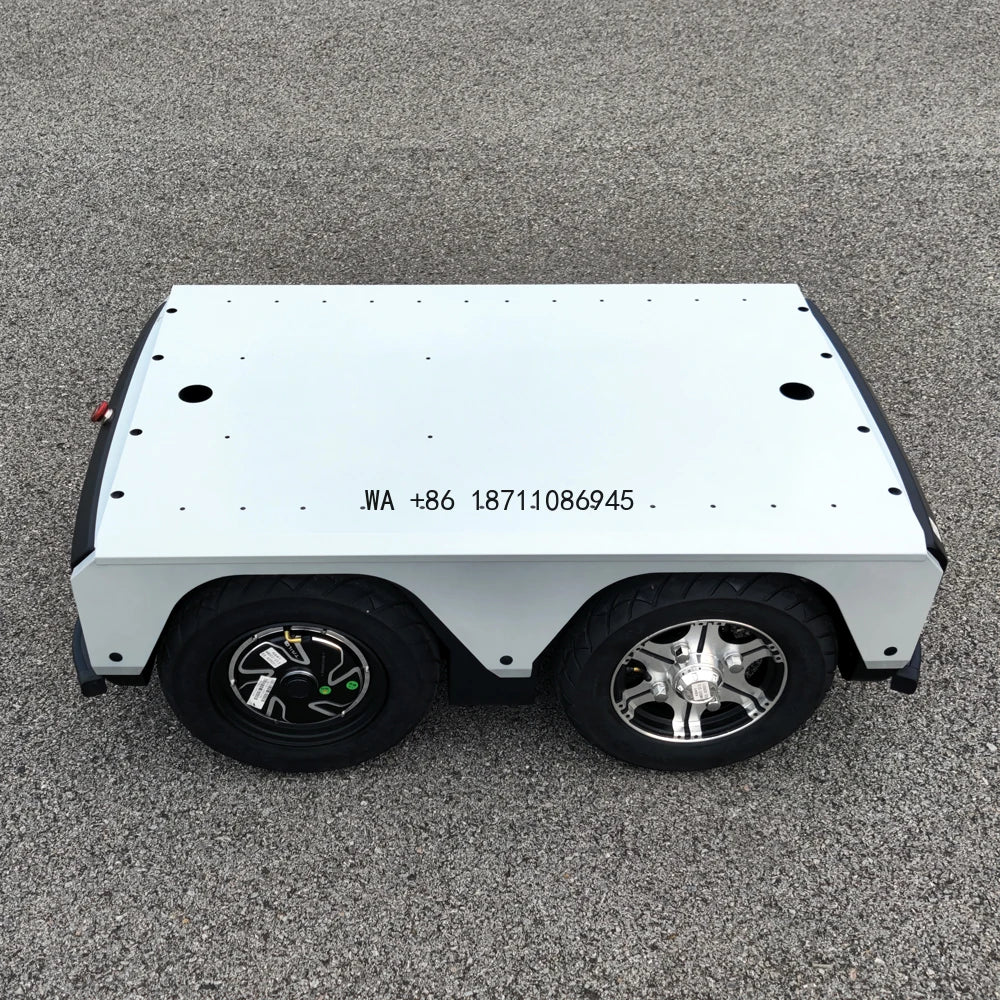

UGV-16 200kg payload Delivery Robot Undercarriage
UGV-16 flatbed vehicle is equipped with a tabletop capable of carrying 200kg on the basis of the chassis. The table top is 1385mm long and 820mm wide. It can be as a workbench, and can also be for the secondary development of industrial transport vehicles.
Unmanned Robot Vehicle :
Lightweight, Modular, Intelligent
High power hub motor:
Hige efficiency, easy control
Rail Level Driver Controller(MCU):
Fast response, Stable and reliable
Rail Level drive-by-wire control system VCU: Read parameters, Intelligent body system
High power hub motor
Hige efficiency, easy control
Rail Level Driver Controller(MCU)
Fast response, Stable and reliable
Rail Level drive-by-wire control system
VCU, Read parameters, Intelligent
Features
1. Independent research and development of vehicle-grade VCU
2. Ackerman steering mechanism. Rack and pinion electric steering system
3. Bilateral hub motor drive
4. Aluminum alloy lightweight frame design, ultra-low chassis flat design
5. Hidden air spring shock absorption, large load
6. Three-level safety anti-collision system to reduce collision safety hazards.
7. High configuration core hardware
8. Two 800W high-power hub motors
9. Rail Level Drive Controller (MCU) control / fast response / stable and reliable
10. Rail-level drive-by-wire chassis control system (VCU)
11. Electronic control logic design more suitable for autonomous driving needs
12. Read parameters, coordinate power output, intelligent body system
13. High-performance hydraulic disc brake system. The braking distance of sudden braking is less than 0.3m
|
No
|
Item
|
Data
|
|
1
|
Dimension
|
1608*800*550mm
|
|
2
|
Payload
|
200kg
|
|
3
|
Weight
|
100kg
|
|
4
|
Body plate size
|
1380*800mm
|
|
5
|
Wheel truck
|
Front 686mm; Rear 692mm
|
|
6
|
Wheelbase
|
900mm
|
|
7
|
Minimum ground clearance
|
132mm
|
|
8
|
Drive mode
|
Front Ackerman steering, rear hub motor drive
|
|
9
|
Brake mode
|
Hydraulic holding brake, anti-cracking brake
|
|
10
|
Front and rear suspension mode
|
Hidden spring shock
|
|
11
|
Speed
|
≤5km/h(50km/h adjustable)
|
|
12
|
Endurance
|
45km(payload 100kg,uniform speed 5km/H)
|
|
13
|
Braking distance
|
10 OR 8KM/H
|
|
14
|
Turning radius
|
2.54m
|
|
15
|
Max. Climbing
|
20°
|
|
16
|
Obstacle clearance height
|
80mm
|
|
17
|
Security
|
Touch stop bar, emergency brake button
|
|
18
|
Motor type
|
In-wheel motor (permanent magnet)
|
|
19
|
Motor Power
|
800W*2
|
|
20
|

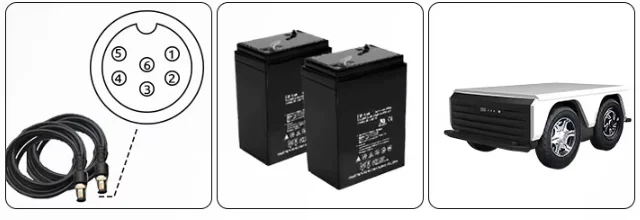

Battery
|
48V,10Ah can customize 20Ah
|
|
21
|
charger
|
AC220V independent charger
|
|
22
|
Charging time
|
6 hours
|
|
23
|
External power supply
|
12V,can customize 5v
|
|
24
|
Protection class
|
IP35, IP66 customizable
|
|
25
|
Communication Interface
|
Open the underlying CAN protocol
|
|
26
|
Move control
|
VCU control
|
|
27
|
Sensor type
|
Steering feedback sensor
Walking wheel speed sensor
Front and rear brake feedback sensors
|

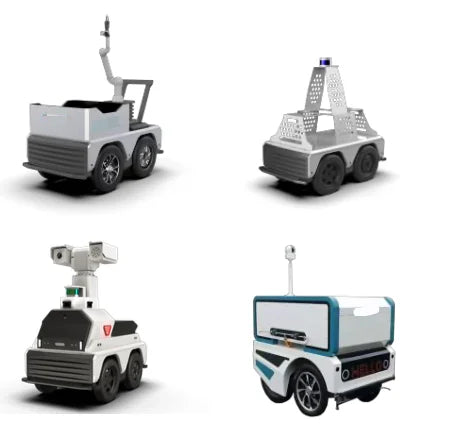

Application
Transport vehicle
Unmanned vending vehicle
Educational robot
Unmanned Food delivery robot
Logistics and distribution robot
Unmanned Transportation vehicl
