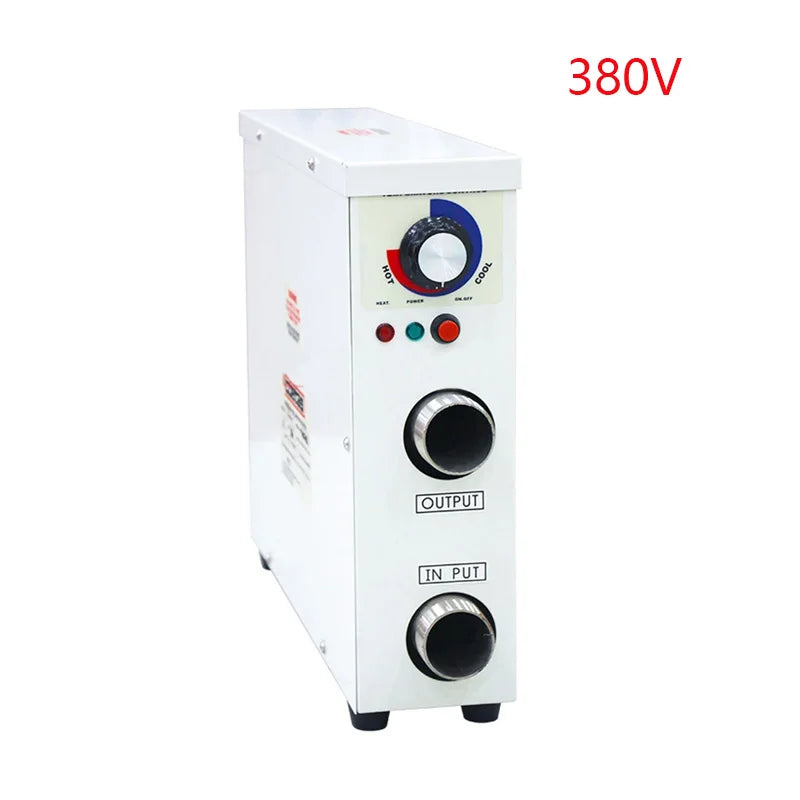

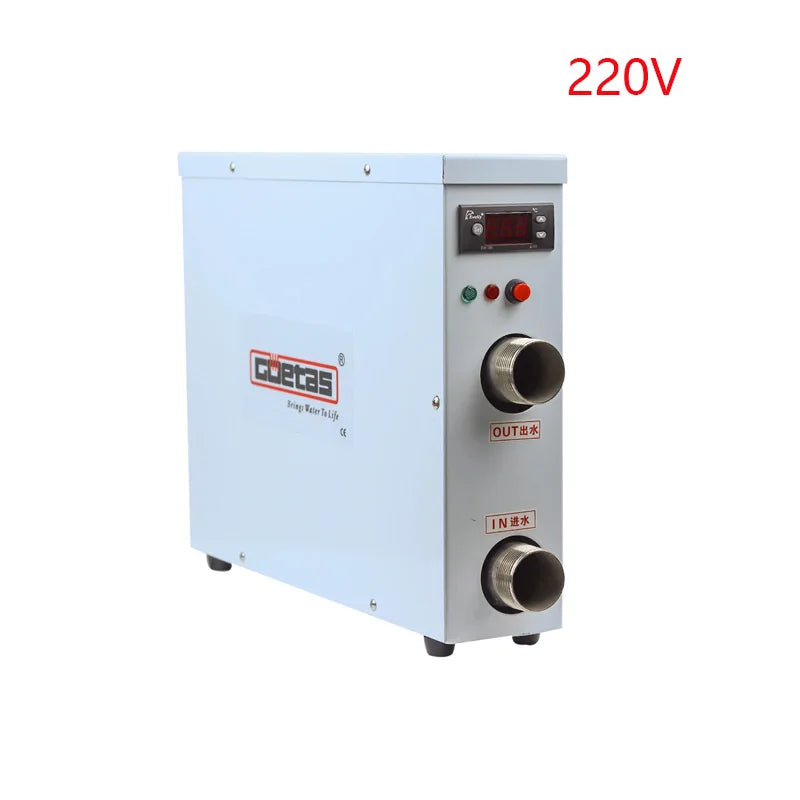

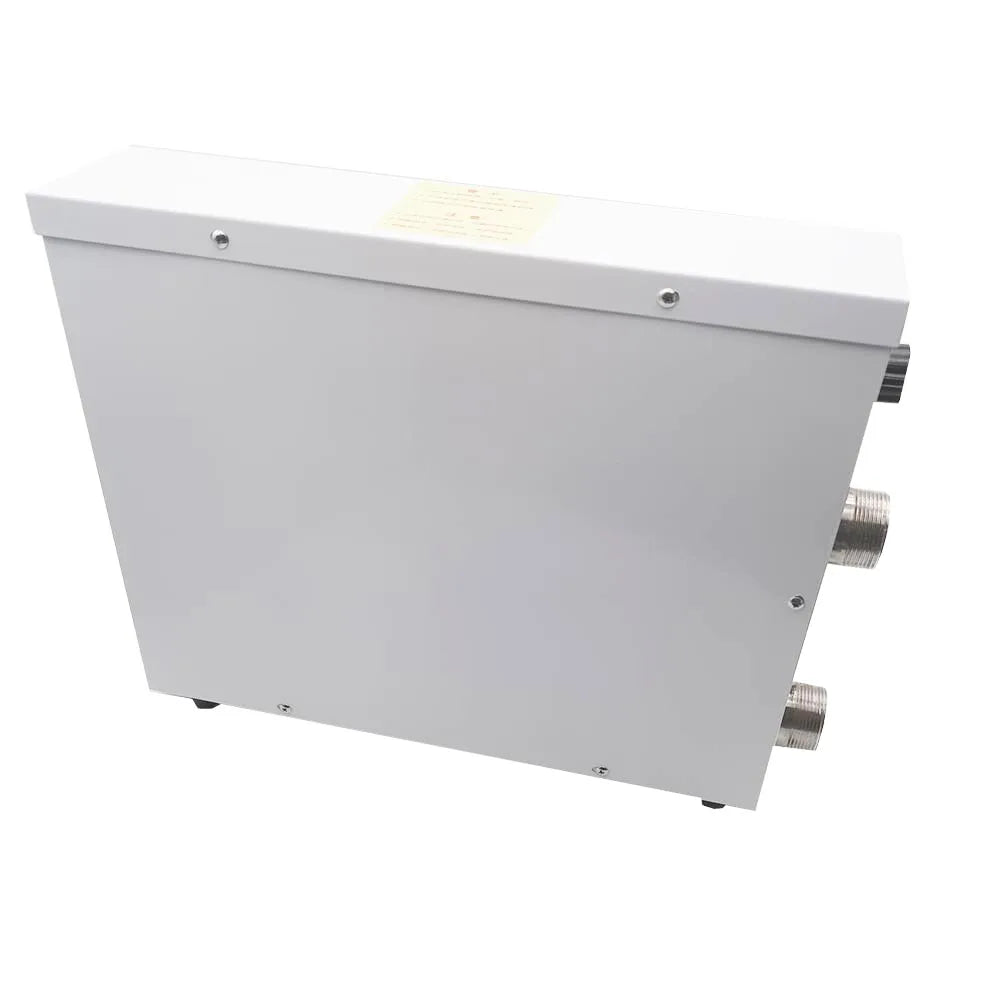

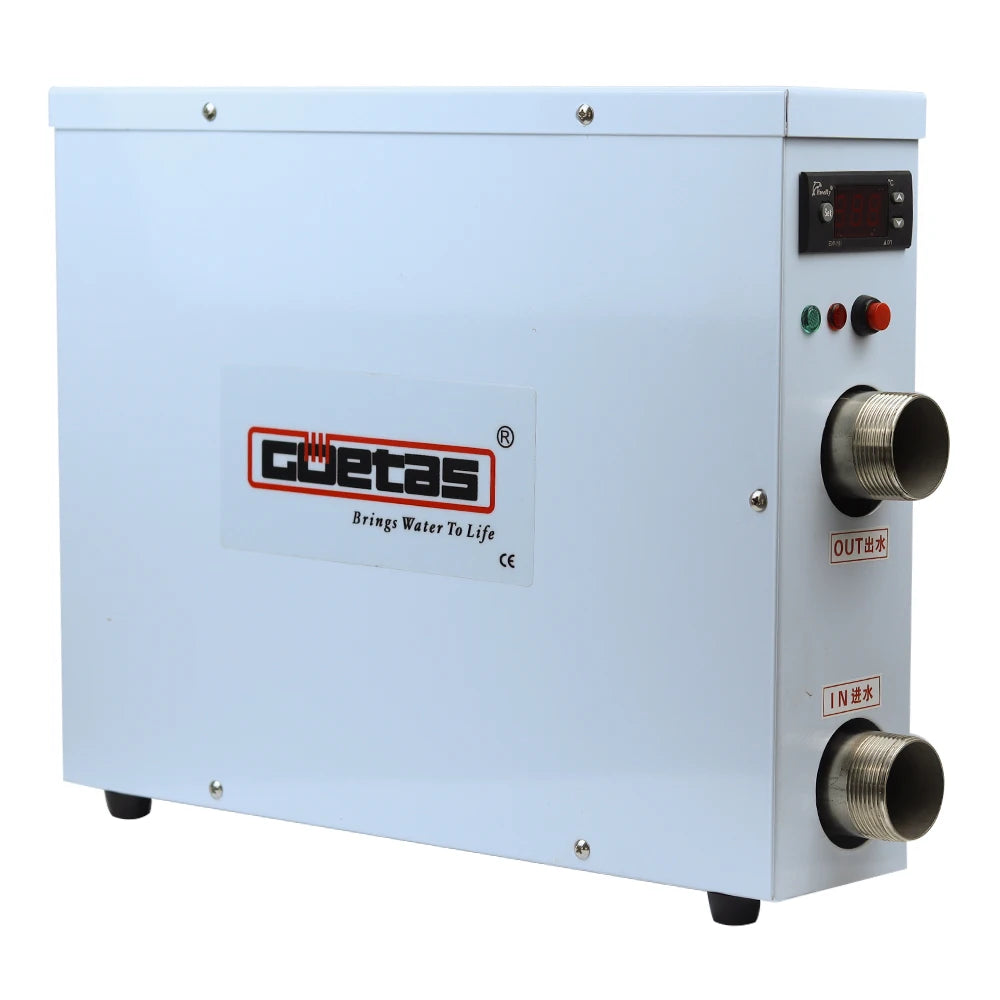

11KW 220V/380V Pool Heat Pump /Electric Water Heater Swimming Pool and SPA Heater

11KW 220V/380V Pool Heat Pump /Electric Water Heater Swimming Pool and SPA Heater

Regular price $667.00 USD
Regular price $0.00 USD Sale price $667.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

SPECIFICATIONS

Brand Name: GLOBALTIDE

DIY Supplies: Electrical

High-concerned chemical: None

Origin: Mainland China

11KW 220V/380V Pool Heat Pump /Electric Water Heater Swimming Pool and SPA Heater


Important Notice:
This product is made-to-order. Production begins after your order is placed. Delivery time may be longer than in-stock items. Please confirm you can accept the lead time before placing your order.
Due to the custom nature of this product, returns or refunds for non-quality-related issues (including production time or delivery delays) are not accepted under the "change of mind" policy. We appreciate your understanding and support.

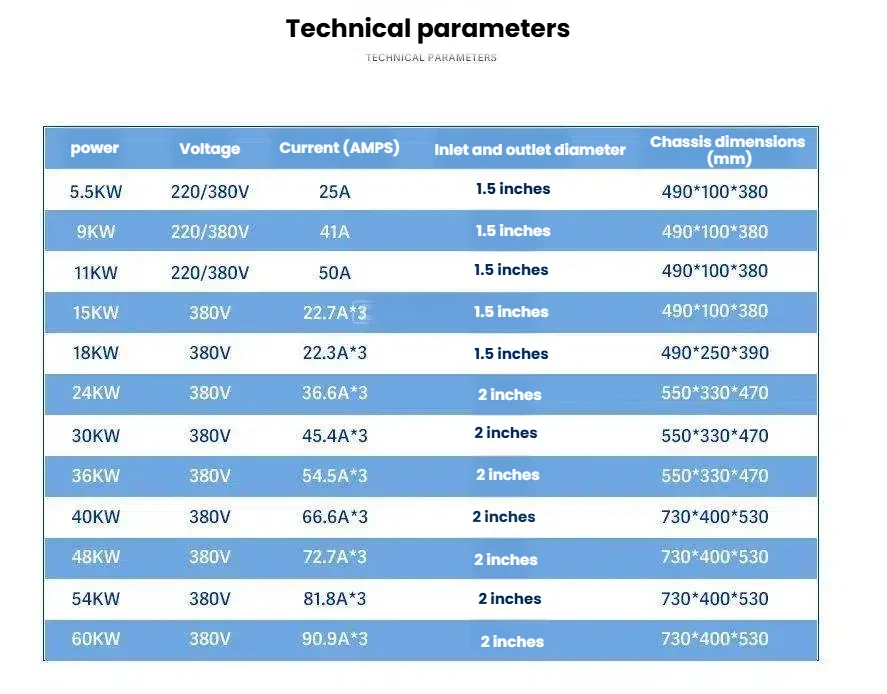

5.5kw-15kw: 1.5 inch water inlet and outlet external interface

Precautions:

The thermostat needs to be used with a pump of the corresponding size
If the pump does not match the thermostat, the flow rate is too small, and the heating pipe will dry out and cause damage.
"5.5kw-15kw" thermostat matches the pump flow rate "5 cubic meters per hour" or more
"18kw-36kw" thermostat matching pump flow rate "10 cubic meters per hour" or more
"40kw-60kw" thermostat matches pump flow rate "15 cubic meters per hour" or more

The thermostat is recommended to use with "circulating water pump"
1. Operation sequence: turn on the water pump first, then turn on the thermostat. When shutting down, turn off the thermostat first, wait for a while (depending on the power of the thermostat, ranging from 10 seconds to 1 minute), and then turn off the water pump.
2. Reliable leakage protection equipment must be installed, it must be installed and debugged by a certified electrician, and checked and maintained monthly.
3. machine one year warranty, The heating tube is a consumable part, and the warranty is three months.
4.The effect of auxiliary heating is better. Direct heating requires the use of more powerful machines.
5.The matching water pump below 11Kw must have a power of not less than 750W and a flow rate of not less than 13 cubic hours per hour.
The supporting water pump above 11Kw, the power shall not be lower than 1.1KW, and the flow shall not be lower than 18 cubic meters per hour.
