SPECIFICATIONS

Appearance Material: Steel Plate

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other, Garment Shops

Application: Industrial Filed Conveying Goods

Brand: KCICRANES

Brand Name: NONE,KCICRANES

Communication: CAN/RS232/RS485/IO/WIFI

Condition: New

Core Components: PLC, Engine, Gearbox, motor

Key Words: Trackless Transfer Cart

Machinery Test Report: Provided, Provided

Marketing Type: Ordinary Product

Moving Speed: 0.9m/s or Customized

Obstacle Avoidance: Ultrasonic Sensor and Bump Sensor

Origin: Mainland China

PayLoad: 0-120t Customized

Place of Origin: Henan, China

Showroom Location: None

Type: Electric

Video outgoing-inspection: Provided

Warranty: 1 Year

Warranty of core components: 1 Year

Weight (KG): 68

is_customized: Yes

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 15073875169 or maoyishunda@gmail.com



Customzied Heavy Steel Maker Manufacturing Using Transfer Vehicle Electric Transfer Cart

Our company specializes in manufacturing electric trackless transfer carts, designed to efficiently transport heavy loads within industrial facilities. These carts are equipped with electric motors for smooth and silent operation, ideal for use in warehouses, production lines, and assembly plants. With a sturdy construction and advanced control system, our electric trackless transfer carts ensure reliable and safe transportation of materials, improving productivity and workflow efficiency in your operations.

Whether you need to transport materials within your factory or warehouse, our heavy-duty electric trackless transfer carts are the perfect solution to streamline your logistics processes. Contact us today to learn more about our products and how they can benefit your business.



Intelligent Trackless Electric Flatbed Transfer Cart



 ● Load Capacity: 1-200T (customizable)



 ● Table Size: 4000*2000 mm (customizable)

 ● Power Supply Mode: battery/lithium battery/cable power supply

 ● Mode of Operation: automation/plc

 ● Control Running Speed: 20-30m/'min



 ● Full Load Running Time: 6 hours

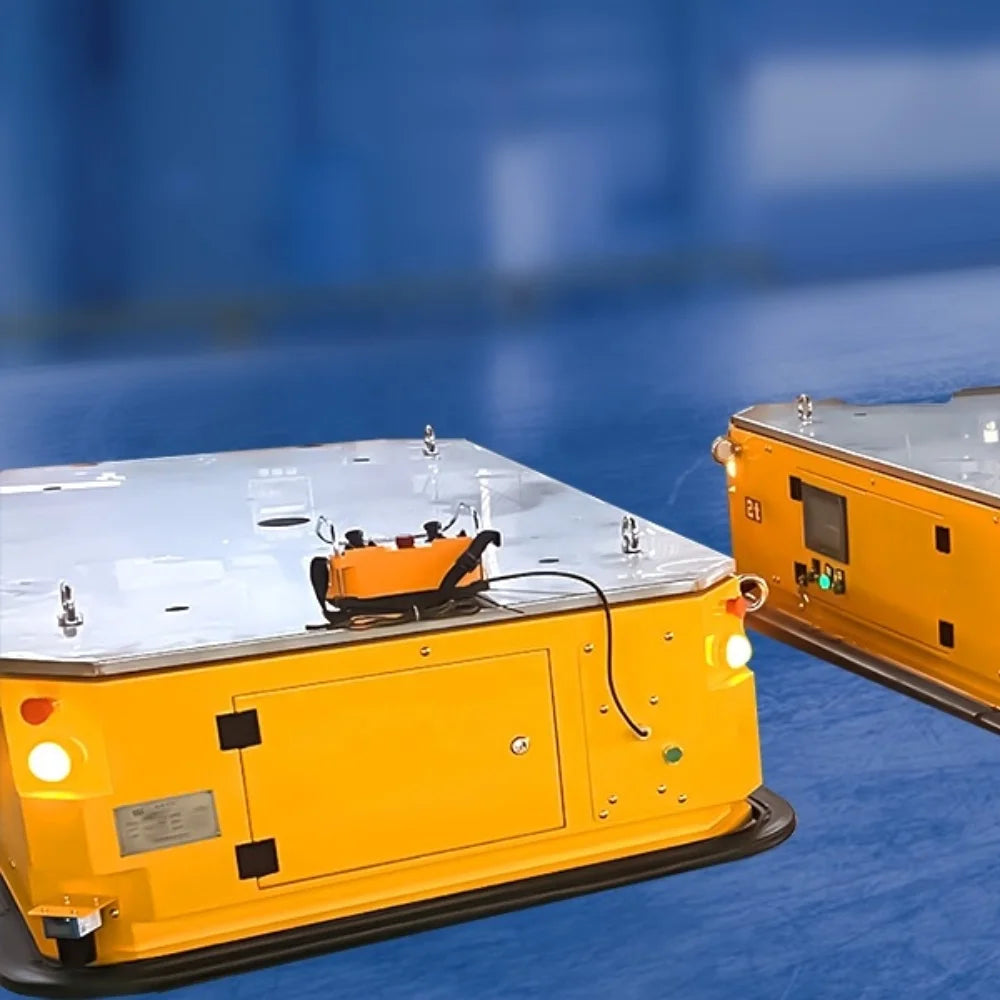

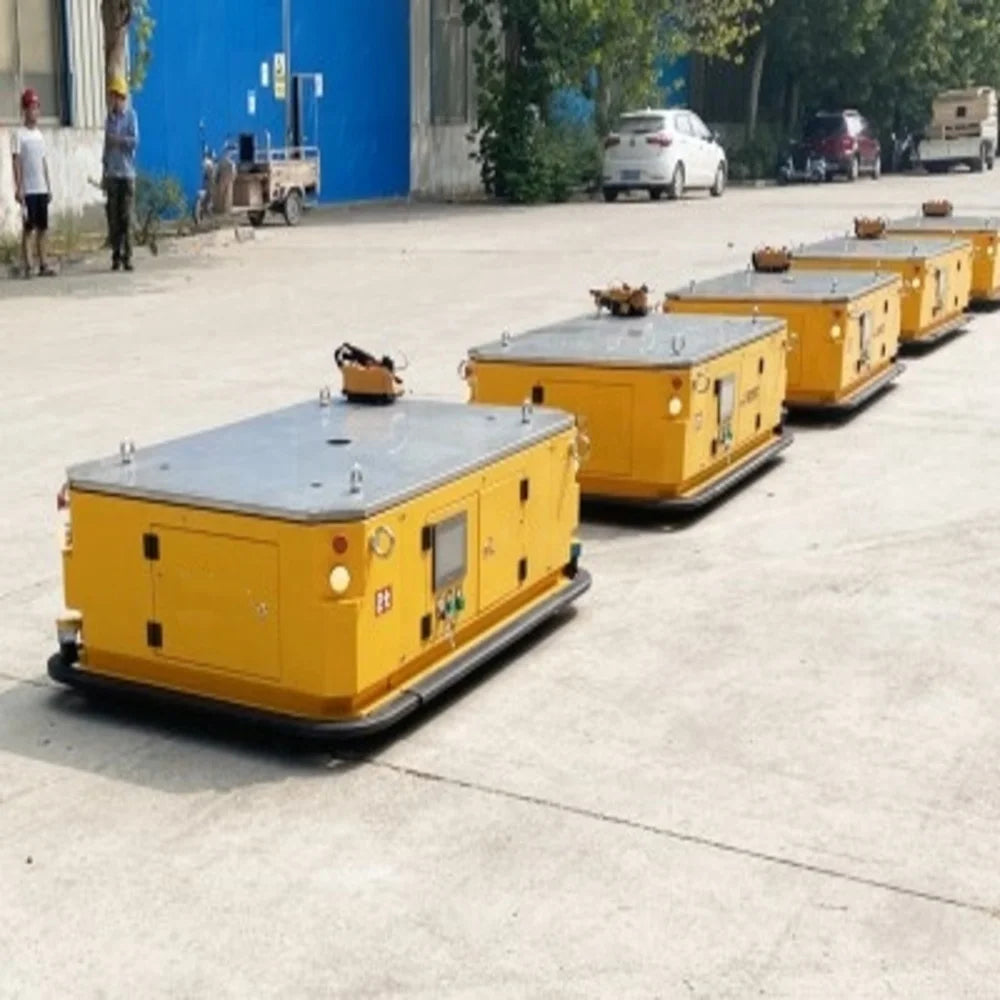

Tracked or Trackless 20 Tons Heavy Duty RGV



● Load Capacity: 20t ● Countertop Size: 4500*2200 (Can Be Customized) ● Power Supply Mode: Battery Battrey (Lithium Battery) ● Mode of Operation: Automated Navigation ● Running Speed: 20-30m/Min (Adjustable Speed) ● Full Load Running Time: 24h

Advantages:

The heavy-duty RGV (20-ton) has been equipped with a wireless communication control system on its vehicle body to interact with workshop sensors and the ground control station. This system enables the RGV to stop precisely at a fixed position with an impressive positioning accuracy of 5-10 mm. When it comes to automated transfer vehicles, they are available in two types: tracked and trackless. Additionally, these vehicles can utilize various guidance methods based on specific usage requirements.

Product Paramenters

Capacity (t)	5	10	15	20	30	40	50
Maximum Impact Load (t)	7.5	15	22.5	30	45	60	75
Chassis Structure	Steel plate welded beam structure
Steel Plate Thickness	8	10	12	14	14	16	16
Gross Vehicle Weight (t)	4.3	5.3	6.6	7.9	8.8	10	10.5
Maximum Wheel Pressure(t)	2.8	4.6	4.3	5.6	7.7	10	12
Ground Requirements	Concrete floor     Steel plate floor
Overall Dimensions (mm)	3000X2000	3600X2000	4000X2200	4500X2200	5000X2200	5500X2300	6000X2300
Vehicle Height (mm)	450	530	600	600	650	700	700
Ground Clearance (mm)	50
Wheelbase (mm)	1500					1700			1800
Wheelbase (mm)	2500	3100	3400	3900	4300	4800	5200
Turning Radius (mm)	2501	3101	3401	3901	4301	1801	5201
Turning Method	Seamless edge walking and turning							3101	3401	3901	4301	1801	5201
Turning Electronic Control Method	Electrical button control
Steering Mechanism	Mechanical operation
Motor Power (Kw)	3.5	5	6	7	10	12	15
Wheel Diameter (mm)	300(4)	350(4)			400(4)	400(6)	500(6)
Wheel Material	ZG55+
Travel Speed (m/min)	0-15							0-12
Braking Method	Electromagnetic brake
Ground Leveling Adjustment	Mechanical automatic adjustment
Remote Control Operation Method	Wired + wireless connectivity
Customized on demand, parameters are for reference only

FUNCTIONAL CUSTOMIZATION
1	Variable Frequency Start-up	12	Side Tipping Resistance

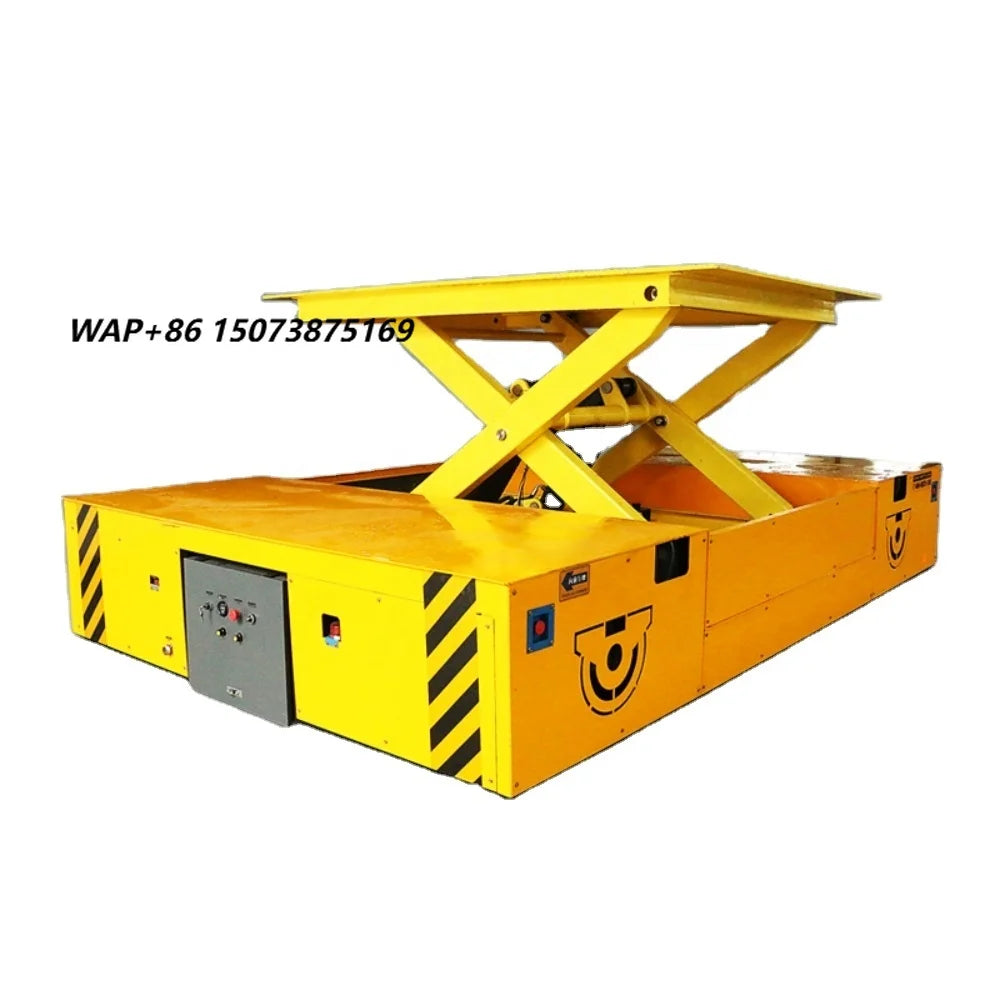

2	Lifting Function	13	Positioning Accuracy
3	Point-to-Point Docking	14	Scanning Radar
4	Tabletop Precision	15	Load-bearing Capacity
5	Wireless Communication	16	Automatic Balancing
6	Anti-tipping Feature	17	Curve Negotiation
7	Climbing Capability	18	Roller Stand
8	Aisle Accessibility	19	Ultra-low Platform
9	Roller Track	20	Cable Arranger
10	Waterproof Treatment	21	Joystick Wireless Remote Control
11	Explosion-proof Environment	22	Tailored Accessories for Your Production Needs

Appilications

Applications:

5S workshop, automotive mold, material transfer, aerospace equipment workshop, air-conditioning workshop, casting mold workshop , etc



Applicable Materials:

Steel coils, aluminum coils, galvanized coils, transformers, cable reels, castings, motors, containers, carriages, pressure vessels, etc
